Help Center2014 High Quality PP PE Film Recyling Line
Related Products
-
Agricutural Film Crushing and Washing LineUS$ 63,000 - 64,000MOQ: 1 Set -
2014 High Quality Agricutural Film Washing and Crushing LineUS$ 63,000 - 64,000MOQ: 1 Set
-
High Effective PP PE Film Recyling LineUS$ 63,000 - 64,000MOQ: 1 Set
-
High Effective Agricutural Film Wasing and Crushing LineUS$ 63,000 - 64,000MOQ: 1 Set
-
High Effective Film Recyling LineUS$ 63,000 - 64,000MOQ: 1 Set
Specifications
plastic film washing equipment1.advanced technology
2.low cost
3.high capacity
- The whole line consists of following parts:
Series |
Equipment Name |
Qty |
A |
Belt Conveyer |
One set |
B |
Crusher with Water |
One set |
C |
Screw Conveyer
|
One set |
D |
High Speed Friction Washer |
One set |
E |
Screw Conveyer |
One set |
F |
Washing Tank |
One set |
G |
Screw Conveyer |
One set |
H |
High Speed Frictiion Washer |
One set |
I |
Screw Conveyer |
One set |
J |
Screw Press Dryer |
One set |
K |
Belt Conveyer |
One set |
L |
Electric Control Box |
One set |
M |
Total Price: USD 64,000.00 FOB SHANGHAI |
|
- Technical Parameters:
A. Belt Conveyor
1. Length of belt |
4000mm |
|
2.Width of belt |
600mm |
|
3. Belt material |
Industry Rubber |
|
Conveying capacity |
>500Kg/h |
|
Motor power |
1.5KW |
B. Crusher with water
1. Model |
PG700 |
|
2.Crushing capacity |
≥500kg/h |
|
3. Motor power |
37KW |
|
4. Feeding mouth dimension |
720×580mm |
|
5. Knife gyration diameter |
φ650mm |
|
6. Rotary knife quantity |
2pcs*3 groups, total: 6pcs |
|
7. Fixed knife quantity |
2pcs*3 groups, total: 6pcs |
|
8. Knife Material |
SKD-11 |
|
9.Screen diameter |
80mm |
|
10. There is a water inlet hole on the top of feeding mouth. | ||
C. Screw Conveyer
1. Motor Power |
3KW |
|
2. Screw diameter |
320 mm |
|
3.Conveying Capacity |
>500kg/h |
|
4. Process Material |
Stainless steel |
|
5. with water-drainage function | ||
D. High Speed Friction Washing Machine
1. Motor power |
22 KW |
|
2. Filter diameter |
8mm |
|
3.Main shaft diameter |
419mm |
|
4. Main shaft rotation speed |
1000r/min |
|
5. Spraying mouth on top |
1pc |
|
6. Main shaft has been through dynamic & static balance correction. | ||
7. with the material-loading function. | ||
8. Material touching with materials processed by stainless steel. | ||

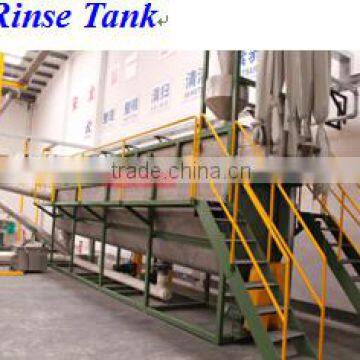

F. Rinse Tank
1. Stir motor power |
3KW |
|
2. Effective washing length |
6000mm |
|
3. Tank material |
Stainless steel |
|
4. Residue-drainage motor |
2.2KW |
|
5.Residue-drainage method |
by screw |
H. High Speed Friction Washing Machine
1. Motor power |
22 KW |
2. Filter diameter |
8mm |
3. Main shaft diameter |
419mm |
4. Main shaft rotation speed |
1000r/min |
5. Spraying mouth on top |
1pc |
6. Main shaft has been through dynamic & static balance correction. | |
7. with the material-loading function. | |
8. Material touching with materials processed by stainless steel. | |
J. Screw Press Dryer
1. Motor Power |
45kw
|
|
2. Screw Rotation Speed |
40.5rpm
|
|
3. Screw diameter |
350mm |
|
4. Screw Process Material |
# 45 steel |
|
5. Screw Barrel Inner Diameter |
Φ355mm |
|
6. Adopt Planetary Gear Box, reduction ratio |
1:35.5 |
|
7. Working Pressure |
150Pa |
|
8. Oil Cylinder |
4pcs |
|
9. Hydraulic Station Motor Power |
3kw |
|
10. Hydraulic Journey |
50mm |
|
11. Hydraulic Station Brand |
BREVINI |
|
12.The capacity |
≥500Kg/h |
|
13.After dryer the humidity |
5-6% |
|
14. Intelligent controlled by SIEMENS PLC, contactor brand: SIEMENS. | ||
15. Hydraulic Station with Water Cooler. | ||
Why are you choose us ?
1.We can bring you High-quality equipment and vey competitive market price and bring you more profits .
2.Our factory have more than 10 years of manufacture industry machine experience, we can solve various problems in the work, to improve the machine efficiency for you .Our engineers can also design the machine as the customers requirements .
3.We also has a good supply system, can provide you one-stop service with the pre-sale, sales and after sale service .Its save your purchasing cost and maintenance cost .
