2014 high quality agricutural film washing and crushing line

Name: 2014 high quality agricutural film washing and crushing line
Brand: ZHONGMAO
Price: USD $63,000 - 64,000 / Set

FOB Price

USD $63,000 - $64,000 / Set

1 Set(Min.Order)

Supply Ability 5 Set / Sets per Month
Port SHAGHAI
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Automatic Grade:	Automatic	Place of Origin:	Jiangsu, China
Brand Name:	ZHONGMAO	Model Number:	ZHONGMAO	Power(W):	380V-50HZ
Certification:	CE and ISO9001:2000	Warranty:	12 months	After-sales Service Provided:	Engineers available to service machinery overseas

Packaging Details

as our customers requirements

Product Description

Specifications

plastic film washing equipment
1.advanced technology
2.low cost
3.high capacity

The whole line consists of following parts:

Series	Equipment Name	Qty
A	Belt Conveyer	One set
B	Crusher with Water	One set
C	Screw Conveyer	One set
D	High Speed Friction Washer	One set
E	Screw Conveyer	One set
F	Washing Tank	One set
G	Screw Conveyer	One set
H	High Speed Frictiion Washer	One set
I	Screw Conveyer	One set
J	Screw Press Dryer	One set
K	Belt Conveyer	One set
L	Electric Control Box	One set
M	Total Price: USD 64,000.00 FOB SHANGHAI

Technical Parameters:

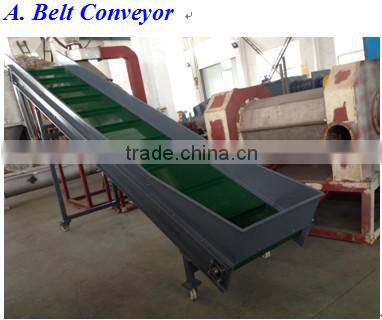

A. Belt Conveyor

1. Length of belt	4000mm
2.Width of belt	600mm
3. Belt material	Industry Rubber
Conveying capacity	>500Kg/h
Motor power	1.5KW

B. Crusher with water

1. Model	PG700
2.Crushing capacity	≥500kg/h
3. Motor power	37KW
4. Feeding mouth dimension	720×580mm
5. Knife gyration diameter	650mm
6. Rotary knife quantity	2pcs*3 groups, total: 6pcs
7. Fixed knife quantity	2pcs*3 groups, total: 6pcs
8. Knife Material	SKD-11
9.Screen diameter	80mm
10. There is a water inlet hole on the top of feeding mouth.

C. Screw Conveyer

1. Motor Power	3KW
2. Screw diameter	320 mm
3.Conveying Capacity	>500kg/h
4. Process Material	Stainless steel
5. with water-drainage function

D. High Speed Friction Washing Machine

1. Motor power	22 KW
2. Filter diameter	8mm
3.Main shaft diameter	419mm
4. Main shaft rotation speed	1000r/min
5. Spraying mouth on top	1pc
6. Main shaft has been through dynamic & static balance correction.
7. with the material-loading function.
8. Material touching with materials processed by stainless steel.

F. Rinse Tank

1. Stir motor power	3KW
2. Effective washing length	6000mm
3. Tank material	Stainless steel
4. Residue-drainage motor	2.2KW
5.Residue-drainage method	by screw

H. High Speed Friction Washing Machine

1. Motor power	22 KW
2. Filter diameter	8mm
3. Main shaft diameter	419mm
4. Main shaft rotation speed	1000r/min
5. Spraying mouth on top	1pc
6. Main shaft has been through dynamic & static balance correction.
7. with the material-loading function.
8. Material touching with materials processed by stainless steel.

J. Screw Press Dryer

1. Motor Power	45kw
2. Screw Rotation Speed	40.5rpm
3. Screw diameter	350mm
4. Screw Process Material	# 45 steel
5. Screw Barrel Inner Diameter	355mm
6. Adopt Planetary Gear Box, reduction ratio	1:35.5
7. Working Pressure	150Pa
8. Oil Cylinder	4pcs
9. Hydraulic Station Motor Power	3kw
10. Hydraulic Journey	50mm
11. Hydraulic Station Brand	BREVINI
12.The capacity	≥500Kg/h
13.After dryer the humidity	5-6%
14. Intelligent controlled by SIEMENS PLC, contactor brand: SIEMENS.
15. Hydraulic Station with Water Cooler.

Why are you choose us ?

1.We can bring you High-quality equipment and vey competitive market price and bring you more profits .

2.Our factory have more than 10 years of manufacture industry machine experience, we can solve various problems in the work, to improve the machine efficiency for you .Our engineers can also design the machine as the customers requirements .

3.We also has a good supply system, can provide you one-stop service with the pre-sale, sales and after sale service .Its save your purchasing cost and maintenance cost .

Remarks:

1) Lead time: 45 working days after order confirmed.

2) Payment term: 30% of total amount should be pre-paid by T/T. After this amout is paid, the contract becomes effective. 70% of the total amount should be paid by T/T when delivery.

3) Guarantee period: 14 months fter shipping.

4) We can send the engineer to debug, the fee is undertaken by the buyer(including the round trip ticket, accommodation, translation charges and food for engineers of seller, the buyer also should pay the cost of engineers 50$/day for each engineer.

Company Profile

Zhangjiagang Zhongmao Machinery Co., Ltd.

Zhangjiagang Zhongmao Machinery Co., Ltd. is one of national appointed production enterprises of plastic machinery. Our company is a key enterprise producing plastic machinery in domestic market, such as Waste Plastic Washing & Granulating Lines, PP PE Film Machines, PVC, PP, PE & PET Bottle Washing and Granulating Machines, Extruders for Pipes, Sheets and Profiles, Label Removers, Shredders & Crushers, Packing Machines/Balers, and Auxiliary Machines. The recycled & regenerated machines for waste, old and new plastic are the most professional ones.

In recent years, our company has continuously introduced advanced production technique and management methods and has obtained good comments from our customers. We can also provide customized non-standard items or items of special specifications based on the field status and customers' special requirements.

With advanced techniques, favorable prices and excellent service, we are dedicated to cooperating with friends worldwide. Please feel free to contact us for further information.
