ZHONGMAO High Quality PP PE Pelletizer With Hot Sales

ZHONGMAO High Quality PP PE Pelletizer With Hot Sales thumbnail-1
ZHONGMAO High Quality PP PE Pelletizer With Hot Sales photo-1
US$ 48,000 - 48,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Recycling Granulator
Place of Origin:
Jiangsu, China
Contact Supplier Request Quote Chat Now
Zhangjiagang Zhongmao Machinery Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Recycling Granulator
Place of Origin Jiangsu, China
Brand Name ZHONGMAO
Certification CE
Warranty one years

Specifications

Specifications1.Certificate:CE&SGS
2.Capacity:100-800kg/h
3.Warranty:12months
4.Automatic:Highly-Auto
plastic film pelle

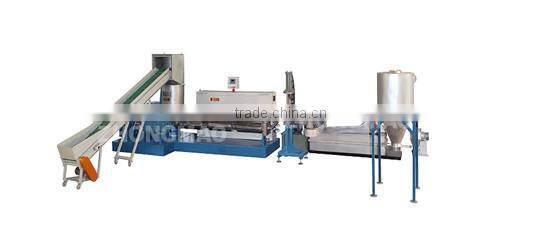

1.The whole production consists of following machines:

Series

Equipment name

Quantity

A

Belt Conveyer with Metal Detector

One set

B

Compact Feeder with Cutter

One set

C

SJ120/32 Extruder

One set

D

Granulating Die Face

One set

E

Water-ring Cutter



One set

F

Vibrosieve

One set

G

Material-conveying System

One set

H

Silo

One set

I

Electric Control Box

One set

J

Total Price: USD48, 000.00   FOB SHANGHAI

   k

Guarantee period:   14 months after shipping

II. Technical Parameters:

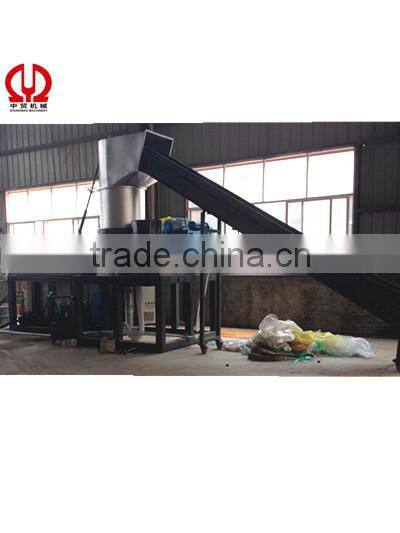

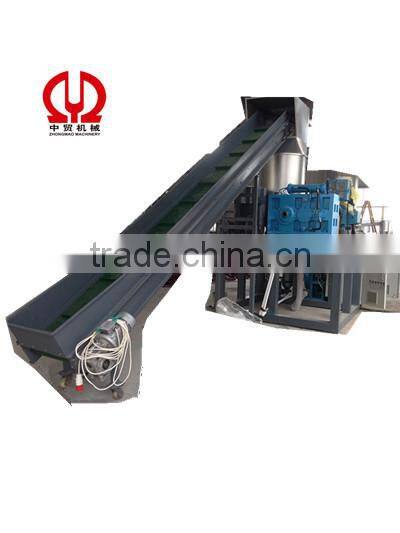

A. Belt Conveyer

1. Motor power: 1.5KW

2. Length of belt:   5000mm

3. Width of belt:       600mm

4. Material of belt:   Industry Rubber

5. Mobile Truckle installed in the bottom, so it is flexible and convenient.

6.Detecting width:600mm

7.Detecting height:420mm

8.Minimum sensibility:2-3mm

9.Warning method: alarm

10. Detected material: All the metals

B. Compact Feeder with Cutter

1. Motor power:                  55KW

2. Rotary speed of cutter:          750r/min

3. Rotary cutting knife quantity: 4PCS, 2 Groups.

4. Stationary knife quantity:       16 PCS

5. Knife material:                  Cr12MoV

6. Temperature point of inner barrel: One thermocouple, adopting PID temperature-controlling to measure the temperature.

7. Equipped with clean door with good airproof, so it is easy to clear the material in the barrel, and to check the status in the barrel.

8. There is exhaust unit on top of barrel, it can exclude the left vapor exists in the raw material.

C. SJ120/32 Extruder

1. Extruder Screw diameter: φ120mm, Material: 38CrMoAlA with nitrogen treatment, it can increase the rigidness and using date.

2. L/D Ratio: 32: 1

3. Motor power: 90KW, use inverter to adjust the speed.

4. Connect way of motor and reducer: Coupling axis machine.

5. Use extruder with special gear tooth surface reducer, use high strength alloy steel to make gear wheel and axis, gear wheels through crafts of quenching, cementite and abrasion.

6. Instrument: Adopting PID temperature-controlling to measure the temperature, use Siemens contactor.

7. Heating system:Use ceramic heater, outer equipped with stainless steel cover, and blower cooling.

8. Heater power: 6 Zones, 8KW/Zone, total 48KW; 6 Zones cooler, 0.24KW/Zone, Total 1.44KW.

9. Mould heating: 2 Zones ×4Kw, total 8KW.

10. Mesh-exchanger: Adoptnon-stop hydraulic controlling machine, oil pump power is 3KW.

11. Vent amount:   2 Pieces (to exhaust gas)

12. Vacuum pump:     3KW

13. Extruder and motor alarming with high electricity protecting sound and light.

D. Granulating die face

1. Process material: 40Cr

2. Die inner treatment: Cr

3. Material-discharge hole quantity:  36 holes

4. Diameter of Material-discharge hole: 3mm

E. Water-ring Cutter

1. Motor Power:1.5KW,use the inverter to adjust the speed.

2. Cutting knife amount: 4 sets

3. water-cycle pump power: 3KW

F. Vibrosieve

1. Vibrating motor power: 0.4KW

2. Adopt stainless steel to make hopper and screen

3. Screen length:           1500mm

4. Screen width:           550mm

5. Water-storage tank cubage: 800L

G. Material-convey System

1. Blower power:          4KW

2. Blower pipe diameter:  φ127mm

3. Adopt stainless steel to make Wind convey pipeline.

H. Silo

1.Silo cubage: 1000L

2. Adopt stainless steel to make the silo.

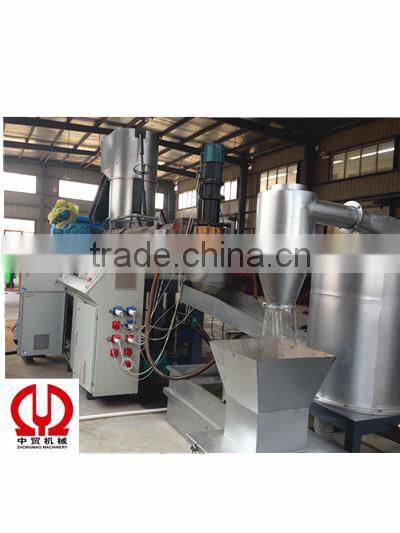

I. Electric Control Box

Contactors adopt “Siemens”. System contral by “Siemens” PLC and screen touch.

J. Production Capacity: 220-260Kg/h.(for PP PE film)

ZHONGMAO high quality PP PE pelletizer with hot salesZHONGMAO high quality PP PE pelletizer with hot salesZHONGMAO high quality PP PE pelletizer with hot salesZHONGMAO high quality PP PE pelletizer with hot sales
