YOUCAN 2016 New 220 Ton Servo Motor Plastic Injection Molding Machine
Model: YC220S
Contact Name: Tammy Yan Whatsapp:+008618329021230 Wechat:YQY932570502
The characteristics of servo saving Plastic Injection Molding Machine
- High Precise Control
The servo System can control the machines' pressure, speed and location precisely makes sure that the error of accurate repeatability Precision for the shot measure is ≤0.3%. So that it can achieve the Precision Injection Molding Machine.
- High Sensitive response
Because the motor vector is matched with the controller accurately, it just takes the 0.05S when input the number from 0 to max.Compared with other traditional hydraulic injection molding machine, ZX series machine's speed is obviously more quickly, each cycle time is shorter, the production efficiency is higher.
- Low noise
Compared with the traditional fixed pump and variable pump system the noise will be lower 1/10 under normal circumstances. What's more, the noise of overall system will be less than 80dB when under the high-speed circumstances. So this series is more suitable for the sealed dustless workshop.
- Enery-Saving
Overall efficiency is more 10% and the driving capacity is more 18% than the common machine.Related to the energy saving, this series Can save energy about 30%~80%, with the first-class energy efficiency.
- The cooling water saving
The system condition prevent high pressure unloading without any power output leads to the cooling water saving.
| Description | YC220 V/S | |||
| A | B | C | ||
| Injection | ||||
| Shot Volume | cm3 | 381 | 470 | 569 |
| Shot Weight | G | 347 | 428 | 520 |
| Shot Weight(PS) | Oz | 12.1 | 15 | 18.1 |
| Screw Diameter | mm | 45 | 50 | 55 |
| Injection Pressure | mpa | 217 | 176 | 145 |
| Screw L:D Ratio | 22:01 | 20:01 | 18:01 | |
| Screw Stroke | mm | 240 | ||
| Screw Speed (Stepless) | r/min | 0~200 | ||
| Clamping Unit | ||||
| Clamping Force | kn | 2200 | ||
| Opening Stroke | mm | 480 | ||
| Platen Size | mm x mm | 745x745 | ||
| Space Between Tie Bars | mm x mm | 510x510 | ||
| Mold Thickness (Min-Max) | mm | 200~560 | ||
| Max. Daylight | mm | 1040 | ||
| Hydraulic Ejection Stroke | mm | 150 | ||
| Hydraulic Ejection Force | kn | 67 | ||
| Power Unit | ||||
| Hydraulic System Pressure | mpa | 17.5 | ||
| Pump Motor (V/S) | kw | 18.5/22 | ||
| Heating Capacity | kw | 13.1 | ||
| Numbers of Temp Control Zones | 4+nozzle | |||
| General | ||||
| Dry-Cycle Time | sec | 4.5 | ||
| Oil tank Capacity | L | 310 | ||
| Machine Dimension | m x m x m | 5.4x1.3x2.1 | ||
| Machine Weight | kg | 6800 | ||
Parts List:
Denomination |
Manufacturer or Brand |
Place of origin |
Servo Motor |
Phase |
Italian Joint Venture |
Gear Pump |
Eckerle |
Germany |
Servo Controller |
Inovance |
China |
Oil Motor |
Intermot |
Italian Joint Venture |

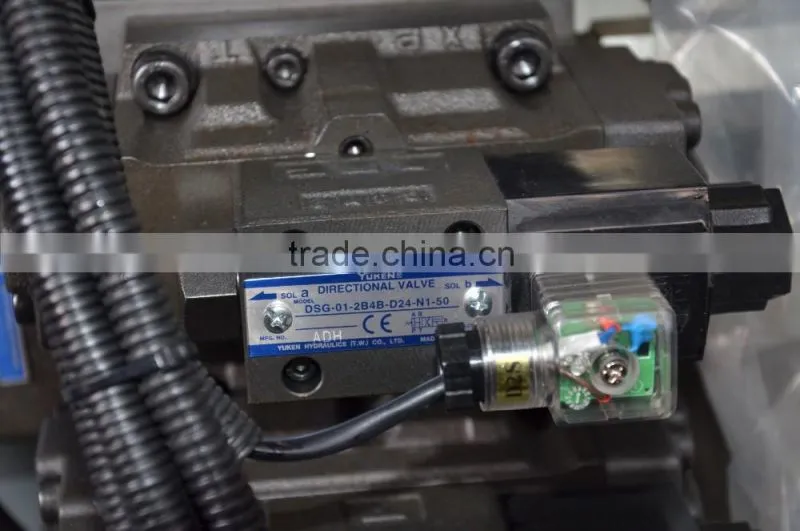

Direction Valve |
Yuken |
Japan |
Direction Valve (Ejection) |
HP |
Taiwan |
Back Pressure Valve |
HP |
Taiwan |
Computer |
Mirle |
Taiwan |
Three-pole Automatic Switch |
Schneider |
France |
Single-pole,Double-pole Switch |
LS |
Korea |
Position Switch |
TE |
France |
AC Contactor, Thermal Relay |
Schneider |
France |
High-pressure Rubber Oil Pipe |
Afagomma |
Italian |
Electronic Ruler |
Woog |
China |
Sealing Elements |
Hallite |
U.K |
Pressure Gage |
Dmass |
Germany |
Lubrication Pump |
Herg |
Japan Joint Venture |
Axial Flow Fan |
Kagu |
Taiwan |

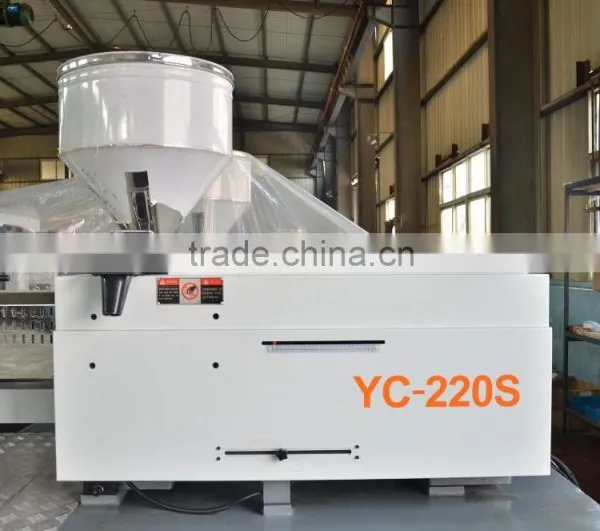

-Injection Unit
Double cylinder injection system
High quality barrel and screw
Multi stages of speed, pressure and position for injection hold on and charge
Position or time hold on changeover
Screw position transducer control
Prevent the screw cold start
Low speed high torque screw drive motor
Close loop barrel temperature control
Nozzle center adjust
Screw RPM show
Stainless steel hopper
Water cooling for hopper throat

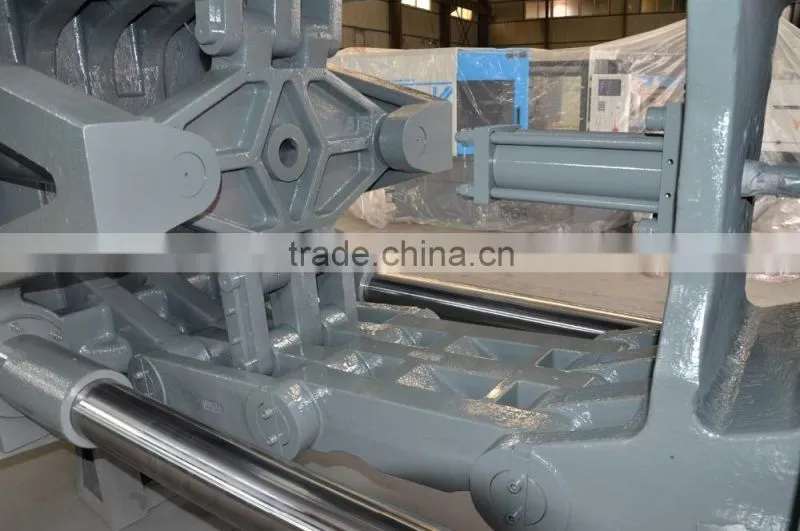

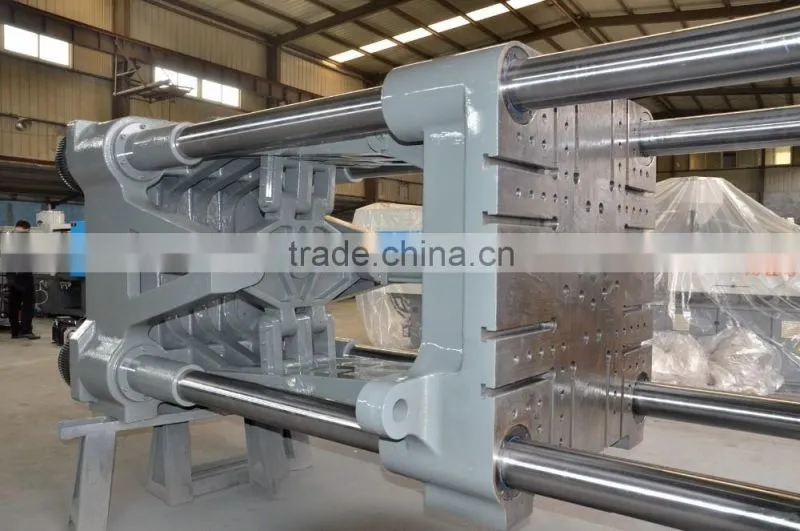

-Clamping Unit
Five points double clamping unit
Transducer for mold open and close position
Mechanical safety device
Multi stage of mold open / close speed, pressure and position
Fast mold close
Automatic mold height adjustment
Low prressure mold protection
Box model platen
Auto centering lubrication system
-Hydraulics
Variable displacement pump system
Servo system
Oil suck filter
Oil temperature control and alarm
By-pass oil filter

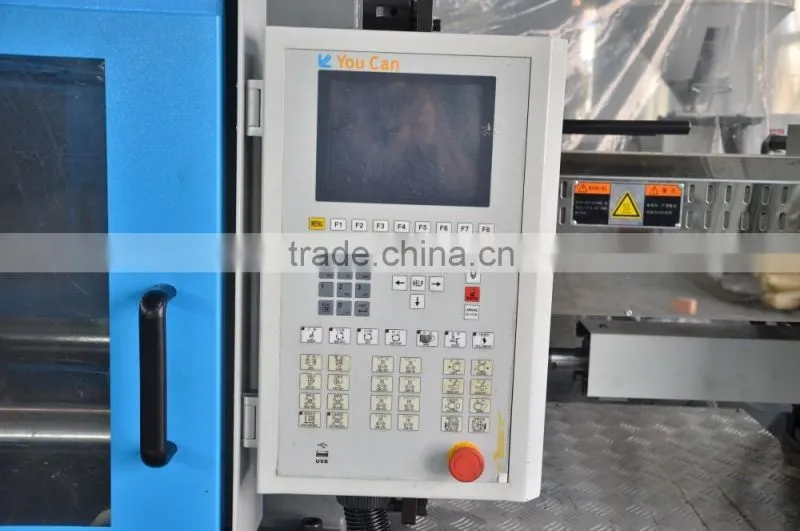

-Electronics
87" LCD color screen
200 sets of mold memory
Barrel temperature monitoring and thermocouple break alarm
System hardware i/o testing function
Interface gor printer and floppy driver
Electric motor safety protection
Emergency stop safeguard device
-Accessories
Adjustable machine leveling pads
Easily damaged spare parts
Professional tools
Manual
-Optional Device
Wide range of injection unit for specific application
Wide selection of special plasticizen subassembly for specific customer applications
Specific material screw and barrel
Accumulator fast injection
Core pull fittings
Air blast fittings
Glass water regulations
Extended nizzle

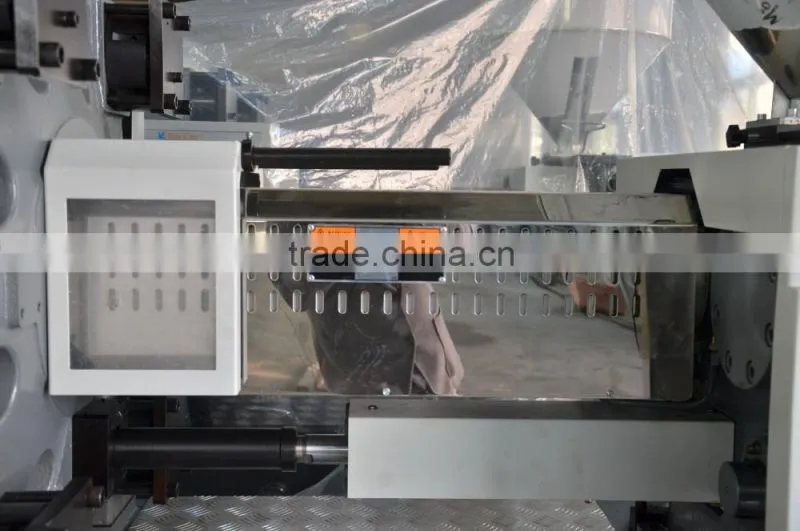

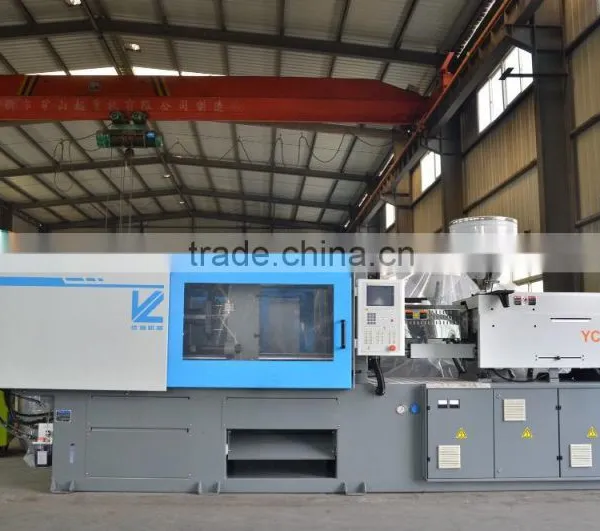

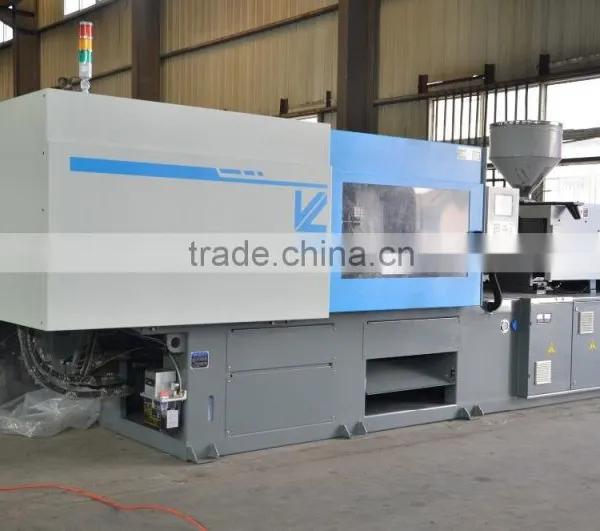

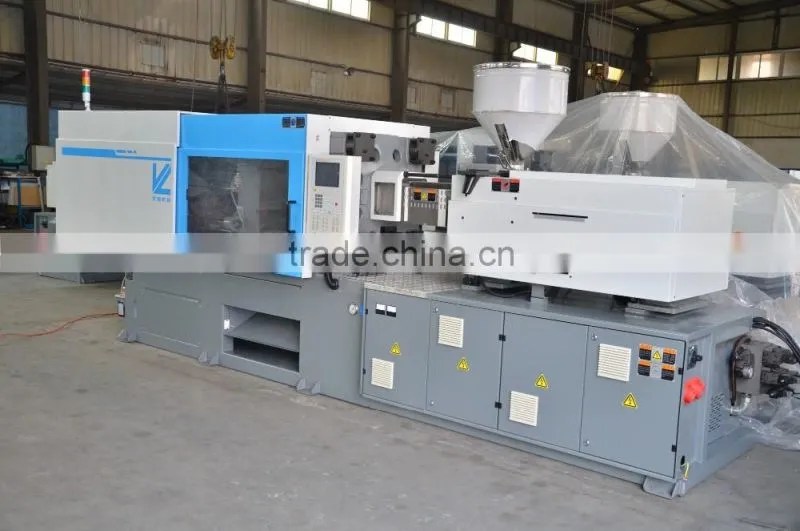

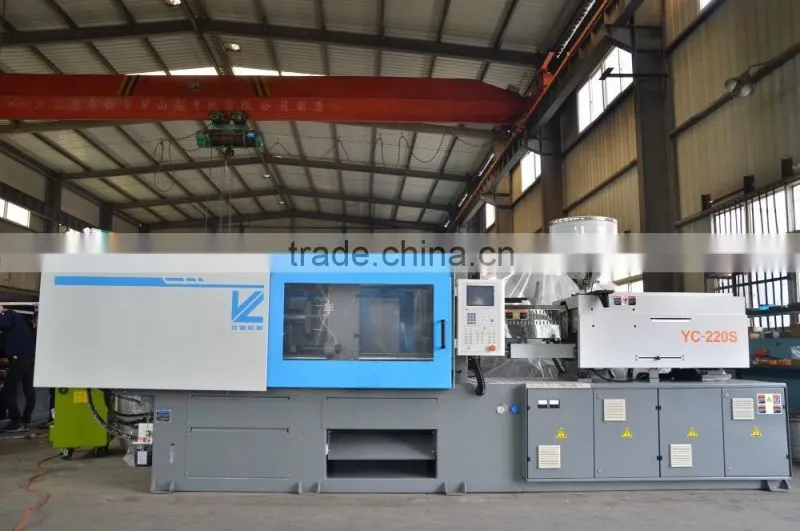

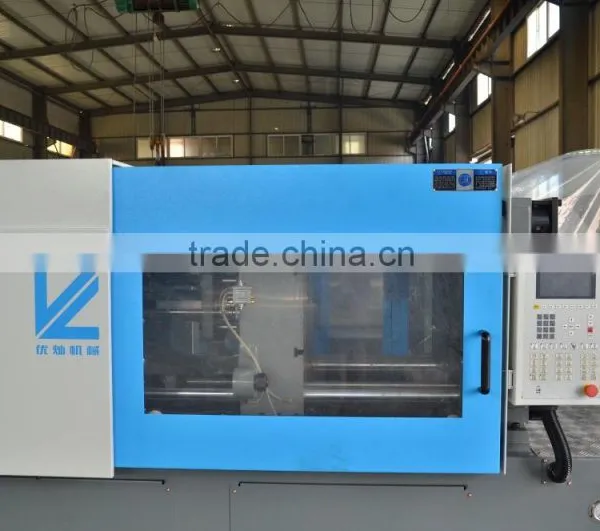

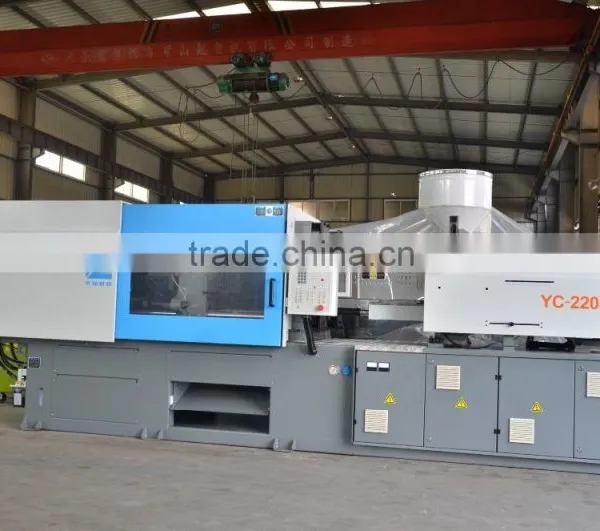

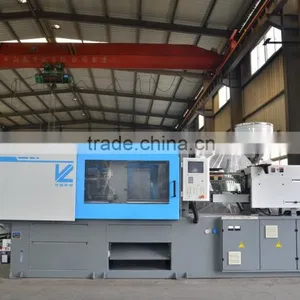

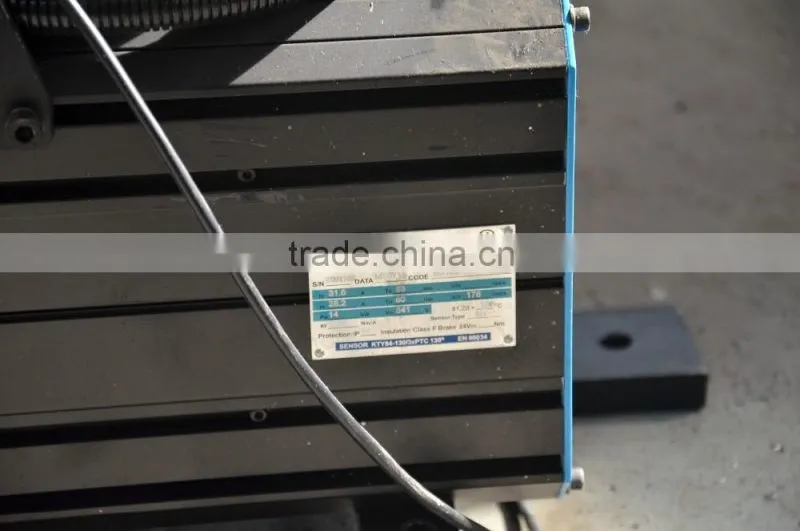

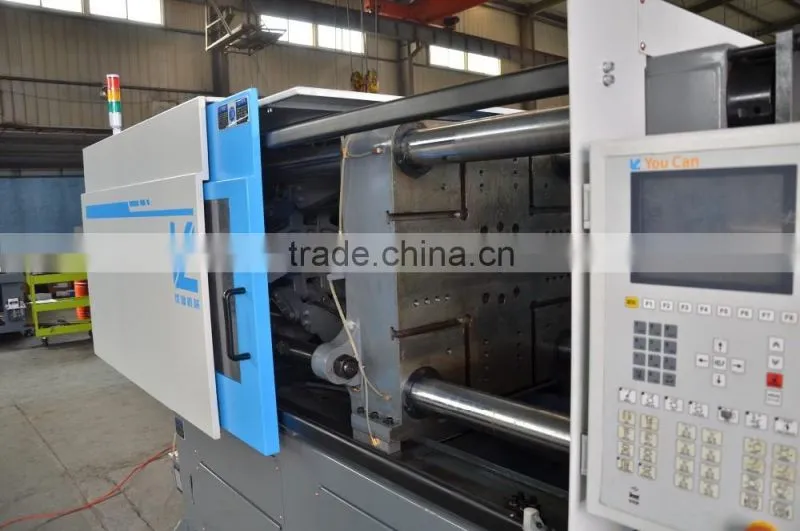

220 Ton Plastic Injection Molding Machine Picture
-Packing
Wood Pallet
-Shipping
Received despoit within 25 days
Service runs through the processes of the whole core business of us as well as equipment manufacturing and marketing. It is required by the market competition that added value should be provided and that the customer service also becomes more important. Our service is comprehensive from the beginning to the end in order to provide complete pre-sale consultation, sales support and after-sale services. No matter how long your machine is used, all users of Haishi will enjoy our lifetime maintenance service.
- Dedicated technical team:The technical team of Our Co. has enjoyed a good reputation in the injection molder industry for more than 20 years: we don’t only develop and manufacture machinery meeting the market needs, but lead the customers to the more efficient, energy-saving and high quality realm through our abundant technical foundation.
- General information center:The core business of Our technical team is to help the customers overcome difficulties of injection molding; and to provide comprehensive suggestions and solutions. We analyze the difficulties of a project in an all-round way for the customers and recommend machinery meeting the requirements of the project. The whole proposal gives consideration to economical efficiency, precision and high efficiency as well as the development tendency of the future market, so the customers can order according to their purchasing power and actual demand.
- Timely after-sale service:Our owns a modern management system; and we will notify our cooperating agents and the service staff on the first line of a service request as soon as possible, and they will arrive at the site to solve the problem without delay.
- Complete training project:Each cooperating agents of Our injection molders will provide complete training services for our customers, in order to help them know more about our machine as well as their proper operation and maintenance. The senior engineers from the HQ of Our will also pay visits to our users regularly, make good investigation on the use of the customers and update the machine according to the feedbacks from the customers, in order to make our machine more adapting to the requirements of the customers.
- Timely global distribution:The level of after-sale service depends on the supply speed of parts; and Haishi offer the service 7 days each week and 24 hours each day. Our HQ and cooperating agents all have sufficient inventory of regular parts; for special parts, we receive the order on the same day and distribute them without delay, in order to help the customers resume production as soon as possible.
