extruding machine

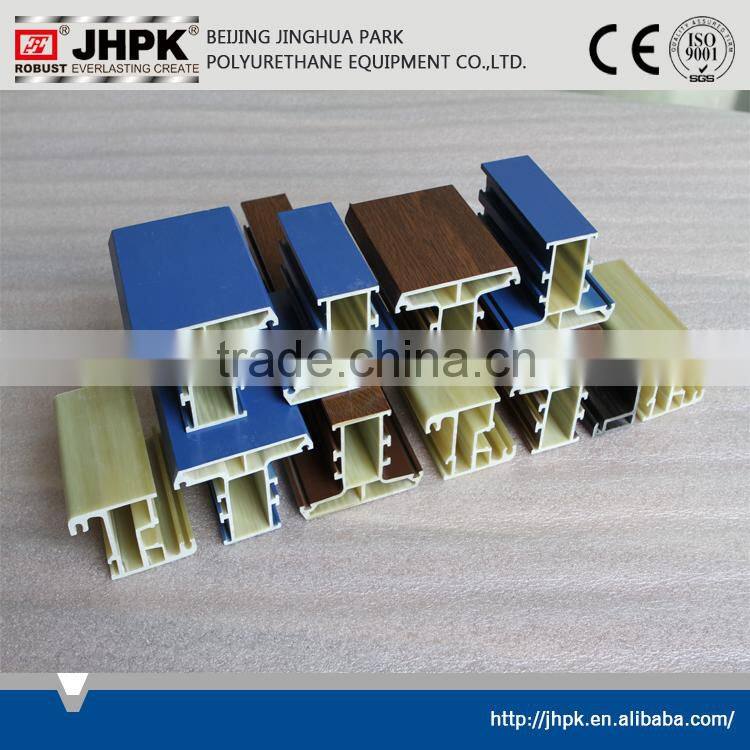

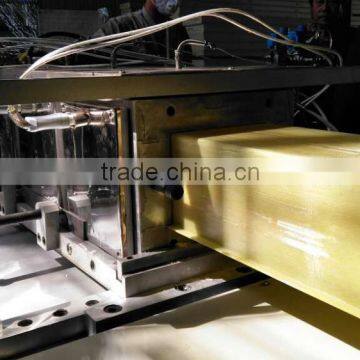

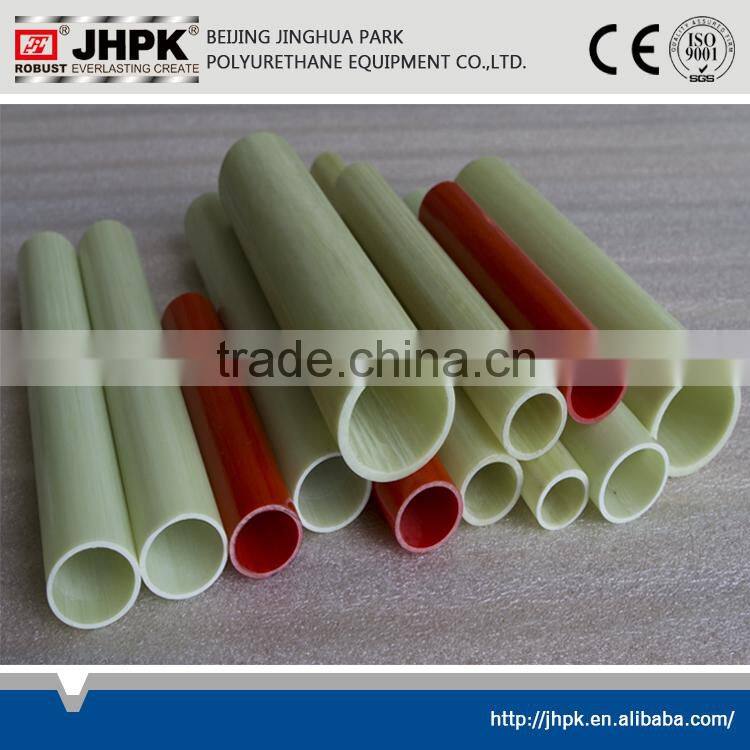

Our company has newly promoted JHPK-G20A complementary injection system for profile extruding production line. The system has various types according to different flow rate. It can be applied in the new type polyurethaneprofile extruding production which can completely replace the fiberglass extruding profile, including the polyurethane profile of window and door, polyurethane guide groove, polyurethane pipe and other molding products.

Having the complete independent intellectual property rights in design and production, several key techniques have applied national patents;

The system is especially designed and produced for polyurethane extruding production line;

The profile processing technology with different section and different specification are fully considered during the design, enabling the system having the high adaptability;

The professional developed systematic main machine guarantees the stable operation and makes it possible for high automation line work;

Reasonable system composition fully saves the production space, minimum staffing and full material utilization. Thus the production cost is greatly reduced;

The system can realize the constant monitoring for extruding speed and automatically adjust the output quantity of the raw material according to the speed changing. Therefore the constant alarm for over speed during the production is realized;

The system safety limit function and safety alarm indication guarantees in full extent the normal operation and the staff safety;

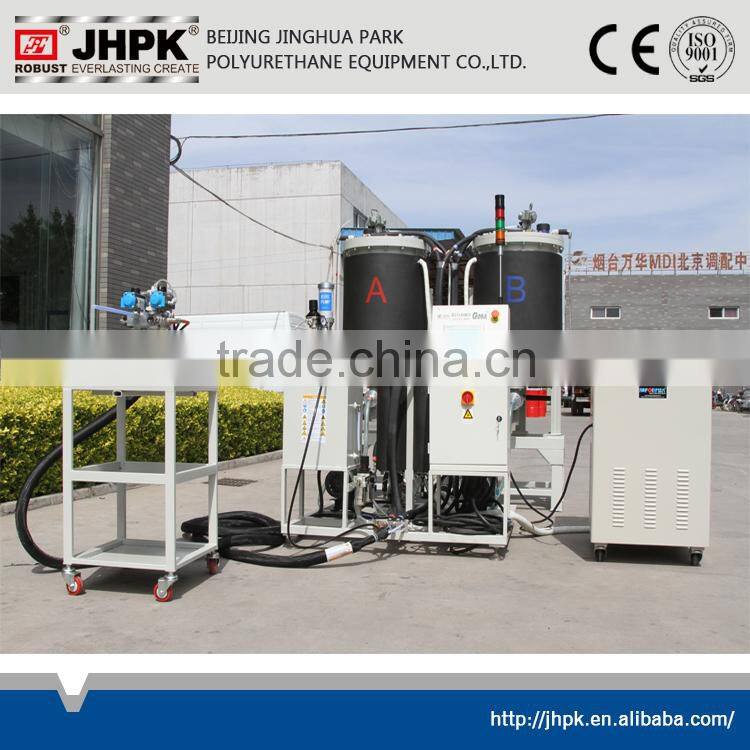

System Configuration:

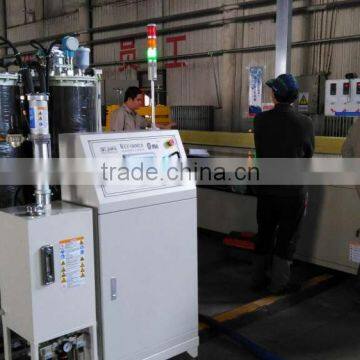

Main system:          1 set

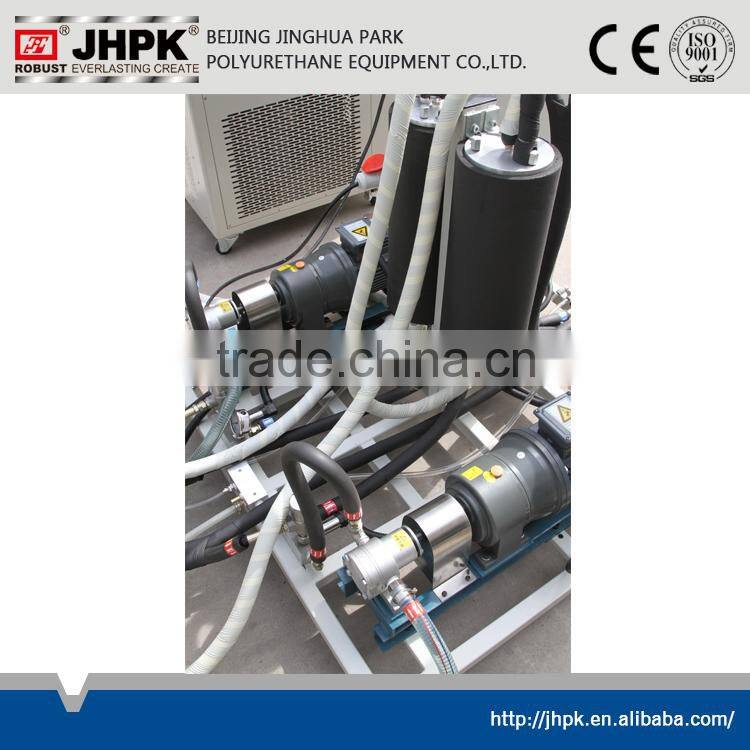

Including material pump system, cleaning pump system, double component material feeding system, control system and etc.;

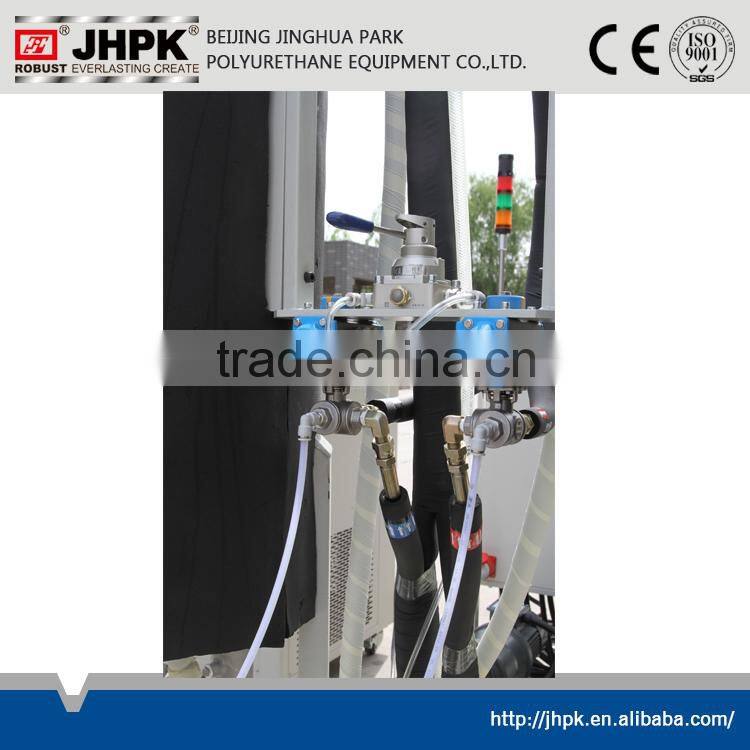

(Double component material feeding system includes: A & B raw material tank, back flow and material checking and control assembly, 2 mixers, 2 filters, 2 air purifiers, ancillary valves and joints and etc.)

High and low temperature circulator:  1 set (optional, auxiliary control for constant temperature of system raw material)

Material feeding pump or self feeding system:      1 group (optional, material feeding pump JHPK-3G63)

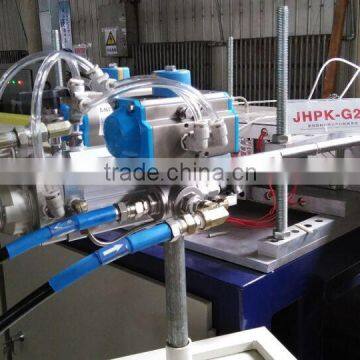

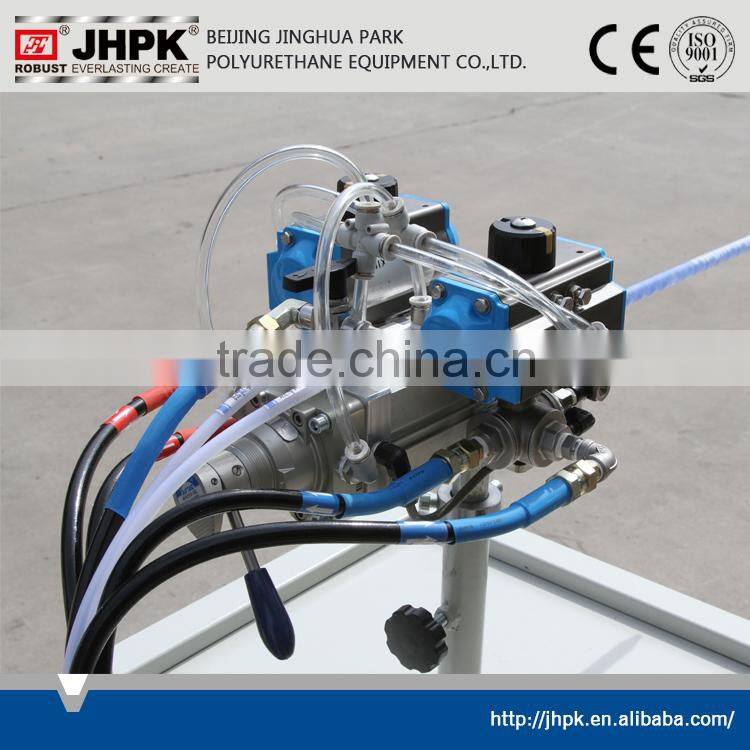

Ancillary injection gun:            1 piece

Operation panel for gun:            1 piece

Insulated pipe:                    1 group

Auxiliary piping and joints:         1 set

Overall Dimension (net):

Main system (including double component material feeding system): 1300mm×1200mm×2100mm (LXWXH)

High and low temperature circulator: 800mm×600mm×1070mm (LXWXH)

Operating panel for gun: 500mm×500mm×800mm (excluding the gun supporting part)

The equipment has obtained CE certification, safe and environmental protection.
Having the proprietary property rights in design and production, several national patents have been applied and approved.

   Beijing Jinghua Park Polyurethane Equipment Co.Ltd. is a modern, dynamic and expanding Chinese private enterprise located in Beijing the capital of China.JHPK specializes in developing,manufacturing and distributing the polyurethane materials & the relevant high pressure airless polyurethane spray perfusion equipment. The wide varieties of single or double-components high temperature airtight spray polyurethane equipment can be used in many areas such as waterproof, antisepsis, construction, dope and fireproof.
   JHPK and its shareholders take pride in the strict, scientific and professional management and consummate quality assurance system.With the years of production experience JHPK widely imbibed the advanced technology from China and worldwide. Especially the uses of world famous brand parts make the equipments have excellent performance.
