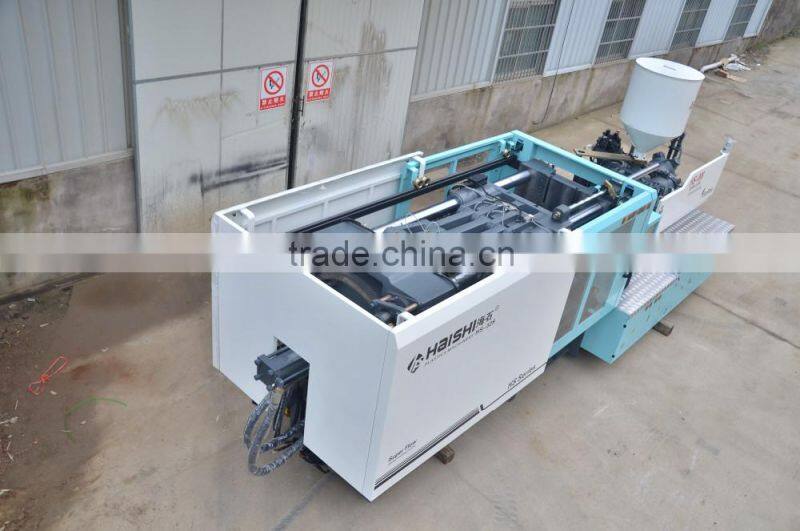

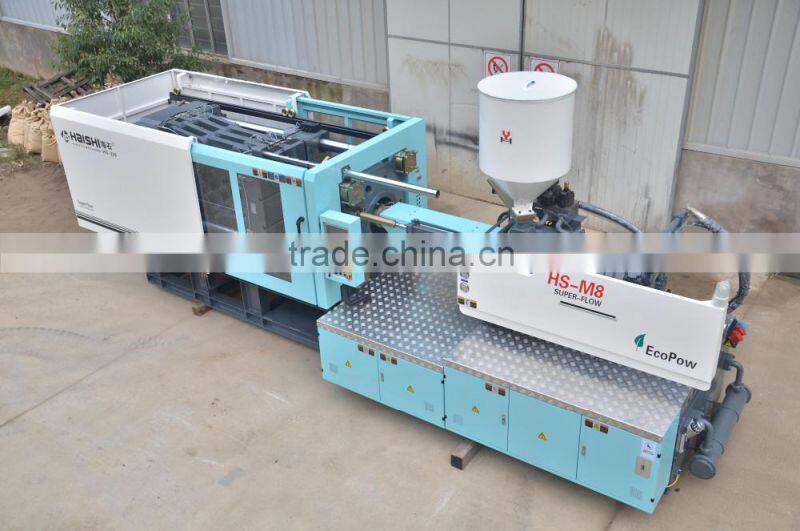

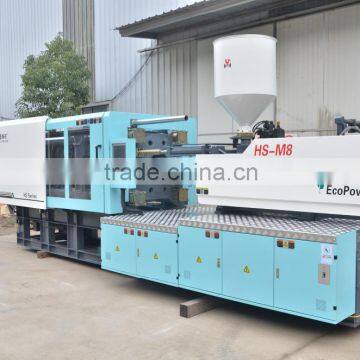

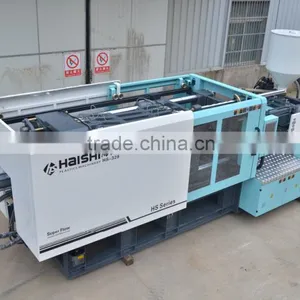

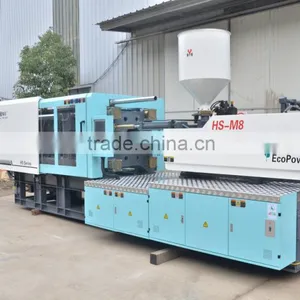

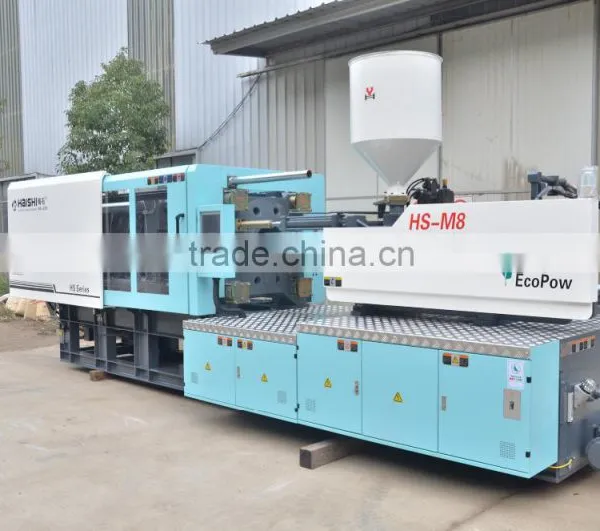

Energy Saving Injection Molding Machine
Model: HS328
It is very important for the plastic injection molding machine that we need a stable output motor with pump.
The screw is top important becaue if the material of the screw is not good enough, the using of the machine will have problem and the injection time will be getting longer and longer.
If you are using recycled material, my suggestion is you can buy 2 or 3 extra PCS screws with the machine when you place the order.
If the injection time gets longer more than 10 seconds comparing to the standard time, we will suggest you change the old screw into a new one.
The parameter is as follows for this machine,
| HS238 | ||||
| Injection Unite | A | B | C | |
| Shot Volume | CM3 | 1161 | 1347 | 1546 |
| Shot Weight | Gram | 1057 | 1226 | 1407 |
| Screw Diameter | mm | 65 | 70 | 75 |
| Screw L/D Ratio | 22 | 20 | 19 | |
| Screw Speed | r/min | 192 | ||
| Clamping Unit | ||||
| Clamping Force | KN | 3200 | ||
| Opening Stroke | mm | 750 | ||
| Space Between Tie Bars | mm*mm | 750*750 | ||
| Mold Thickness(Min-Max) | mm | 250~680 | ||
| Hydraulic Ejection Stroke | mm | 160 | ||
| Hydraulic Ejection Force | KN | 62 | ||
| Power Unite | ||||
| Hydraulic System Pressure | MPa | 17.5 | ||
| Pump Motor | KW | 37 | ||
| Heating Capacity | KW | 22.8 | ||
| General | ||||
| Machine Dimensions | M*M*M | 6.9*1.85*2.35 | ||
| Machine Weight | KG | 12000 | ||

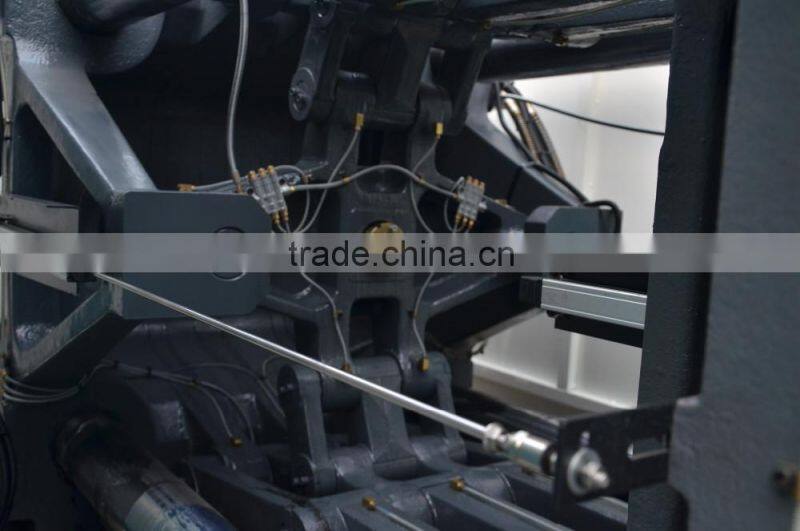

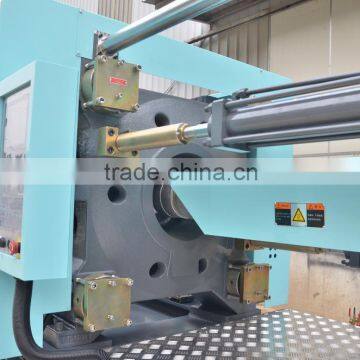

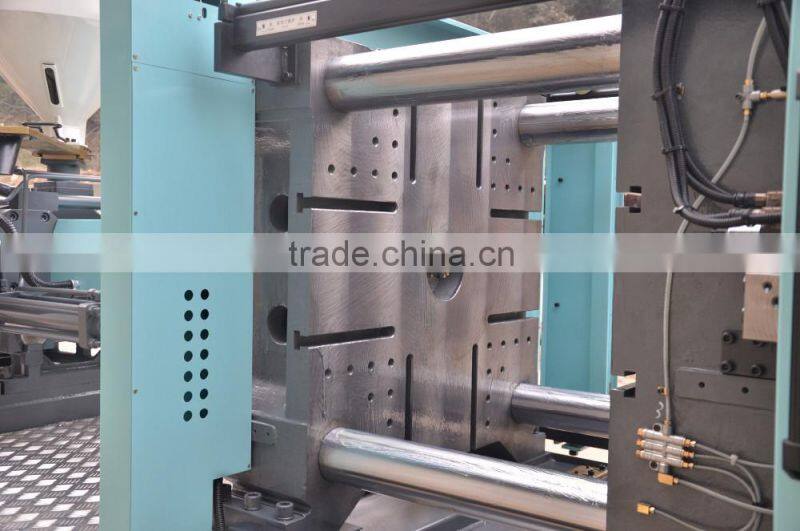

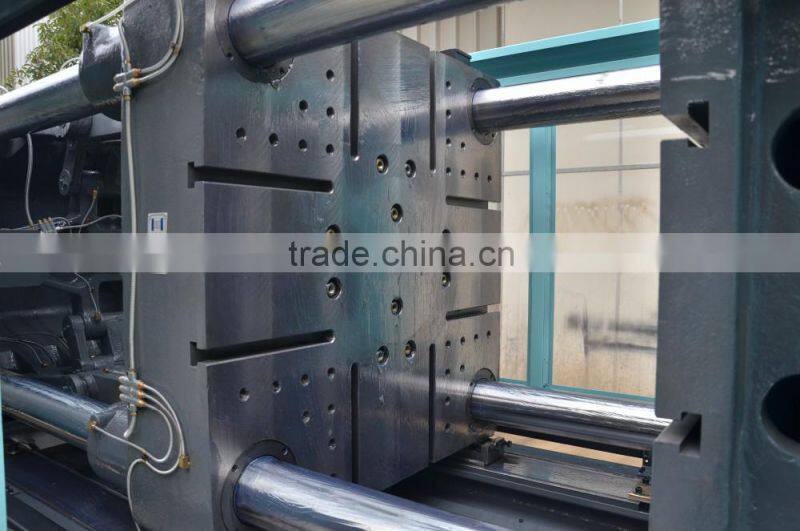

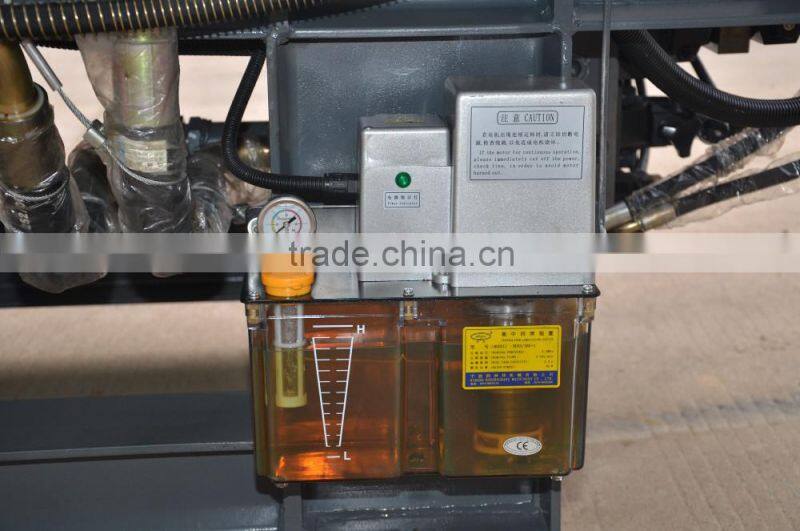

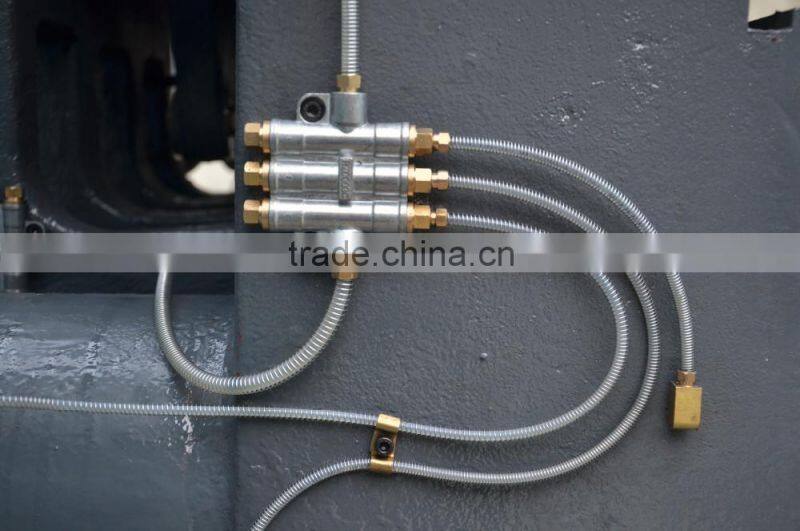

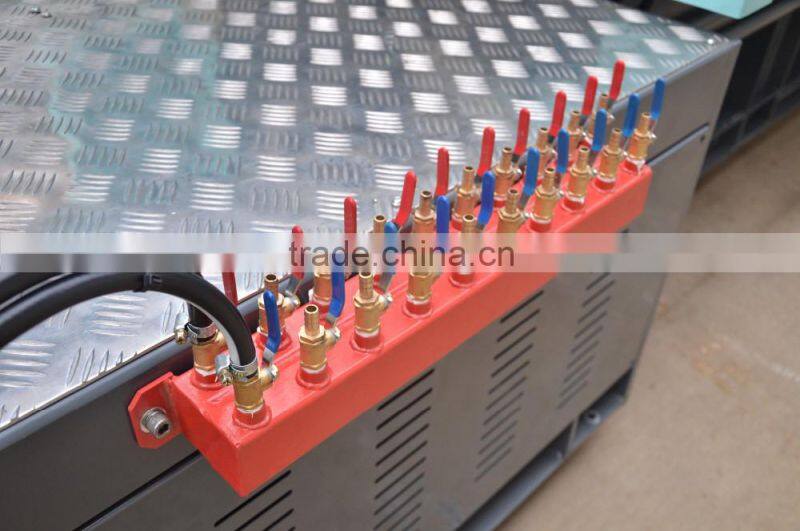

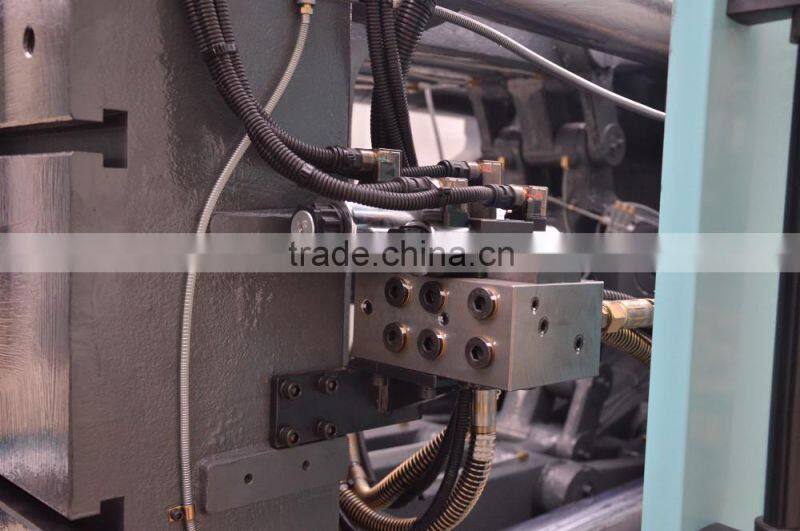

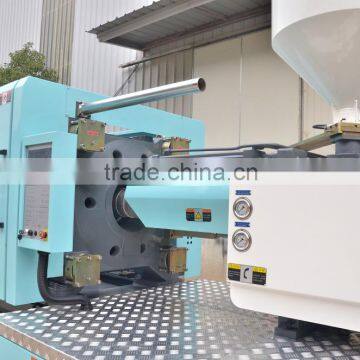

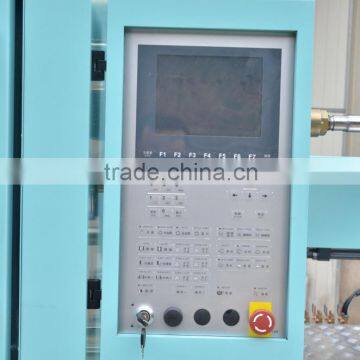

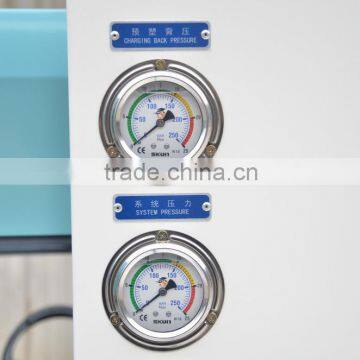

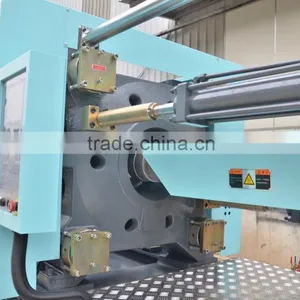

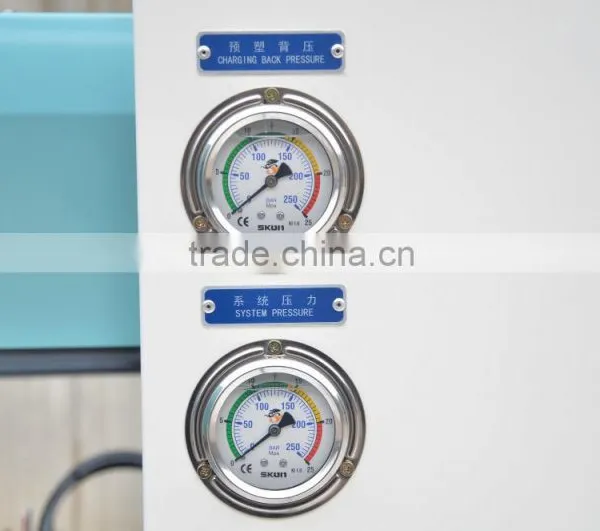

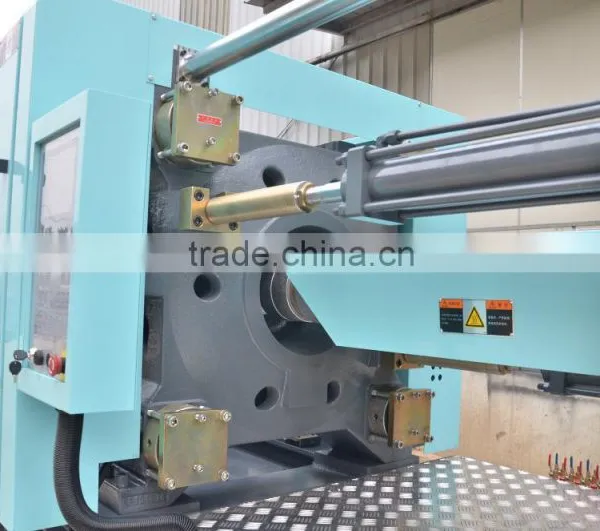

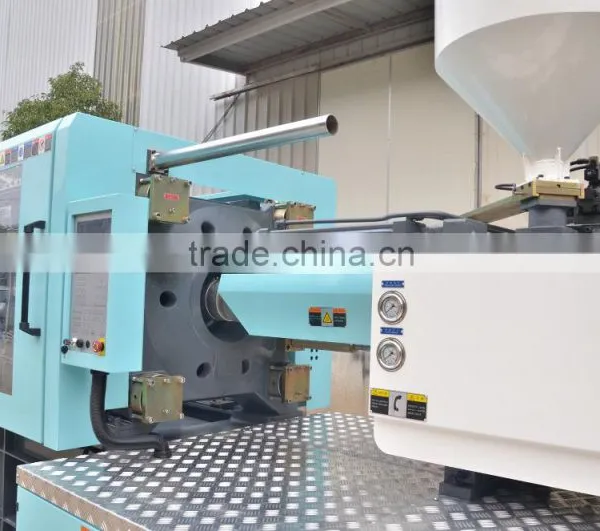

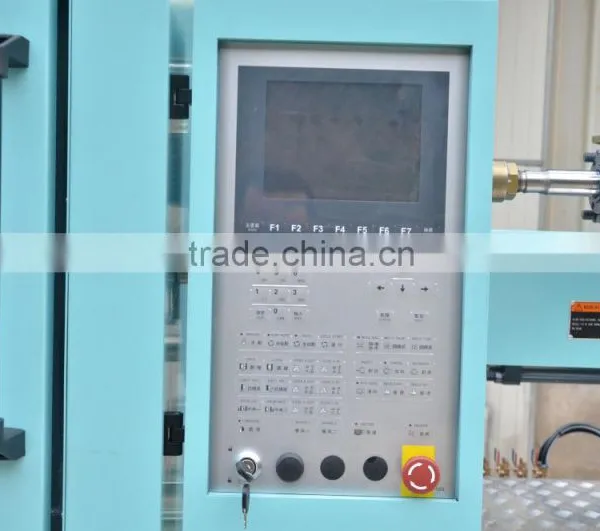

Please also take reference for some details for our machine as follows,
Please add me by wechat, whats app or skype if you use them, informtion is as follows,
Wechat: 13588071651
Whats App: 0086 13588071651
Skype: jiaxingren
