100 Ton Servo Motor Plastic Injection Molding Machine With CE
- 30 Set / Sets per Month
- Ningbo port
- T/T
Product Details
Condition: | New | Type: | Preform Injection | Style: | Horizontal |
Brand Name: | HAISHI | Model Number: | HS-100 | Place of Origin: | Zhejiang, China |
Plastic Type: | Thermoplastic | Automatic: | Yes | Injection Weight: | 106g/s ~ 144g/s |
Injection Rate: | 106g/s ~ 144g/s | Clamping Force: | 1000 KN | Opening Stroke: | 320mm |
Power(W): | 11kw | Certification: | CE ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
100 Ton Servo Motor Plastic Injection Molding Machine With CE
Model: HS80 - HS1180
Name: Tammy My Wechat: YQY932570502 Whats App: +0086 18329021230
We supply DMC,SMC,BMC injection molding machines from 25T to 3000T, including color chips making machines, energy saving injection molding machines, gears making machines, dual clear color injection molding machine bakelite injection molding machines, PET preform injection molding machines, Fixed pump and variable pump injection molding machines, PVC fitting injection molding machines and etc.
HAISHI plastic injection molding machine features:
- Bigger space between tie-bars
- Central-clamping structure
- Famous components
- Energy saving with servo motor
- Low noise, fast respons
- High precision, Stable and super long life
- T-Slot Platen
- Bundant Spare Parts
HHAISHI plastic injection molding machine creats values:
- We use strong structure, the strong basement and strong clamping structure for heavy duty production requirements.
- We make very strict requirements for the cost control & give the best price for our client.
- We only use the best parts for our clients.
- We are not only building the machine, we are also building the value for our clients.
- We provide good aftersale service, 24 hours mobile alive. You are welcome to connect us by E-Mail, whats app, wechat or Skype.
HHAISHI 100 Ton plastic injection molding machine parameter:
DESCRIPTION | UNIT | HS - 100 | ||
INJECTION UNIT | A | B | C | |
Screw Diameter | mm | 30 | 32 | 35 |
Screw L/D Ratio | L/D | 23.5 | 22 | 20.1 |
Theoretical Shot Volume | cm³ | 117 | 133 | 158 |
Shot Weight(PS) | g | 106 | 121 | 144 |
Injection Pressure | Mpa | 230 | 203 | 170 |
Max.screw speed | rpm | 215 | ||
CLAMPING UNIT | ||||
Clamping Force | kn | 900 | ||
Opening Stroke | mm | 320 | ||
Distance Betweenn Tie-bars | mm | 360*360 | ||
Max. Mold Height | mm | 350 | ||
Min. Mold Height | mm | 150 | ||
Ejection Stroke | mm | 90 | ||
Ejection Force | kn | 30 | ||
OTHERS | ||||
Drive Power | kw | 11 | ||
Heating Capacity | kw | 7.55 | ||
Machine Dimensions | m | 3.81*1.19*1.79 | ||
Machine weight | t | 2.9 |
HHAISHI 100 Ton plastic injection molding machine parts list:
Configuration | Servo Motor Solution |
Servo Controller | Innovance |
Servo Motor | Innovance/Phase |
Gear Pump | Sumitomo/Erckerle |
Hose | Balflex |
Connector | Eaton |
Valve | Yuken/Finotek |
Computer | EST/Techmation |
AC Contactor | Schneider |
Stroke Switch | Schneider |
Single-Pole Switch | Chint |
Micro Switch | Omron |
Seal Component | Hallite |
Pressure Gauge | Skon |
Hydrulic Motor | Dandun |
Lubrication System | Runchau |

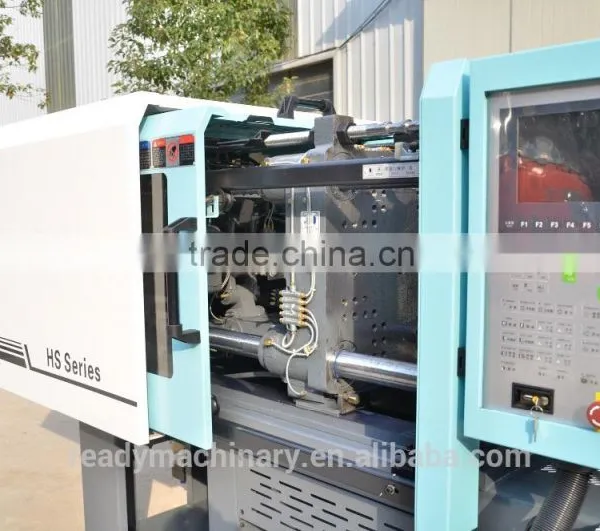

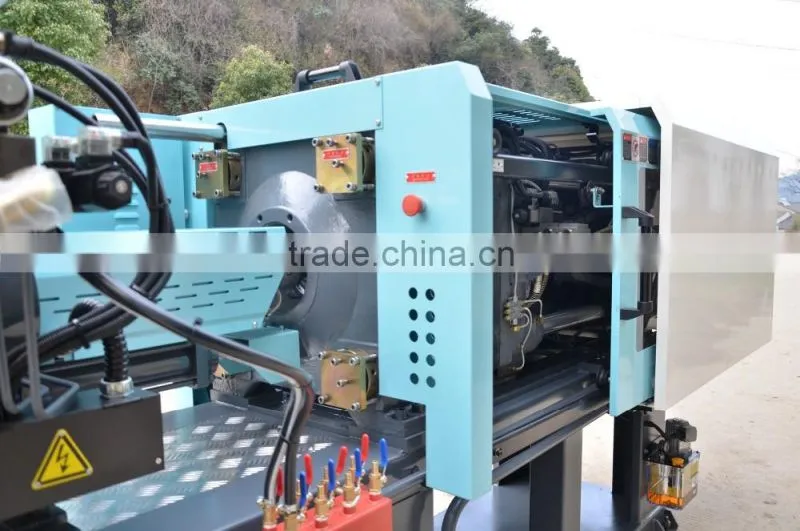

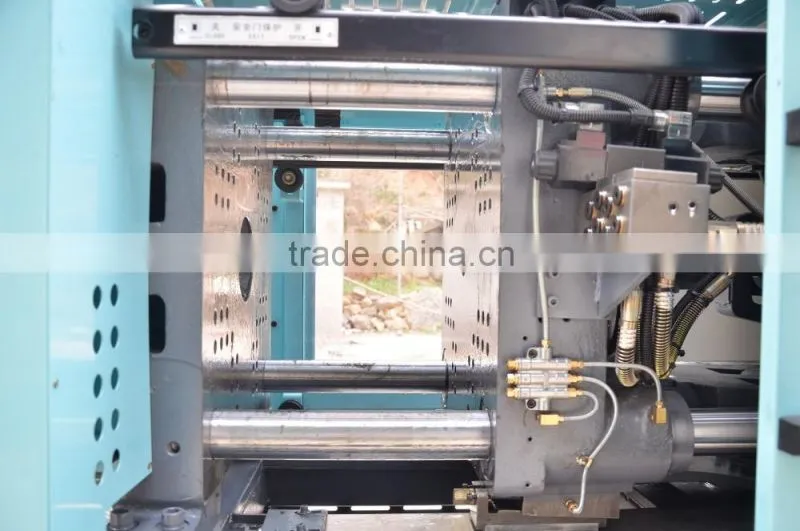

Plastic injection molding machine - Clamping Unit:
1. Optimized Platen Design with high rigidity and enlarged space between tie bars
2. Euromap-based Platen Layout with both T-slot & tap holes, locating design in moving platen to better suit various molds
3. New ejection system design with longer ejection stroke, bigger space and better rigidity
4. Hydraulic drivien gear-type mold height adjustion mechanism
5. Relocation of mechanical safety interlock for easier operation
6. linkage structure for front connecting rod increases connectingrod's strength greatly, as well as the whole clamping unit's rigidity & accuracy.

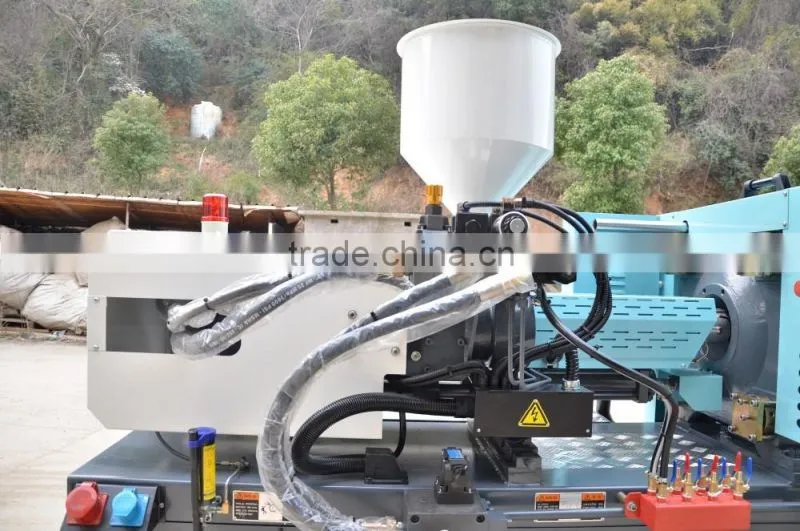

Plastic injection molding machine - Injection Unit:
1. High Quality Linear Motion Guide ensure the smooth & accuracy of injection process
2. High Speed & Pressure injection structure can improve the injection speed
3. Twin nozzle cylinder ensures more even & stable structure
4. Specilized screw barrel design for various appliance

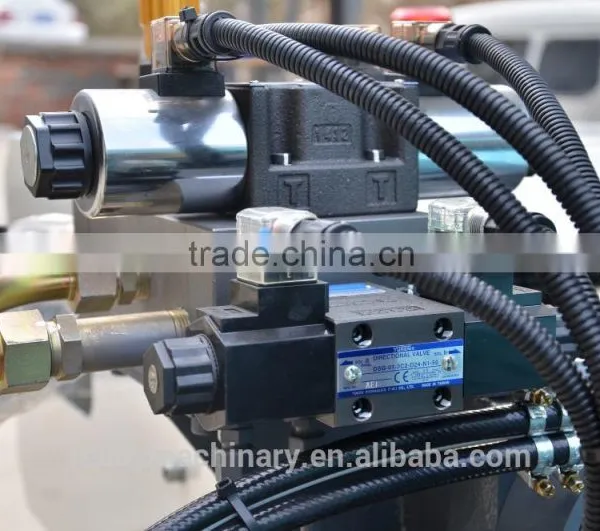

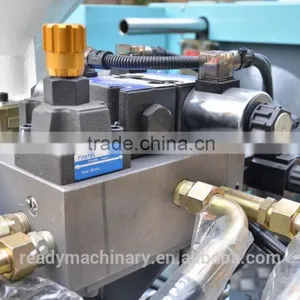

Plastic injection molding machine - Hydraulic System:

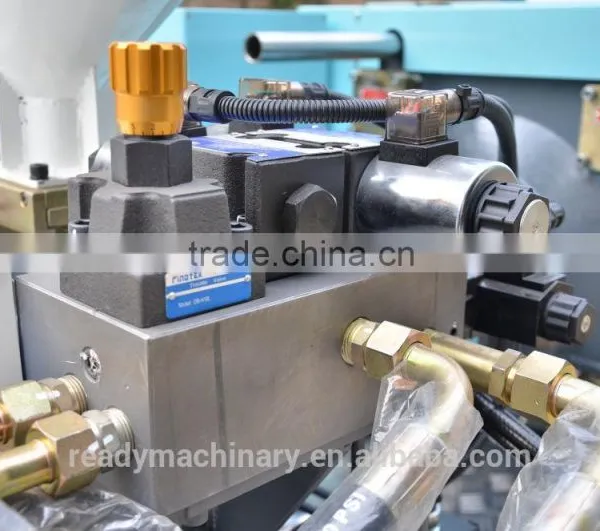

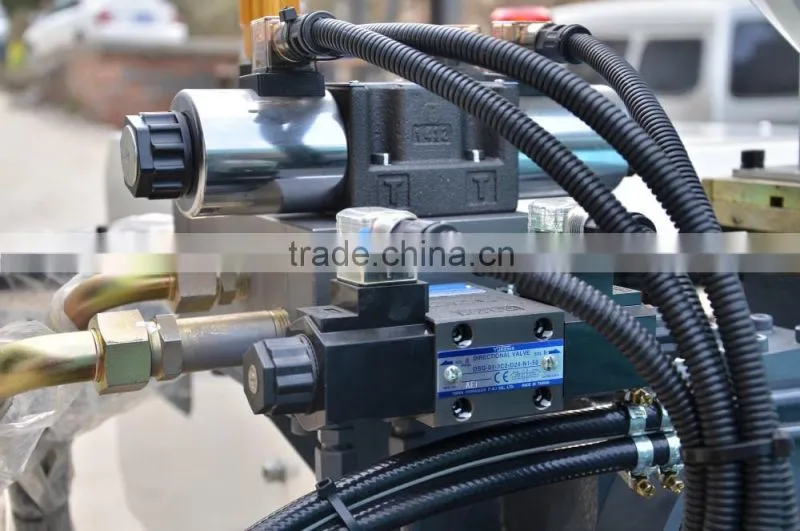

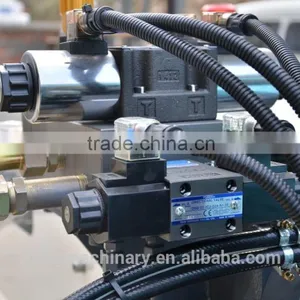

1. The double proportional compound valve control system pressure & flow, highly sensitive & stable
2. Imported high quality Pump, low in noise, long in lifespan & stable in performance
3. World-famous servo hydraulic system optional, better performance in lower noise & energy saving
4. The precise feedback control of servo system to the pressure & flow, with higher sensitivity & more accurate repeatability precision
5. High performance hydraulic valve, less failure, fast switch, convenient maintenance
6. Low pressure mold protect system, which is more suitable for the precise mould

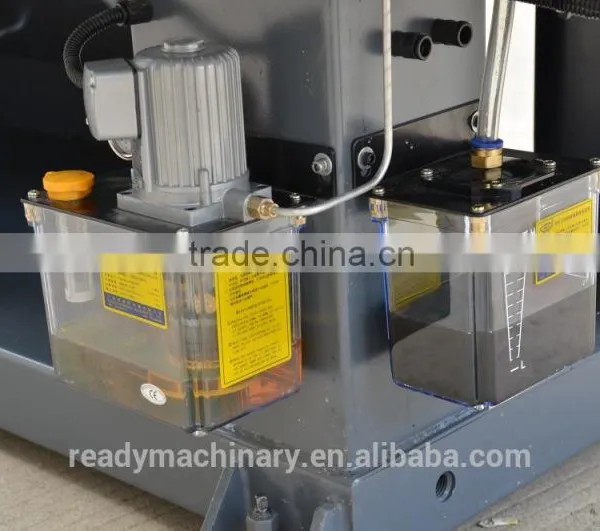

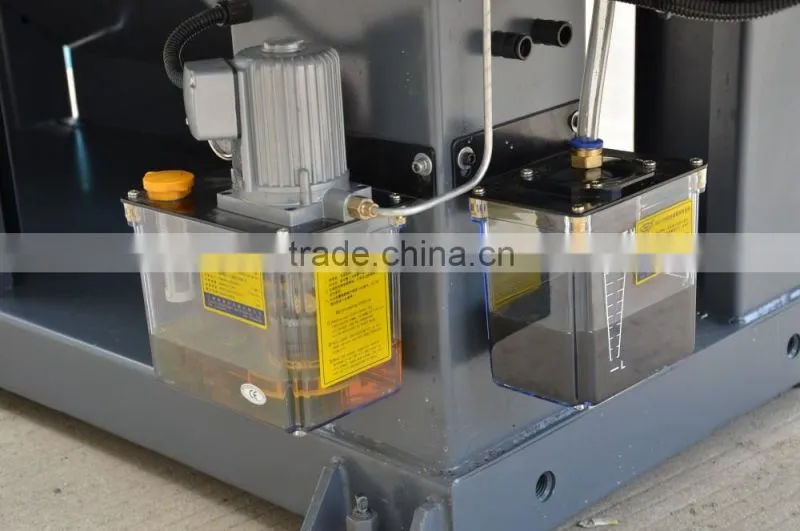

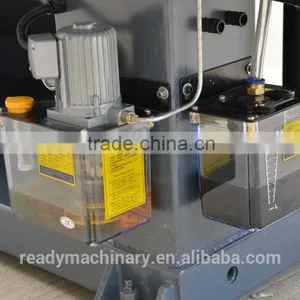

7. Greese & lubrication oil in dependent lubrication system can lubricate everywhere in the best situation

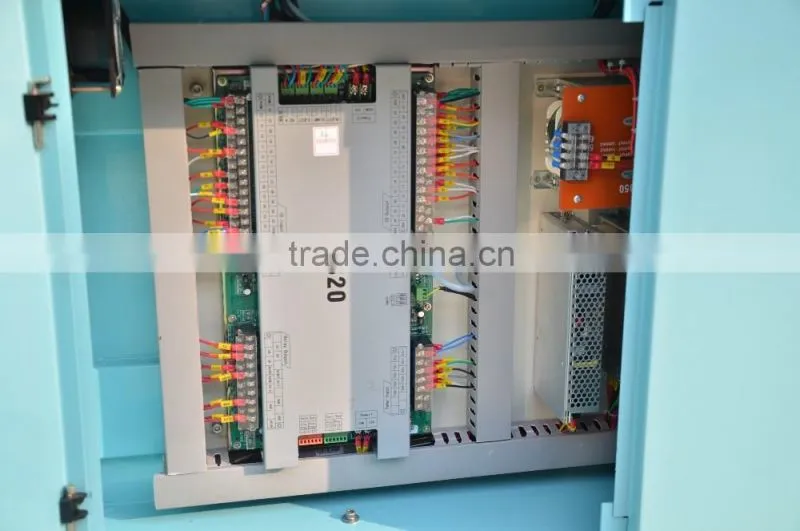

Plastic injection molding machine - Electrical System:
1. Control by double CPU, the system HMI use X86 300MHz technical grade display. The system employees a RISC 140MHz microprofessor, with high speed, noise-immunity, fan-less and lower power consumption, independent control structure improve the stablity of control
2. 8.4" display screen with resolution 800*600, user friendly screen & optional choose of language
3. Equiped with USB(2.0) port & ethernet(100-base T) ports
4. 32 Points input & output, entendable and trouble spot can be replaced easily
5. Linder transducer's resolution is 1/65535, more precise in control
6. 120 technological parameters access can be stored & uploaded with an ordinary USB drives
7. Injection End and temperature tracking is curve display, dynamic recorder parameter is modified, dynamic warningis exhibited, all these make the operation more convenient.

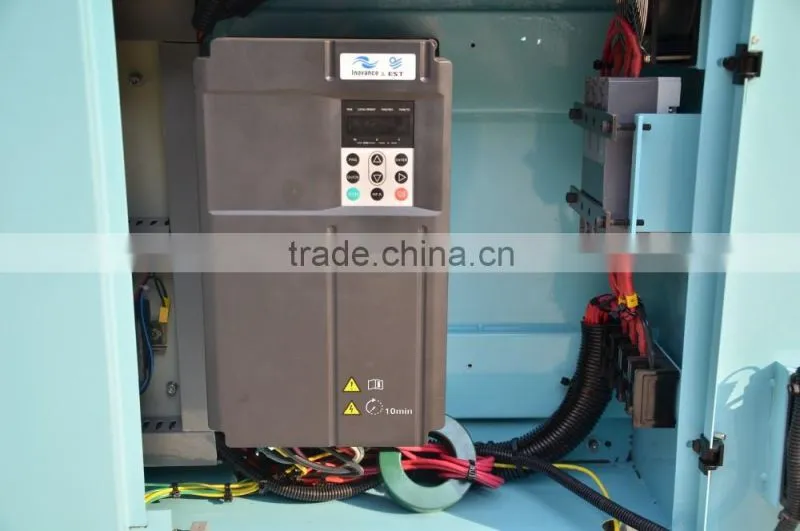

Plastic injection molding machine - Servo Controller Part:
1. High Precise Control The servo system can control the machine's pressure, speed & location precisely, make sure that the error of accurate repeatability precision for the shot measurement is <0.3%
2. High sensitive response Because the motor vector is matched with the controller accurately, it only takes 0.5sec. inputing the number from 0 to max. Compared with other traditional hydraulic injection molding machine, HJ series is more faster in speed with shorter cycle time and high efficient in production
3. Low noise Compared with traditional fixed pump & variable pump system, the noise is 1/10 lower under normal circumstance, more suitable for sealed dustless workshop
4. Energy Saving Overall efficiency is 10% more & driving capacity is 18% more than common machine. This series can save 40-80% energy, and achieve first-class energy efficency
5. Water cooling saving The system condition prevent high pressure uploading without any power output, leads to the water cooling saving.

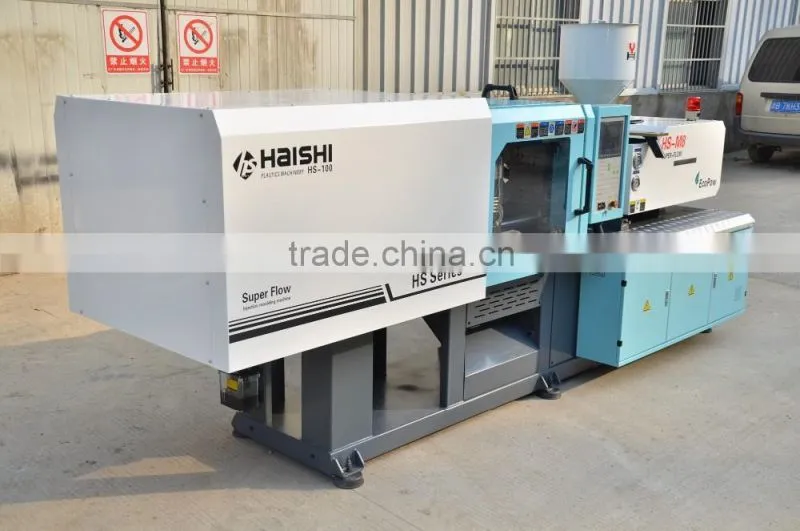

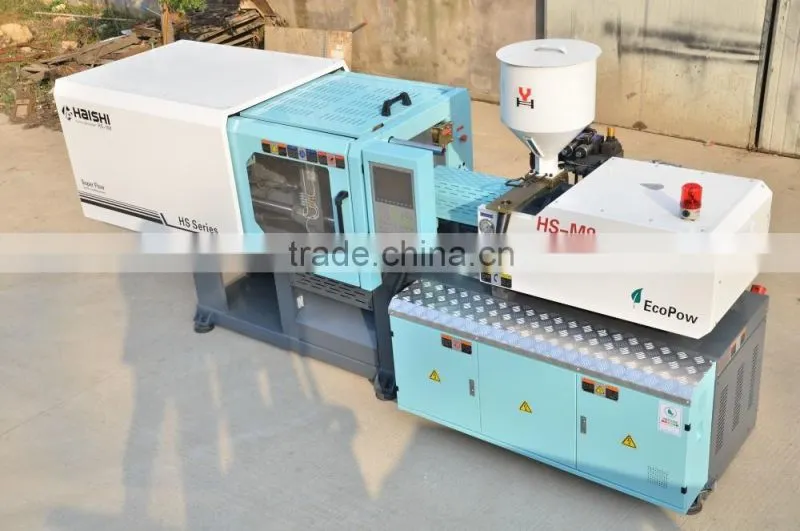

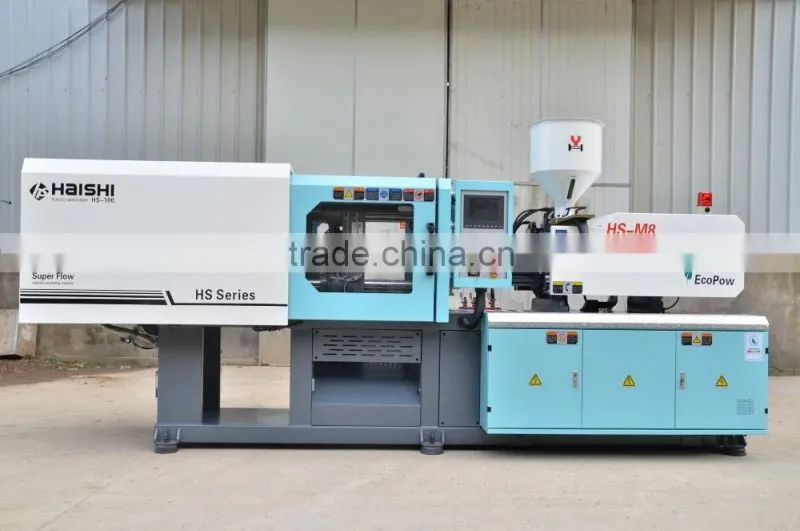

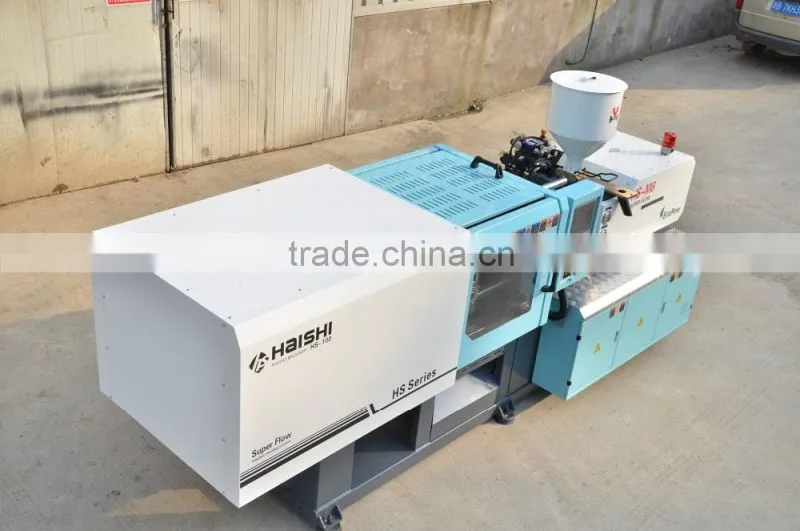

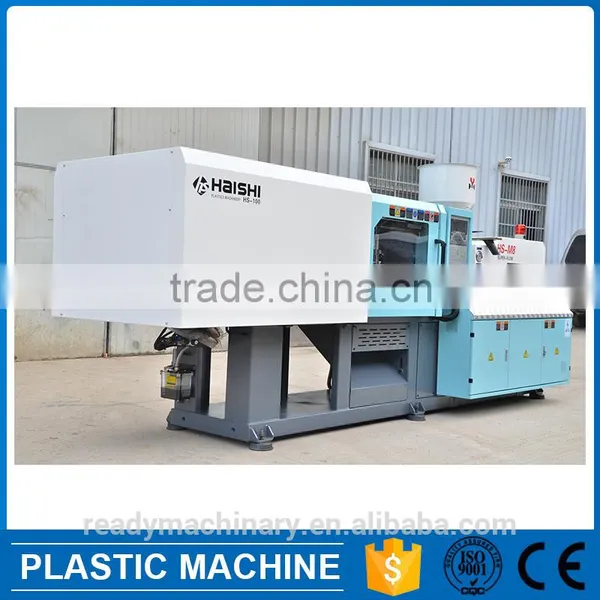

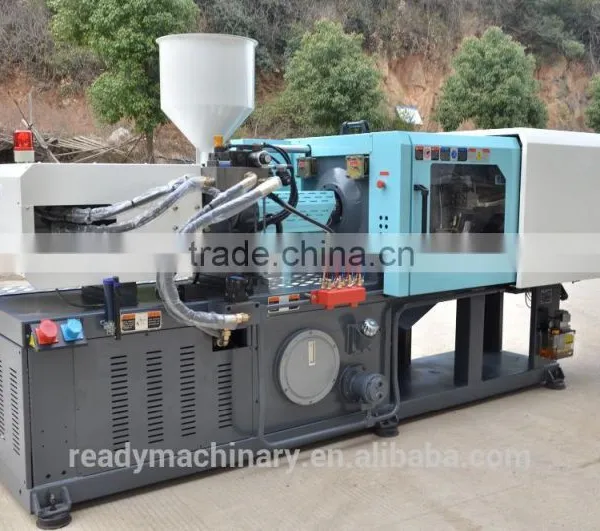

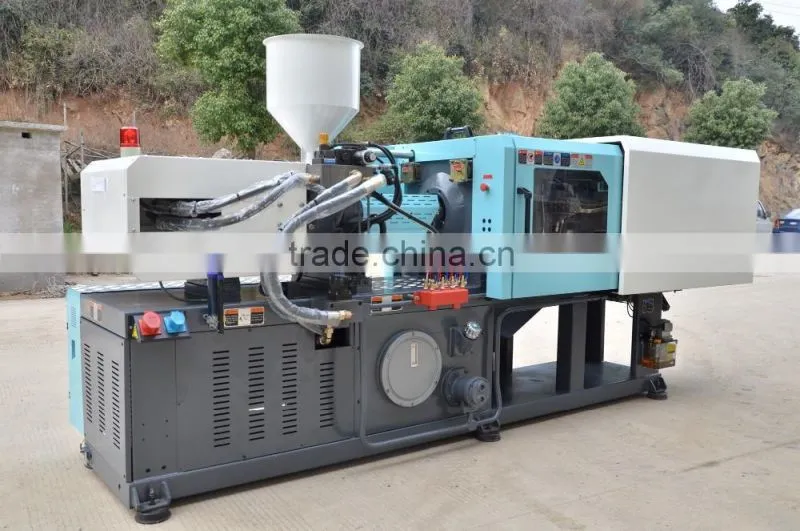

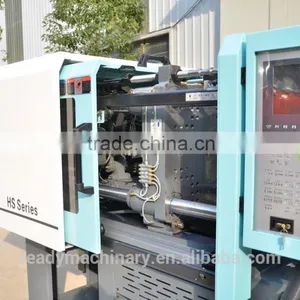

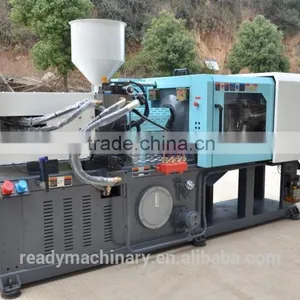

100 Ton Plastic injection molding machine picture:
Packing:FCL: Plastic film
Shipping:Shipment will be delivered in 30 days upon receipt of deposit
1. We will provide the contact information of responsible person, and we will provide 24 hours after sales service consultation the whole year.
2. Free debugging for newly purchased equipemnt, provide free teachnical and guidance.
3. During the warranty period, the seller can provide home repair service, and a small amount of labor and parts expenses will be changed in accordance with the specific situation.
4. We will keep maintenance for each shipped equipment for regular tracking and return visit.
If you interested or have any problem, please give me enquiry, thanks!!!
Contact:Tammy Yan
Wechat: YQY932570502
Tel/ WhatsAPP: +008618329021230
