Home > Products > Middle & Low Voltage Power Cables > 8.7/15kv Copper Core XLPE Insulated Steel Tape Armoring PVC Sheathed Power Cable 3*120mm2

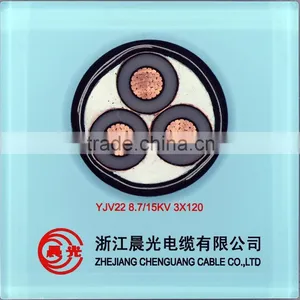

8.7/15kv Copper Core XLPE Insulated Steel Tape Armoring PVC Sheathed Power Cable 3*120mm2
- 0 per Month
- Mooring rope cable
- Manufacturer of waterproof gas electric composite cable for air ducts, specialized cable for underwater divers
- The difference between different types of automotive cables and selection advice
- China manufacturer Communicate cable RVVP 4*0.3mm2 for power generation
- IEC62196-2 mode 3 16A single-phase electric vehicle charging process
- Automotive high-voltage cables with protection class IP67 characteristics
Product Details
Brand Name: | Chenguang | Model Number: | YJV22 | ||
Insulation Material: | XLPE | Type: | Medium Voltage | Application: | Construction |
Conductor Material: | Copper | Jacket: | PVC |
Product Description

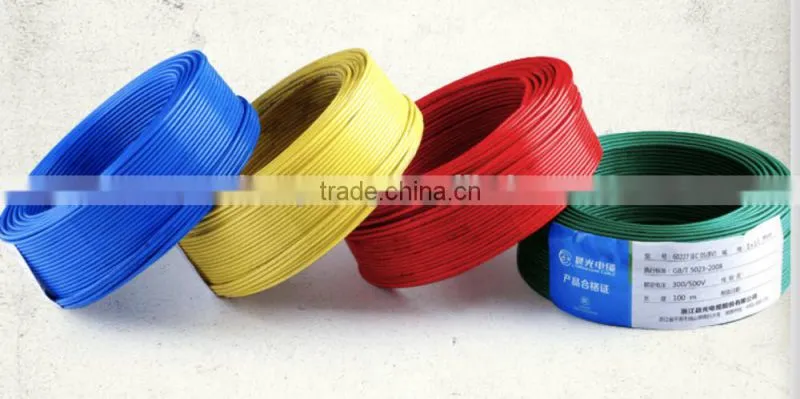

Copper conductor PVC insulated electric wire is widely used in housing electric installation and industrial electric installation. We provide products with high quality raw material following the IEC standards.
Code Designation by IEC | Code Designation by GB | Voltage | Products Name | Constructions | Maximum conductor temperature |
60227 IEC 01 | BV | 450/750 V | Single-core non-sheathed cable with rigid conductor for general purposes | Cl.1 Solid Copper Conductor or Cl.2 Stranded Copper Conductor, PVC/C Insulation | 70 °C. |
60227 IEC 02 | RV | 450/750 V | Single-core non-sheathed cable with flexible conductor for general purposes | Cl.5 Flexible Stranded Copper Conductor, PVC/C Insulation | 70 °C. |
60227 IEC 05 | BV | 300/500 V | Single-core non-sheathed cable with solid conductor for internal wiring for a conductor temperature of 70 °C | Cl.1 Solid Copper Conductor, PVC/C Insulation | 70 °C. |
60227 IEC 06 | RV | 300/500 V | Single-core non-sheathed cable with flexible conductor for internal wiring for a conductor t emperature of 90 °C | Cl.5 Flexible Stranded Copper Conductor, PVC/C Insulation | 90 °C. |
60227 IEC 07 | BV-90 | 300/500 V | Single-core non-sheathed cable with solid conductor for internal wiring for a conductor temperature of 90 °C | Cl.1 Solid Copper Conductor, PVC/E Insulation | 90 °C. |
60227 IEC 08 | RV-90 | 300/500 V | Single-core non-sheathed cable with flexible conductor for internal wiring for a conductor temperature of 90 °C | Cl.5 Flexible Stranded Copper Conductor, PVC/E Insulation | 90 °C. |
60227 IEC 10 | BVV | 300/500 V | Light PVC Sheathed Cable | Cl.1 Solid Copper Conductor or Cl.2 Stranded Copper Conductor, PVC/C Insulation, PVC/ST5 Sheathed | 70 °C. |
60227 IEC 52 | RVV | 300/300 V | Light PVC Sheathed Cord | Cl.5 Flexible Stranded Copper Conductor, PVC/D Insulation, PVC/ST5 Sheathed | 70 °C. |
60227 IEC 53 | RVV | 300/500 V | Ordinary PVC Sheathed Cord | Cl.5 Flexible Stranded Copper Conductor, PVC/D Insulation, PVC/ST5 Sheathed | 70 °C. |
| RVVP | 300/300V | Copper cable with PCV insulation and sheathed for copper braid screened | CI.5 Flexible Stranded Copper Conductor, PVC Insulation, Copper braid screened, PVC sheathed | 70 ° |
Plastic Reel,100meters/per reel ; or as per request
Delivery: 20Days
1. Quality: We provide 5 years warranty. If any quality default occurs, we can change for free.
2. Technical Consulting: If any technical questions from you or your customers, we are happy to answer and communication by tel or email.
3. Factory Tour: If you have project to bidding, welcome to our company. We are open to visiting.
Established in 1984, Zhejiang Chenguang Cable Co., Ltd. is a specialized manufacturer of cables.
Covering an area of 200,000 square meters, which includes an architectural area of 61,000 square meters, the total fixed assets are USD20,000,000. We are one of the top ten cable manufacturers in China and one of the state-level "Abiding By Contract, Keeping Promise" units. Now we have 580 employees, possessing a subsidiary company in Shanghai and many offices in most provincial cities of China.
The company has its own provincial-level enterprise technology center, and a 69-person R&D team, specializing in the production of 500kV and below XLPE insulated power cables, PVC insulated power cables, 10kV and 35 kV insulated aerial cables, cables for electrical equipment, and bare conductors. We have imported one VCV line from TROESTER in Germany, two CCV lines from Nokia in Finland and TROESTER in Germany respectively, two equipment TSR 200/175/100-2500 for partial discharge test from HIPOTRONICS in the United States, and another WRM 24500/700-350 Sp from HIGHVOLT in Germany. The company has the capacity of above USD300,000,000 production value annually. Special cables can be produced and used exclusively according to customers' special requirements of electrical transmission and distribution line.
We have obtained ISO9001 certificate of quality guarantee system and GB/T19002 certificate of measuring system. Wire products in our company have been awarded CCC safety certificate. The company organizes its manufacture of various kinds of cables and wires by strictly following GB, IEC, ASTM, BS and DIN standards. The products will be tested completely according to the requirements of standards.
With successive quality upgrading, customer's satisfaction has been improving constantly. Our cables are favored by customers and are widely applied for power transmission, chemical industry and oil platform, water and electricity construction, high-rise buildings, and have been used for more than 300 main state projects, such as Three Gorge Projects, Shanghai Pudong International Airport, Shanghai University, Hangzhou Dragon Sports Center, and Hai'er Industrial Park. Our products have occupied most of the domestic market and are exported to more than 20 countries and areas in Southeast Asia, Africa, Middle East, and South America.
Our company will continue to keep a professional attitude toward the current electric wire and cable industry. Your interest to our products and advice to our sales and service must be welcome, and please feel free to contact us for more details.
