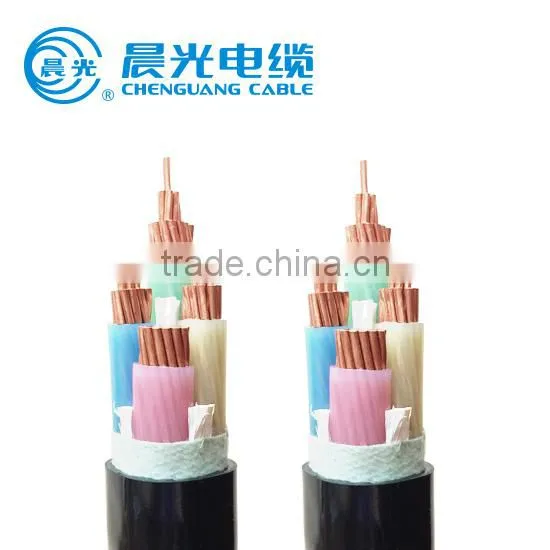

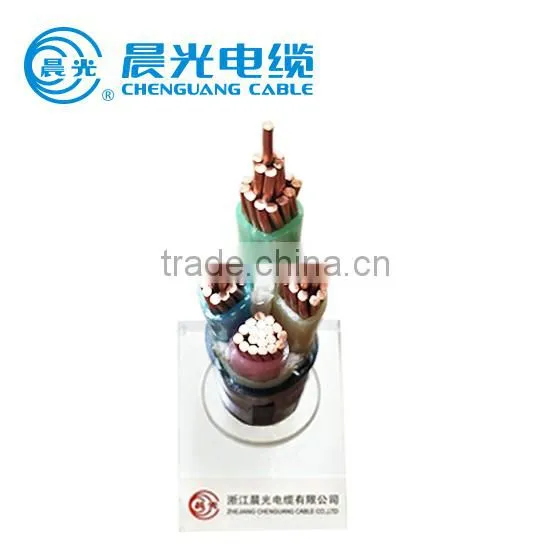

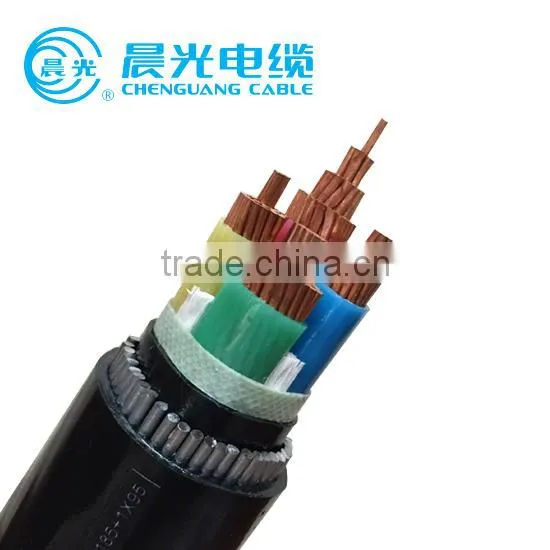

Low Voltage 0.6-1kV Copper or Aluminum conductor XLPE insulated PVC sheathed Fine Steel Wire Armoured power cable
Standards
The products are manufactured according to the standards of GB/T 12706.2 in power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 35kV(Um=40.5kV) in part 1 cables for rated voltages from 1kV(Um=1.2kV) and 3kV(Um=3.6kV)
Property and Function
For 0.6/1kV cross-linked polyethylene(XLPE)insulated power cable, silane water cure method had been employed to transform the molecular structure of PE into three-dimensional network i.e. transforming thermoplastic PE into thermosetting XLPE. After cross linking, the heat and mechanical properties of the cable have been greatly improved while its electrical properties are still maintained.
The conductor operating temperature of XLPE insulated power cable is 90°C. Comparing to the conductor of the same cross section, the long-term permissible current rating will be raised 25% more than that of PVC insulated. The cable has the advantages of simplicity in construction, lightness in weight and antichemical corrosion in properties. It can also be laid with no limitation of level difference along the route. The cables is used for fix-installed electric power transmission and distribution system systems, operating at rated voltage 1000V and below.

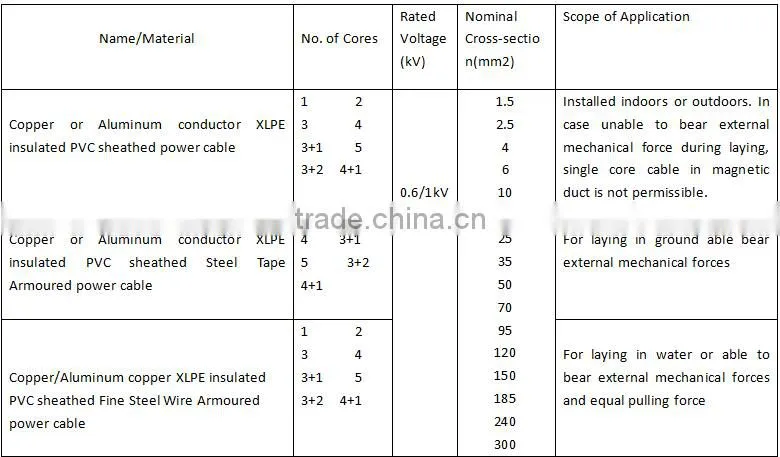

Model Specification
Properties of Application
1.Max. permissible operating temperature of conductor is 90°C.
2.Conductor short-circuit temperature shall not exceed 250°C Max.
3.Bending radius
Bending radius of single core cable:20(D+d)±5%
Bending radius of multi-core:15(D+d)±5%
D-Actual outer diameter of cable sample(mm)
d-Actual diameter of conductor(mm)
4.No restriction of level difference along the route for installation.
5.Installation temperature:
It shall be heated when ambient temperature is below 0°C.

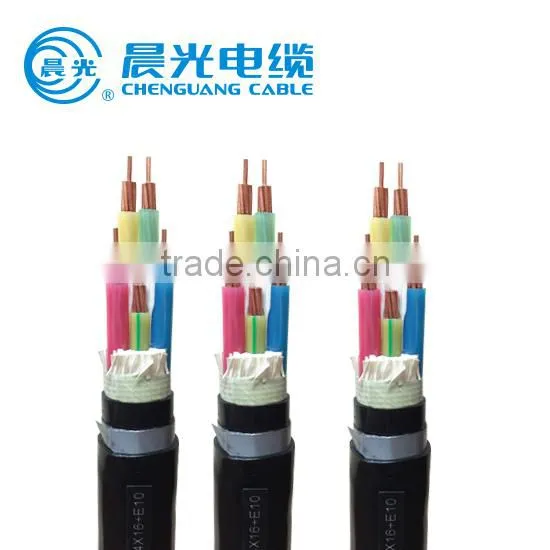

Products Show
Certificates
1. Any inquiries will be replied within 24 hours.
2. OEM/ODM available.
1) Printing your logo on the cable.
2) Printing your logo on the pull box, wooden drum according to your design
3) Any your idea on cable, packing box are available.
3. High quality, reasonable and competitive price, fast lead time.
4. Good after-Sale Service.
1) All products will have been strictly Quality Checked in house before packing.
2) All products will be well packed before shipping.
5. Faster delivery.
Sample order in stock, and 3-7 days for bulk production.
6. Payment
We can accept payment methods: L/C, T/T, Western Union,other payment can negotiation.
