DC Hi pot tester description

I Introduction

Portable HVDC generator is an important equipment for DC voltage withstand test and leakage current test of HV electrical equipments, cables, surge arresters in electric industry and power supply departments. HZ Portable HVDC Generator is developed based on the calibration made by National HV Meterage Station, it accords with the standard "Generation Requirement of Portable HVDC Generator"(HZ 24003-90)

II Features

1. High reliabiliy: high frequency voltage multi-doubler reticfier, simple circuit, high overload capability, rare fault, without maintenance.

2. Small volume: one person can carry the largest HVDC generator (200kV/2mA). Its volume is only 1/(2~5) as the volume of the same kind of equipment made in Japan. It reaches the advanced level in the world.

3. Perfect seal by metal housing, high mechnical stength. Irs performence will not be influenced by viberation, moisture, dust and meterological condition.

4. Safe, convenience in operation, metal housing grounded. built-in HV terminals.

5. There is no high voltage and low voltage connecter outside, easy connection.

6. Good auto protection function. It can nor be switched on if the HV output knob is not at zero position. Poeration is simplw. It will not cause maloperation and automatically switch off in over voltage and overcurrent case. There is dampong resistor indide.It is not necessary to connect damping resistor outside.

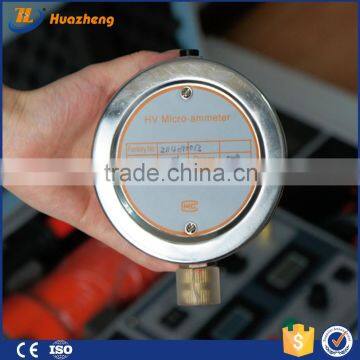

7. Excellent accuracy: The leakage current at HV side is meadured by digital meter accuracy: 1uA, range switch is not required, disvharge withstand current measurement function is available at low voltage side, It use precise resistor with good stability to measure high voltage.

III Technique Index

1. power: AC220V+10%, 60Hz+1%

2. Output voltage indicator accuracy: <1%

3. Output current indicator accuracy: <1%

4. Ripple contain factor: <0.5%

5. 0.75 times output voltage indicator accuracy: <1%, can be locked

  hi pot tester

DC Hipot tester Frequently Asked Question

1. Q: What is the language? After sale service,the Warranty?

    A:English version or as your requirement.Warranty : 1 year.

2.Q:What's the diffrents about the high voltage product?

   A:1.DC High Voltage Generator,this is the dc hipot tester,test the direct current.

      2.The VLF Low frequency high voltage generator,that is ac hipot tester,this can test the ac problems.can test  cable .

      3.Testing Transformer,that is ac dc hipot tester,we have oil immerserd,dry type and the inflatable type.

3.Q:What's the warranty?

   A:One Year.

4.Q: Whether does it have battery or liquid ? Convinent to delivery?

    A: no battey,which does not influence the delivery.

5.Q:How about the Power Supply Supply and the Frequency?

   A:We can make customed work for you as the requirements of your country.

We will attend Power-gen Exhibition in South Africa on July 19-21, 2016. Welcome to visit our booth E10-2.

We have attended the MEE Exhibition in Dubai on 1st to 3rd March 2016. And it is very successful. The follow is the photos that we attended the MEE Exhibition.

  hi pot tester

HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is  founded in 2008,the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.

Close to Tianjin port,  the transportation is convenient. our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.

What's more, gurantee 1 year,life long maintance .Products through the CE, ISO, IEC certification, quality and reliable, factory price.
