DC High Voltage Portable Generator Hipot tester
MOQ: 1 PC ! After sale service ! We are the supplier of State Grid !

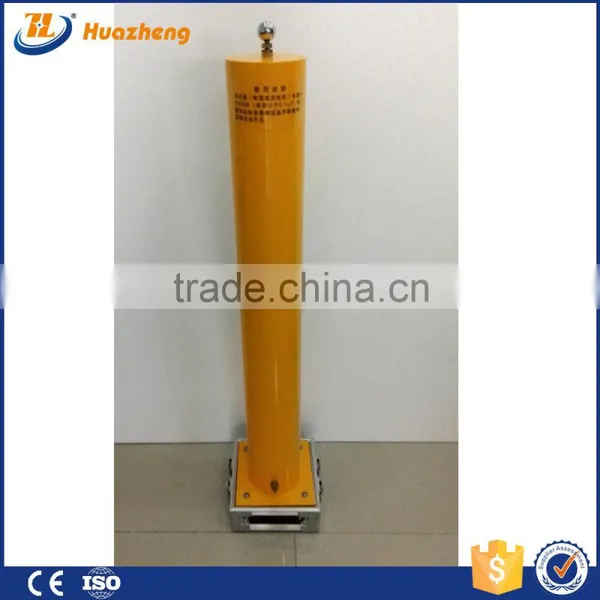

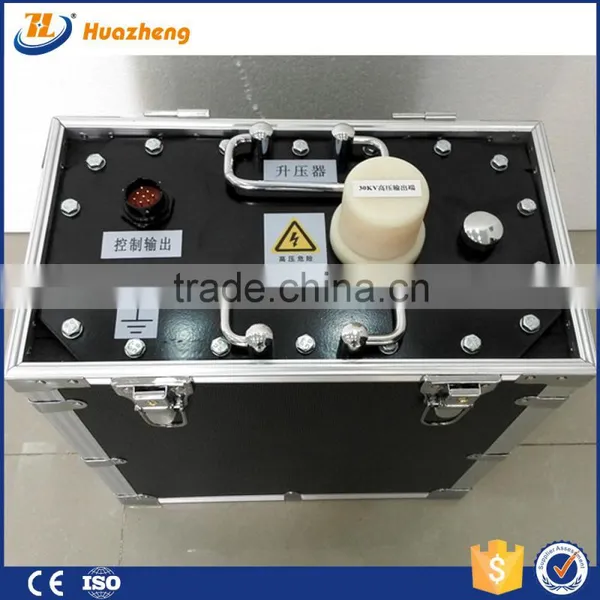

Portable HVDC generator is an important equipment for DC voltage withstand test and leakage current test of HV electrical equipments, cables, surge arresters in electric industry and power supply departments. HZ Portable HVDC Generator is developed based on the calibration made by National HV Meterage Station, it accords with the standard "Generation Requirement of Portable HVDC Generator"(HZ 24003-90)
The new technology, new material and optimal selected components are applied, It has the advantages of high power, small volume, light weight, good performance and high stability.
1. High reliabiliy: high frequency voltage multi-doubler reticfier, simple circuit, high overload capability, rare fault, without maintenance.
2. Small volume: one person can carry the largest HVDC generator (200kV/2mA). Its volume is only 1/(2~5) as the volume of the same kind of equipment made in Japan. It reaches the advanced level in the world.
3. Perfect seal by metal housing, high mechnical stength. Irs performence will not be influenced by viberation, moisture, dust and meterological condition.
4. Safe, convenience in operation, metal housing grounded. built-in HV terminals.
5. There is no high voltage and low voltage connecter outside, easy connection.
6. Good auto protection function. It can nor be switched on if the HV output knob is not at zero position. Poeration is simplw. It will not cause maloperation and automatically switch off in over voltage and overcurrent case. There is dampong resistor indide.It is not necessary to connect damping resistor outside.
7. Excellent accuracy: The leakage current at HV side is meadured by digital meter accuracy: 1uA, range switch is not required, disvharge withstand current measurement function is available at low voltage side, It use precise resistor with good stability to measure high voltage
1. power: AC220V+10%, 60Hz+1%
2. Output voltage indicator accuracy: <1%
3. Output current indicator accuracy: <1%
4. Ripple contain factor: <0.5%
5. 0.75 times output voltage indicator accuracy: <1%, can be locked
|
rating output DC voltage(kV) |
rating output DC current(mA) |
rating output power(W) |
double rectifier case height(m) |
weight(kg) |
HZ-60 |
60 |
2 |
120 |
0.5 |
16 |
|
60 |
5 |
300 |
0.5 |
|
|
60 |
10 |
600 |
0.5 |
|
HZ-120 |
120 |
2 |
240 |
0.8 |
20 |
|
120 |
5 |
600 |
0.8 |
|
|
120 |
10 |
1200 |
0.8 |
|
HZ-200 |
200 |
2 |
400 |
1.2 |
26 |
|
200 |
5 |
1000 |
1.2 |
|
|
200 |
10 |
2000 |
1.2 |
|
HZ-300 |
300 |
2 |
600 |
1.7 |
31 |
|
300 |
5 |
1500 |
1.7 |
|
|
300 |
10 |
3000 |
1.7 |
|

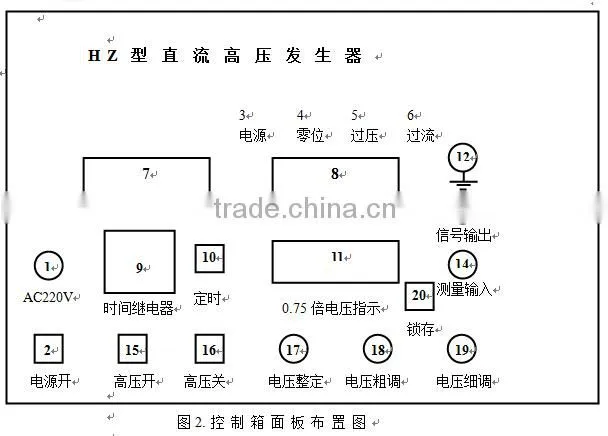

1. power plug 2. power switch
3. "high voltage on" led 4. "zero" led
5. "over voltage" led 6. "over current" led
7. output current indicator 8. output voltage indicator
9. time relay 10. "timer" on button
11. 0.75 times output voltage indicator 12. gound connection
13. signal output plug 14. measurement input plug
15. "high voltage on" button 16. "high voltage off" button
17. "over voltage protect" knob 18. "voltage wide adjust" knob
19. "voltage fine adjust" knob 20."0.75 times output voltage locked" button
From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
