Home > Products > Other Electrical Equipments > HZ-11 Insulated Boots, Insulated Gloves Leakage Current Tester
HZ-11 Insulated Boots, Insulated Gloves Leakage Current Tester
- 1000 Set / Sets per Month
- Tianjin/Shanghai
- T/T Credit Card
Product Details
Place of Origin: | Hebei, China | Brand Name: | HZ | Model Number: | HZ-11 |
Power: | Electronic | Usage: | Auto Testing Machine |
Product Description

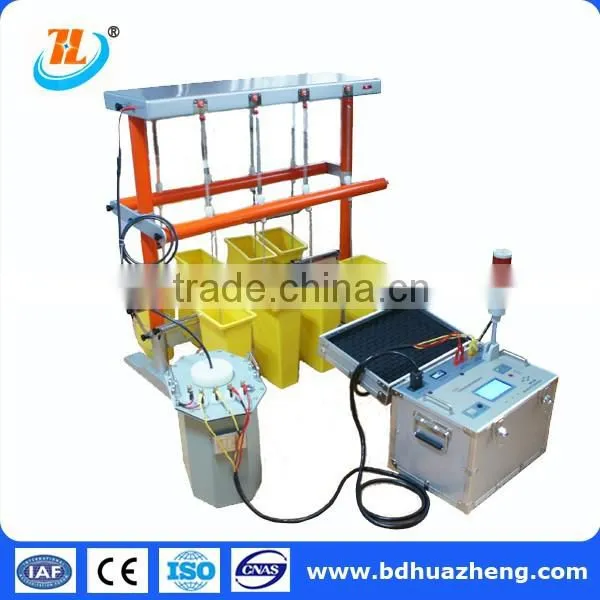

HZ-11 Insulated Boots, Insulated Gloves Leakage Current Tester |
Insulated Boots, Insulated Gloves Leakage Current Tester Introduction
Insulated boots and gloves are essential power system operation and maintenance of safety equipment, DL408 electricity safety regulations and electrical insulation shoes GB12011-2000 General technical requirements and test methods specified period insulated boots and gloves and other safety equipment used in . Test methods and cycles insulated boots and gloves and other safety equipment used for. Insulated boots and gloves pressure test, a period of six months, the breakdown is not allowed during the test, and insulated boots leakage current is less than the limit value.
The instrument uses multi-channel high-voltage discharge measurement technology and infrared communication technology to achieve a safe measurement of high voltage leakage current purposes. By applying this technology, instrumentation and high-voltage system is completely isolated, not only can accurately measure the multi-channel high-voltage leakage current, but also to ensure the personal safety of test personnel.
Insulated Boots, Insulated Gloves Leakage Current Tester Functions and Features
l Simultaneously 8 insulated boots or gloves trials were measured leakage current, can be extended to test 16 test items;
l Display large amount of information, also shows eight high-voltage leakage current, test voltage, current, time and time parameters;
l Measurable test voltage test transformer primary current and other parameters;
l Using infrared communications technology, the console with the high pressure system completely isolated to ensure the safety of the test;
l Automatic pressure test. After the trial began, the instrument automatically switch on to the national standard boost speed automatic boost, rising to a predetermined voltage starts timing and keep the test voltage, time to buck and off automatically, and display and save the test results;
l With a dedicated ground containers, easy to operate;
l Each sample possess high pressure breaking mechanism when any breakdown along the road from the high-pressure test will not affect the conduct trials;
l With overvoltage, overcurrent and other functions;
