High Efficiency Intelligent Film Coating Machineplica
Applications:

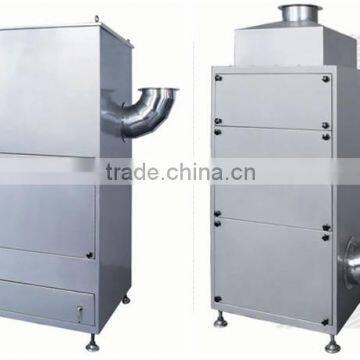

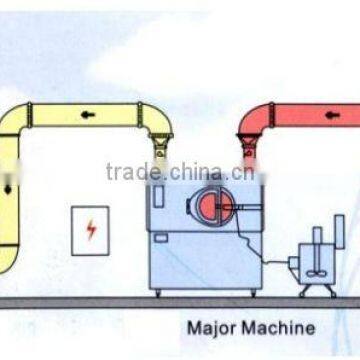

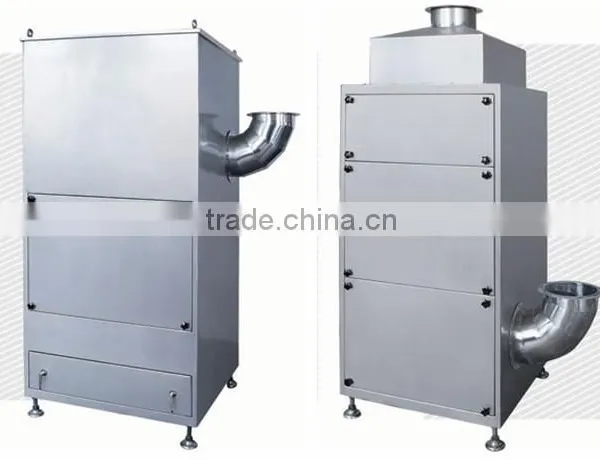

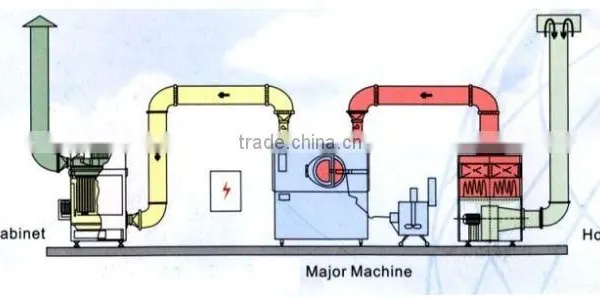

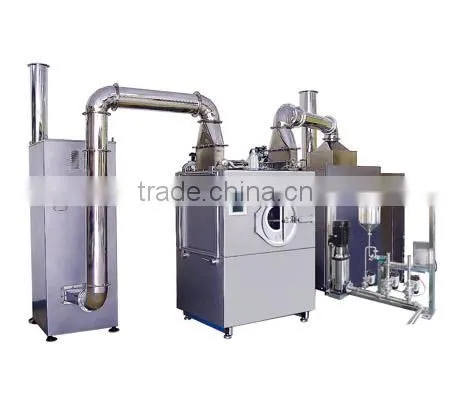

The efficient coating machine consists of major machine, slurry spraying system, hot-air cabinet, exhaust cabinet, feed and discharge device, and computer programming control system.
It can be widely used for coating various tablets, pills and sweets with organic film, water-soluble film and sugar film etc. In such fields as of pharmaceutical, food and biological products etc. And it has such characteristics as good appearance in design, high efficiency, low energy consumption and small floor area, etc.
Basic working principle:
The tablets make complicated and constant track movement with easy and smooth turn frequent exchanging in a clean and closed drum of the film coating machine. The coating mixed round in the mixing drum are sprayed on tablets through the spray gun at the inlet unaction of the peristaltic pump. Meanwhile under the action of air exhaust and negative pressure 100,000 clean hot air supplied by the air exhaust cabinet is exhausted from the fan at the sieve meshes through tablets. So these coating mediums on the surface of tablets get dry forming a coat of firm, fine and smooth film. The whole process is finished under the control of PLC.
Parameter:
Item/model |
BGB1000 |
BGB600 |
BGB400 |
BGB150 |
BGB80 |
BGB40 |
BGB10 |
|
LoadingCapacity |
1000kg |
600kg |
400kg |
150kg |
80kg |
40kg |
10kg |
|
Drum Revolution |
2.0-12rpm |
2.0-12 |
0-13rpm |
2.1-14 rpm |
2.0-16 rpm |
2.0-18 |
3.0-19 rpm |
|
Main Machine Power |
7.5KW |
4KW |
3KW |
2.2KW |
1.5KW |
1.1KW |
0.55KW |
|
Diameter of coating drum |
1800mm |
1580mm |
1580mm |
1200mm |
930mm |
780mm |
500mm |
|
Power of air exhaust cabinet motor |
11KW |
11KW |
7.5KW |
5.5KW |
3KW |
2.2KW |
0.75KW |
|
Air exhaust flow |
18000m3/h |
15450 m3/h |
10000m3/h |
7419 m3/h |
5268 m3/h |
3517 m3/h |
1285m3/h |
|
Power of hot air cabinet motor |
7.5KW |
4KW |
2.2KW |
1.5KW |
1.1KW |
0.75KW |
0.37KW |
|
Hot air flow |
10650 m3/h |
6500 m3/h |
3517 m3/h |
2356 m3/h |
1685 m3/h |
1285 m3/h |
816 m3/h |
|
Weight of main machine |
2000 kg |
1600 kg |
1000 kg |
850 kg |
600kg |
500kg |
200kg |
|
Clean air |
Pressure |
0.4MPa |
≥0.4MPa |
≥0.4MPa |
≥0.4MPa |
≥0.4MPa |
≥0.4MPa |
≥0.4MPa |
Air consumption |
2.5m3/min |
2 m3/min |
1.5 m3/min |
0.7 |
0.35 |
0.2 m3/min |
0.2 m3/min |
|
User demands analysis
Engineering design
Product manufacturing
Automatic control integration
Certification service
Engineers are available to go abroad to help installation
All the products before delivery should be tested by assemble & debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package. In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory.
All the products will be packed in wooden case. The exported products use plywood case to pack.
The foot margin of equipment fixed tightly to make the machine can experience loading & uploading, the upward mark will be posted on the wooden case.
