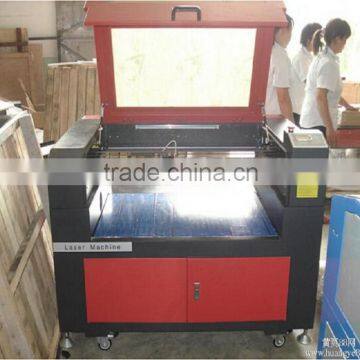

FD6090 laser engraving machine
1.Adopting advanced Ruida DSP digital control system and intenational standard laser power supply, in integrated framework style, that make the working in high stability and high speed.
2.Transmitting files directly from Coredraw, AutoCAD, usb2.0 interface output can support off-line working.
3.The optimized and decent new design ensure the processing speed up to 1200mm/s with low price.
4.Big power and high stability laser, equiping with imported lens and mirror ensure the machines in a long life-span, one step cutting can reach 25mm thickness on acrylic.
5.Imported linear rail and high quality belt for transmission, equiping speed-down structure, ensure the product in high quality and stability cutting.
6.Automatic up and down table, rotary device, red dot position and vacuum system etc.
FD6090 laser engraving machine details
| Machine Description | FD6090 Laser Engraving and Cutting Machine |
| Machine Performance: | |
| Laser-type | Hermetic and detached CO2 laser tube |
| Laser-power | 60W (80W for option) |
| Cooling Mode | Circulating-water-cooling |
| Power Adjustment | 0-100% controlling, no segment and adjusting by software |
| Machine Control and Drive | Speedy DSP controlling, stepper motor |
| Max Engraving Speed | 12000mm/min |
| Max Cutting Speed | 500mm/min(when cutting 10mm thick of acrylic) |
| Repeating Location | 0.01mm |
| Minimum Character | Chinese character 1.5mm, crisscross-row 1mm |
| Max Power | 750W |
| Adjustable Up-down Distance of Laser Head | 30mm |
| Working Travel Area | 600x900mm, 600mm width with infinity material-feeding |
| Table Area | 650x950mm |
| Up-down Range of Working Table | Mechanical 400mm |
| Working Voltage | AC220V 50Hz |
| Working Environment | Temperature: 0-45oC, Humidity: 5%-95%, and congeal-water removed |
| Controlling Software Language | English, Simplified Chinese, Traditional Chinese and procuring of multi-languages |
| Dictate Format | *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*las, Support AutoCAD,CoreDraw direct outputting |
| Body Dimension (L¡ÁW¡ÁH) | 1650x1150x1050mm |
| Packaging Dimension (L¡ÁW¡ÁH) | 1800x1300x1400mm |
| Packaging | Wooden box |
| Gross Weight | 224kg |
| Machine Color | Customizable |
| Delivery Time | 15 days |
| Payment | T/T |
| Optional Equipment | Rotary attachment |
| Motorized up-down table | |
| Water-cooling unit | |
| Red-light position | |
| Vacuum table | |
| DSP Off-line operation with usb flash | |
Samples
1) 1×Air Compressor for Air Assist for blowing off debris/dust at laser head during the laser engrave or cut>
2) 1×Exhaust fan with pipes
Optional: Air Filter Cleaner
3) 1×Water pump for cooling at Laser tube,
Optional: Industrial water chiller
4) 1×USB Cable (connecting PC and laser)
5) 1×DVD (including lasercut software set, user manual, guiding/training videos etc.)
6) 2×Power cables
7) 1×Tool bag/box
Machine: laser engraving machine FD6090

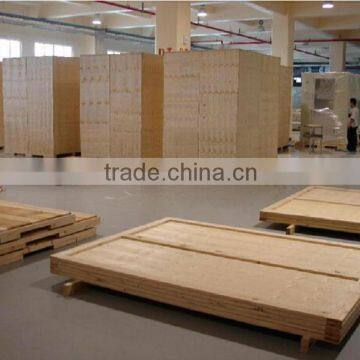

Package details: wooden case
Package size: 1800x1300x1400mm
Find Machinery supplys a wide range of products and service to its global customers, including VMC, miling machine, radial drilling machine, CNC engraving machine, HSS annular cutter, TCT annular cutter, rail cutter, steel tools and non-sparking tools. They are widely sold to more than 50 countries and areas in Europe, America, and Middle-east, relying on the reliable product quality, reasonable price and perfect after-sales service system.
Find Machinery follows the concept of credit management cooperation and win-win strategy, and it has good comments from society and clients. Here we sincerely hope to cooperate with you to create a bright future.
Laser engraving machine FD6090
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. All of the questions will be replied within 24 hours
5. Warranty period: one year
