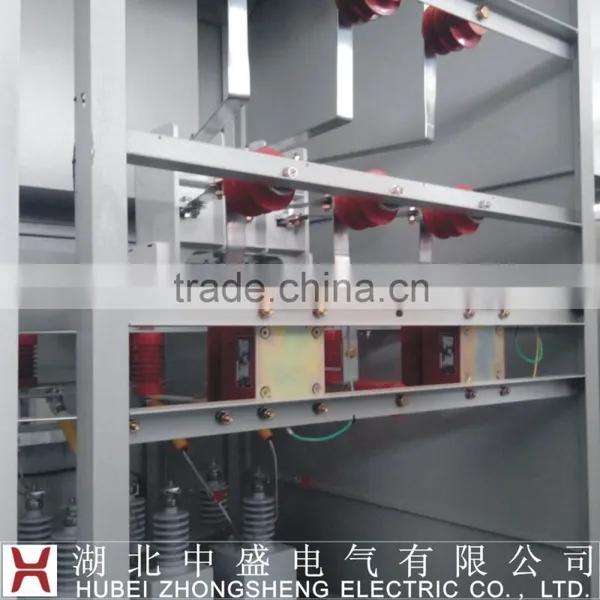

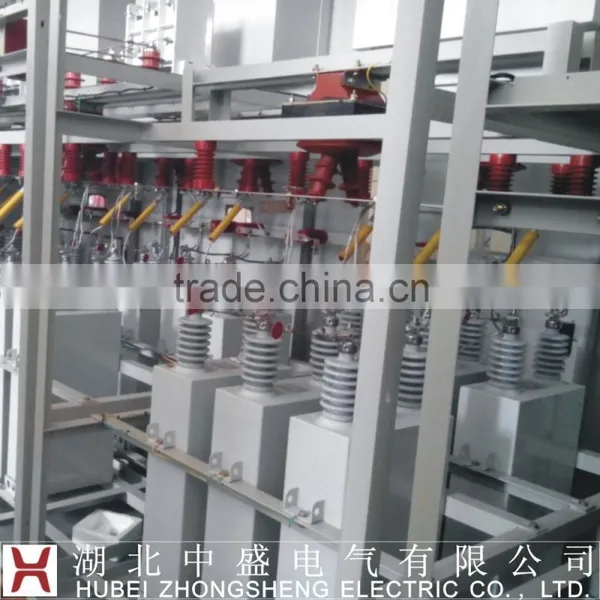

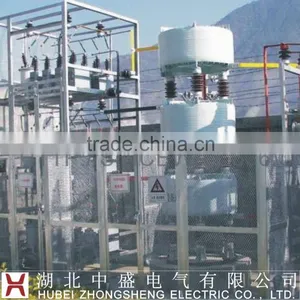

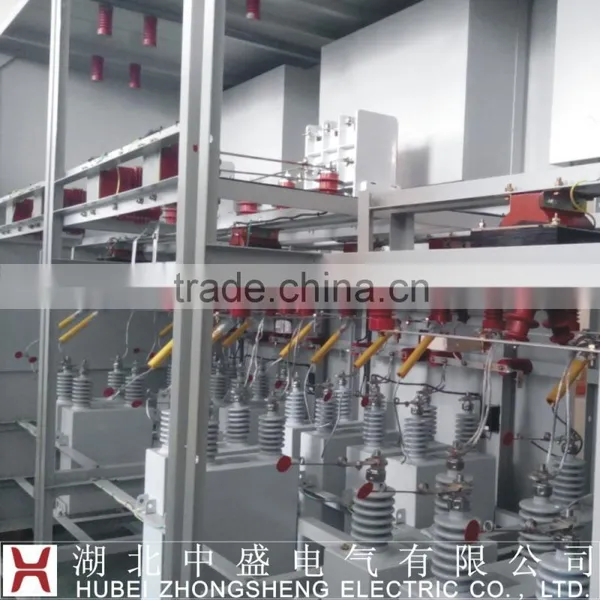

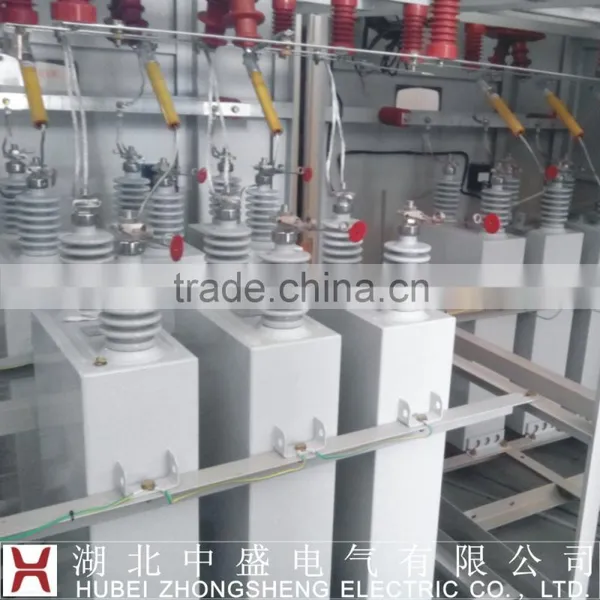

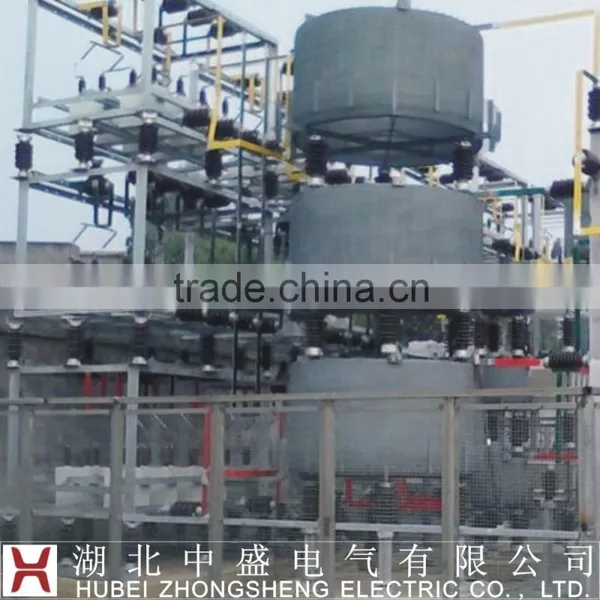

Passive Harmonic Filter
US$ 20,000 - 30,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
Zhongsheng
Model Number:
SHFC
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Active Harmonic FilterUS$ 7,000 - 44,000MOQ: 1 Set -
Power Factor Correction for 11KV SystemUS$ 36,000 - 40,000MOQ: 1 Set
-
Industrial Power Factor Correction UnitUS$ 2,500 - 2,500MOQ: 1 Set
-
11KV 4.5Mvar 50Hz Power Factor CorrectionUS$ 30,000 - 35,000MOQ: 1 Set
-
Intelligent Low Voltage Active Power FilterUS$ 3,000 - 10,000MOQ: 1 Set
Place of Origin
Hubei, China
Brand Name
Zhongsheng
Model Number
SHFC
Product Description
| Product name | SHFC series passive harmonic filter |
| Working principle | SHFC series passive harmonic filter is installed in parallel near the non-linear load with LC circuits, tuned to each harmonic order to be filtered by each LC circuit. Bypass circuits absorb the harmonics, thus avoiding their flow in the distribution network. |
| Features | 1. Applied voltage range: up to 35KV. |
| 2. Frequency: 50Hz, 60Hz. | |
| 3. Harmonic filtering efficiency up to 70%. | |
| 4. High quality discharge devices are installed inside the unit, and residual voltage can be reduced under 50V in 5 minutes when the unit is separated from power system. | |
| 5. Protection function: overvoltage, undervoltage, overcurrent, voltage differential protection and open delta protection. | |
| 6. Can offer capacitive reactive power to network, higher power factor above 0.92, improved voltage stability and lower network losses. | |
| 7. Filtering of harmonics in the system to acceptable levels. | |
| 8. Lowering of resonance problems and amplification of electrical disturbances. | |
| Service condition | 1. Ambient temperature: -10℃ ~ +40℃. |
| 2. Relative humidity: Less than 85%, non-condensation. | |
| 3. Altitude: Less than 1000m. (more than 1000m should be with special design.) | |
| 4. Installation site: Indoor service. Vertical inclination shall be less than 5 degree. No fire hazard, explosion risk, conductive dust, corrosive gas and strong vibration exist. | |
| Ordering instructions | Please providing following information when you place the order: |
| 1. Offer detailed information of harmonics or harmonics testing result report. | |
| 2. Confirm natural power factor and target power factor in the system. | |
| 3. Any special requirements, such as outdoor installation, please consult with our company. | |
| 4. This passive harmonic filter unit is working with switchgear, if you don't have switchgear, you can order the unit together with switchgear from us. |
