Made In China Electrical Supply SMSVC Magnetic Static HV Dynamic Var Compensator

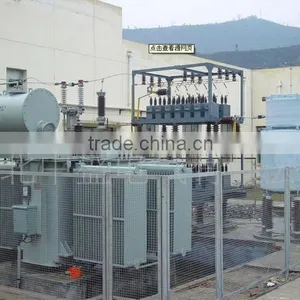

Made In China Electrical Supply SMSVC Magnetic Static HV Dynamic Var Compensator thumbnail-1
Made In China Electrical Supply SMSVC Magnetic Static HV Dynamic Var Compensator photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
China Strong
Model Number:
SMSVC
Contact Supplier Request Quote Chat Now
Hubei Zhongsheng Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hubei, China
Brand Name China Strong
Model Number SMSVC

Made In China Electrical Supply SMSVC Magnetic Static HV Dynamic Var Compensator



Specification:

The safeness, reliability and economy are very important in electric power system. It has great significance of system reactive power and system voltage quick adjustment, tide allocation and power system overvoltage. Recently, with the rapid development of metallurgy, oil, electric railway, wind power generation and expend of power system scale; all kinds of electric equipment has the problem of reactive power consumption, voltage fluctuation,flickering. Our SMSVC series device can solve above problems efficiently, ensuring the safeness and stabilization of power system.

The SMSVC series device is consisted of control protection monitoring system, magnetic reactor, capacitor and other accessories.



Operating Environment:
a. The ambient temperature upper limit and lower limit are respectively +40°C and -10°C;

b. Altitude is not more than 1000m(if it exceeds 1000m, we will choose plateau style);
c. Relative humidity: daily average value should not be more than 85%, while monthly average value should not be more than 90% ;
d. Seismic intensity should be not more than 5°;
e. Places without fire, explosion risk, serious pollution, chemical corrosion and violent vibration.


Executive standard:

GB/T 20298-2006

GB/T 20297-2006

DL/T 1010.1~1010.5

GB10229-1988

GB50227-95

GB1208-97

DL/T604-1996

GBT7328-87



Technical parameter:

6/10kV oil immersed magnetic reactor,triangle connection

Model

Rated capacity(kVar)

Rated voltage (kV)

Rated current (A)

Rated reactance (Ω)

Weight(kg)

External dimension

Gauge(mm)

L*W*H(mm)

BKSMC-600/10.5(6.3)

600

10.5

(6.3)

33

(55)

551.3

(198.5)

3060

1780*1750*1870

660*660

BKSMC-800/10.5(6.3)

800

10.5

(6.3)

44

(73.3)

413.4

(148.8)

3850

1950*1810*1950

660*660

BKSMC-1000/10.5(6.3)

1000

10.5

(6.3)

55

(91.6)

330.8

(119.1)

4950

1995*1875*2250

820*1100

BKSMC-1200/10.5(6.3)

1200

10.5

(6.3)

66

(110)

275.6

(99.2)

5500

2650*2500*2450

1070*1070

BKSMC-1500/10.5(6.3)

1500

10.5

(6.3)

82.5(137.5)

220.3

(79.4)

5760

2810*2500*2500

1070*1070

BKSMC-1800/10.5(6.3)

1800

10.5

(6.3)

99

(165)

183.5

(66.2)

6400

2880*2640*2550

1070*1070

BKSMC-2100/10.5(6.3)

2100

10.5

(6.3)

115.5(192.5)

157.5

(56.7)

7400

3270*3100*2600

1070*1300

BKSMC-2400/10.5(6.3)

2400

10.5

(6.3)

132

(220)

137.8

(49.6)

8950

3300*3160*2670

1070*1300

BKSMC-3000/10.5(6.3)

3000

10.5

(6.3)

165

(275)

110.3

(38.7)

9800

3360*3000*2800

1070*1475

BKSMC-3500/10.5(6.3)

3500

10.5

(6.3)

192.5(321)

94.5

(34)

12600

4000*3500*3150

1200*1440

BKSMC-4000/10.5(6.3)

4000

10.5

(6.3)

220(366.6)

82.7

(29.8)

14400

4000*3500*3200

1475*1475

BKSMC-4500/10.5(6.3)

4500

10.5

(6.3)

247.4(412.4)

73.5

(26.5)

15800

4010*3560*3200

1475*1475

BKSMC-5000/10.5(6.3)

5000

10.5

(6.3)

275(458.2)

66.2

(23.8)

17500

4080*3620*3320

1475*1475

BKSMC-6300/10.5(6.3)

6300

10.5

(6.3)

330

(550)

55.1

(19.8)

19600

4200*3700*3500

1475*1475

BKSMC-8000/10.5(6.3)

8000

10.5

(6.3)

440(773.1)

41.3

(14.9)

21600

4320*3750*3500

1475*1475

BKSMC-10000/10.5

10000

10.5

550

33.1

23500

4380*3880*3550

1475*1475



Certificates:

Made In China Electrical Supply SMSVC Magnetic Static HV Dynamic Var Compensator





Welcome to visit our factory!

Any query and question please be free to contact with us.

It’s our great pleasure to help you.
