Home > Electrical & Electronics > Power Supply & Distribution > Power Distribution Cabinet & Box > SAPF Low Voltage Harmonic Correction Equipment
SAPF Low Voltage Harmonic Correction Equipment
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
Zhongsheng
Model Number:
SAPF
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Shanghai Wuhan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SMSVC Reactive Power CompensationNegotiableMOQ: 1 Set -
6KV 10KV 35KV MCR Typed Static Var Compensator for Electric Arc FurnaceNegotiableMOQ: 1 Set
-
MCR-SVC Static Var CompensatorNegotiableMOQ: 1 Set
-
Zhongsheng SMSVC High Voltage Automatic Electrical Voltage StabilizerNegotiableMOQ: 1 Set
-
SMSVC Dynamic Static Var Compensator-automatic Voltage StabilizerNegotiableMOQ: 1 Set
Place of Origin
Hubei, China
Brand Name
Zhongsheng
Model Number
SAPF
Product Description
| Product name | SAPF low voltage harmonic correction equipment | ||||
| Three phase, three wire | |||||
| Model no. | SAPF-50/380-I | SAPF-100/380-I | SAPF-150/380-I | SAPF-200/380-I | SAPF-300/380-I |
| Compensate current | 50A | 100A | 150A | 200A | 300A |
| Dimensions (w*d*h) | 800*600*2200mm | 800*600*2200mm | 800*800*2200mm | 1000*800*2200mm | 1200*800*2200mm |
| Rated voltage | 380V | ||||
| Rated frequency | 50Hz | ||||
| Filter tuned to | 2th to 50th, or order of harmonics. | ||||
| Starting time | less than 10ms. | ||||
| Mounting arrangement | indoor | ||||
| Enclosure IP class | IP30 | ||||
| Standards | IEC 60831, GB 7251, GB/T14549 | ||||
| Temperature class | -10℃ to +40℃ | ||||
| Relative humidity | no more than 85%, non condensing. | ||||
| Altitude | no more than 2000m. | ||||
| Installation site | Vertical inclination shall be no more than 5 degree. No fire hazard, explosion risk, conductive dust, corrosive gas and strong vibration exist. | ||||
| Applications | The low voltage active harmonic filter cabinet is widely used in process industries such as cement, metal, chemicals and pharmaceuticals, as well as industries such as textiles, automobiles, health care, petrochemicals, datacenters, and more. | ||||

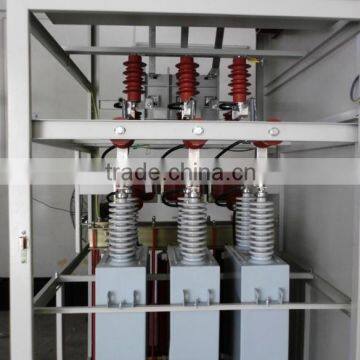

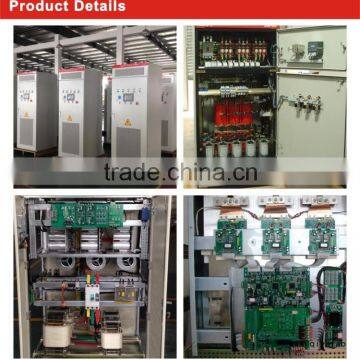

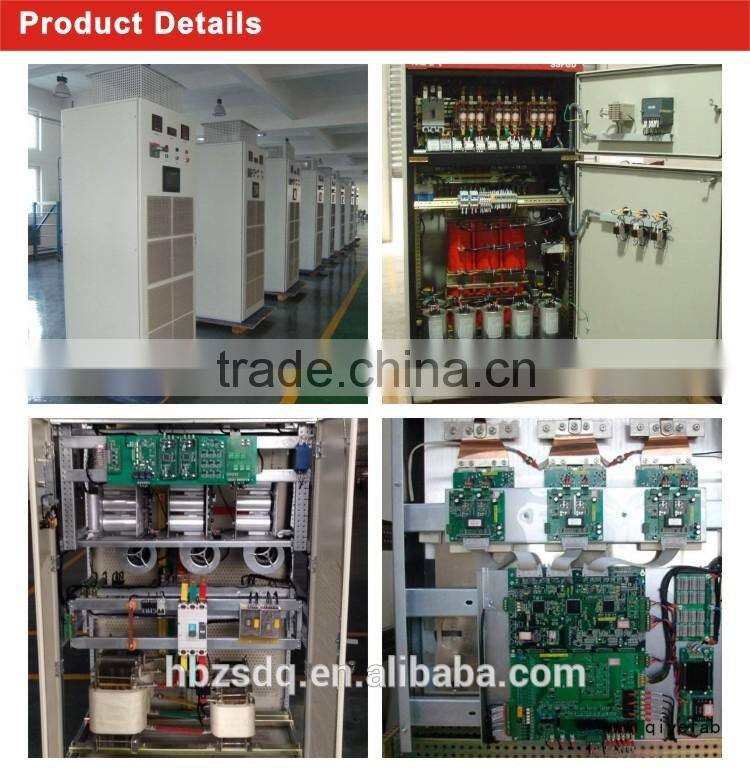

Picture of product
