SMSVC Dynamic Static Var Compensator-automatic Voltage Stabilizer
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Zhongsheng
Model Number:
SMSVC
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SMSVC Reactive Power Auto Compensation ControllerNegotiableMOQ: 1 Set -
SMSVC Magnetic Type Static Reactive Power CompensatorNegotiableMOQ: 1 Set
-
SMSVC Electrical Reactive Power Factor Compensator CubicleNegotiableMOQ: 1 Set
-
High Voltage Static Var Generator SSVG SeriesNegotiableMOQ: 1 Set
-
Static Var Generator (SSVG Series)NegotiableMOQ: 1 Piece
Place of Origin
Hebei, China
Brand Name
Zhongsheng
Model Number
SMSVC
Product Description
| Product Name | SMSVC dynamic static var compensator-automatic voltage stabilizer | |||
| Rated Voltage: 10KV | ||||
| Model No. | Rated Capacity (Kvar) | Rated Current (A) | Rated Reactance ( Ω ) | Net Weight (KG) |
| BKSMC-600/10 | 600 | 33 | 551.3 | 3060 |
| BKSMC-800/10 | 800 | 44 | 413.4 | 3850 |
| BKSMC-1000/10 | 1000 | 55 | 330.8 | 4950 |
| BKSMC-1200/10 | 1200 | 66 | 275.6 | 5500 |
| BKSMC-1500/10 | 1500 | 82.5 | 220.3 | 5760 |
| BKSMC-1800/10 | 1800 | 99 | 183.5 | 6400 |
| BKSMC-2100/10 | 2100 | 115.5 | 157.5 | 7400 |
| BKSMC-2400/10 | 2400 | 132 | 137.8 | 8950 |
| BKSMC-3000/10 | 3000 | 165 | 110.3 | 9800 |
| BKSMC-3500/10 | 3500 | 192.5 | 94.5 | 12600 |
| BKSMC-4000/10 | 4000 | 220 | 82.7 | 14400 |
| BKSMC-4500/10 | 4500 | 247.4 | 73.5 | 15800 |
| BKSMC-5000/10 | 5000 | 275 | 66.2 | 17500 |
| BKSMC-6300/10 | 6300 | 330 | 55.1 | 19600 |
| BKSMC-8000/10 | 8000 | 440 | 41.3 | 21600 |
| BKSMC-10000/10 | 10000 | 550 | 33.1 | 23500 |
| Features | ||||
| 1. Reliable and long-lasting as solid rock. | ||||
| 2. Improved damping of voltage oscillation. | ||||
| 3. Smaller distortion of network voltage main harmonic. | ||||
| 4. 100% overload up to 30 seconds. | ||||
| 5. 40% overload up to 20 minutes. | ||||
| 6. Non-intertial boosting within one network voltage period. | ||||
| 7. Internal power losses at rated voltage of only about 0.5% rated power. | ||||
| 8. Simple (transformer-like) maintenance. | ||||
| 9. Equipment costs about 50% of TCRs. | ||||
| 10. Coolant is non-toxic (no PCBs). | ||||
| Product Structure | ||||
| SVC / static var compensator consists of magnetic control reactor, controller, capacitor (C) or filter functions to install reactor container and hollow electric reactor to form filter compensator bank(FC). The core technology is the magnetic control reactor (MCR) and it is the ideal static reactive compensation, voltage adjustment and harmonic management equipments in high voltage and ultra high voltage grids. | ||||

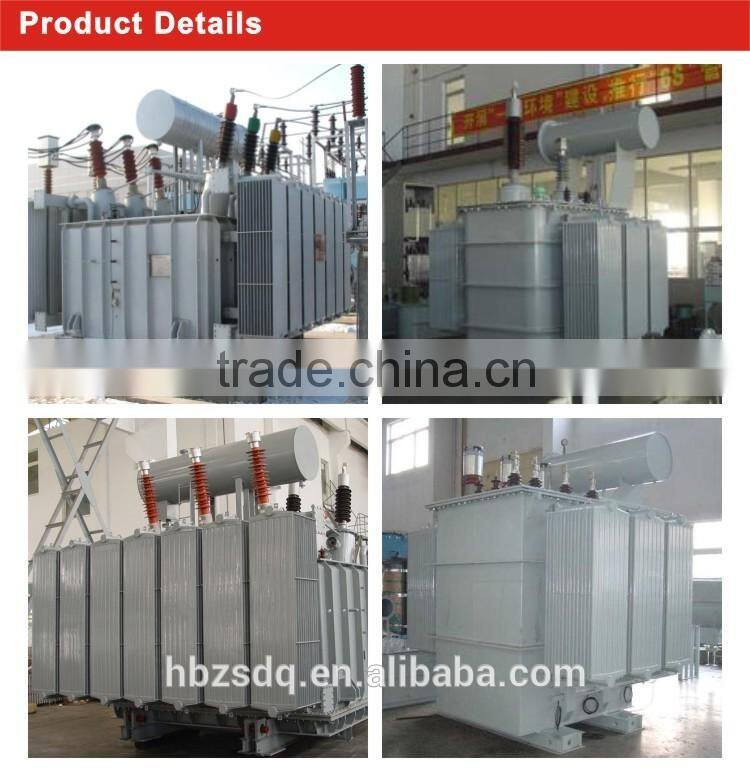

Picture of product
