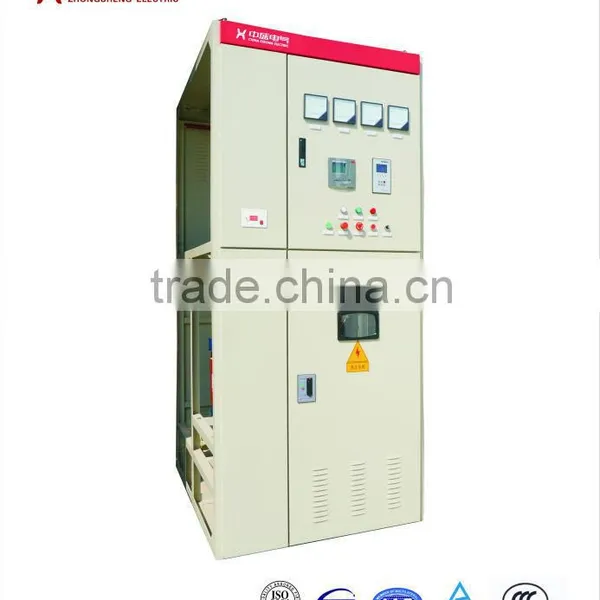

Help CenterSTBB Series Electrical Machine Power Factor Control Panel
Related Products
-
Active Power Harmonic FilterNegotiableMOQ: 1 Set -
SAPF Low Voltage Harmonic Correction EquipmentNegotiableMOQ: 1 Set
-
SMSVC Reactive Power CompensationNegotiableMOQ: 1 Set
-
6KV 10KV 35KV MCR Typed Static Var Compensator for Electric Arc FurnaceNegotiableMOQ: 1 Set
-
MCR-SVC Static Var CompensatorNegotiableMOQ: 1 Set
Specification:
STBB series of high voltage collective power factor improvement equipment is used in the system of 3~35kv and its main
functions include compensating for wattles power, enhancing power factor, regulating power network voltage, reducing
power consumption by cable, improving the quality of power supply and enhancing the efficiency of power distribution device.
Main Characteristics:
1. High quality voltage capacitor is adopted and it has such characteristics as high reliability, long life, low consumption, low
temperature rise, low impedance ratio and so on.
2. Equipped with good discharge measures and residual voltage decreases to less than 50V when the devices cut off from network.
3. High pressure ejecting fuse are adopted as short circuit protection for single capacitor to ensure the safe operation of the devices.
The main protections include neutral unbalanced current protection, split triangular voltage protection and voltage differential protection.
4. Series reactors with impedance ratio of 0.5%-13% is adopted to limit the switching-on current and the 3rd harmonic and above.
5. Perfect protective measures including, over-current, transient break, over-voltage, low voltage and so on, with a separate protective
screen to ensure safe running.
Technical parameters:
Type |
Rated capacity(kVar) |
Outline dimension(mm) |
Note |
||
W |
D |
H |
|||
STBB-300/ |
300 |
1000 |
1600 |
2650 |
standard features |
STBB-450/ |
450 |
1200 |
1600 |
2650 |
standard features |
STBB-600/ |
600 |
1200 |
1600 |
2650 |
standard features |
STBB-750/ |
750 |
1200 |
1600 |
2650 |
standard features |
STBB-900/ |
900 |
1200 |
1600 |
2650 |
standard features |
STBB-1000/ |
1000 |
1200 |
1600 |
2650 |
standard features |
STBB-1200/ |
1200 |
1200 |
1600 |
2800 |
standard features |
STBB-1350/ |
1350 |
1200 |
1600 |
2800 |
standard features |
STBB-1500/ |
1500 |
2400 |
1600 |
2650 |
standard features |
STBB-1800/ |
1800 |
2400 |
1600 |
2650 |
standard features |
STBB-2000/ |
2000 |
2400 |
1600 |
2650 |
standard features |
STBB-2400/ |
2400 |
2400 |
1600 |
2800 |
standard features |
STBB-2700/ |
2700 |
2400 |
1700 |
2800 |
standard features |
STBB-3000/ |
3000 |
2400 |
1700 |
2800 |
standard features |
STBB- / |
>3000 |
Special design |
standard features |
||
