Slip Ring Electric Motor Soft Starter 55kw made in China
Working principles:
A special liquid resistor is connected in series to the rotor circuit of slip ring motor; the liquid
resistor get to work when the motor starts and its resistance gradually decrease during the preset
time, so as the motor can start smoothly and accelerate eventually at minimal rated current and
maximum torque. After start process is completed, the rotor circuit is shorted by the contactor.
Its low starting current results in no impact on motors, load and power system as well as in no
harmonic to affect the power system.

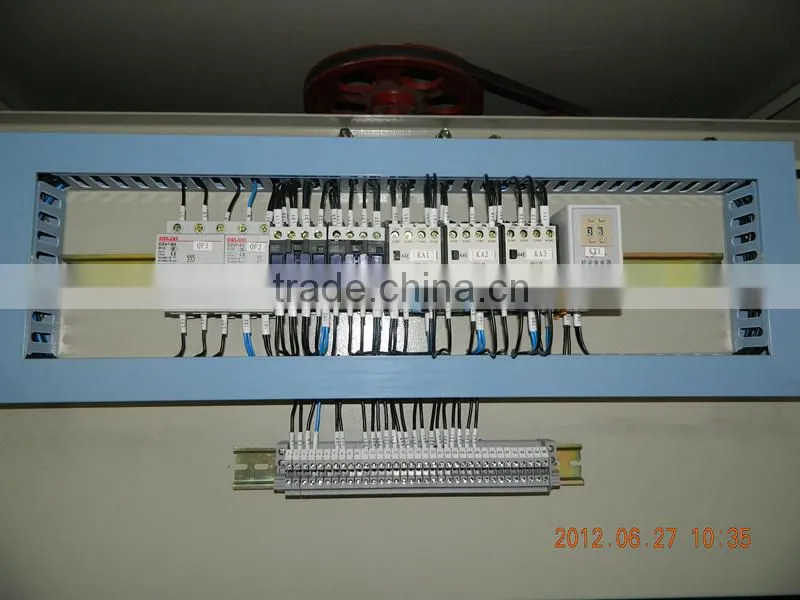

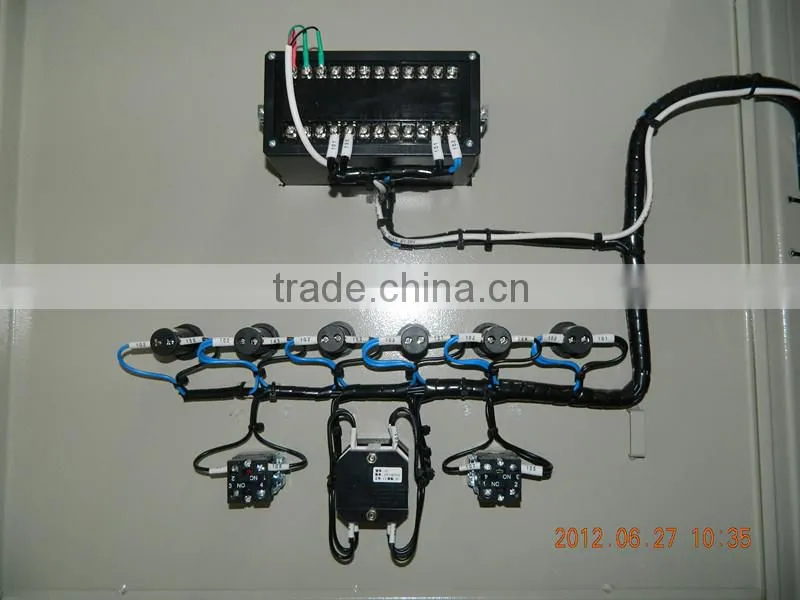

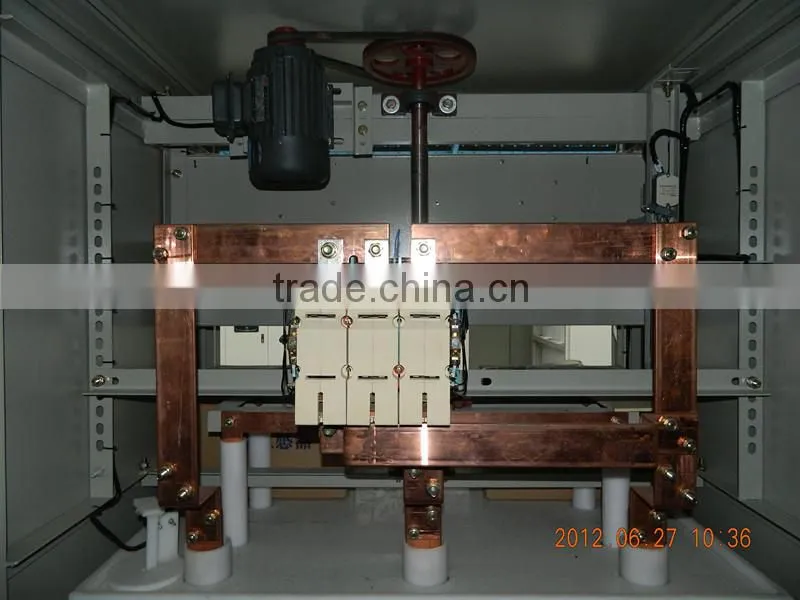

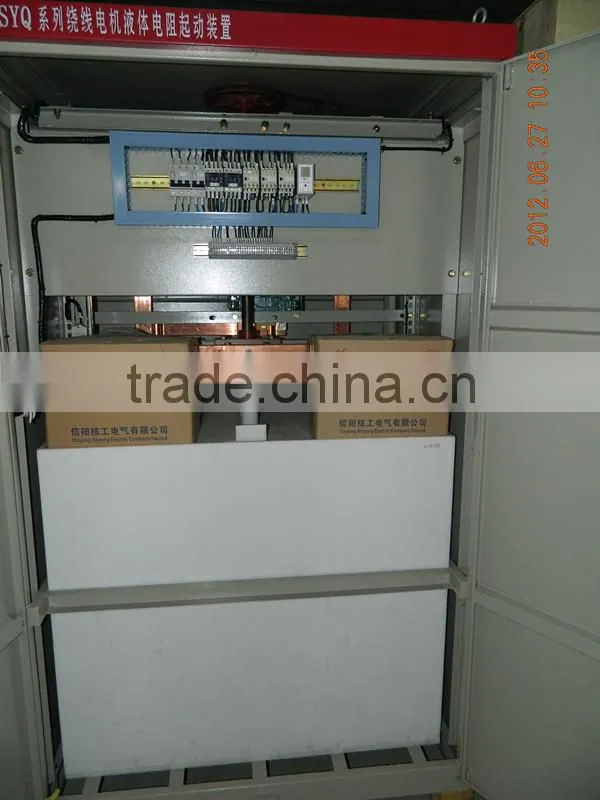

Detail pictures:
Application scope:
It is used for the smooth soft start of slip ring motor, rated voltage of 0.4kV,0.66kV,3kV,6kV,10kV.
Standards adopted:
Low voltage whole set switches and controllers GB7251.1-2005
Automatic liquid resistor starting, speed regulation and compensating controller Q/XZS1-2009
Operating Environment:
a. The ambient temperature upper limit and lower limit are respectively +40°C and -10°C;
b. Altitude is not more than 2000m(if it exceeds 2000m, we will choose plateau style);
c. Relative humidity: daily average value should not be more than 85%, while monthly average value should not be more than 90% ;
d. Ground gradient should be not more than 5°;
e. Places without fire, explosion risk, serious pollution, chemical corrosion and violent vibration.
Technical parameter:
0.4kV/6kV/10kV slip ring liquid resistor soft starter
Model |
Adaptive power(kW) |
External dimension(mm) |
||
W |
D |
H |
||
SYQ- 600/ |
≤ 600 |
800 |
800 |
2000 |
SYQ-1000/ |
≤1000 |
1000 |
900 |
2000 |
SYQ-2000/ |
≤2000 |
1200 |
900 |
2000 |
SYQ-3000/ |
≤3000 |
1300 |
1200 |
2200 |
SYQ-4000/ |
≤4000 |
1400 |
1200 |
2200 |
SYQ-5000/ |
≤5000 |
1500 |
1200 |
2200 |
SYQ- / |
>5000 |
Special design |
||
Ordering notice:
When you order this product, you’d better provide model of motor, rated power, rated stator voltage and current, rated rotor voltage and current, load type.
1 Reply your enquiry in 24 working hours.
2 Experienced staffs answer all your questions in professional and fluent English.
3 Customized design is available. OEM&ODM are welcome.
4 Exclusive and unique solution can be provided to our customers by our well-trained and professional engineers and staffs.
5 Special discount and protection of sales area provided to your distributor.
6 Do the best electric cabinet in China.
1,Part of International Typical projects we joined and customers!
Kenya Athi River 81MW Heavy Oil Power Plant
Congo Liouesso Hydropower Project
Guinea Keller tower Hydropower Project (Fria Transformer Substation)
Masteel (Kuala Lumpur) Co., Ltd
Kounrad Copper Company LLP
PGS Jakarta Indonesia
Indonesia Surabaya Mast Steel Group
Thailand New Technology Source Steel Factory
VALIADIS S.A
Hunan Erkang Medicine (Cambodia) Co.,Ltd
The Bengal Electric Ltd
Congo Liouesso Hydropower Project
Kenya Athi River 81MW Heavy Oil Power Plant
Location: Xiangyang, China(Mainland)
Year Established: 2008
Registration No: 420600000118942
Company Certifications: ISO 9001; ISO14001; OHSAS 18001; CCC;IEC; TUV

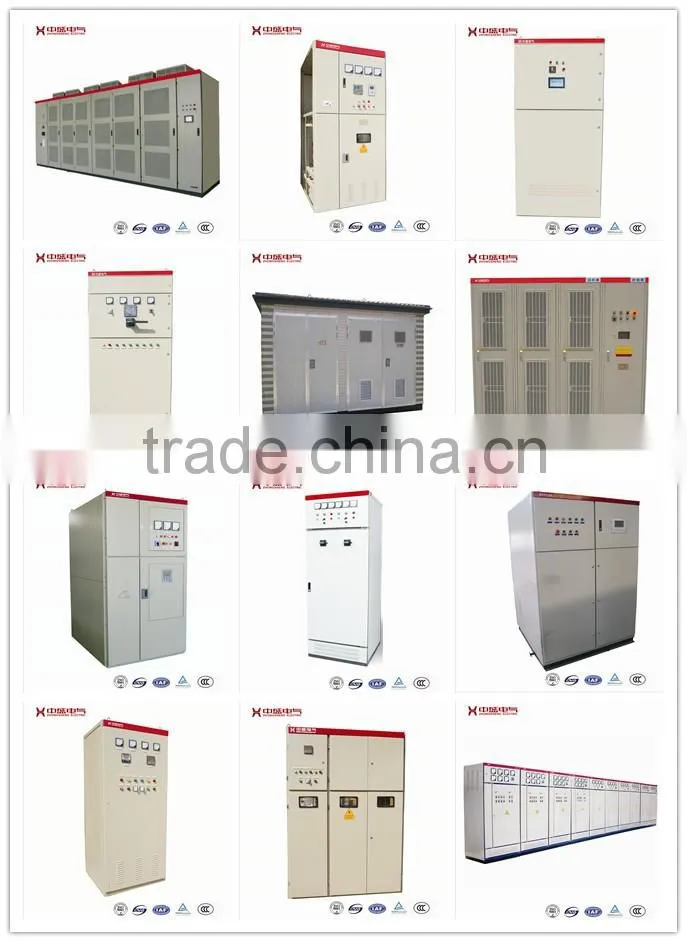

Main products: Power quality cabinets; Motor control cabinets; Switchgear complete sets
3,Our company view

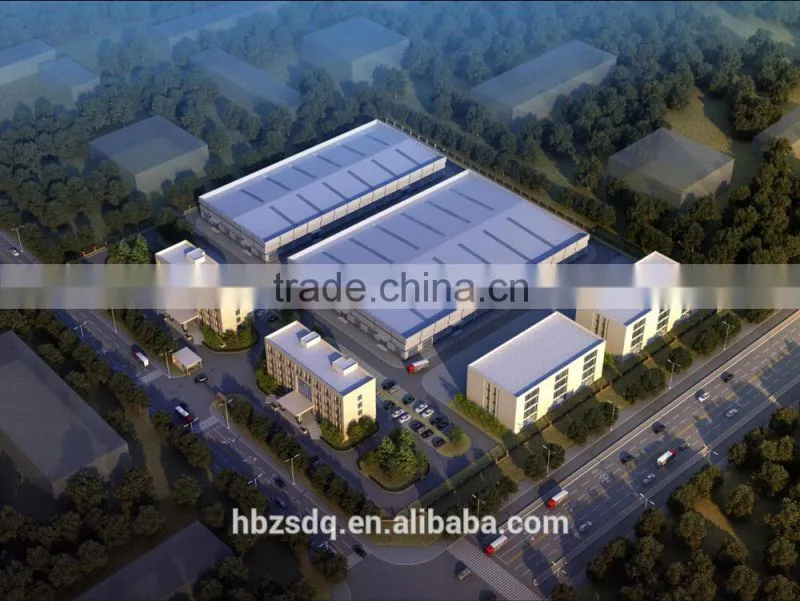

Our new factory is building!
