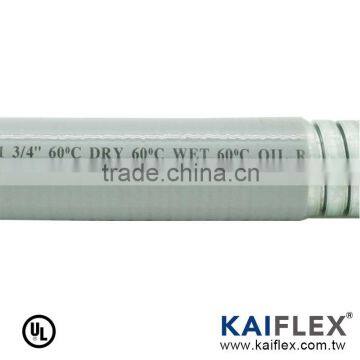

Liquid Tight Flexible Steel Conduit
- HK Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Kaiphone | |
| Model Number | TSU3 Series | Type | Flexible | |
| Material | Steel |
Roll
Product Description

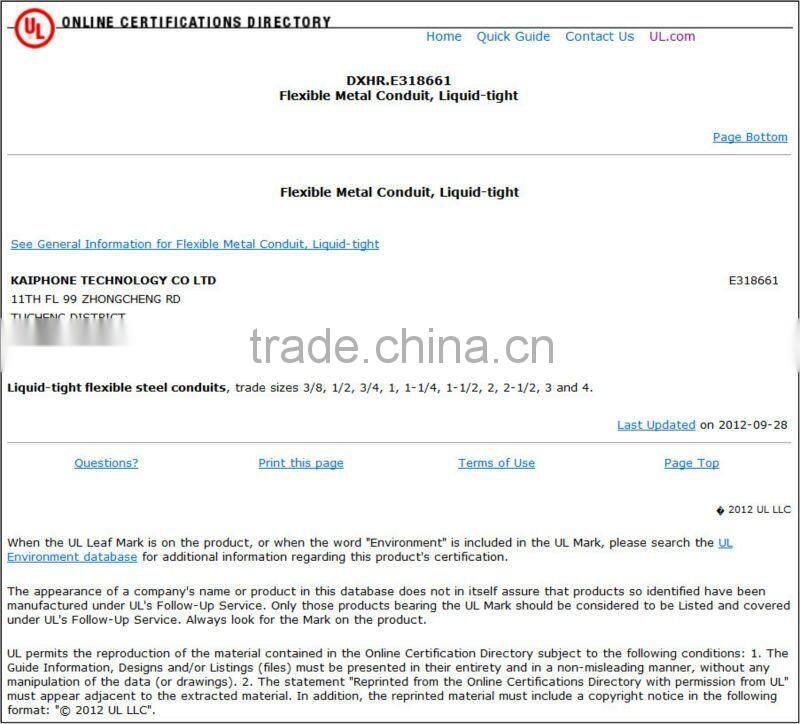

The Liquid Tight Flexible Steel Conduit is approved by UL laboratory with UL360 standard (cert. No. E318661) to ensure the conformity with the safe requirement of electronics products. The UL listed series tube can be used individually or assembled to a cable harness. The material of outer coating is with characteristics of oil resistant and UV resistant. The color of outer coating is optional for black or grey.
Feature:
Tube Material: Galvanized Steel
Nominal Size: 3/8" ~ 4”
ID: ø 12.29 ~ ø 102.62mm
OD: ø 15.09 ~ ø 108.71mm
OD with Coating: ø 17.50 ~ ø114.30mm
Coating Material: PVC (Options: HDPE / LDPE / LSZH)
Coating Color: Grey / Black (Optional)
Temperature Range: -30°C ~ +105°C
Approval: UL
| Code | Nominal Size(inch) | ID (ø mm) | OD (ø mm) | OD w/Coating (ø mm) | Min. Bending Radius(mm) | Packing Length(m) |
| TSU3-001 | 3/8" | 12.29~12.80 | 15.09~15.59 | 17.50~18.00 | 50 | 50 |
| TSU3-002 | 1/2" | 15.80~16.31 | 18.59~19.43 | 20.80~21.30 | 80 | 50 |
| TSU3-003 | 3/4" | 20.83~21.34 | 23.62~24.38 | 25.20~26.70 | 105 | 50 |
| TSU3-004 | 1" | 26.44~27.08 | 30.51~31.14 | 32.80~33.40 | 165 | 30 |
| TSU3-005 | 1-1/4" | 35.05~35.81 | 39.12~39.58 | 41.40~42.20 | 200 | 30 |
| TSU3-006 | 1-1/2" | 40.01~40.64 | 44.17~44.96 | 47.40~48.30 | 280 | 20 |
| TSU3-007 | 2" | 51.31~51.94 | 55.37~56.26 | 59.40~60.30 | 355 | 10 |
| TSU3-008 | 2-1/2" | 62.99~63.63 | 67.04~67.93 | 72.10~73.00 | 374 | 10 |
| TSU3-009 | 3" | 77.98~78.74 | 83.69~84.71 | 87.90~88.90 | 444 | 5 |
| TSU3-010 | 4" | 101.60~102.62 | 107.18~108.71 | 113.30~114.30 | 609 | 5 |
Application:
For power cable protection especially in critical environment, such as nuclear power stand, petrochemical industry, mining and vessel…
