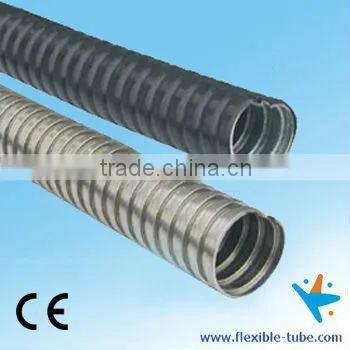

stainless steel flexible metal hose pipe

Reel, Carton, Pallet

Specifications

stainless steel flexible metal hose pipe
1.Material: SUS / Gal Steel
2.ID: 3.5 ~ 102.1mm
3.IP Rating: IP67 (Coated)

stainless steel flexible metal hose pipe





The Electrical Flexible Conduit (Square Locked) isingood flexibility and extensibility and surface is neat. The characteristics of tube can be adjusted customized according to different requirements. The tube can be coated with braiding or plastic cover. The material of plastic cover is optional for different characteristics of oil resistant, abrasion resistant, low temperature resistant or fire retardant.





Feature

Series Number: TSS Series

Tube Material: Stainless Steel / Galvanized Steel

ID: ø3.5 ~ ø102.1mm

OD: ø5.1 ~ ø108.0mm

OD with Coating: ø6.1 ~ ø 113.8mm

Coating Material: PVC / HDPE / LDPE / LSZH
Coating Color: Black / Grey
Temperature Range: -25 °C ~ 105 °C
IP Rating: IP67 (Coated)
Approvals: EN (CE) / CCS





Electrical Flexible Conduit (Square Locked)

Code ID (ø mm) OD (ø mm) OD w/Coating (ø mm) Min. Bending Radius(mm) Packing Length(m) Tube Material TSS-001 3.5 5.1 6.1 21 100 Stainless Steel TSS-002 3.7 5.3 6.3 21 100 Stainless Steel TSS-003 4.0 6.0 7.0 24 100 Stainless Steel TSS-004 4.6 6.6 7.6 35 100 Stainless Steel TSS-005 5.0 7.0 8.0 35 100 Stainless Steel TSS-006 6.0 8.0 9.0 40 100 Stainless Steel TSS-007 7.0 9.0 10.0 40 100 Stainless Steel TSS-008 7.5 9.5 10.5 40 100 Stainless Steel



Metallic Flexible Conduit (Square Locked)

Code ID (ø mm) OD (ø mm) OD w/Coating (ø mm) Min. Bending Radius(mm) Packing Length(m) Tube Material TSS-009 6.8 9.0 10.0 40 50 Stainless Steel / Galvanized Steel TSS-010 10.3 13.0 14.0 50 50 Stainless Steel / Galvanized Steel TSS-011 13.0 16.0 17.0 50 50 Stainless Steel / Galvanized Steel TSS-012 16.9 20.5 21.5 60 50 Stainless Steel / Galvanized Steel TSS-013 21.4 25.0 26.0 80 50 Stainless Steel / Galvanized Steel TSS-014 28.1 32.0 34.0 100 25 Stainless Steel / Galvanized Steel TSS-015 37.7 42.5 44.5 110 25 Stainless Steel / Galvanized Steel TSS-016 48.4 53.0 55.0 130 25 Stainless Steel / Galvanized Steel TSS-017 57.5 62.5 64.5 150 10 Stainless Steel / Galvanized Steel TSS-018 63.6 67.5 72.6 150 10 Stainless Steel / Galvanized Steel TSS-019 78.4 84.2 88.4 444 5 Stainless Steel / Galvanized Steel TSS-020 102.1 108.0 113.8 609 5 Stainless Steel / Galvanized Steel





Application:

For wire protection: Sensing system, Medical equipment, Fire alarm system, Security equipment…
For fiber optic protection: Sensing system, Communications equipment…
For power cable protection: Low fire hazard building, Elevator, Computer facilities, Automobile, Aircraft industry, Vessel…
