Product show

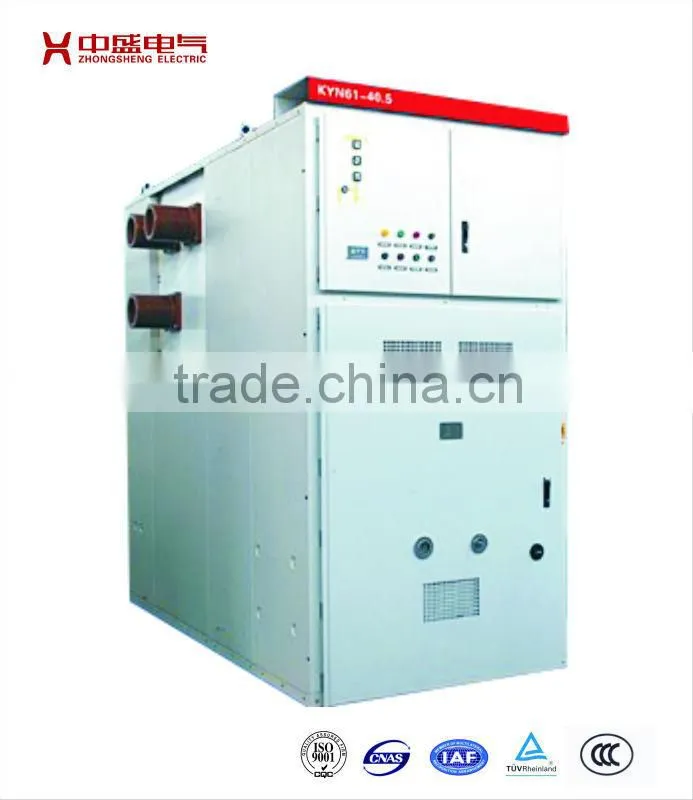

electrical power distribution panel board
1,Picture of product
2,Technical parameters
35KV high voltage switchgear technical parameter:
|
|
Parameter |
||
Rated voltage |
kV |
40.5 |
||
Rated short time power frequency withstand voltage(1min)(1min) |
kV |
95 |
||
Rated lighting impulse withstand voltage |
kV |
185 |
||
Rated frequency |
Hz |
50 |
||
Rated current |
A |
1250,1600,2000,2500 |
||
Rated short circuit breaking current |
kA |
25 |
31.5 |
|
Rated peak value withstand current |
kA |
63 |
80 |
|
Rated control power |
V |
AC 110/220,DC 110/220 |
||
Dimension |
KYN61-40.5 |
mm |
1400*2800*2600 (width* depth* height) |
|
3,Operating Environment
1)Ambient temperature:-10°C-+40°C;
2)Altitude: high voltage ≤1000Meter, low voltage ≤2000Meter (technical department will design specially if exceeds);
3)Relative humidity:≤85%
4)Seismic intensity:≤ magnitude 8;
5)Apply to the places have no fire,no explosion danger, no serious pollution,no chemical corrosion and no violent vibration.
4,Executive standard
GB3906-2006 3.6kV~40.5kV AC metal enclosed switchgear and control device
5,Ordering notice
Please provide system capacity, system voltage, electric scheme, function requirement, configuration requirement when you
decide to order.
6,Certificates of product
7,More products to choose
8,Packing of products
Company show
1,Introduction of our compay
Business Type: Manufacturer
Location: Xiangyang, China(Mainland)
Year Established: 2008
Registration No: 420600000118942
Company Certifications: ISO 9001; ISO14001; ISO 18001; CCC;TUV
Main products: Power quality cabinets; Motor control cabinets; Switchgear complete sets
2,Our company view
3,Welcome to contact us
