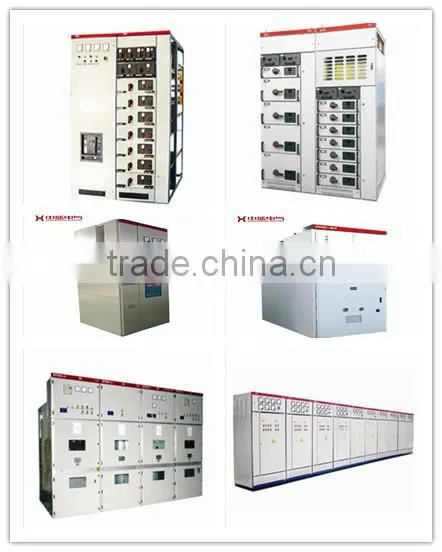

Electric Substation Equipment High Voltage Switchgear, Medium Voltage Switchgear, Low Voltage Switchgear

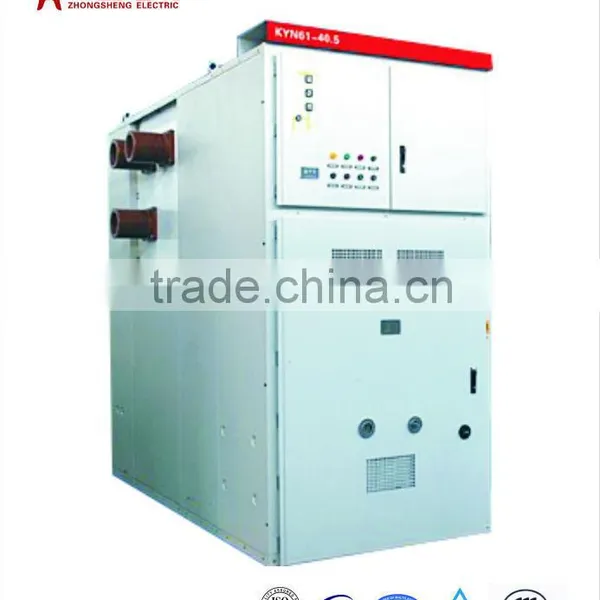

KYN61-40.5 metal-cased closed switchgear (35KV)
KYN28A-24 metal-cased closed switchgear (20KV)
KYN28A-12 metal-cased closed switchgear (10KV)
XGN2-12 box-type fixed indoor AC electrical switchgear (10KV)
XGN15-12 box-type fixed indoor AC electrical ring main unit (10KV)

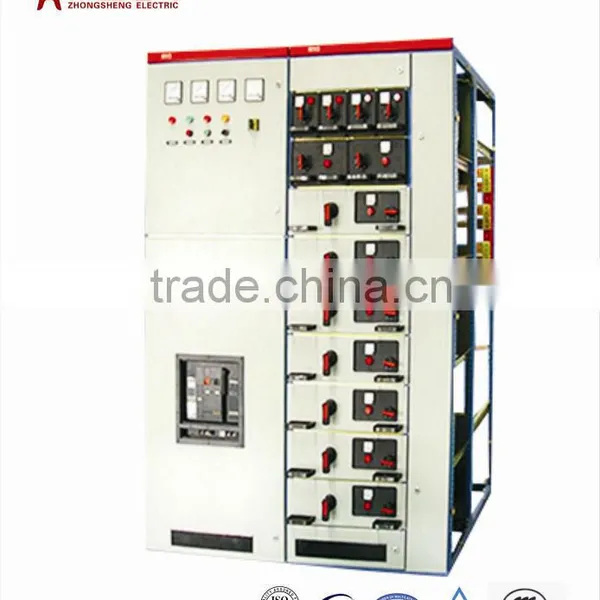

MNS low voltage drawer switchgear

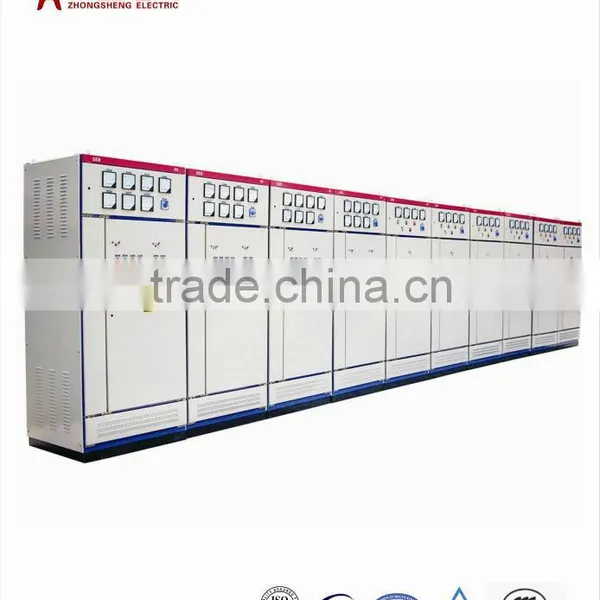

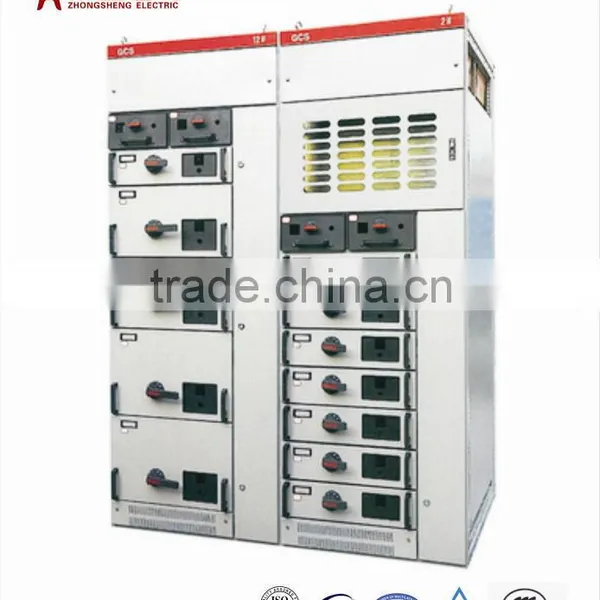

GCS low voltage drawer switchgear
35KV high voltage switchgear technical parameter:
|
|
Parameter |
||
Rated voltage |
kV |
40.5 |
||
Rated short time power frequency withstand voltage(1min)(1min) |
kV |
95 |
||
Rated lighting impulse withstand voltage |
kV |
185 |
||
Rated frequency |
Hz |
50 |
||
Rated current |
A |
1250,1600,2000,2500 |
||
Rated short circuit breaking current |
kA |
25 |
31.5 |
|
Rated peak value withstand current |
kA |
63 |
80 |
|
Rated control power |
V |
AC 110/220,DC 110/220 |
||
Dimension |
KYN61-40.5 |
mm |
1400*2800*2600 (width* depth* height) |
|
20kV high voltage switchgear technical parameter:
|
|
Parameter |
||
Rated voltage |
kV |
24 |
||
Rated short time power frequency withstand voltage(1min) |
kV |
65 |
||
Rated lighting impulse withstand voltage |
kV |
125 |
||
Rated frequency |
Hz |
50 |
||
Rated current |
A |
630,1250,1600,2000,2500 |
||
Rated short circuit breaking current |
kA |
25 |
31.5 |
|
Rated peak value withstand current |
kA |
63 |
80 |
|
Rated control power |
V |
AC 110/220,DC 110/220 |
||
Dimension |
KYN28A-24 |
mm |
1000*1800*2450(width*depth*height) |
|
10kV high voltage switchgear technical parameter:
|
|
Parameter |
|||||||
Rated voltage |
kV |
3.6 |
7.2 |
12 |
|||||
Rated short time power frequency withstand voltage(1min) |
kV |
24 |
32 |
42 |
|||||
Rated lighting impulse withstand voltage |
kV |
40 |
60 |
75 |
|||||
Rated frequency |
Hz |
50 |
|||||||
Rated current |
A |
630,1250,1600,2000,2500,3150,4000 |
|||||||
Rated short circuit breaking current |
kA |
20 |
25 |
31.5 |
40 |
50 |
|||
Rated peak value withstand current |
kA |
50 |
63 |
80 |
100 |
125 |
|||
Rated control power |
V |
AC 110/220,DC 110/220 |
|||||||
|
Dimension (width*depth*height) |
KYN28A-12 |
mm |
(800/1000)*1500*2300 |
||||||
XGN2-12 |
mm |
1100*1200*2650 |
|||||||
HXGN-12 |
mm |
(375/500)*900*1850 |
|||||||
0.4KV low voltage switchgear technical parameter:
|
|
Parameter |
||
Rated voltage |
V |
400 |
690 |
|
Rated insulation voltage |
V |
690 |
1140 |
|
Rated impact withstand voltage |
V |
6000 |
10000 |
|
Rated working short circuit breaking ability |
kA |
18~100 |
10~75 |
|
Rated utmost short circuit breaking ability |
kA |
25~120 |
20~85 |
|
Rated frequency |
Hz |
50/60 |
||
Rated current |
A |
400,500,630,800,1000,1250,1600,2000,2500,3150,4000,5000,6300 |
||
Rated control power |
V |
AC 110/220/380,DC 110/220 |
||
|
Dimension (Unit:mm) |
MNS/GCS/GGD |
width |
400,600,800,1000,1200 |
|
depth |
600,800,1000 |
|||
height |
2200 |
|||
Operating Environment
1)Ambient temperature:-10°C-+40°C;
2)Altitude: high voltage ≤1000Meter, low voltage ≤2000Meter (technical department will design specially if exceeds);
3)Relative humidity:≤85%
4)Seismic intensity:≤ magnitude 8;
5)Apply to the places have no fire,no explosion danger, no serious pollution,no chemical corrosion and no violent vibration.
Executive standard
GB7251 Low voltage complete set switchgear and control device
GB3906-2006 3.6kV~40.5kV AC metal enclosed switchgear and control device
Ordering notice
Please provide system capacity, system voltage, electric scheme, function requirement, configuration requirement when you
decide to order.
