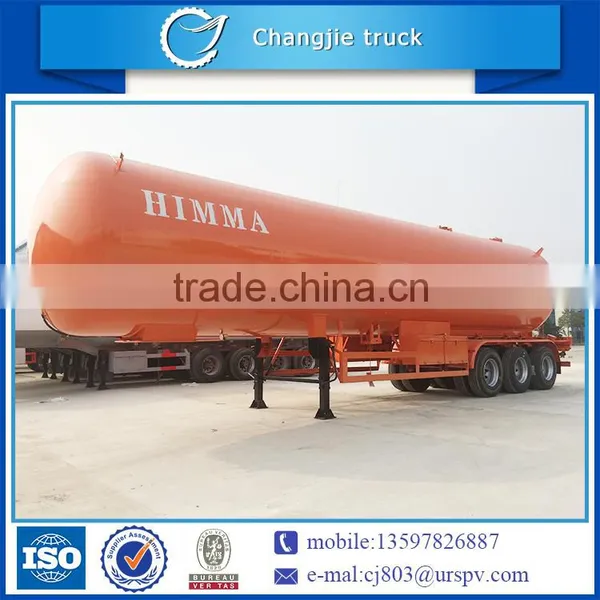

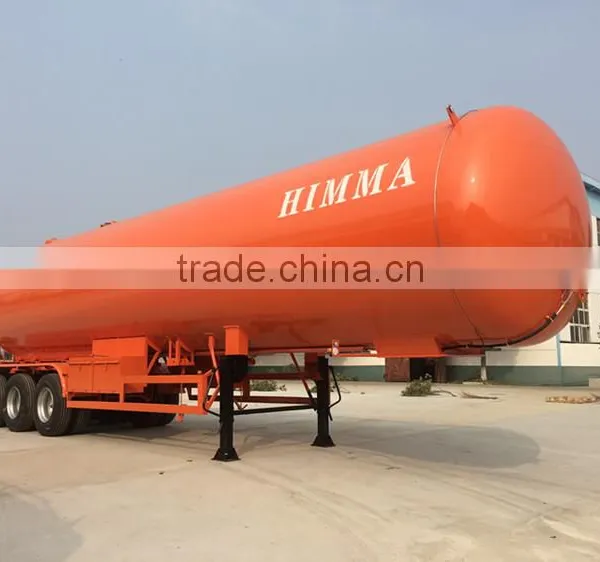

New arrival new design high quality 58.5m3 tri-axle lpg gas transportation trailer |
LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers
and high-grade production equipment as well as stricted quality control system can ensure all
the tank from us run very well with 10-20 years use life.
Product features
1. The anticorrosion coating of liquefied gas semi-trailer adopt the following process: sandblast,
spray painting,purging and so on.
2. There are domestic or imported safety accessories with high quality, its matching is complete.
3. We adopt scientific advanced construction process strictly, ensure that the products are with
the lowest shrinkage and the highest dimensional stability at low temperature.
4. We inspect the quality of product strictly,ensure that A and B type of welding seam pass the examination
of level two radiographic test, C and D type of welding seam pass the examination of level one
radiographic test.
Our Advantages:
Quality 100% guaranteed. ALL our trucks have got ISO 9001-2008, CCC and B&V certificates. Many trucks have passed SGS inspection. Chassis and spare parts always come from the original manufacturers with their product codes and anti-counterfeiting labels. ALL our suppliers have passed the B&V, SGS and CONTECNA qualification.
Experienced. We have 11years truck wholesaler experience. Our performance has won national affirmation.
Price reasonable. Our company has extensive resources so we are sure to offer competitive price for you.
Reliable supplyer. We sell trucks throughout the country and export to Vietnam, Korea, Laos, myanmar, Malaysia, Congo, Ethiopia, Sudan, el Salvador, Iraq, New Zealand, Russia, Mongolia, kazakhstan, Sudan etc more than 50 countries and regions all over the world.
| Basic information: | ||
| Product Name | LPG gas transportation trailer | |
| Actual capacity | 58.5m3 | |
| Gross weight | 40000kgs | |
| Kerb weight | 15430kgs | |
| Rated load | 24570kgs | |
| Overall size | 13000×2500×3977mm | |
| Number of axles | 3 | |
| Wheelbase | 7092+1310+1310mm | |
| Front trend | - | |
| Rear trend | 1840/1840/1840 | |
| Front/Rear suspension | -/1500 | |
| Number of leaf spring | -/7/7/7 | |
|
Max. allowable bearing capacity of saddle |
16000kgs | |
| Tyre specification | 12R22.5 12PR,11.00R20 12PR | |
| standard configuration |
BPW axle 12tons,landing leg 28tons,tubeless tyre, safety enclosures,single-fluid two-valve boxes, traction pin,level gauge,pressure gauge,thermometer, emergency shut-off valves, fire extinguishers, fire-fighting stars cover,anti-static grounding tape, guard rail,tyre fender |
|
Key parts:
Production workshop
1. After-sale service:
- One year warranty
- Fast respond to any problems.
- Provision with relevant technical support.
- Available spare parts after ordering.
2. Supply service:
- OEM ability. We can produce according to your requirements,the size, color, materials, logo etc all optional
for you.
- Start manufacturing as soon a your order confirmed.
- Inventory products can be delivered immediately.
3. Contact
- We offer 24-hour hot line service: 0086-13597826887.
- Please feel free to contact me if you have any questions, contact information is showed afterwards
