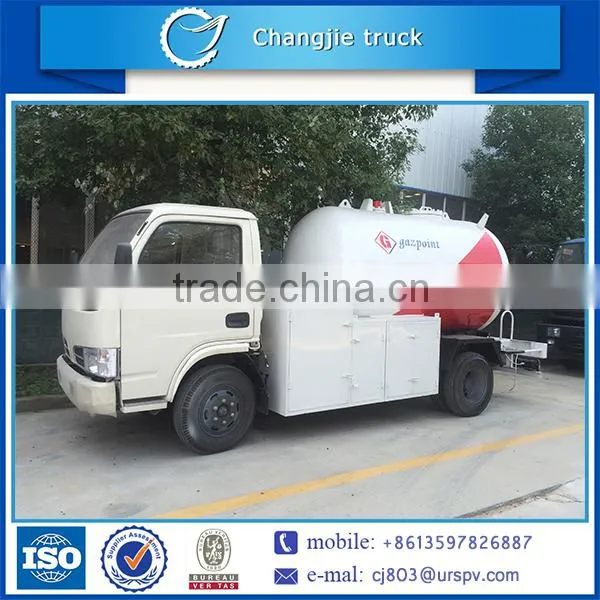

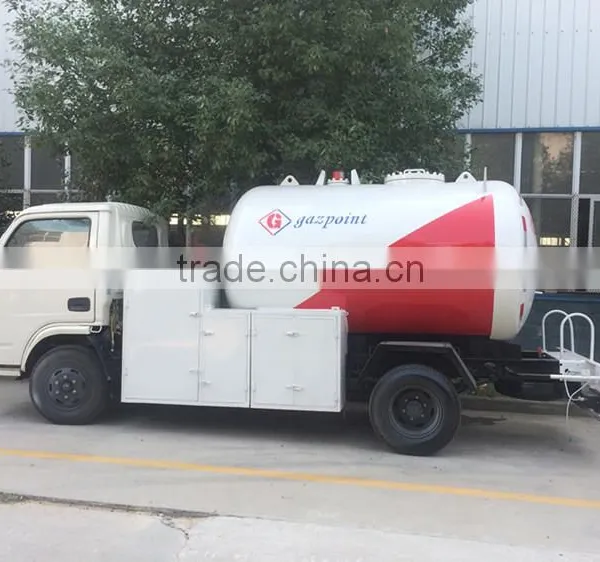

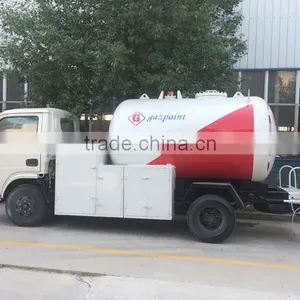

With CCC ISO BV approved Dongfeng 4x2 mini lpg gas tank truck |
Product features
1. The anticorrosion coating of liquefied gas semi-trailer adopt the following process: sandblast,
spray painting,purging and so on.
2. There are domestic or imported safety accessories with high quality, its matching is complete.
3. We adopt scientific advanced construction process strictly, ensure that the products are with
the lowest shrinkage and the highest dimensional stability at low temperature.
4. We inspect the quality of product strictly,ensure that A and B type of welding seam pass the examination of level two radiographic test, C and D type of welding seam pass the examination of
level one radiographic test.
Our Advantages:
Quality 100% guaranteed. ALL our trucks have got ISO 9001-2008, CCC and B&V certificates. Many trucks have passed SGS inspection. Chassis and spare parts always come from the original manufacturers with their product codes and anti-counterfeiting labels. ALL our suppliers have passed the B&V, SGS and CONTECNA qualification.
Experienced. We have 11years truck wholesaler experience. Our performance has won national affirmation.
Price reasonable. Our company has extensive resources so we are sure to offer competitive price for you.
Reliable supplyer. We sell trucks throughout the country and export to Vietnam, Korea, Laos, myanmar, Malaysia, Congo, Ethiopia, Sudan, el Salvador, Iraq, New Zealand, Russia, Mongolia, kazakhstan, Sudan etc more than 50 countries and regions all over the world.
| TRUCK | |
| Product Name | Mini lpg gas tank truck |
| Chassis brand | Dongfeng |
| Chassis Model | EQ1070T35DJ3AC |
| Drive type | 4*2 |
| Overall size(Length*width*height) | 5900*2045*2600mm |
| Gross weight | 7495kg |
| Rated load | 2310kg |
| Kerb weight | 4990kg |
| Front/rear suspension | 1115/1485mm |
| Wheelbase | 3300mm |
| Max.speed | 90km/h |
| Tyre size | 7.50-16 |
| Gearbox | 5-speed by manual |
| Cab | single row |
| Passengers in cab | 3 |
| Engine horsepower | 109hp |
| Engine displacement/power | 3856ml/80kw |
| Engine manufacturer | Chaoyang diesel engine |
| Fuel type | Diesel |
| Emission standard | Euro 3 |
| TANK | |
| Design pressure | 1.77Mpa |
| Maximum working pressure | 1.94Mpa |
| Loading medium | Liquefied petroleum gas(propane) |
| Medium density | 420kg/m3 |
| Corrosion allowance | 1.0mm |
| Tank capacity | 5.5m3 |
| Tank demension | Φ1620×3059 |
| Tank material | Q345R |
| Tank shell thickness | 10mm |
| Carried standard | GB150-1998 |
| Pressure Vessels Safety and Technical Supervision Regulation | |
| Regulation of Safety Supervision for Liquefied Gas Tank | |
Production workshop
Excellent Pre-sale Service
1. According to your specification request, provide the best price for you.
2. After you confirmed the specification and price, our engineers will draw a Official Drawing for you confirm.
3. After our Finance Department confirmed your deposit or Irrevocable L/C, we will start manufacture the products for you.
4. Update the progress of production to you in time, to help you know your order details progress.
5. After the product manufacture finished, if you need, we will arrange shipping for you. With our professional skill, you just need to pick your products up at the destination place, and don’t need to worry about the shipping at all.
Outstanding After-sale Service
1. If you have any questions when you use our products, please tell us, we will help you solve the problems in time.
2. If any spare parts have problem after you used it, we can provide it for you, help you solve the problem if anything affect your business.
3. We can also provide engineer to your local place if you need. You just need to bear the Airplane ticket, and accommodation cost.
4. Other relevant service you request.
1. 12 months guarantee term.
2. Small order accepted.
3. Professional technic support.
4. After-sale service.
5. Suit your needs excellence by design.
