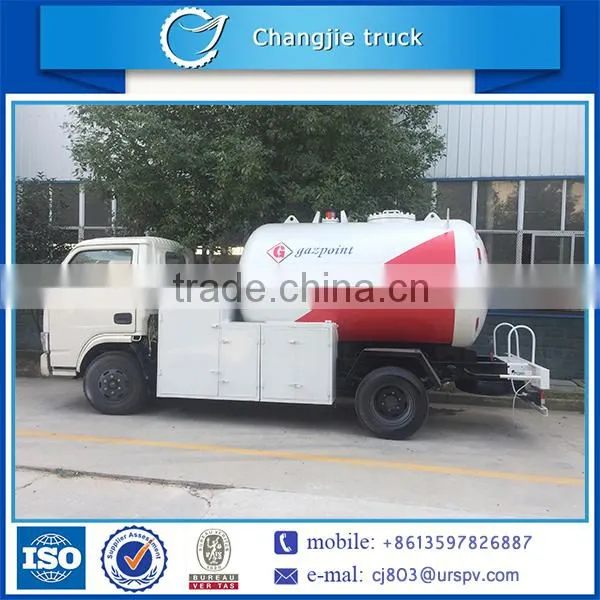

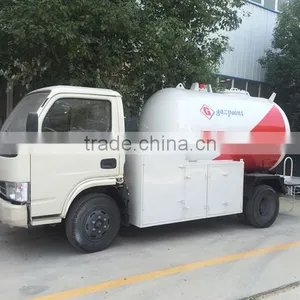

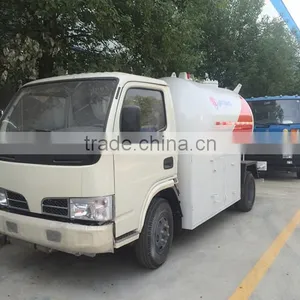

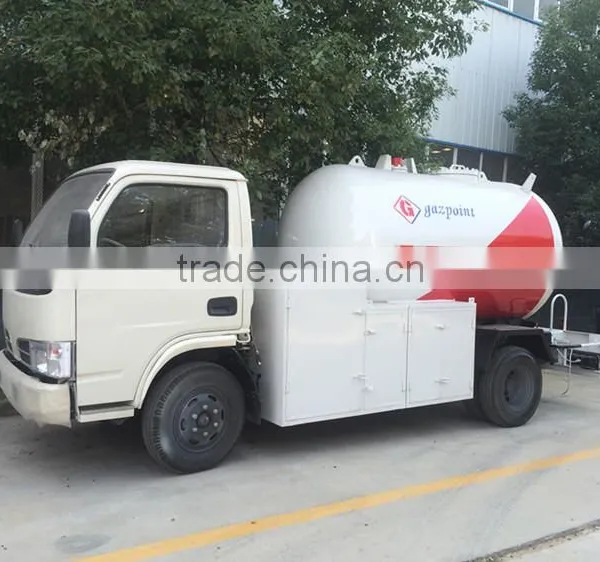

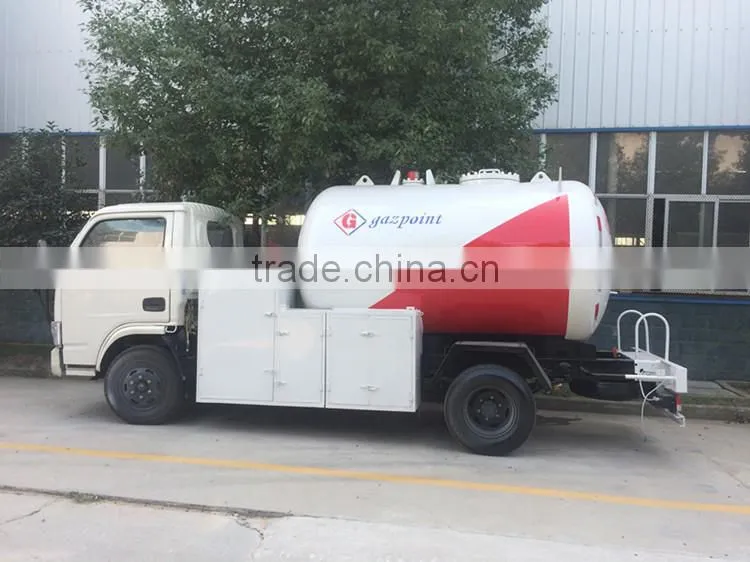

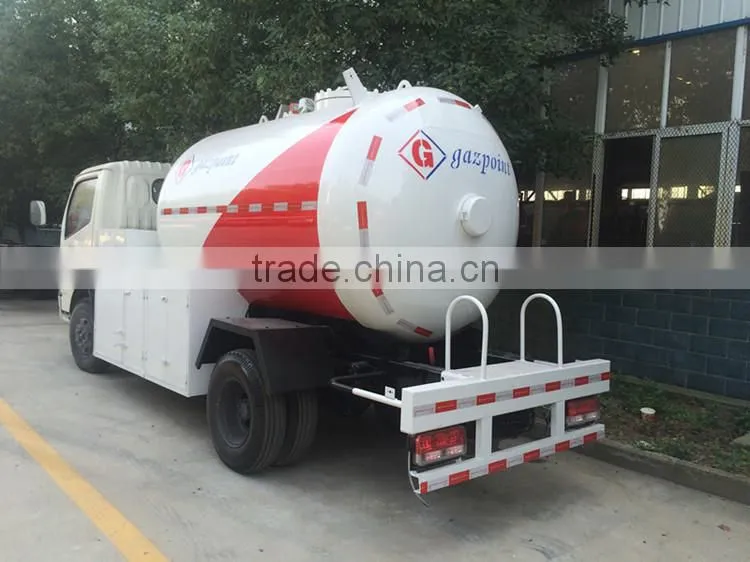

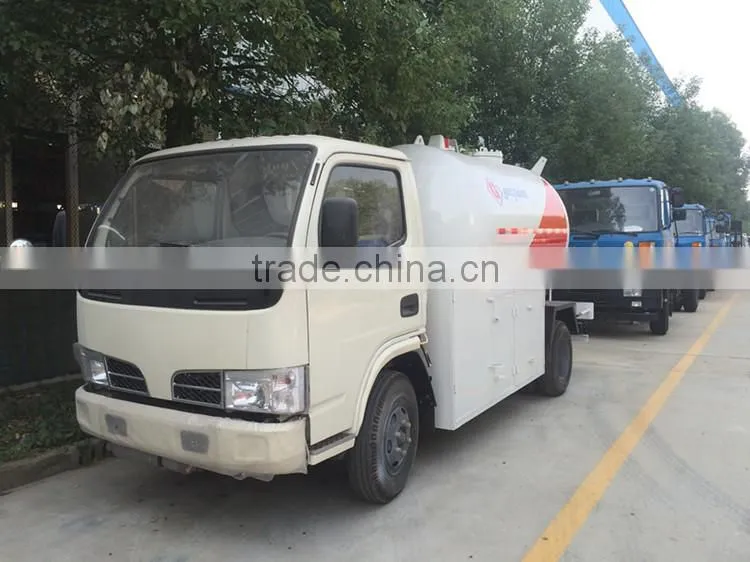

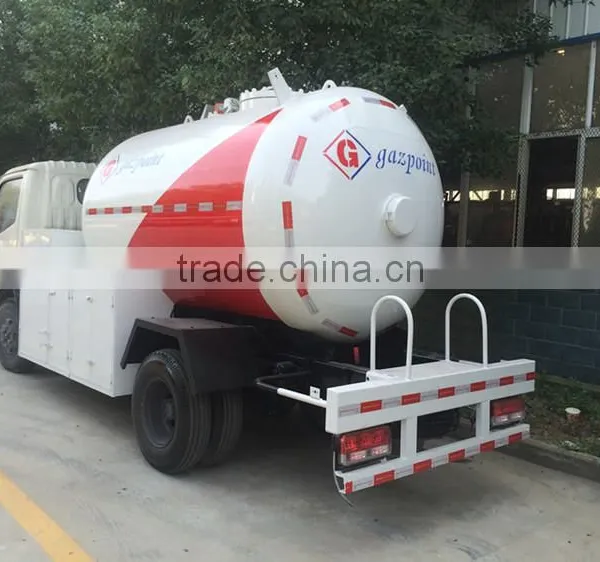

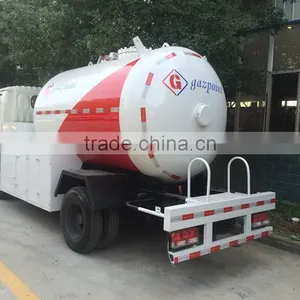

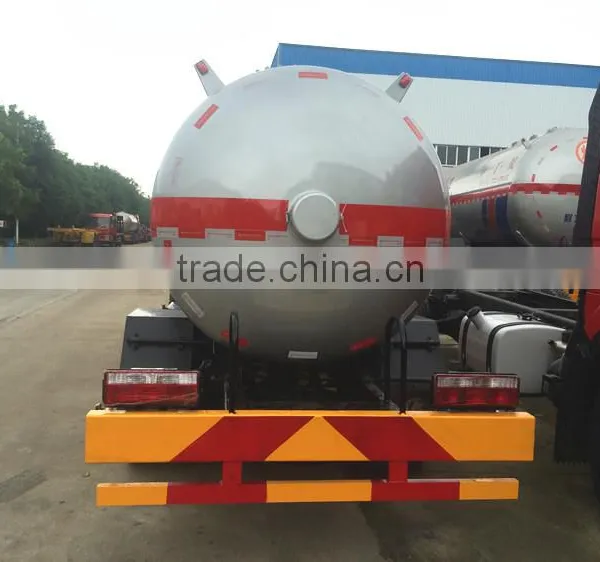

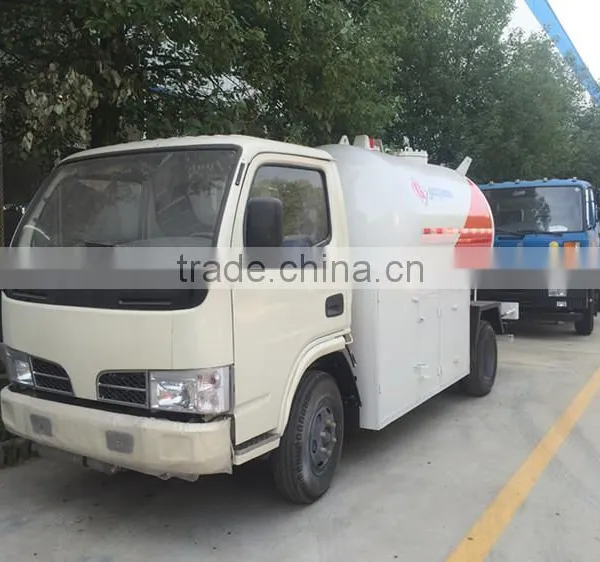

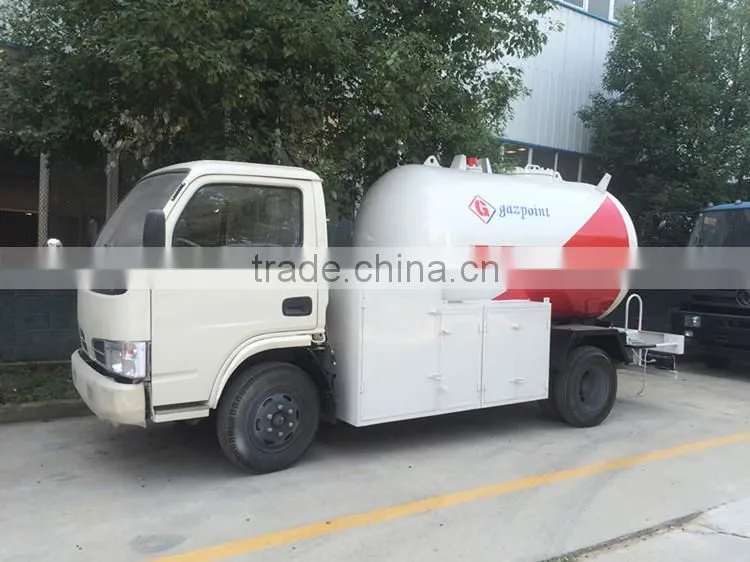

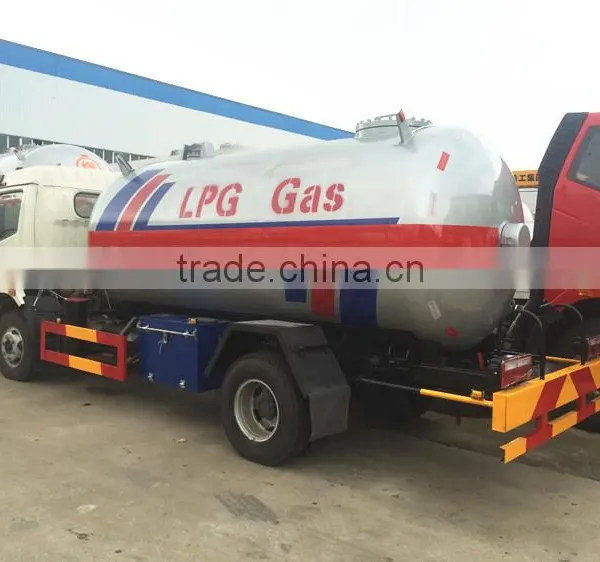

High performance Dongfeng 4x2 mini lpg tanker transportation truck |
Our company is a professional PRESSURE VESSEL manufacturer for more than 10 years
we can provide LPG storage tank volume from 5m3 to 120m3
LPG semi trailer from 23.97m3 to 59.6m3
LPG transporation truck from 5.5m3 to 35.5m
Product features
1. The anticorrosion coating of liquefied gas semi-trailer adopt the following process: sandblast,
spray painting,purging and so on.
2. There are domestic or imported safety accessories with high quality, its matching is complete.
3. We adopt scientific advanced construction process strictly, ensure that the products are with
the lowest shrinkage and the highest dimensional stability at low temperature.
4. We inspect the quality of product strictly,ensure that A and B type of welding seam pass the examination of level two radiographic test, C and D type of welding seam pass the examination of
level one radiographic test.
Our Advantages:
Quality 100% guaranteed. ALL our trucks have got ISO 9001-2008, CCC and B&V certificates. Many trucks have passed SGS inspection. Chassis and spare parts always come from the original manufacturers with their product codes and anti-counterfeiting labels. ALL our suppliers have passed the B&V, SGS and CONTECNA qualification.
Experienced. We have 11years truck wholesaler experience. Our performance has won national affirmation.
Price reasonable. Our company has extensive resources so we are sure to offer competitive price for you.
Reliable supplyer. We sell trucks throughout the country and export to Vietnam, Korea, Laos, myanmar, Malaysia, Congo, Ethiopia, Sudan, el Salvador, Iraq, New Zealand, Russia, Mongolia, kazakhstan, Sudan etc more than 50 countries and regions all over the world.
| TRUCK | |
| Product Name | Mini lpg tanker transportation truck |
| Chassis brand | Dongfeng |
| Chassis Model | EQ1070T35DJ3AC |
| Drive type | 4*2 |
| Overall size(Length*width*height) | 5900*2045*2600mm |
| Gross weight | 7495kg |
| Rated load | 2310kg |
| Kerb weight | 4990kg |
| Front/rear suspension | 1115/1485mm |
| Wheelbase | 3300mm |
| Max.speed | 90km/h |
| Tyre size | 7.50-16 |
| Gearbox | 5-speed by manual |
| Cab | single row |
| Passengers in cab | 3 |
| Engine horsepower | 109hp |
| Engine displacement/power | 3856ml/80kw |
| Engine manufacturer | Chaoyang diesel engine |
| Fuel type | Diesel |
| Emission standard | Euro 3 |
| TANK | |
| Design pressure | 1.77Mpa |
| Maximum working pressure | 1.94Mpa |
| Loading medium | Liquefied petroleum gas(propane) |
| Medium density | 420kg/m3 |
| Corrosion allowance | 1.0mm |
| Tank capacity | 5.5m3 |
| Tank demension | Φ1620×3059 |
| Tank material | Q345R |
| Tank shell thickness | 10mm |
| Carried standard | GB150-1998 |
| Pressure Vessels Safety and Technical Supervision Regulation | |
| Regulation of Safety Supervision for Liquefied Gas Tank | |
Production workshop
1. After-sale service:
- One year warranty
- Fast respond to any problems.
- Provision with relevant technical support.
- Available spare parts after ordering.
2. Supply service:
- OEM ability. We can produce according to your requirements,the size, color, materials, logo etc all optional
for you.
- Start manufacturing as soon a your order confirmed.
- Inventory products can be delivered immediately.
3. Contact
- We offer 24-hour hot line service: 0086-13597826887.
- Please feel free to contact me if you have any questions, contact information is showed afterwards
