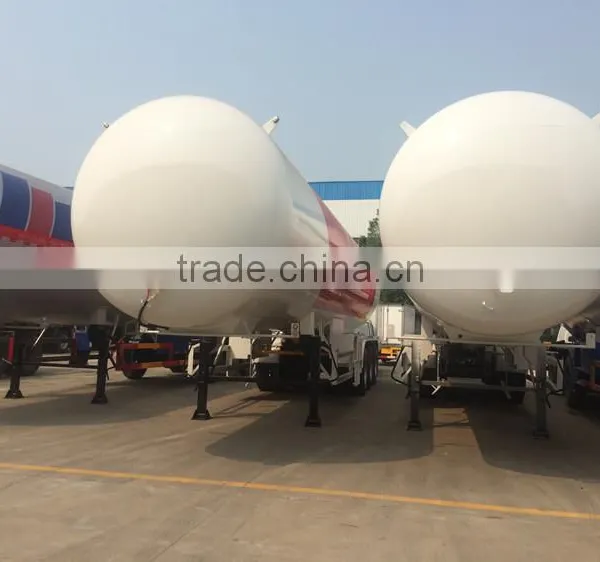

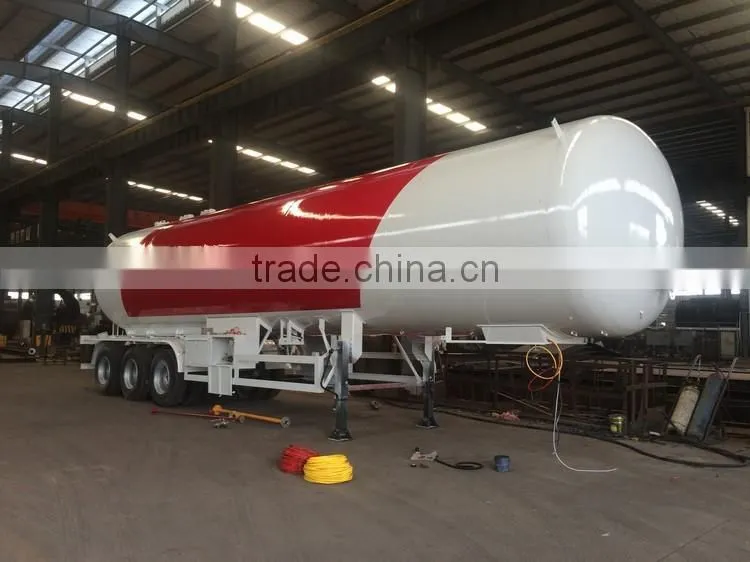

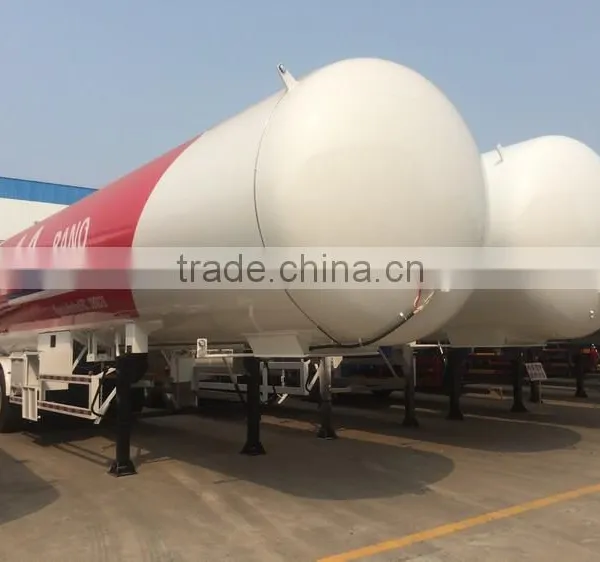

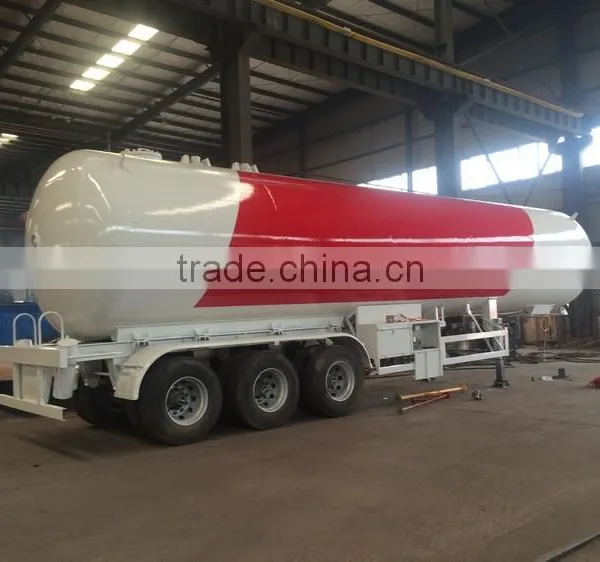

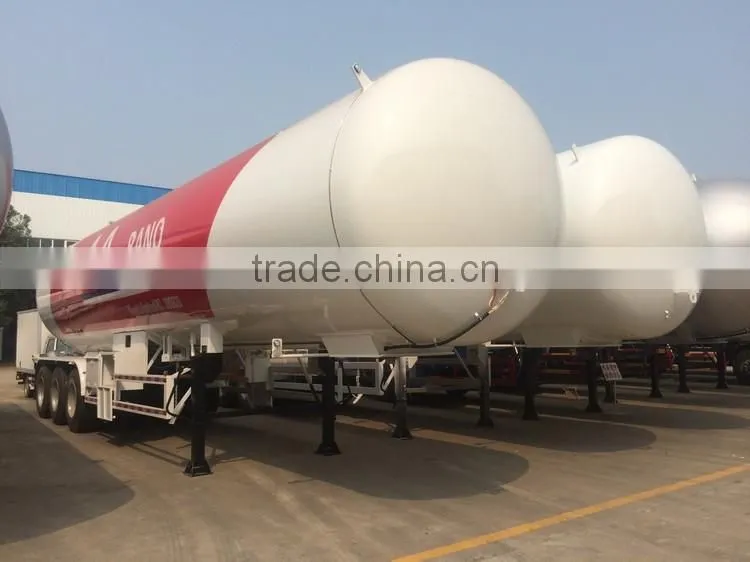

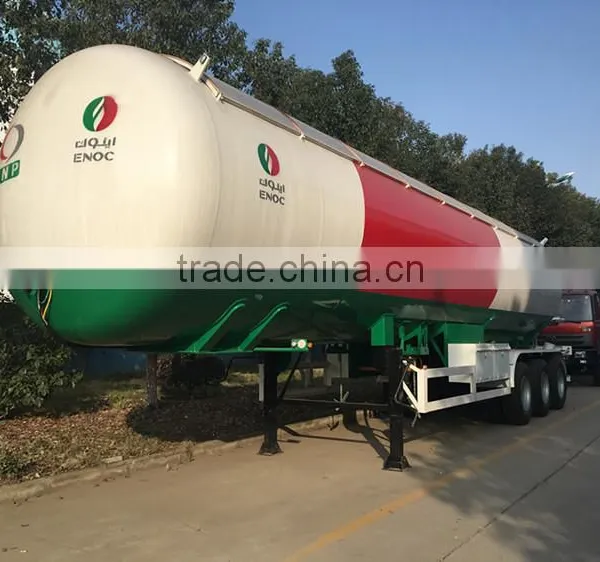

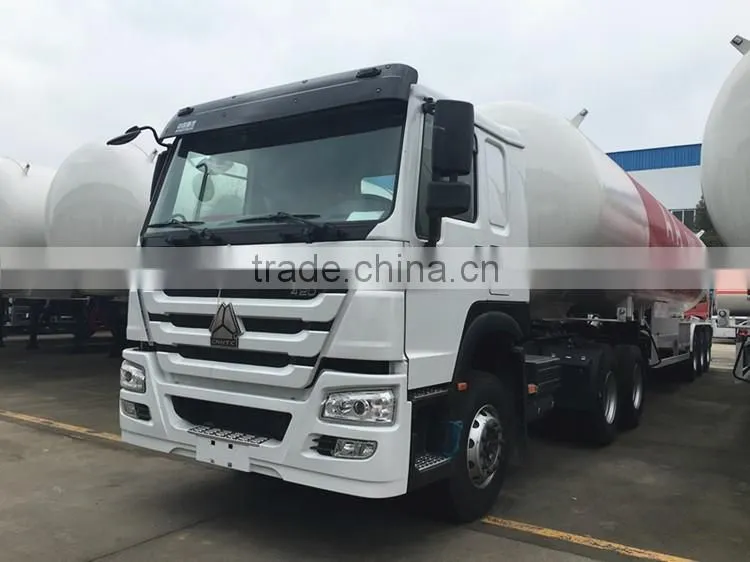

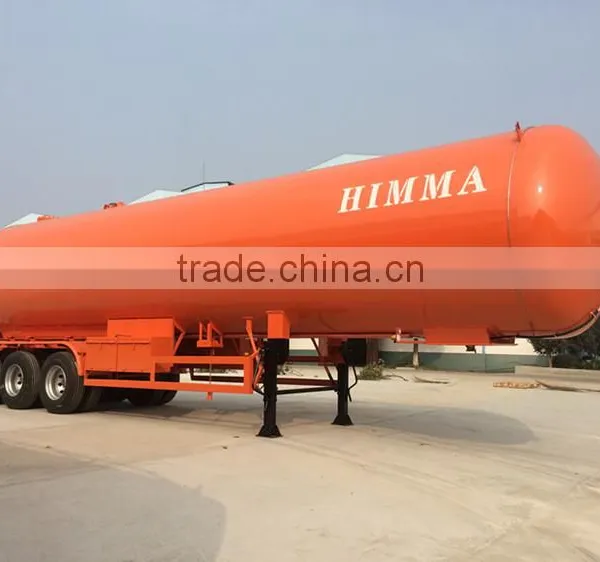

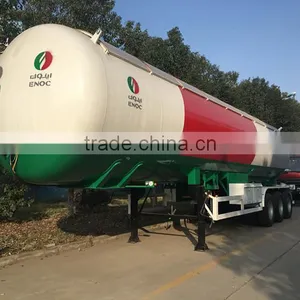

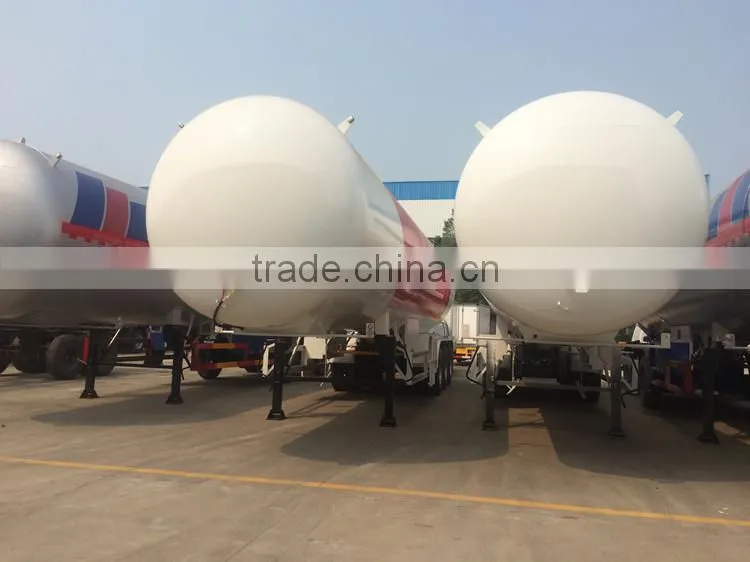

58500L 3 axle lpg semi trailer
- 30 Set / Sets per Month
- shanghai
- T/T
- cryogeinc Liquid Nitrogen container Spray 500ml tank 300ml bottom low temperature cryo device
- 30liter liquid gas machine liquid nitrogen dewar for medicine cryo use
- ln2 Self-pressurized container dewar factory trolley low pressure tank liquid nitrogen pipe 50l
- liquid argon tank sizes, liquid nitrogen cylinder sizes, liquid co2 tanks
- liquid petroleum gas tank, liquid co2 storage gas tank, liquid gas cylinder
- China Liquid Gas Tanks, Liquid Gas Tanks Manufacturers, Suppliers
Product Details
Condition: | New | Place of Origin: | Hubei, China | Dimension(L*W*H): | 13000*2500*3977mm |
Capacity: | 58.5m3 | Weight: | 40000kg | After-sales Service Provided: | Overseas third-party support available |
Product Description
58500L 3 axle lpg semi trailer |
Our company is a professional PRESSURE VESSEL manufacturer for more than 10 years
we can provide LPG storage tank volume from 5m3 to 120m3
LPG semi trailer from 23.97m3 to 59.52m3
LPG transporation truck from 5.5m3 to 35.5m
LPG tank is our most advantage key products which rank Top 5 in China,excellent engineers and
high-grade production equipment as well as stricted quality control system can ensure all the tank
from us run very well with 10-20 years use life.
Product features
1. The anticorrosion coating of liquefied gas semi-trailer adopt the following process: sandblast,spray painting,purging and so on.
2. There are domestic or imported safety accessories with high quality, its matching is complete.
3. We adopt scientific advanced construction process strictly,ensure that the products are with the lowest shrinkage and the highest dimensional stability at low temperature.
4. We inspect the quality of product strictly,ensure that A and B type of welding seam pass the examination
of level two radiographic test,C and D type of welding seam pass the examination of level one radiographic test.
Basic information: | ||
Product Name | 3 axle lpg semi trailer | |
Actual capacity | 58.5m3 | |
Gross weight | 40000kgs | |
Kerb weight | 15430kgs | |
Rated load | 24570kgs | |
Overall size | 13000×2500×3977mm | |
Number of axles | 3 | |
Wheelbase | 7092+1310+1310mm | |
Front trend | - | |
Rear trend | 1840/1840/1840 | |
Front/Rear suspension | -/1500 | |
Number of leaf spring | -/7/7/7 | |
Max. allowable bearing capacity of saddle | 16000kgs | |
Tyre specification | 12R22.5 12PR,11.00R20 12PR | |
standard configuration | BPW axle 12tons,landing leg 28tons,tubeless tyre, safety enclosures,single-fluid two-valve boxes, traction pin,level gauge,pressure gauge,thermometer, emergency shut-off valves, fire extinguishers, fire-fighting stars cover,anti-static grounding tape, guard rail,tyre fender |

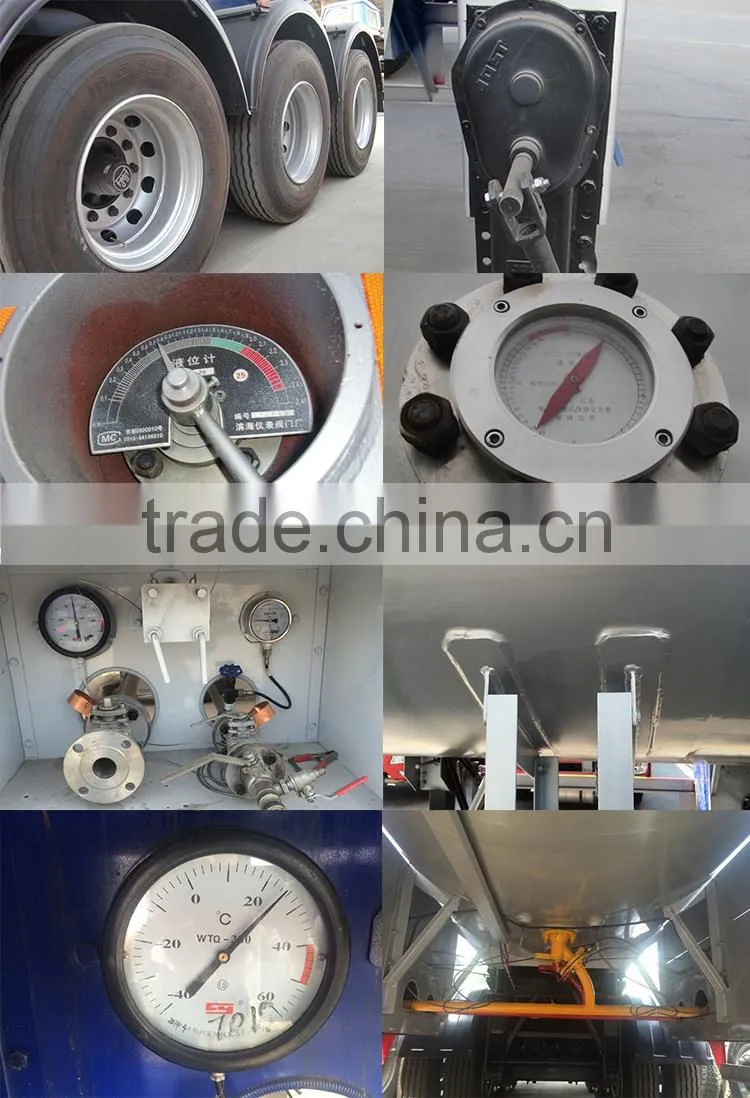

Key parts:

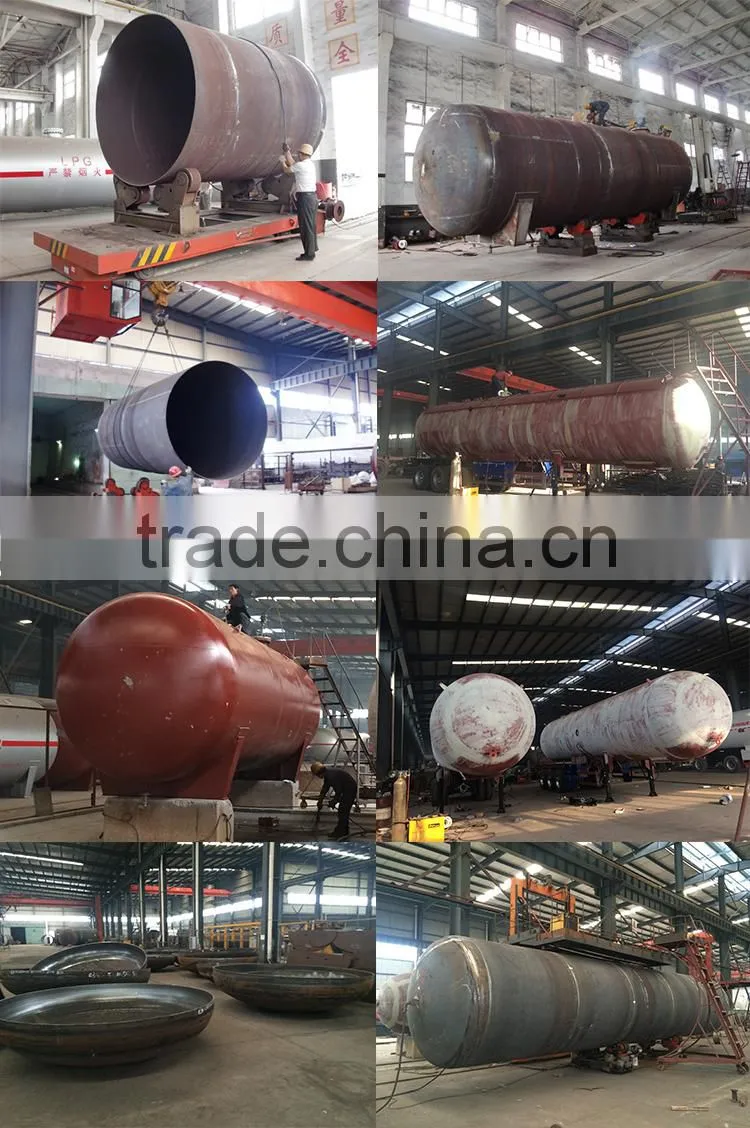

Production workshop
Excellent Pre-sale Service
1. According to your specification request, provide the best price for you.
2. After you confirmed the specification and price,our engineers will draw a Official Drawing for you confirm.
3. After our Finance Department confirmed your deposit or Irrevocable L/C,we will start manufacture the
products for you.
4. Update the progress of production to you in time, to help you know your order details progress.
5. After the product manufacture finished, if you need,we will arrange shipping for you.With our professional
skill, you just need to pick your products up at the destination place,and don’t need to worry about the shipping
at all.
Outstanding After-sale Service
1. If you have any questions when you use our products, please tell us,we will help you solve the problems
in time.
2. If any spare parts have problem after you used it,we can provide it for you,help you solve the problem if
anything affect your business.
3. We can also provide engineer to your local place if you need. You just need to bear the Airplane ticket,
and accommodation cost.
4. Other relevant service you request.
1. 12 months guarantee term.
2. Small order accepted.
3. Professional technic support.
4. After-sale service.
5. Suit your needs excellence by design.
