lpg tank
Our company is a professional PRESSURE VESSEL manufacturer for more than 10 years
we can provide LPG storage tank volume from 5m3 to 120m3
LPG semi trailer from 23.97m3 to 59.6m3
LPG transporation truck from 5.5m3 to 35.5m
LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.
Product features
1. The anticorrosion coating of liquefied gas semi-trailer adopt the following process: sandblast,
spray painting,purging and so on.
2. There are domestic or imported safety accessories with high quality, its matching is complete.
3. We adopt scientific advanced construction process strictly, ensure that the products are with
the lowest shrinkage and the highest dimensional stability at low temperature.
4. We inspect the quality of product strictly,ensure that A and B type of welding seam pass the
examination of level two radiographic test, C and D type of welding seam pass the examination of
level one radiographic test.
Product description
| Basic information: | ||
| Product Name | propane lpg tank trailer | |
| Product Model | 9390GYQ | |
| Actual capacity | 56m3 | |
| Gross weight | 39000kgs | |
| Kerb weight | 15480kgs | |
| Rated load | 23520kgs | |
| Overall size | 12700×2500×3975mm | |
| Number of axles | 3 | |
| Wheelbase | 6865+1310+1310mm | |
| Front trend | - | |
| Rear trend | 1840/1840/1840 | |
| Front/Rear suspension | -/1550 | |
| Number of leaf spring | -/7/7/7 | |
|
Max. allowable bearing capacity of saddle |
16000kgs | |
| Tyre specification | 12R22.5 12PR | |
Standard configuration

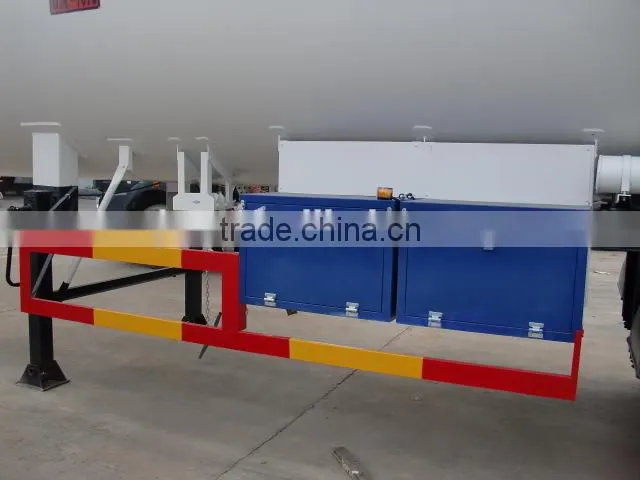

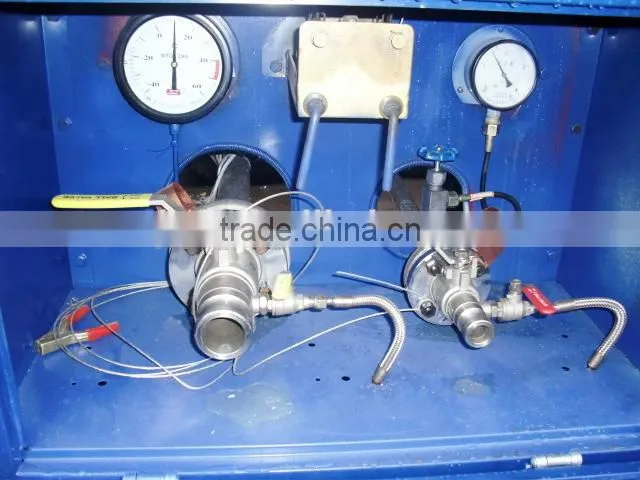

BPW axle 13tons,landing leg JOST,tubeless tyre,safety enclosures,single-fluid two-valve boxes,traction pin,level gauge,pressure gauge,thermometer,emergency shut-off valves, fire extinguishers,fire-fighting
stars cover,anti-static grounding tape,guard rail,tyre fender,1 spare tyre

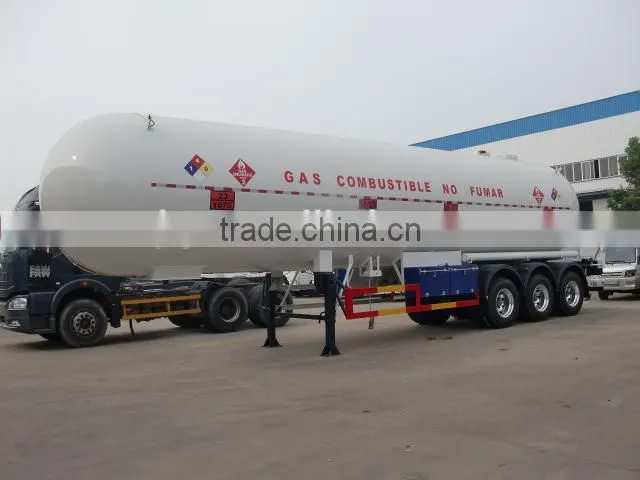

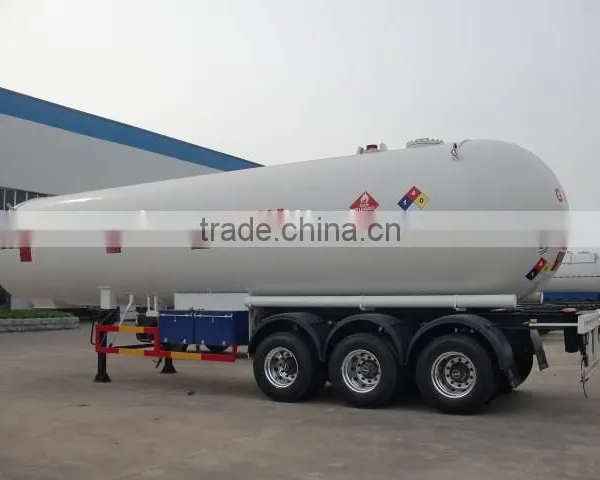

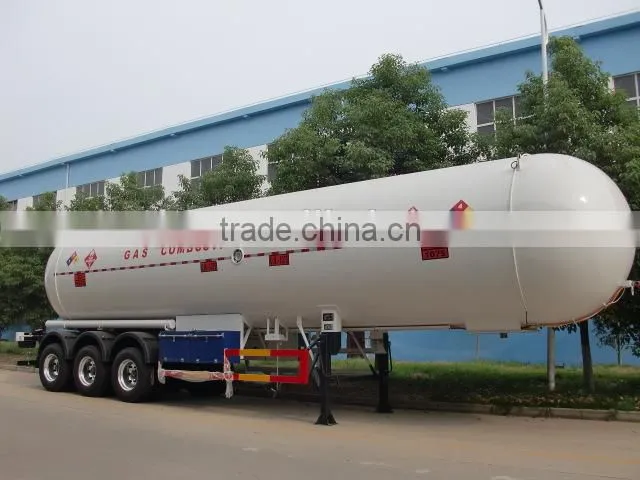

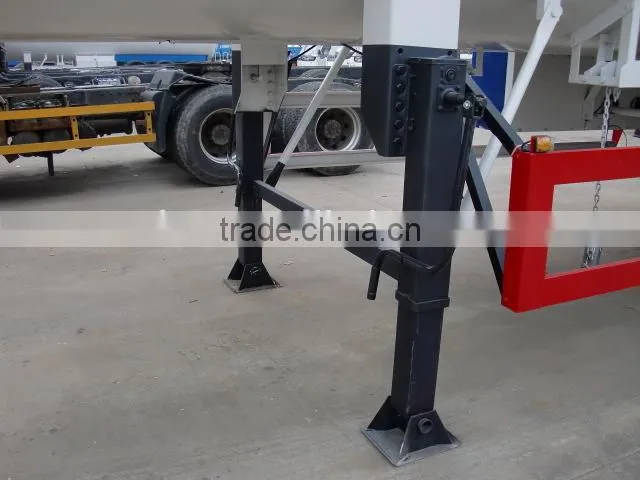

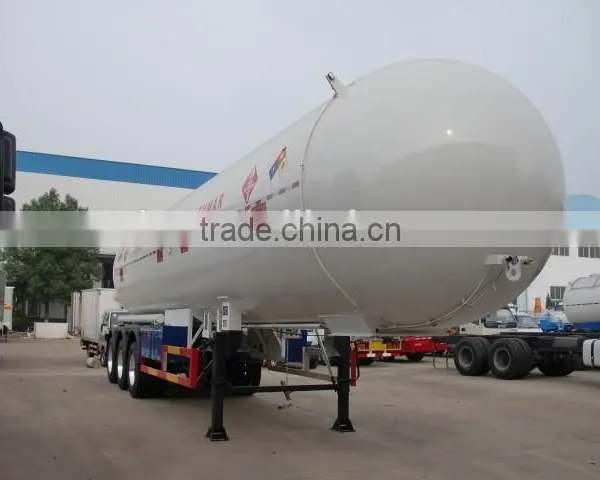

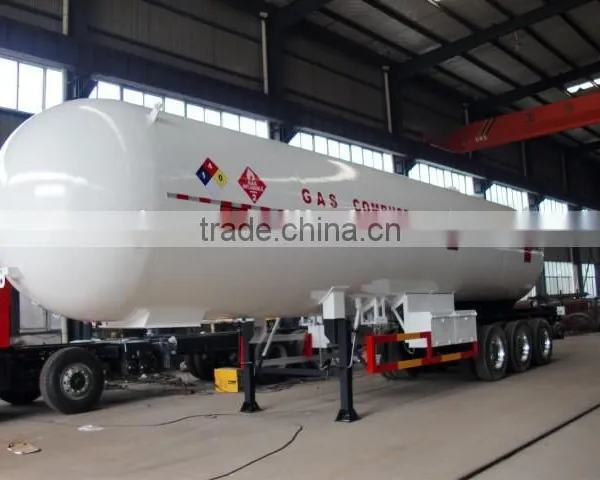

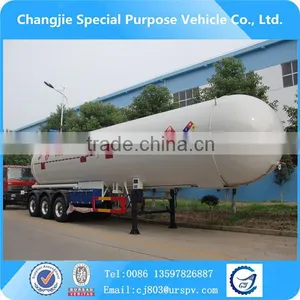

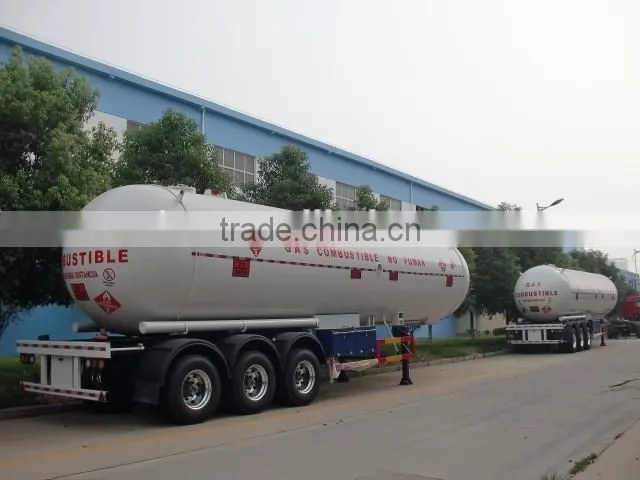

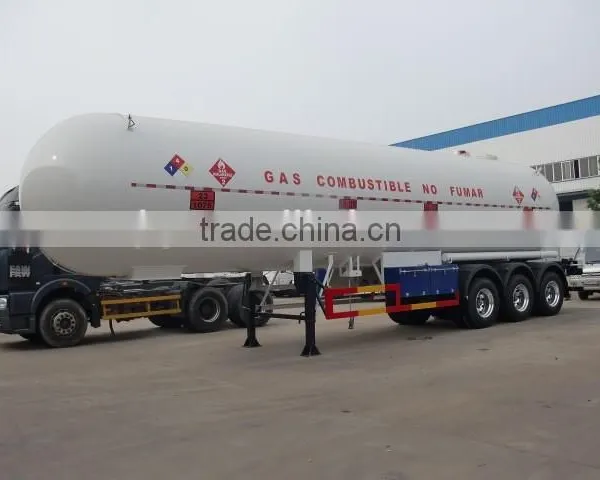

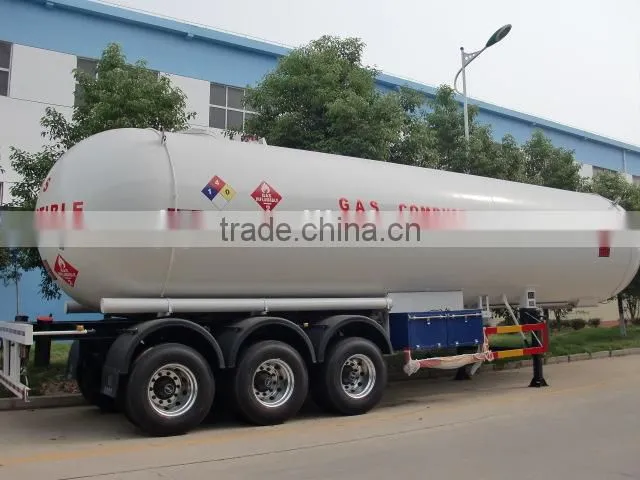

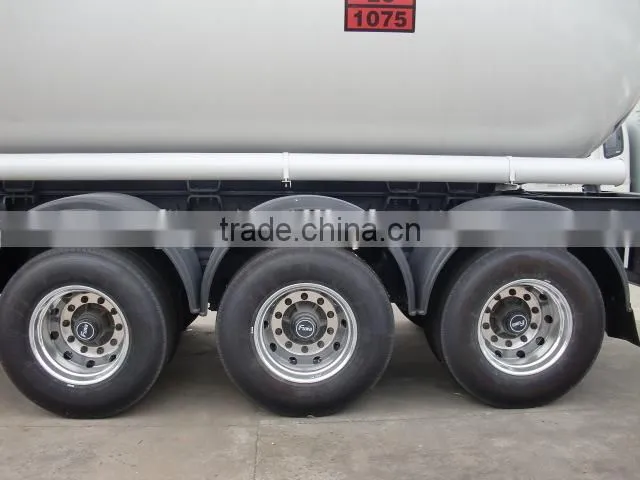

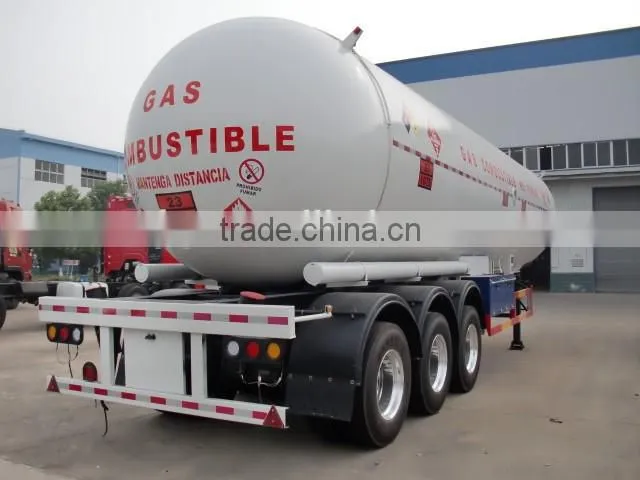

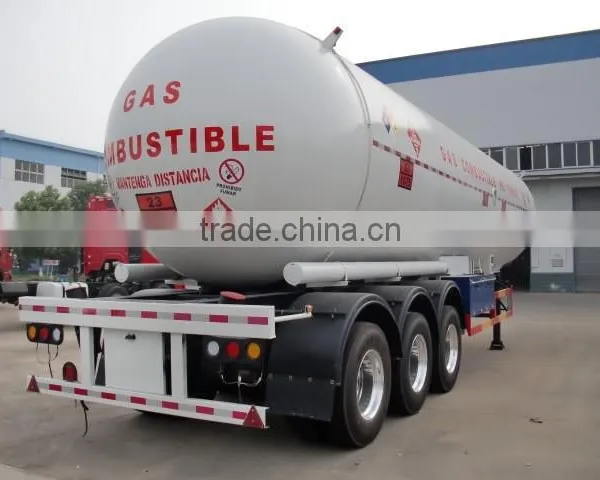

Product pictures

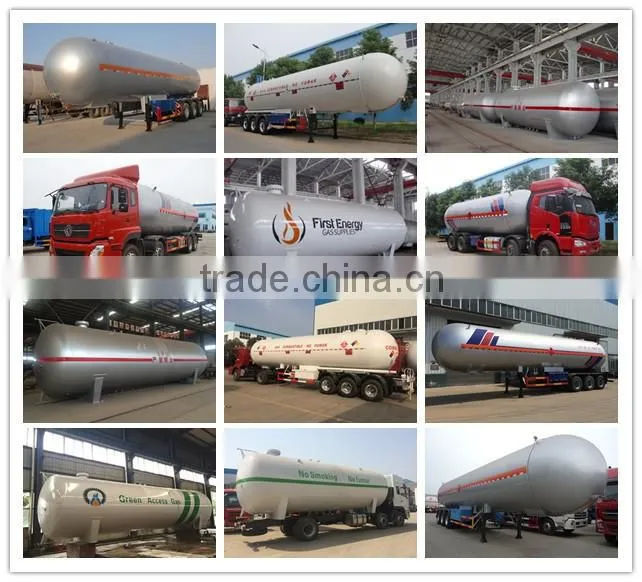

Similar Products:

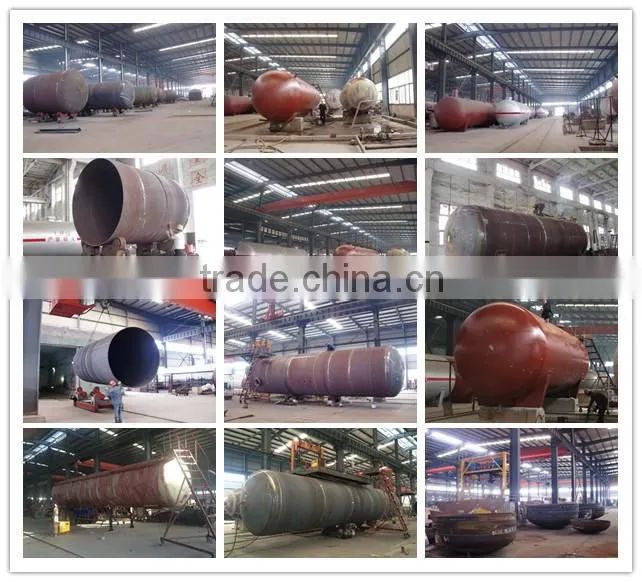

Production workshop
Outstanding After-sale Service
1. If you have any questions when you use our products, please tell us, we will help you
solve the problems in time.
2. If any spare parts have problem after you used it, we can provide it for you, help you
solve the problem if anything affect your business.
3. We can also provide engineer to your local place if you need. You just need to bear
the Airplane ticket, and accommodation cost.
4. Other relevant service you request.
1. 12 months guarantee term.
2. Small order accepted.
3. Professional technic support.
4. After-sale service.
5. Suit your needs excellence by design.
Hubei Changjie Special Automobile Co., Ltd. , is a professional manufacturer of special automobiles for 10 years. Our company has independent export authority, and has a lot of overseas clients.
Our leading products include more than 8 series and 100 types of trucks such as water trucks, tank trucks, garbage trucks, fecal suction trucks, sewage suction trucks, dump trucks, van trucks, semi-trailers, wrecker trucks, trucks with cranes, high-altitude operation trucks, training trucks, bulk cement trucks, chemical liquid trucks, fire engines, truck fittings, cement mixers and tractors. At the same time, we deal with wholesale chassis.
Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation. What's more, we have obtained ISO9001 and CCC certificates (China Compulsory Certification).
Our survival is based on the quality.Credit standing is the guarantee of our success. We will endeavor to treat customers honestly, managing flexibly, guaranteeing high quality but low price, and keeping high efficiency. We promise that all the products that are adapted and sold by us can get one-year services and maintenance for the life.

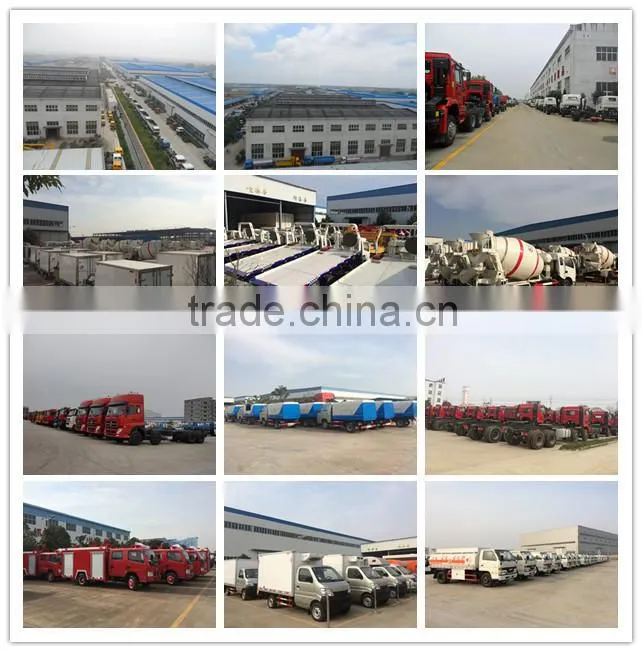

Our factory show:
