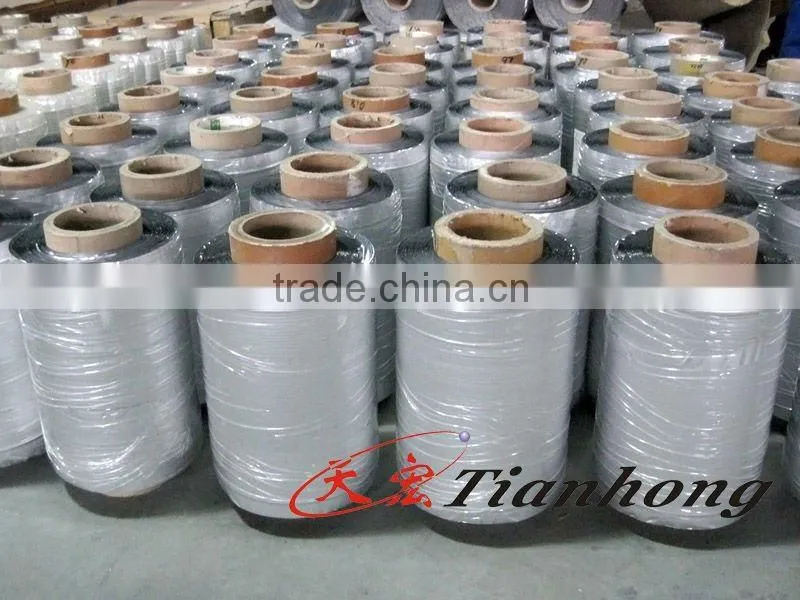

Help CenterAluminum Mylar Film for Insulation
Related Products
-
Electrical Shielding TapeUS$ 2,000 - 3,900MOQ: 1 Ton -
Mylar Tape for CableUS$ 3,000 - 4,500MOQ: 1 Ton
-
Polyester Insulation TapeUS$ 3,000 - 4,500MOQ: 1 Ton
-
Aluminum Polyester Foil for Telecommunication EquipmentUS$ 3,000 - 5,000MOQ: 0 Ton
-
Auminium Foil Lamination for Telecommunication EquipmentUS$ 3,000 - 4,500MOQ: 1 Ton
Specifications
Aluminum mylar for cable shield widely used in shielding for cables.1. Application
1.For wire cables;
2.For insulation materials;
3.For telephone lines;
4.For flexible duct,air conditioner;
5.We are manufacturer;
6. For champagne cap;
7. Can supply SGS,Certificate of original,MSDS,Test report,ect;
2. Feature
Good insulativity and shielding effectiveness to reduce attenuation, complying with RoHS standard.
3. Dimensions
Name |
Aluminium Polyester Foil(Polyester=Mylar=PET) |
Thickness |
20u-150u |
Width |
5mm-1000mm |
Inner diameter |
38mm(1.5in) or 53.5mm(2.1in) or 76mm(3.0in) |
Outer diameter |
250mm-650mm |
Color |
Silver,Blue,Golden |
Name:AL+PET |
|
|
|
Structure |
Thickness(mic) |
Weight(g/m2) |
Yield(m2/kg) |
AL9+ PET12 |
23mic |
43 |
23 |
AL9 +PET15 |
26mic |
48 |
21 |
AL9 +PET19 |
30mic |
54 |
19 |
AL9 +PET23 |
34mic |
60 |
17 |
AL12 +PET12 |
26mic |
52 |
19 |
AL12 +PET15 |
29mic |
56 |
18 |
AL12 +PET19 |
33mic |
32 |
16 |
AL12 +PET23 |
37mic |
67 |
15 |
AL12 +PET36 |
50mic |
87 |
12 |
4.Note
Accept orders of foils with different thickness, length and width.
5.Contact
Mobile:86-15168349992
TEL:86-571-6106 1089
FAX:86-571-6381 0799
