2MP Dome 4CH AHD Camera DVR Kit CCTV System 1080P HDMI 4 Channel Home Security DIY With Indoor Night Vision IR 20M HD AHD
1, HD iDVR Three in one: combines the function of DVR/HVR/NVR together, multi-mode input, support 4ch AHDH(1080P)/ AHDM(720P) /AHDL(960H) OR 4ch AHDM+4ch 720P(NVR) or 8ch 720p(NVR)
2,step on the internet:can penetrate through all kinds of network via cloud service, to do remote control easily&conveniently without any complicate setting.
3, Compression algorithm ideal:Compression algorithm upgraded to H.264 main profile,the advance space-time filter technique make the code stream lower at least 30% .
4, playback quality:real-time coding synchronously, real-time multi-channel playback synchronously.,4CH support 4CH 12fps playback at same time
5, Main and Sub Stream:support main stream and extra steam encode synchronously.Main stream is for local storage to maintain the image quality, extra stream is for network real-time transmission, to easily solve the bottleneck problem of bandwidth.
6, Mobile monitor:support all kinds of mobile monitor (iPhone, Android)
7, Display: support VGA&HDMI output synchronously which support 1080P hd output, make the traditional monitor display effect upside down.
8,Operation interface:similar WINDOWS operating style,powerful right button menu function of mouse, make it easy for using.
9, Network:Powerful net service(support DHCP,PPPOE,FTP, DNS,DDNS,NTP,UPNP, EMAILl,IP , etc), complete enclosure(WEB,CMS,SDK),to easily achieve interconnection.
10, Browsers:Support multi-browser(IE,Chrome,Firefox,Safari.
11, Remote Access:Self enclosed with DNS function (ARSP),one-key to enable remote control, and support DNS of 3322,dyndns,oray,myq-see, etc.
12, Others:Completed protective circuit, unique treble watchdog function, make device never crashed; special “black-box” technology to monitor the device process, greatly reduce the maintenance cost.
13, Support smartphone IOS / Android view
14,Support P2P Cloud function:
15,4CH with total support 4CH AHDH(1080P)@15fps,4CH AHDM(720P)@25fps
|
Model |
AVR-1104HM |
Menu display |
1/4 screen |
|
Video |
Video Standards |
PAL(625 line,50 f/s);NTSC(525 line,60 f/s) |
Surveillance quality |
PAL,D1(704×576),NTSC,D1(704X480) |
|
Code ability |
4CH AHDH(1080P)/15fps OR 4CH AHDM(720P)@25fps,4ch AHDL(960H)@25fps |
|
Motion Detection |
Zones:396(22*18)detection zones,many levels of Sensitivity setting |
|
Record & |
Recording Mode |
Manual-Alarm Dynamic Detection Timing |
Playback | ||
Playback |
One channel or multi-channel playback (4 channel max synchronized playback) |
4CH AHDH(1080P)/15fps;AHDM(720P)/25fps palyback |
Search Mode |
Time/Date,Alarm,Motion Detection & exact search(accurate to second) |
|
Storage |
Space Occupation |
Video:960H(AHDL):30G/DAY/CH , AHDM(720P):40G/DAY/CH, 1080P:80G/DAY/CH Audio:691.2MB/DAY/CH |
Backup | ||
Video storage |
Hard disk,and net |
|
Backup Mode |
Network burn, mobile Hard disk and USB burn |
|

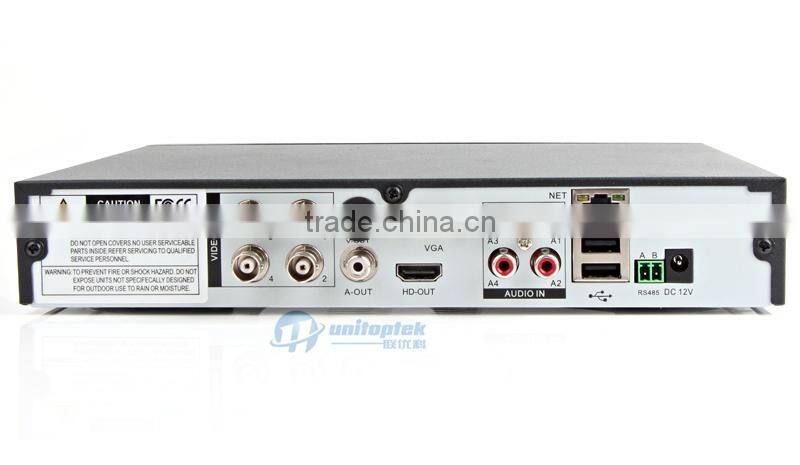

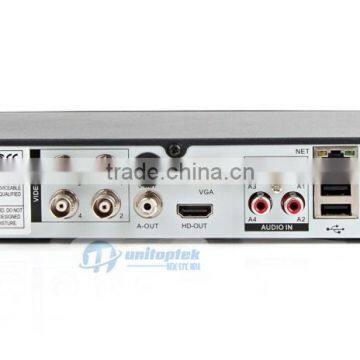

Interface |
Video Input |
4channel, BNC, 1.0Vp-p.75 |
Video Output |
1channe VGA, HDMI |
|
Audio Input |
4channe RCA |
|
Audio Output |
1channe RCA |
|
Hybrid Mode |
4AHDM+4720P(NVR) |
|
Only dvr |
4*AHDH OR 4*AHDM OR 4*AHDL(960H) |
|
Only nvr |
2ch1080p+2ch 720p or 8ch 720p |
|
Alarm output |
NO |
|
Net Interface |
RJ-45 (10M/100M) |
|
PTZ Control |
RS485 |
|
USB Interface |
2*USB |
|
Hard Disk |
1 SATA ports (max 4TB) |
|
Other |
Power Supply |
12V/2A |
Dimension |
Packing:330X310X75mm(W*D*H) |
Only dvr:260*215*43mm(W*D*H) |
Weight |
Packing:1.25kg(NOT WITH HDD) |
Only dvr:0.8kg |
Why AHD(Analog High Definition)?
1.Transmit video signal, audio signal and dual-way data communication signal over one coaxial cable.
2.HD video transmission without video quality loss & delay
3.Extremely long transmission distance(500m)
4.The same connection structure as original analogue system without cable (Coax / UTP) changing
5.High video quality on AHD 1080P

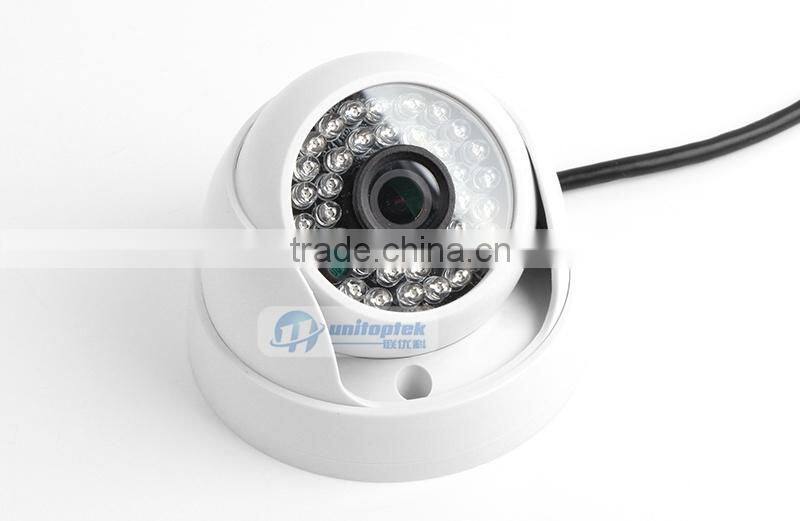

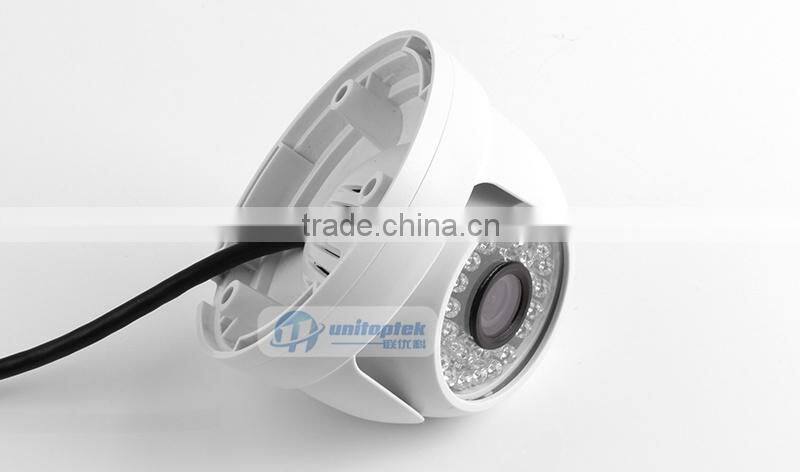

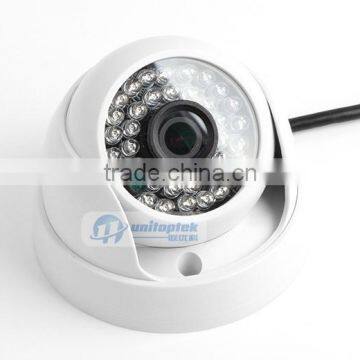

AHD Camera Features:
1. Waterproof dome Camera
2. Lens:Board Lens 3.6mm/F2.0
3. IR LED: 36pcs IR LED
4. IR Range:20M
AHD Camera Specification :
Resolution |
2.0 Mega Pixel 1080P |
Camera type |
High performance HD -AHD Camera |
Image Sensor |
1/3" IMX322+NVP2441H |
Effective Pixel |
PAL : 1920*1080@25fps NTSC : 1920*1080@30fps |
Signal System |
PAL/NTSC |
Video Standard |
AHD |
Video Output |
1CH AHD HD |
Max Transmission Distance |
Common 75-3lines can be up to 500m |
Lens size |
Board Lens 3.6mm/F2.0 |
Minimum Illumination |
0LUX/F1.2(Led on) |
IR-CUT |
Auto switch |
LED |
36pcs IR LED |
IR Distance |
20m |
Shutter Speed |
1/53~1/100000s |
BLC |
Auto |
White Balance |
Auto White Balance |
HLC |
Support |
Operation Temperature |
-10°C~55°C |
Power Supply |
DC12V |
Size(diameter*high) |
93*85mm |
weight |
0.2kg |
Housing Material |
ABS plastic |

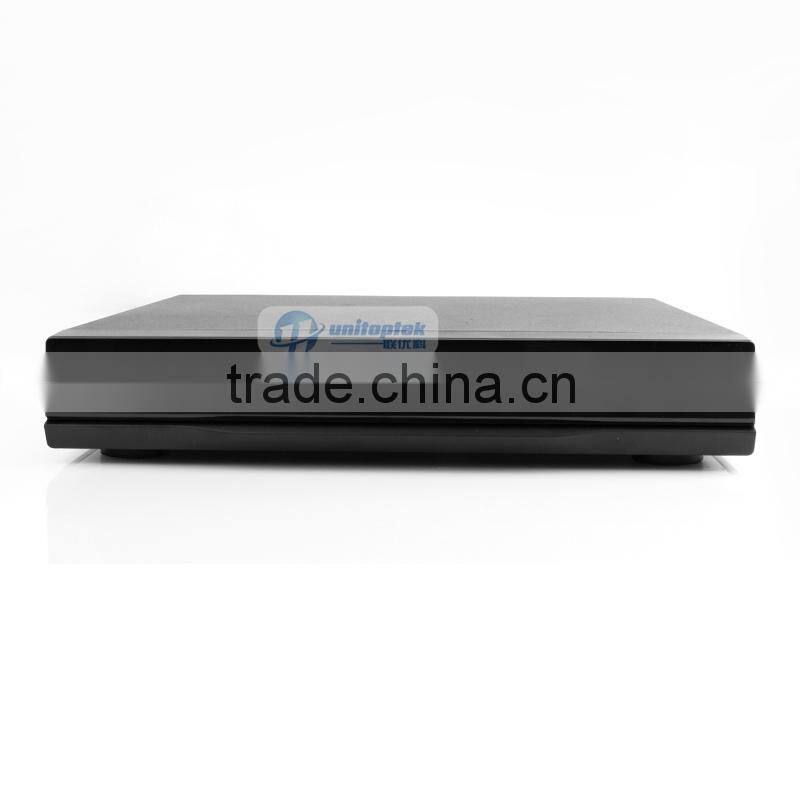

1 x 4CH AHDH/AHDM/AHDL DVR
1 x Remote Controller
1 x USB Mouse
1 x Installation CD Rom&User Maunal
1 x Power supply DC 12V for dvr
4 x 1080p dome ahd camera with Screws

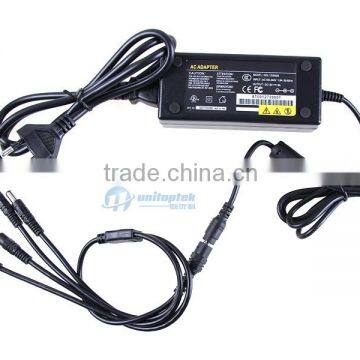

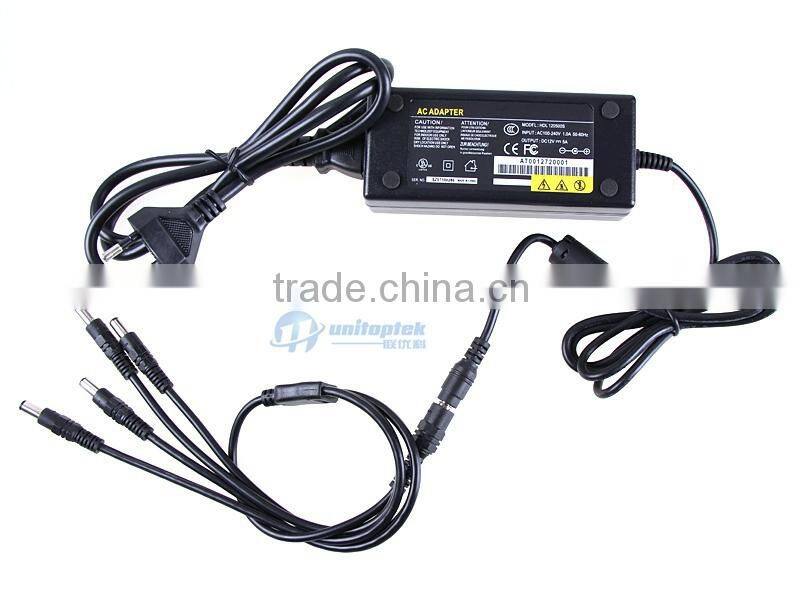

1 x 12v 5a dc power suply with 1 to 4 Splitter Power Cable

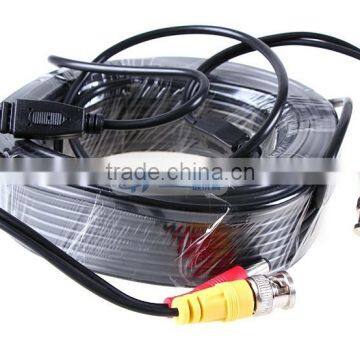

4 x 20m cable
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
FOB Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
