US$ 410 - 440 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
UNITOPTEK
Model Number:
R5208+BC33172
Contact Supplier Request Quote Chat Now
Shenzhen Unitoptek Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name UNITOPTEK
Model Number R5208+BC33172

Home Surveillance Security CCTV TVI DVR Kit With 8Ch Full 720P HD-TVI DVR For 8Pcs 1.0MP TVI Cameras KIT

Product Description

Home Surveillance Security CCTV TVI DVR Kit With 8Ch Full 720P HD-TVI DVR For 8Pcs 1.0MP TVI Cameras KITHome Surveillance Security CCTV TVI DVR Kit With 8Ch Full 720P HD-TVI DVR For 8Pcs 1.0MP TVI Cameras KITHome Surveillance Security CCTV TVI DVR Kit With 8Ch Full 720P HD-TVI DVR For 8Pcs 1.0MP TVI Cameras KITHome Surveillance Security CCTV TVI DVR Kit With 8Ch Full 720P HD-TVI DVR For 8Pcs 1.0MP TVI Cameras KITHome Surveillance Security CCTV TVI DVR Kit With 8Ch Full 720P HD-TVI DVR For 8Pcs 1.0MP TVI Cameras KITHome Surveillance Security CCTV TVI DVR Kit With 8Ch Full 720P HD-TVI DVR For 8Pcs 1.0MP TVI Cameras KIT

Home Surveillance Security CCTV TVI DVR Kit With 8Ch Full 720P HD-TVI DVR For 8Pcs 1.0MP TVI Cameras KITHome Surveillance Security CCTV TVI DVR Kit With 8Ch Full 720P HD-TVI DVR For 8Pcs 1.0MP TVI Cameras KITHome Surveillance Security CCTV TVI DVR Kit With 8Ch Full 720P HD-TVI DVR For 8Pcs 1.0MP TVI Cameras KIT

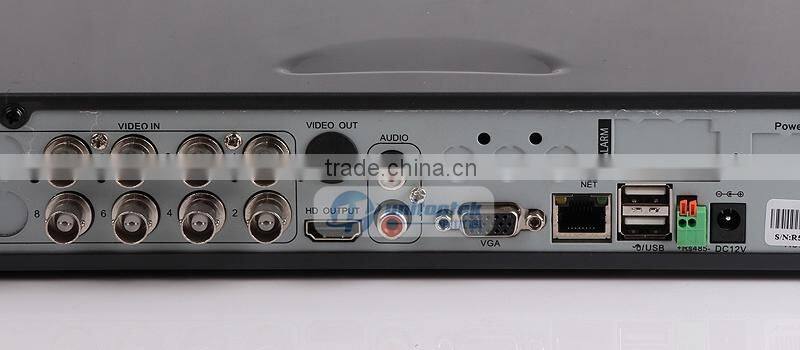

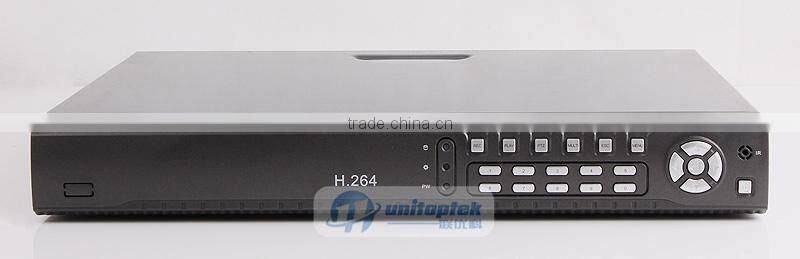

8CH TVI DVR Features:

8 Channel 720P/1080P HD-TVI DVR
Preview 720P 25/30fps; 1080P 25/30fps
Recording&Palyback 720P 25/30fps; 1080P 15fps

2× HDD(max 4TB)

1ch audio input;1ch audio output
1ch VGA output, 1ch HDMI output

Support RS485

Support free ddns: ;plug-play, P2P

Support smart CMS;smart mobile phone view (android, iphone,etc ,)

Support up to 500M over-coaxial -cable tansmission distance; easily installation with old connection system, and save cost.

Support mobile view app: eseenet

Are Compatible with TVI products.



8CH TVI DVR Specification:

Model

Model No.

R5208-TVI

System

Main Processor

HI3521



Operating System

Embedded LINUX











Video Parameters

Input channel

8

Preview Resolution

1080P@25fps / 1080P@30fps
 / 7200P@25fps / 720P@30fps

Compression

H.264

Image Resolution

1080P* / 720P / D1

Frame Rate

1080P@15fps* / 720P@25~30fps
/ D1@25~30fps

Video Bitrate

512Kbps~6144Kbps,defaulted: 3072Kbps

Playback

x4

Substream Resolution

Cif@15fps

Stream Type

Video Flow/Integrated Flow

Dual Stream

Support

Audio Parameters

Coding Standards

G.711A

Audio Sample Rate

8KHz/16Bit

Audio Rate

64Kbps

Video Interface

Analog Video Input

8ch, BNC interface

Video Output

1ch VGA output,1ch HDMI output

Audio Interface

Audio Input

1ch RCA input

Audio Output

1ch RCA output

Recording Management

Recording Mode

Auto,Manual,MD,Alarm

Backup

HDD,USB DISK,Network

Alarm

Alarm Input

no

Alarm Output

no

HDD

HDD Interface

SATA x 2

HDD Capacity

4TB

Communication Interface

Network Interface

1*RJ45,100Mbps Ethernet

Communication

1*RS485

USB

2 * USB2.0

Other

Power Supply

DC12V

Power Consumption

<15W(excluded HDD)

Working Temperature

-10-+55centigrade

Working Humidity

10%~90%

Dvr Size



375*275*50mm

Dvr Weight



1.65kg

Packing Size



425*335*115mm

Packing Weight



2.65kg

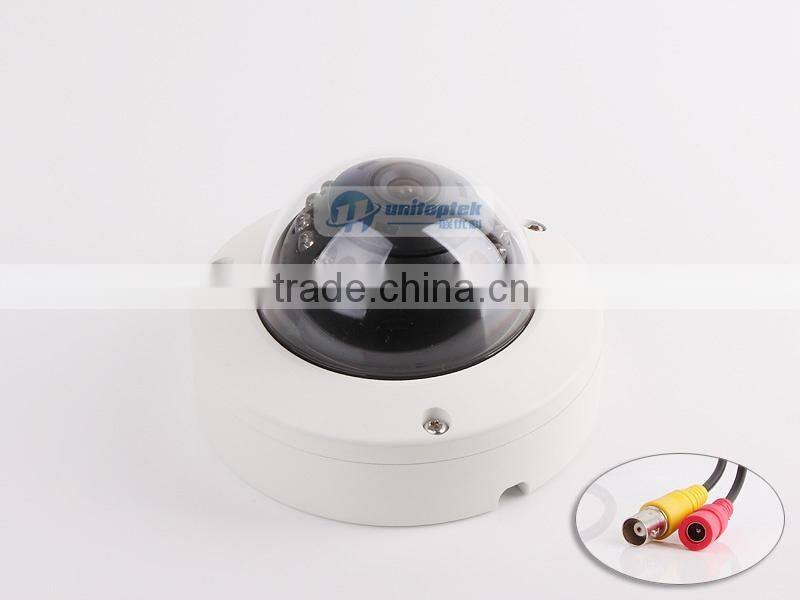

TVI Camera Features

HD TVI 1 / 3" CMOS Sensor

Outdoor Weatherproof dome

720p Video Output

3.6mm Lens

12LED Night Vision IR up to 33FT (10m)

DV 12V



Specification:

Model

TVI-BC33172

Image Device

HD TVI 1/3 CMOS image sensor

Megapixels

1280(H) x 720(V)

Lens

3.6mm Lens

IR LED

12LEDs Night Vision IR up to 33FT (10m)

Minimum Illumination

0.01 Lux/0 Lux led on

Noise reduction

3D-N/2D-N

Video System

NTSC/PAL

IR Shift

Yes

IRIS Mode

AES

White Balance

Auto

Shutter Speed

1/30 (1/25) sec ~ 1/720000 (1/600000) sec

AE Mode

Standard/SWDR/BLC/HLC/Defog

Intelligent Surveillance

Multi-Object Tracking/D-Zoom/Private Mask

Operating Temperature

-20 ~ 40 (-4F ~ 104F)

Power Source (+-10%)

DC12V / 1A



Company Information

Home Surveillance Security CCTV TVI DVR Kit With 8Ch Full 720P HD-TVI DVR For 8Pcs 1.0MP TVI Cameras KIT

Our Service

Home Surveillance Security CCTV TVI DVR Kit With 8Ch Full 720P HD-TVI DVR For 8Pcs 1.0MP TVI Cameras KIT

Packaging & Shipping

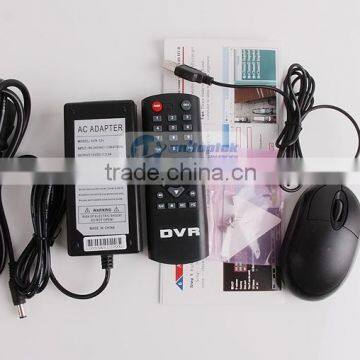

1 x 8ch 720p/1080p tvi dvr

1 X USB Mouse for dvr
1 X Remote Controller for dvr
1 X Power Adapter for dvr
1 X User manual for dvr

8 X 720p dome tvi camera

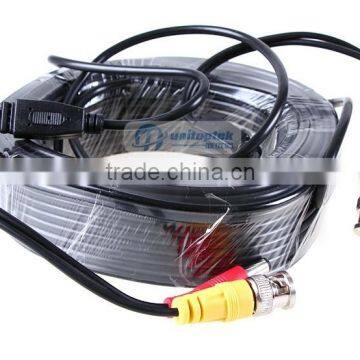

8 X 20m Cable

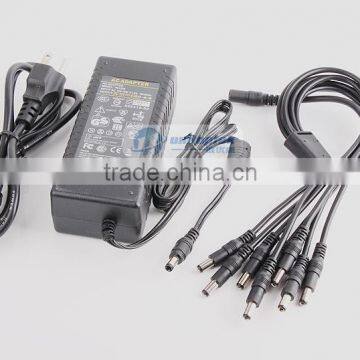

1 X 12V 8.5A power supply with 1 to 8 Splitter Power Cable



FAQ

OEM Service:

We could offer OEM and ODM services for our clients.

Delivery Time:

Sample order 3-5 working days, bulk order 7-15 working days.

Quality Warranty:

2 years for free repair. Whole life service for continue cooperating customers!

Price Term:

FOB Shenzhen

Delivery Term:

By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
