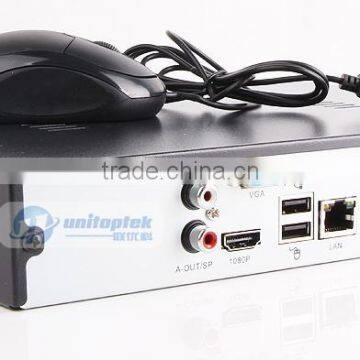

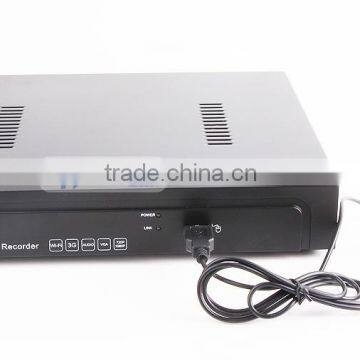

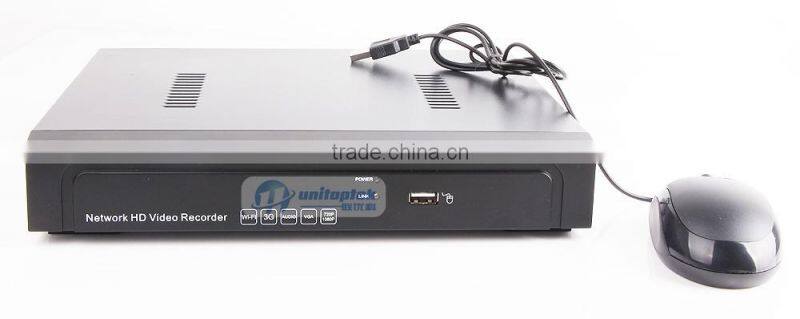

4CH 2.0MP 1080P POE NVR IP Camera Dome System Kit CCTV Network 4 Channel NVR Support Home Video Surveillance Video record
Parameters:
Model |
4EP |
|
System |
Operating system |
Linux |
Screen display |
1ch/ 4ch display |
|
Video |
Code capacity |
1080P/ 960P/ 720P/ 960H/ D1/ HD1/ CIF/ QCIF |
Preview capability |
4ch 1080P or 4ch 960P or 4ch 720P |
|
|
Each screen can be set to 192 (16×12) of detection regions; support multi-level sensitivity |
|
Video playback |
Recording |
Manual> Alarm> Motion Detection> Schedule |
Playback |
1ch 1080P/ 4ch 720P / 4ch 960P |
|
Video search |
Time search, calendar search, event search, channel retrieval |
|
Storage |
Space |
720P:40G/day/channel; 1080P:80G/day/channel |
Storage |
Local HDD, Network |
|
Backup |
Support Flash Drive, USB mobile HDD, USB DVD-RW. network storage and backup |
|

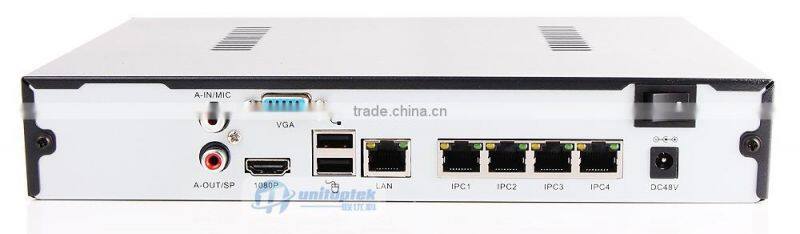

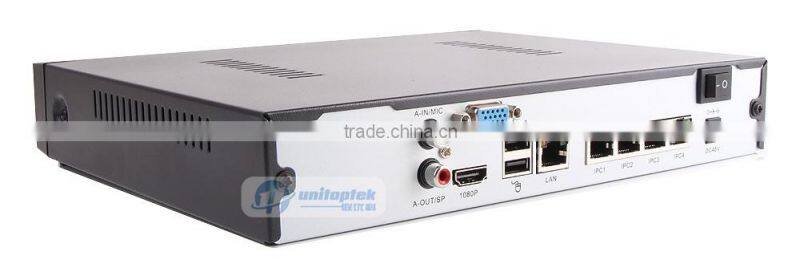

Interface |
Video in |
4x 1080P(2.0MP) IP Camera |
Video out |
1ch VGA, 1ch HDMI(1920x1080) |
|
Audio in |
1x RCA |
|
Audio out |
1x RCA |
|
Alarm in |
NO |
|
Alarm out |
NO |
|
Ethernet |
4x RJ-45 interface, for POE(Power over ethernet) 1x RJ-45 interface, for internet (10M/100M/1000M) |
|
PTZ |
Not support |
|
USB |
3x USB 2.0 |
|
HDD |
Support 1x SATA Hard Disk (max to 4TB) |
|
Other |
Power supply |
DC48V2A (support 4pcs 80-100meters RJ45Cable) |
Power Consumption |
<115W (without HDD) |
|
Size |
Equipment:260mmx220mmx43mm, Packing:355mmx255mmx88.5mm |
|
Weight |
Net:1.6kg, Include package:2.5kg (not include HDD) 10 pcs/carton. 525mmx455mmx365mm; Weight:27 Kg |
|

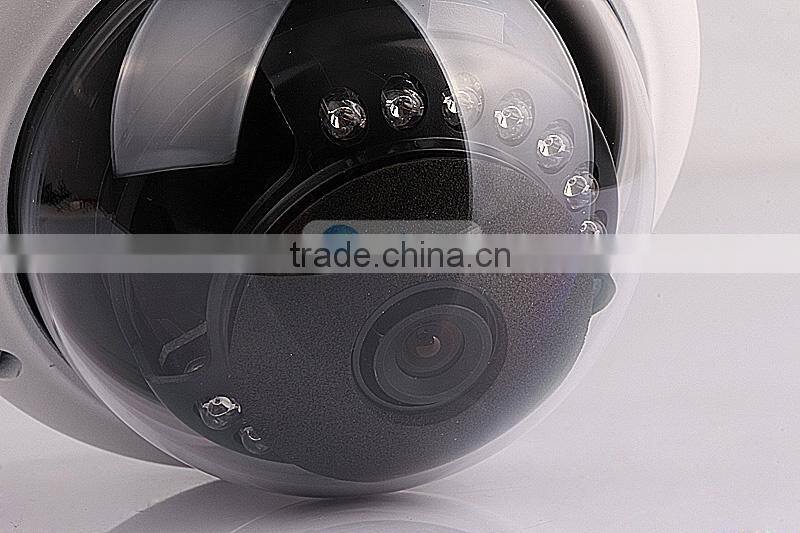

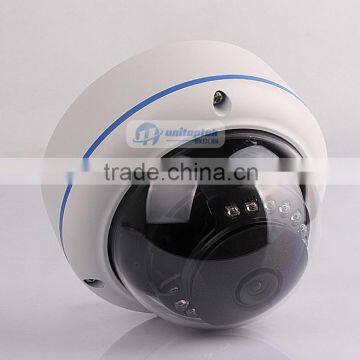

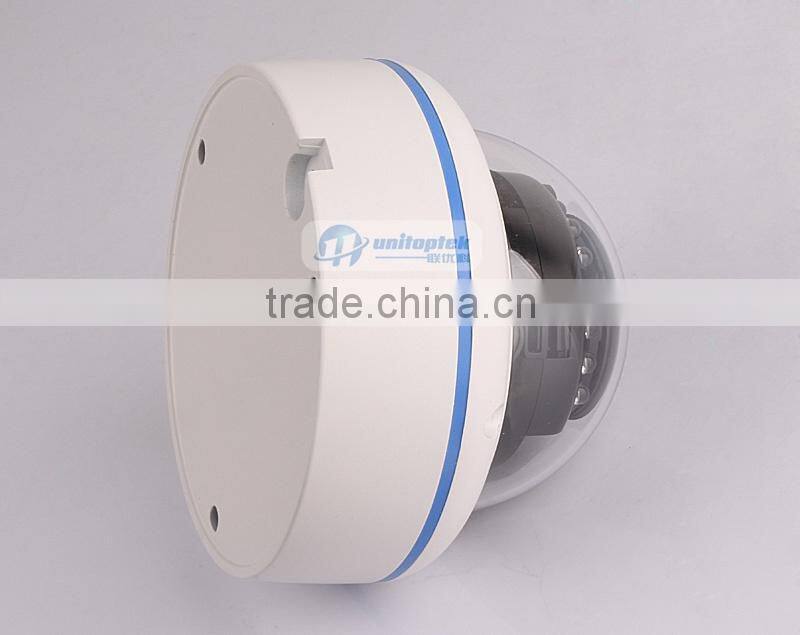

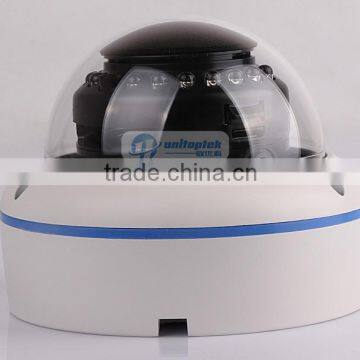

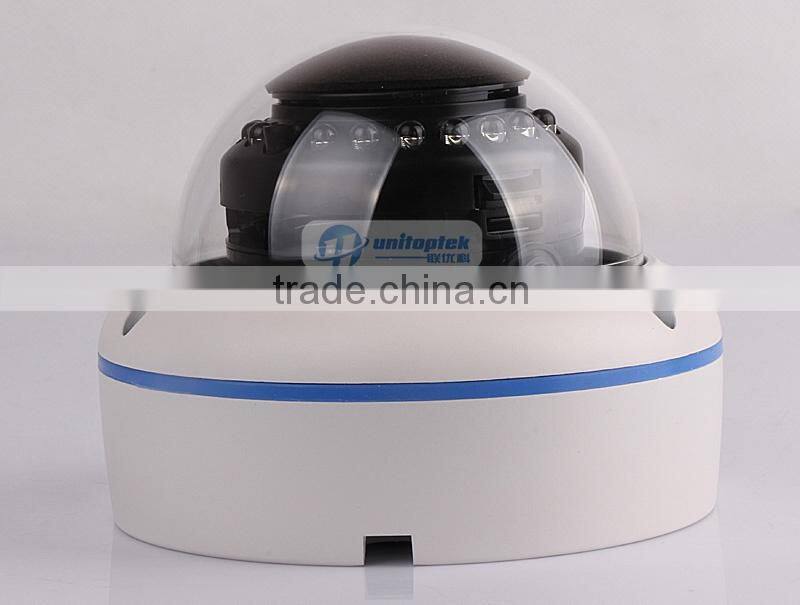

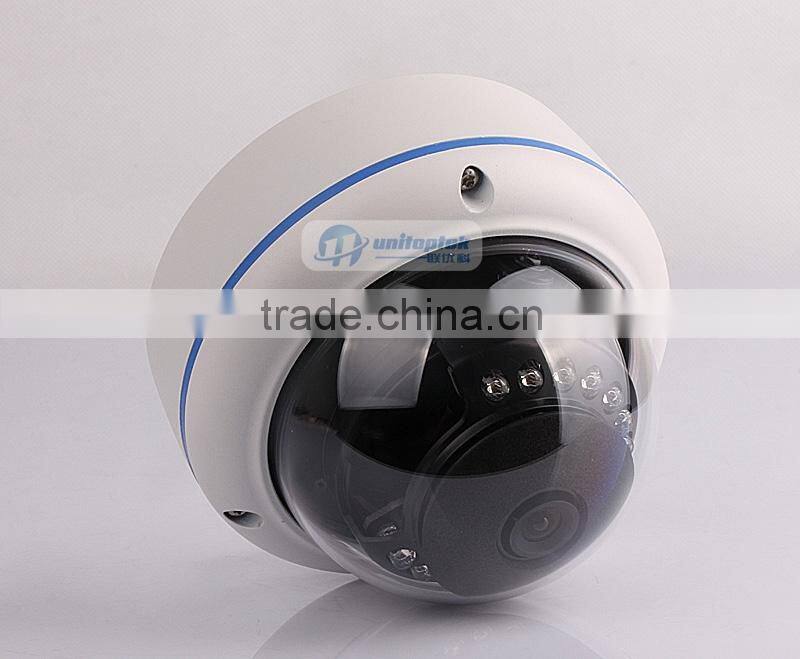

Dome ip camera Main Features :
(1)Hi3516C Processing chip
(2)high sensitivity micron 2.0 megapixel coms
(3)Up to 1080P(1920*1080) resolutions
(4)Support multiple network protocol TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP and so on
(5)IR LED : 10 PCS,IR 10M
(6)Lens : 3.6mm
(7)POE Port : YES
(8)Support nvr Brand dahua/ etc. and any made-in-china nvrs support onvif 2.0 or higher
(9)Support iPhone,Android view
Model |
IPCX-TC28271080 |
System Structure |
Embedded RTOS,dual-core 32bit DSP(Hi3516C),pure hard compression,watch dog |
image sensor |
1/2.8" IMX222 CMOS,support IR-CUT, support photo resistance signal linkage, CS lens;color 0.01Lux @ F1.2,black/white: 0.001Lux @ F1.2; |
Video compression |
H.264,support dual-stream,AVI;0.1M~6Mpbs variable;1~30f/s variable; |
Image output |
main stream: 1920*1080;sub-stream:704*576(1080p) |
network interface |
1*RJ45 10/100M;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc; |
photo resistance |
one photo resistance interface,support photo resistance signal links to IR-CUT |
Features |
Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, MJPEG capture;united remote client monitoring sofaware,MYEYE;perfect SDK; |
ONVIF |
support |
mobile monitoring |
support multiple mobile monitoring (iPhone,Windows Mobile,BlackBerry,Symbian,Android) |
Other functions |
DC12V,3W(consumption),38mm*38mm; |
Notes |
Support POE (optional),B1-type tail-line (without BNC interface) |
Case |
Metal,Waterproof,Outdoor Use |
POE Port |
Yes |

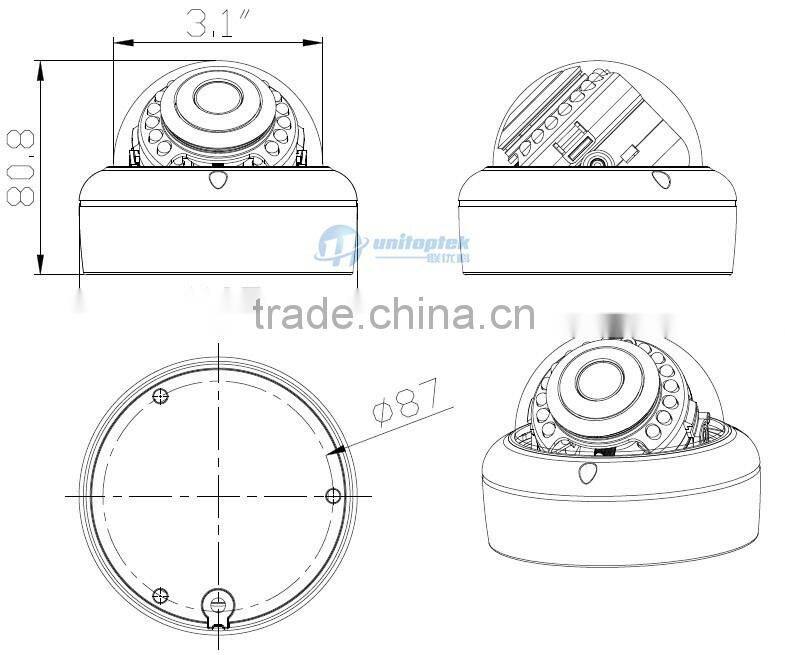

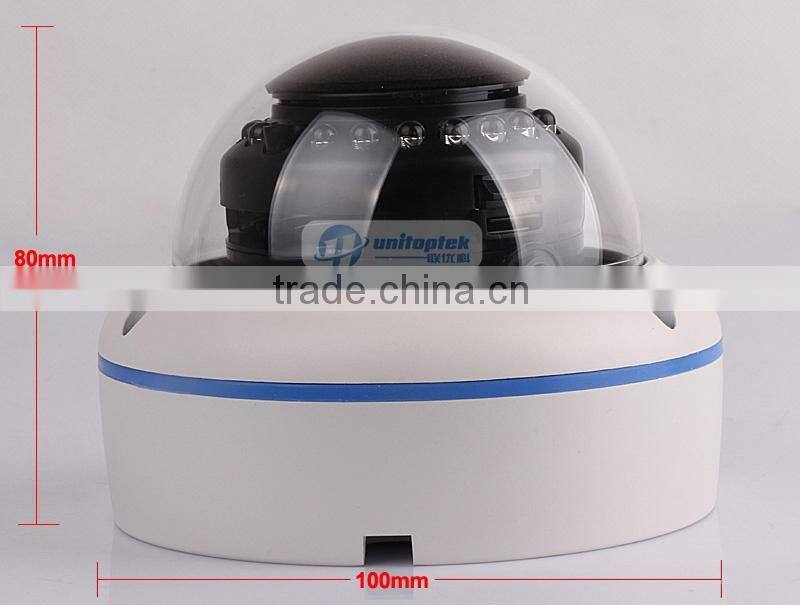

Size(diameter*high) |
100*80mm |
P2P Cloud |
Support |
Lens |
3.6mm Lens |
Support NVR |
YES |

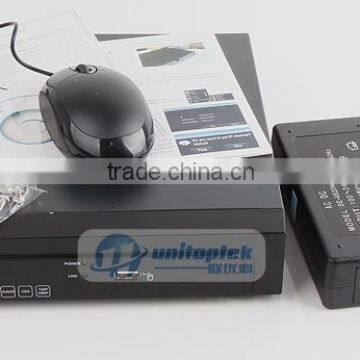

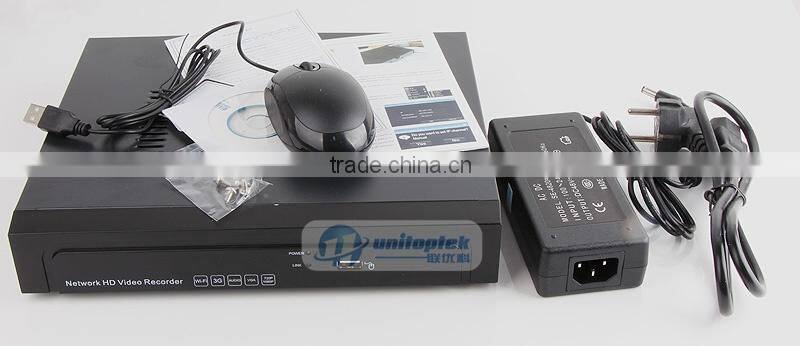

Packing List
1x4CH 1080P PoE NVR
1x 48V 2A Power Adapter
1xMouse
1xNVR User Manual
1xSoftware CD for NVR
4 x 1080P poe dome IP Camera
4 x Screws
2 X 10m Network Cable
2 X 20m Network Cable
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
FOB Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
