8CH 2.0MP POE NVR Kit With 8PCS ONVIF IP66 Outdoor Bullet Night/day And 8CH POE NVR

Name: 8CH 2.0MP POE NVR Kit With 8PCS ONVIF IP66 Outdoor Bullet Night/day And 8CH POE NVR
Brand: UNITOPTEK
Price: USD $520 - 545 / Set

FOB Price

USD $520 - $545 / Set

1 Set(Min.Order)

Supply Ability 10000 Kilohertz per Month
Port ShenZhen port
Payment Terms:Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Guangdong, China

Brand Name:

UNITOPTEK

Model Number:

8EP+HC28461080-P

Product Description

8CH 2.0MP POE NVR Kit With 8PCS ONVIF IP66 Outdoor Bullet Night/day And 8CH POE NVR

Product Description

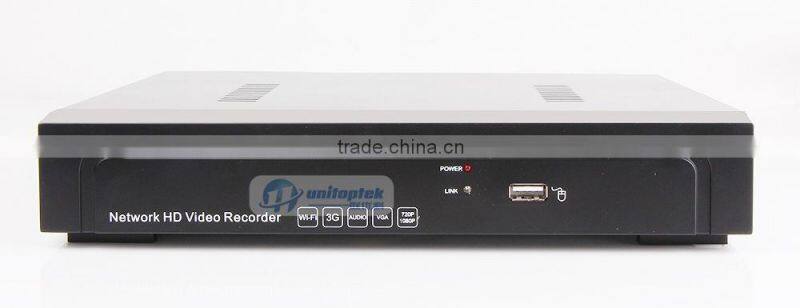

8CH POE NVR system :

P2P cloud service, including cloud connecting, cloud monitoring, cloud transmitting to access IPC and NVR at any time and any place with: .

(1)Support Onvif protocol, support High profile S, High profile G, compatible with different IP camera that based on Onvif, RTSP standard;

(2)Support megapixel HD network video preview, storage and playback;

(3)Support search, playback and backup by event;

(4)Support all channel image display on one screen at same time, support 4 channels image display by mainstream, and 4 channels playback;

(5)Support monitor PTZ on preview mode Offer CMS for free

(6)support 1 SATA up to 4TB

8CH POE NVR Features:

(1) 8 Channel POE NVR, DC48V POE Power, supports 4pcs 80-100meters RJ45 Cable, Plug&Play,

(2) Preview: 8ch 1080P/ 8ch 960P/ 8ch 720P ;

Playback: 1ch 1080P/ 4ch 720P

(3) Support IE browser to view on internet, support iphone, Androd phone to view on mobile phone.

(4) Standard Onvif compliant, working with third-party IP cameras.

H.264HP High efficiency Video Compression, lower stream, higher quality, longer recording time.

(5) Support 1x 4TB HDD, 3x USB2.0 interface, 1x HDMI (1920x1080).

(6) Function: Email Notification , support search video, playback and backup by event

(7) Support multi language: English, Russian, Dutch, French, German, Italian, Polish, Arabic, Portuguese, Spanish, Thai.

(8) Support P2P Cloud :

Parameters:

Model		8EP
System	Operating system	Linux
System	Screen display	1ch/ 4ch/ 8ch display
Video	Code capacity	1080P/ 960P/ 720P/ 960H/ D1/ HD1/ CIF/ QCIF
	Preview capability	8ch 1080P or 8ch 960P or 8ch 720P
		Each screen can be set to 192 (16×12) of detection regions; support multi-level sensitivity
Video playback	Recording	Manual> Alarm> Motion Detection> Schedule
	Playback	1ch 1080P/ 4ch 720P / 4ch 960P
	Video search	Time search, calendar search, event search, channel retrieval
Storage	Space	720P:40G/day/channel; 1080P:80G/day/channel
	Storage	Local HDD, Network
	Backup	Support Flash Drive, USB mobile HDD, USB DVD-RW. network storage and backup

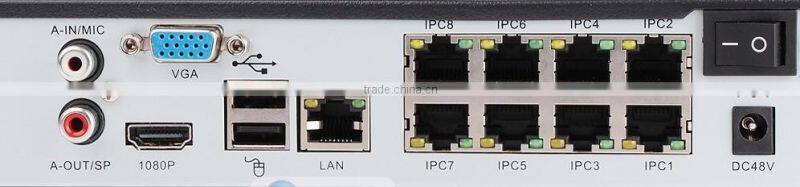

Interface	Video in	8x 1080P(2.0MP) IP Camera or 8x 960P(1.3MP) IP Camera or 8x 720P(1.0MP) IP Camera
	Video out	1ch VGA, 1ch HDMI(1920x1080)
	Audio in	1x RCA
	Audio out	1x RCA
	Alarm in	NO
	Alarm out	NO

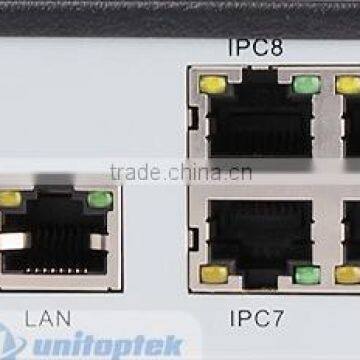

	Ethernet	8x RJ-45 interface, for POE(Power over ethernet) 1x RJ-45 interface, for internet (10M/100M/1000M)
	PTZ	Not support
	USB	3x USB 2.0
	HDD	Support 1x SATA Hard Disk (max to 4TB)

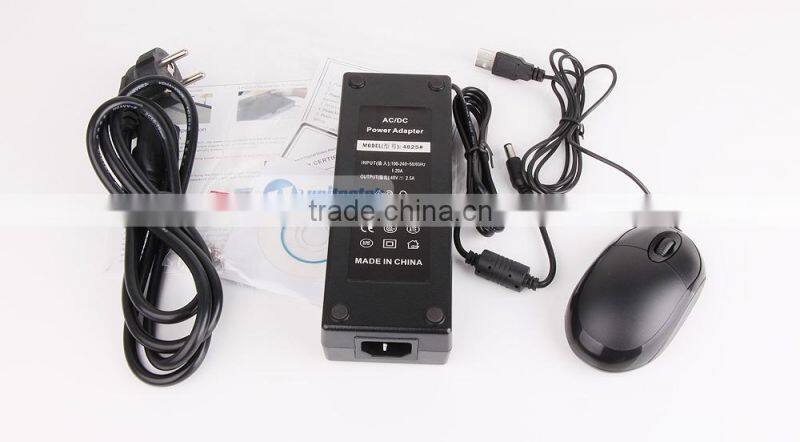

Other	Power supply	DC48V2A (support 8pcs 80-100meters RJ45Cable)
	Power Consumption	<115W (without HDD)
	Size	Equipment:260mmx220mmx43mm, Packing:355mmx255mmx88.5mm
	Weight	Net:1.6kg, Include package:2.5kg (not include HDD) 10 pcs/carton. 525mmx455mmx365mm; Weight:27 Kg

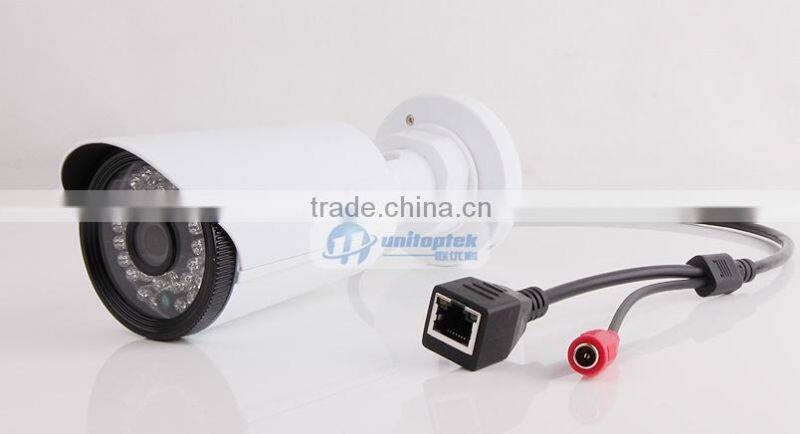

Bullet ip camera Main Features :

(1)HI3516C Processing chip

(2)high sensitivity micron 2.0 megapixel coms

(3)Up to 1080P(1920*1080) resolutions

(4)Support multiple network protocol TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP and so on

(5)IR LED : 36 PCS

(6)Lens : 3.6mm

(7)POE Port : YES

(8)Support iPhone,Android view

Model	IPCX-HC28461080-P
System Structure	Embedded RTOS,dual-core 32bit DSP(Hi3516C),pure hard compression,watch dog
image sensor	1/2.8" IMX222 CMOS,support IR-CUT, support photo resistance signal linkage, CS lens;color 0.01Lux @ F1.2,black/white: 0.001Lux @ F1.2
Video compression	H.264,support dual-stream,AVI;0.1M~6Mpbs variable;1~30f/s variable;
Image output	main stream: 19201080;sub-stream:704576(1080p)
network interface	1*RJ45 10/100M;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc;
photo resistance	one photo resistance interface,support photo resistance signal links to IR-CUT
Features	Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, MJPEG capture;united remote client monitoring sofaware,MYEYE;perfect SDK;
ONVIF	support
mobile monitoring	support multiple mobile monitoring(iPhone,Windows Mobile,BlackBerry,Symbian,Android)
Other functions	DC12V,3W(consumption),38mm*38mm;
Notes	Support POE(optional),B1-type tail-line(without BNC interface)
POE Port	YES

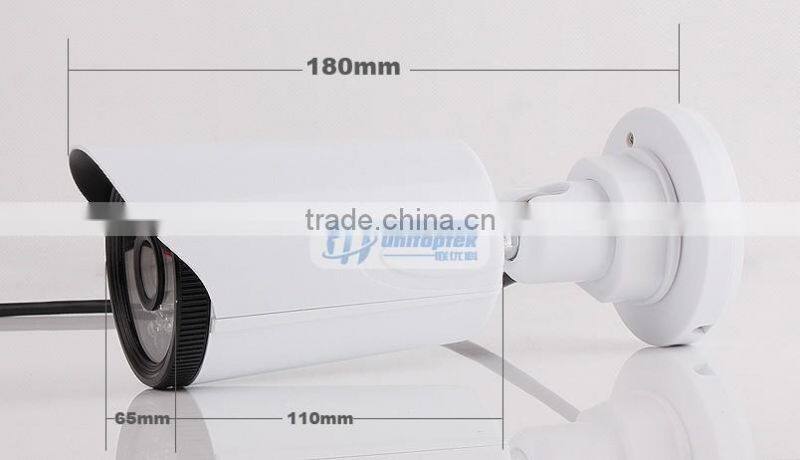

Size	1806565mm
Case	ABS Palstic,Waterproof,Outdoor Use
P2P Cloud	Support
Lens	3.6mm
Support NVR	YES
