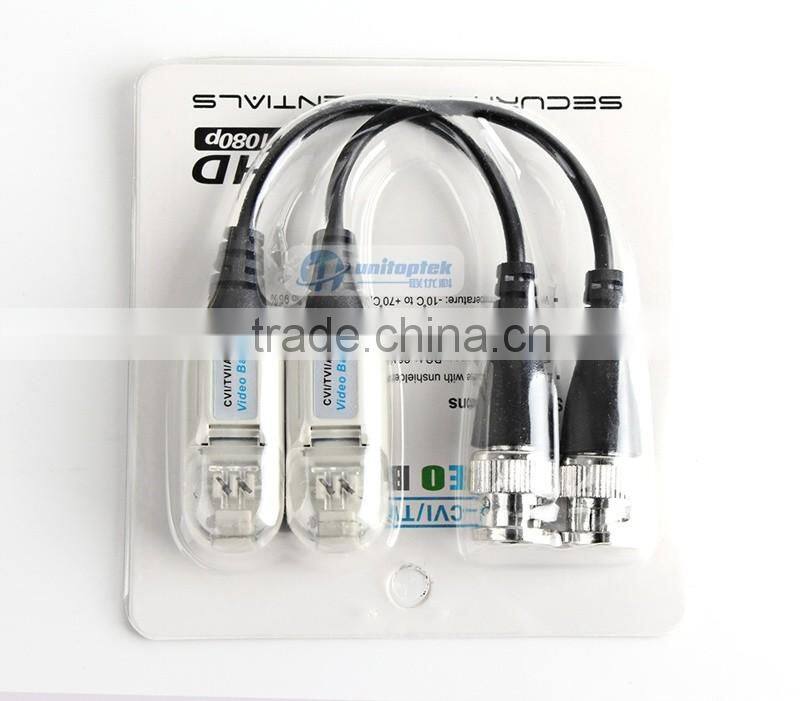

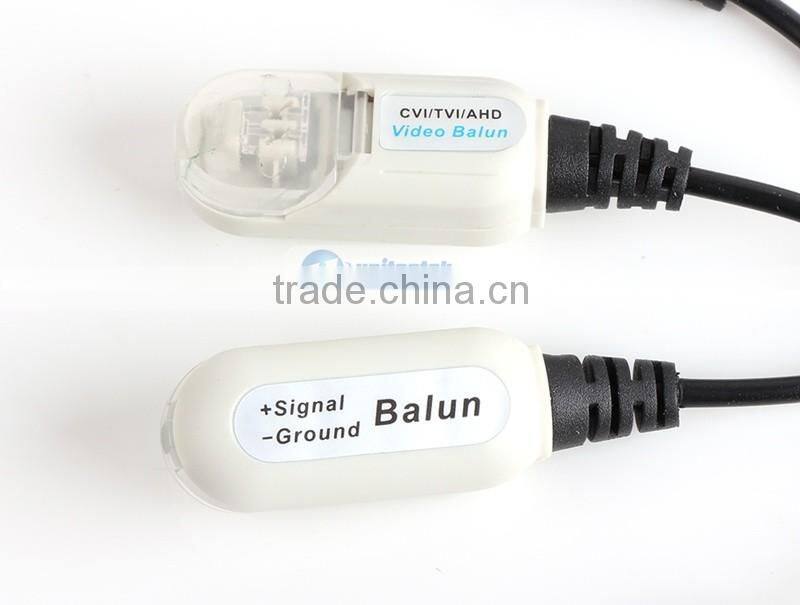

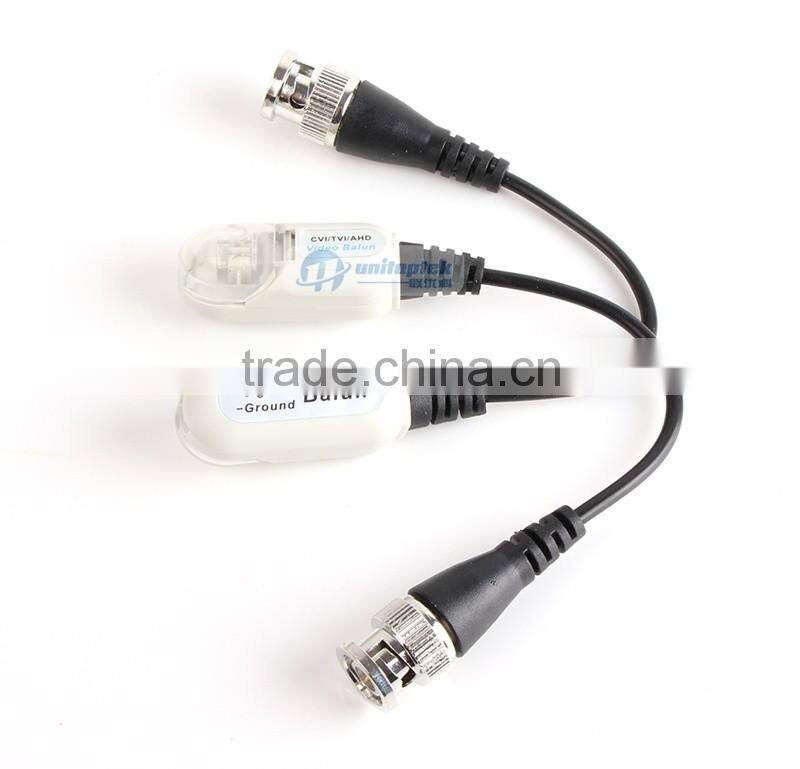

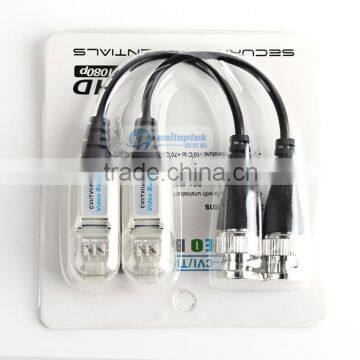

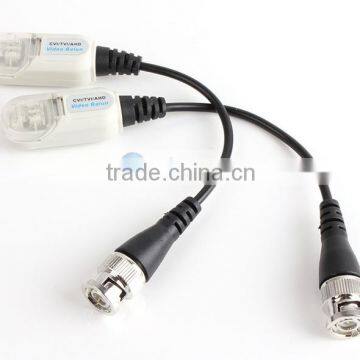

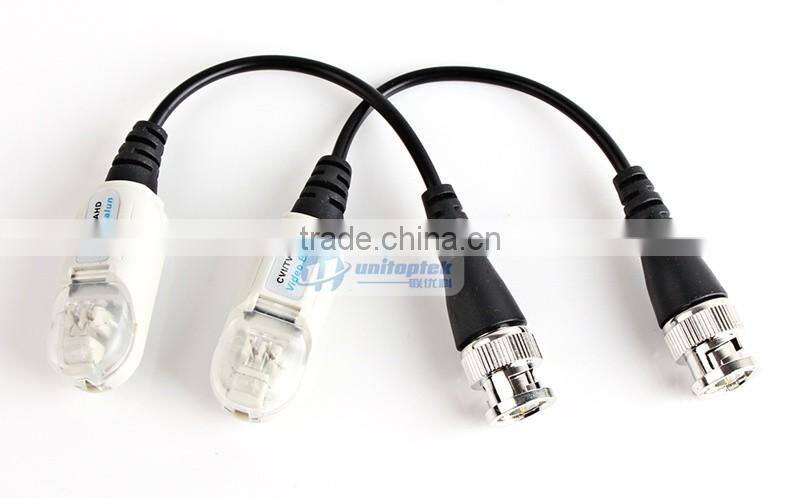

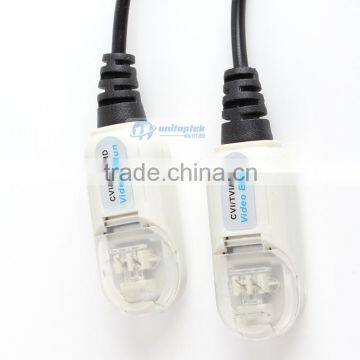

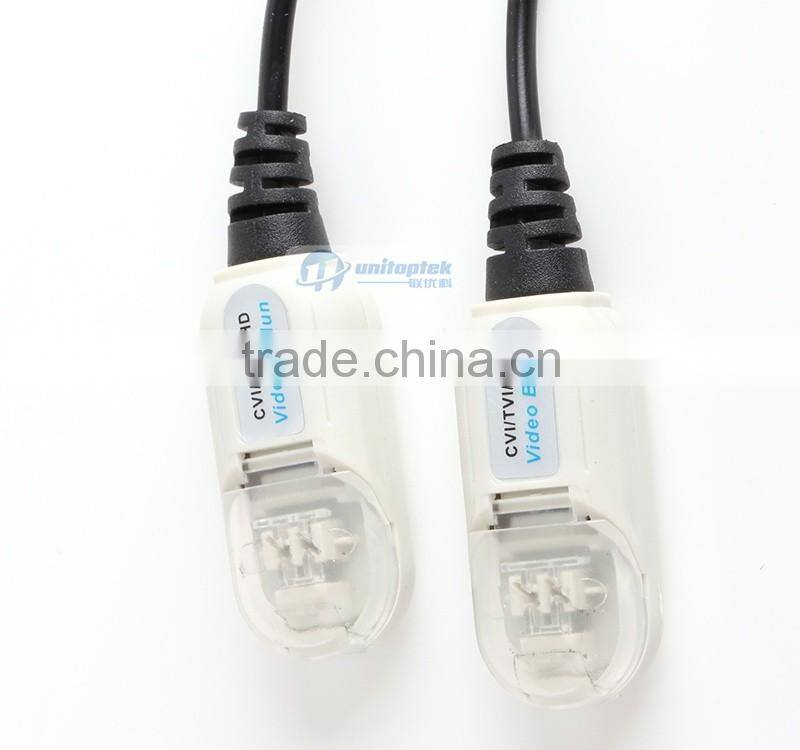

HD Transceivers Adapter Transmitter Cat5 Video CCTV Balun Support 720P/1080P AHD/CVI/TVI Camera

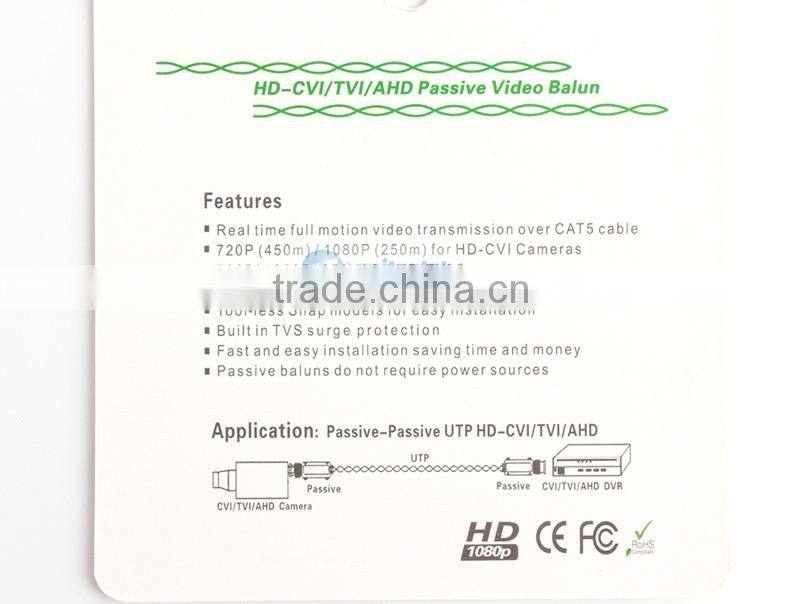

Features
* Compatible with all digital HD-TVI, CVI, and AHD analog cameras
* No power required
* Color video up to 450m for HD-CVI 720P digital camera
* Color video up to 250m for HD-CVI 1080P digital camera
* Color video up to 250 for HD-TVI 720P & 1080P digital camera
* Color video up to 320m for AHD 720 & 960 & 1080p analog camera

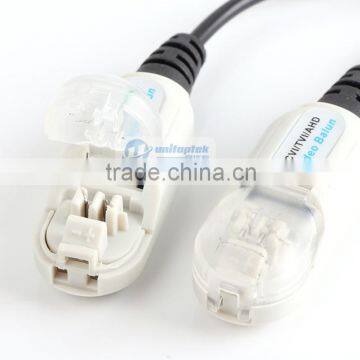

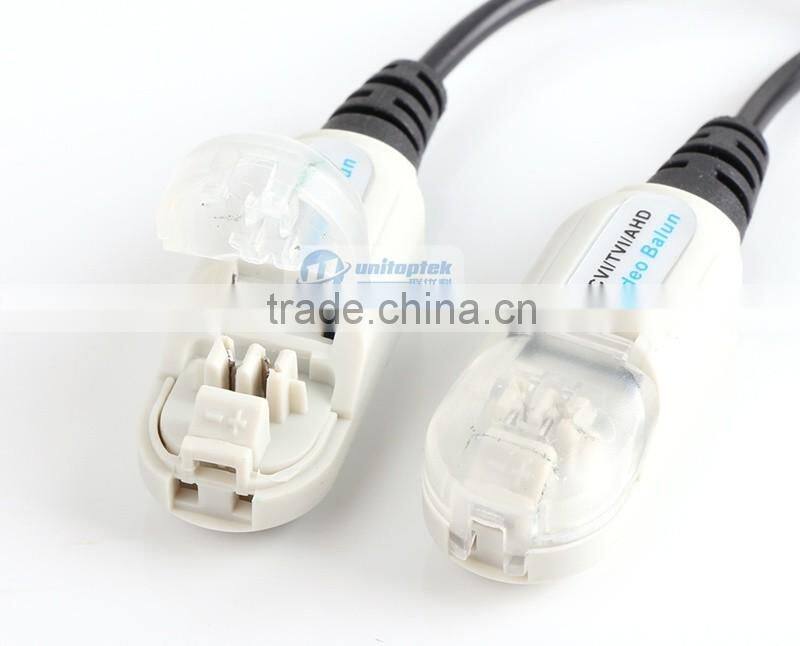

* Push pin terminal connection for UTP cable
* Built-in TVS (transient voltage suppressor) for surge protection
* Anti-static wave filter design
* Lightning protection design (GRADE III)
* 60dB crosstalk and noise immunity; exceptional interference rejection
Specification
Physical properties |
|
|
Shell |
ABS |
|
Color |
white |
|
N.W. |
60g |
|
Stability |
MTBF |
>10000H |
Environmental |
Operating Temp. |
-10 - 55 degrees |
Storage Temp. |
-20 - 70 degrees |
|
Humidity |
0-95%(non-condensing) |
|
Properties |
Transmission signal |
1channel |
Transmission distance |
AHD/CVI:450m(max) |
|
TVI:250m(max) | ||
Category Type |
UTP CAT5 |
|
Video transmission properties and port |

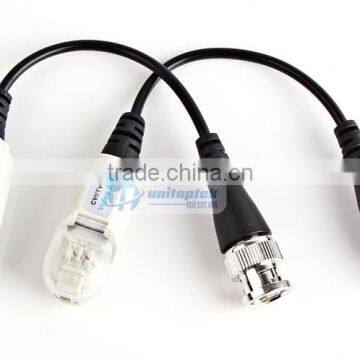

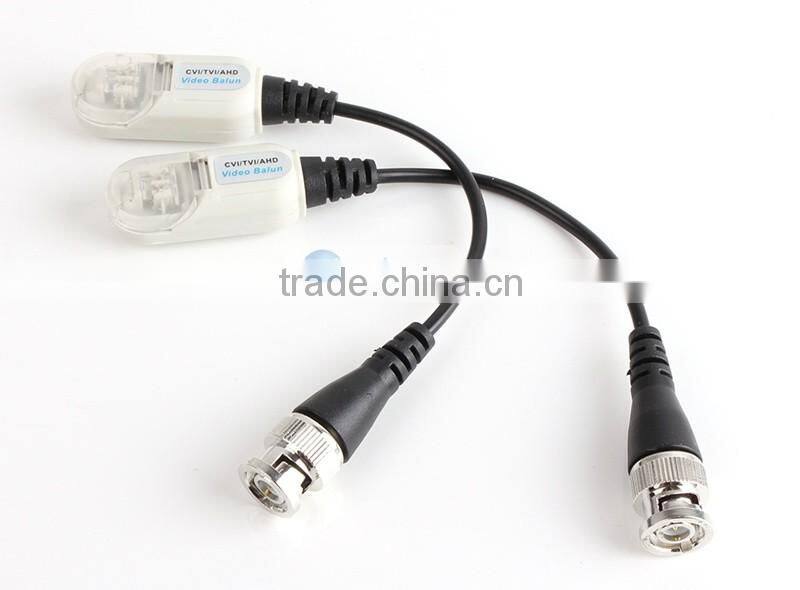

Coaxial video connector |
BNC-M |
Twisted-pair video connector |
Push terminal |
|
Compatible Format |
AHD/HDCVI/HDTVI |
|
Resolution |
720P/1080P |
|
Anti-interference |
>60dB |
|
Protection |
ESD |
1a contact discharge electricity level 3 |
1b air discharge electricity level 3 | ||
Per:IEC61000-4-2 | ||
Coaxial cable connector |
2KV(common-code)Per:IEC1000-4-5 |
|
UTP Cable connector |
2KV(different-code),4KV(common-code),Per:IEC1000-4-5 |
|
Impedance |
BNC male |
75Ohms |
UPT cable |
100Ohms |
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
FOB Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
