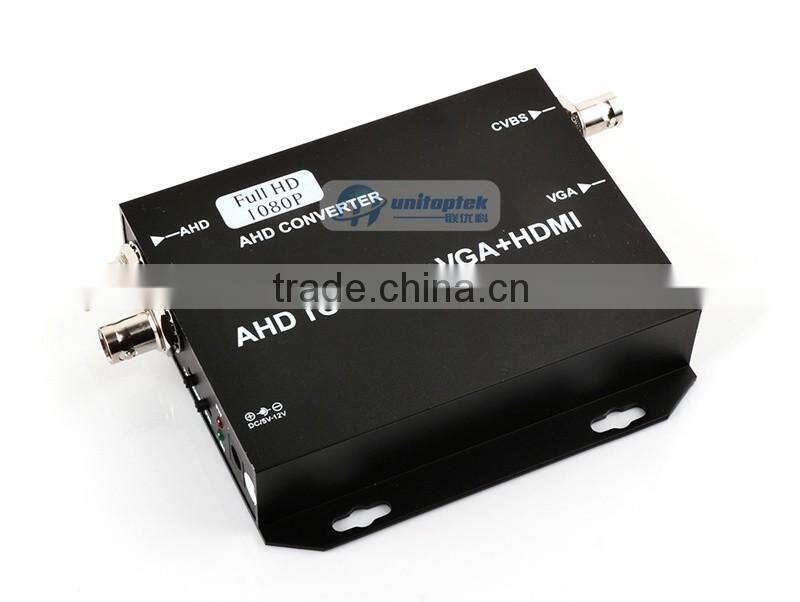

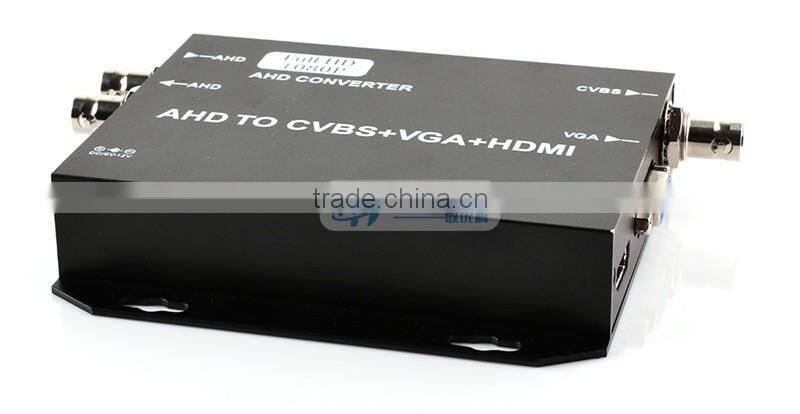

Signal to HDMI/VGA/BNC With 720P/80P 25/30Hz US/EU/UK/AU Plug Black HD AHD Video Converter
Product overview
AHD video converter is an equipment that using the latest scaler and frequency conversion technology,can easily converts AHD signal to CVBS, or HDMI HD signal,or VGA analog signal output.
Product features
l Support AHD V2.0 standards,that is 720p/30,720p/25,1080p/30,1080p/25,NTSC/PAL 960H camera input.
l AHD to CVBS (AV)-can lock CVBS output resolution 720*576 or 720*480,automatic frequency conversion and scaler. CVBS PAL/NTSC output can be selected.
l AHD to HDMI - maximum HDMI output resolution 1080P@50/60 HZ ,automatic frequency conversion and scaler.
l AHD to VGA - maximum VGA output 1920*1080,automatic frequency conversion and scaler.
l AHD input can automatically detect AHD PAL/NSTC
l AHD loop output
l Built-in ESD industrial-grade protection circuit, which can effectively prevent static electricity.
l Built-in industrial-grade against lighting protection
l Support user customization and OEM

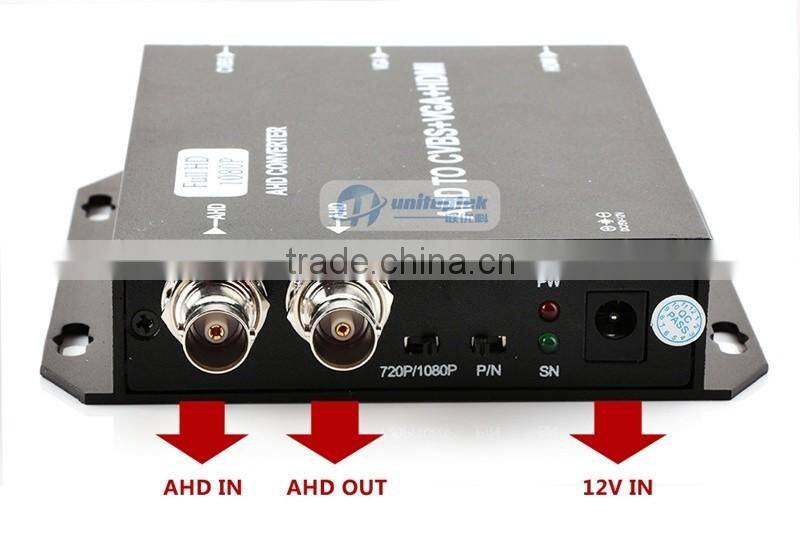

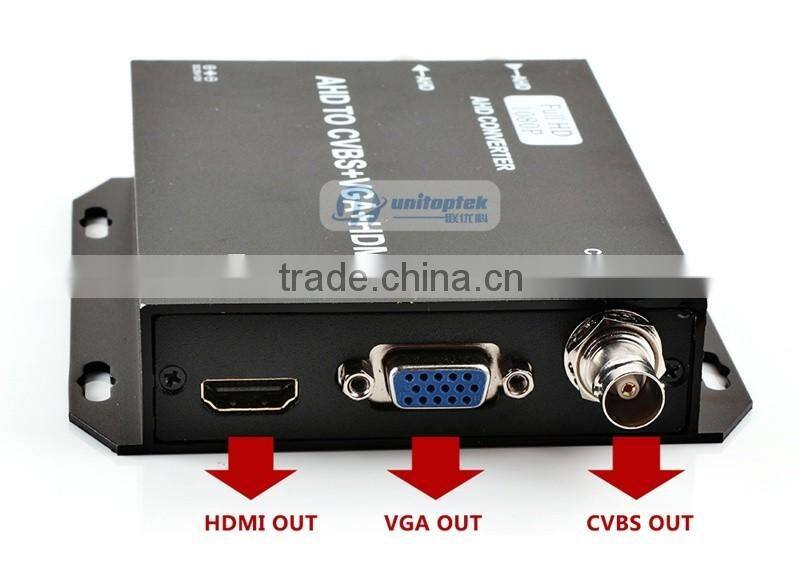

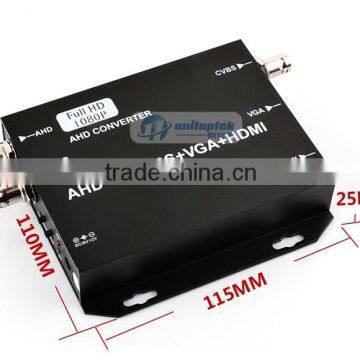

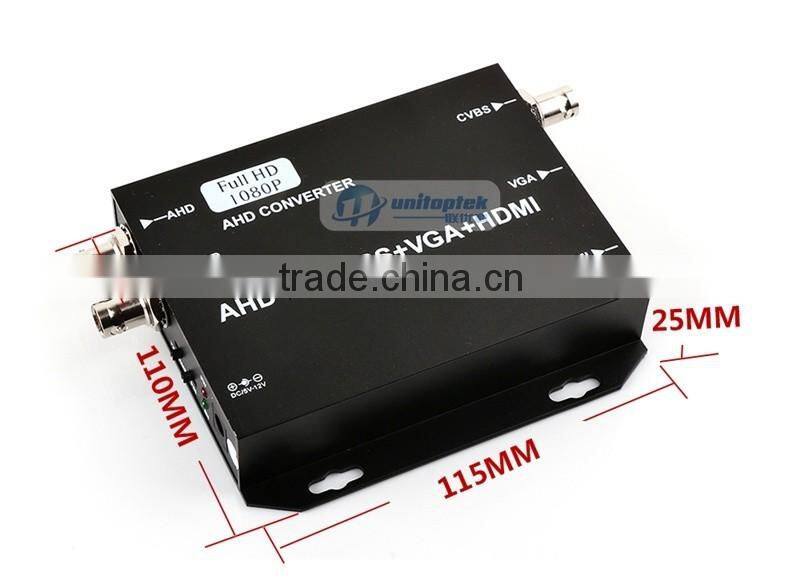

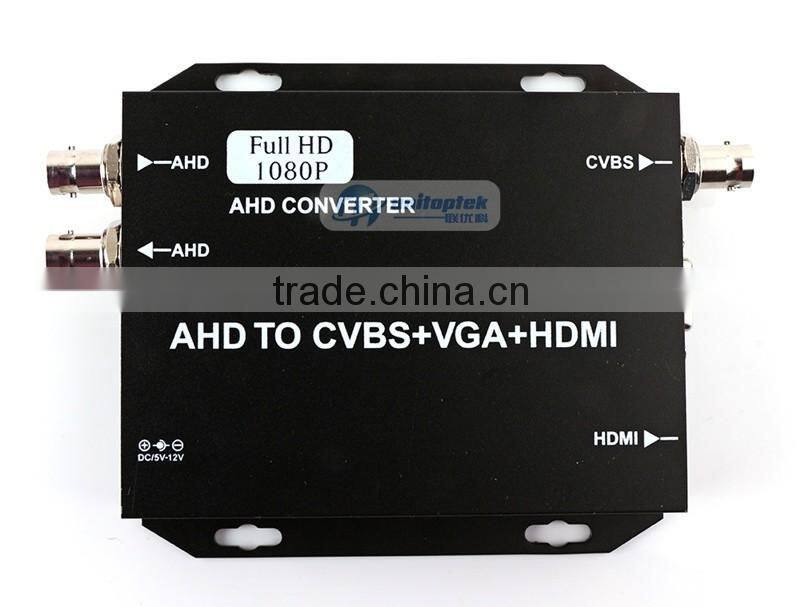

Appearance instructions:
Port name |
Functional specifications |
AHD_IN |
AHD signal input |
AHD_OUT |
AHD signal loop output |
CVBS_ OUT |
CVBS signal output(AHD to CVBS) |
HDMI_OUT |
HDMI signal output(AHD to HDMI) |
VGA_OUT |
VGA Signal output (AHD TO VGA) |
P/N |
CVBS output PAL/NTSC selecte |
720P/1080P |
HDMI output resolution selecte |
DC 5-12V |
5v-12v DC power input |

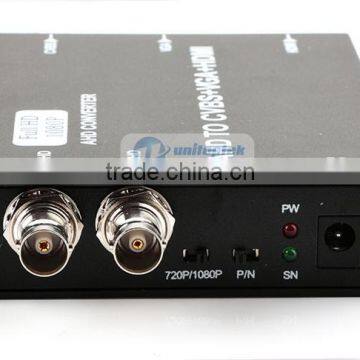

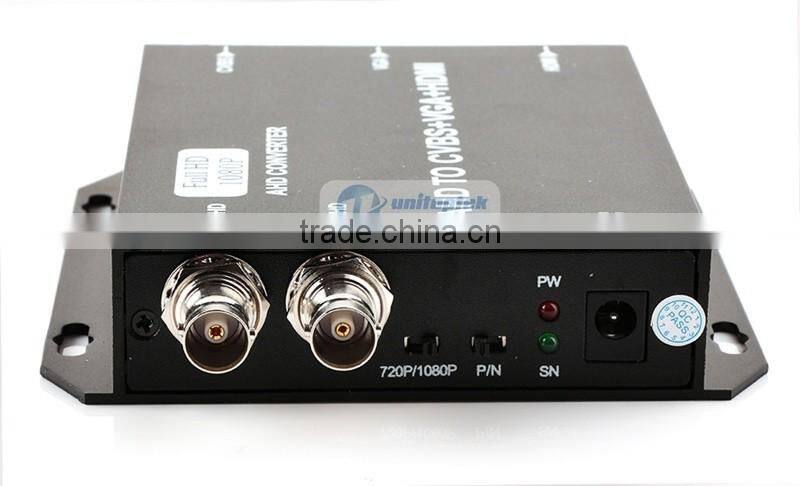

Indicator light |
status |
|
|
PW
|
Light up |
System powered on |
Put out |
System un-powered on |
|

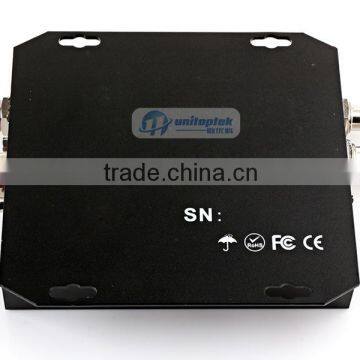

SN |
Light up |
AHD signal locked |
Put out |
AHD signal un-locked |
|
Performance specification:
Working temperature range |
-25 to +75 |
Working humidity range |
Relative humidity 30%~85% |
Input video signal |
0.5-1.0 vols p-p |
Output video |
CVBS+VGA+HDMI |
Input power |
DC5~12V,The outside is negative |
Power consumption |
CVBS output: 250MA |
|
HDMI output: 250MA |
|
VGA output: 250MA |
|
CVBS+VGA+HDMI output: 750MA |
material |
Aluminum alloy |
Installation:
1.AHD signal linked to AHD IN port by BNC interface.
2.CVBS/HDMI/VGA display device linked to CVBS OUT/ HDMI OUT/VGA OUT port
3.Device powered on
4.Customer can choose the required output format&resolution from the device
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
FOB Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
