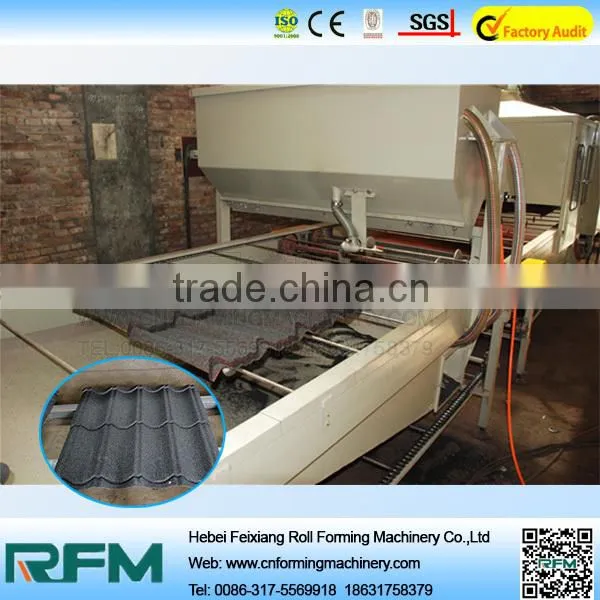

FX stone coating metal tile step tile machine

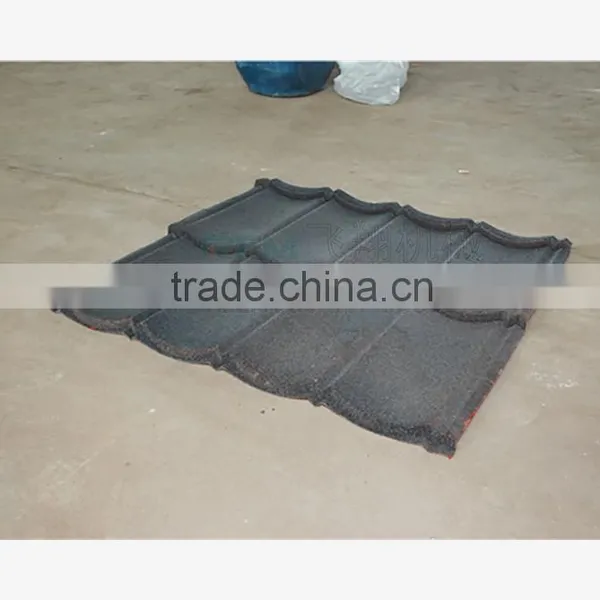

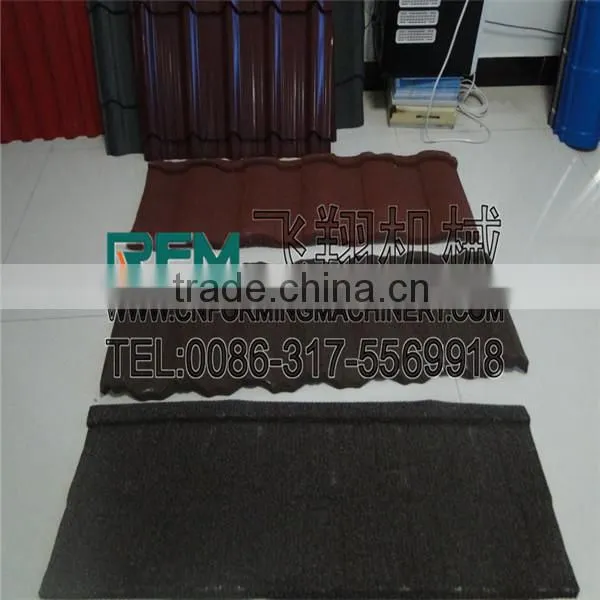

1.Profile and Technical characteristic of stone-coated roof tile :
(1)Resist to artificial climate aging:100h film no crack,no powder,no obvious discoloration
(2)Heat resistant:90±2°C no obvious change
(3)Low temperature resistant: -40±2°C*24h no obvious change
(4)Waterproof:240h no bubbles,no obvious change
2.Component and Detail of stone-coated roof tile making machine :

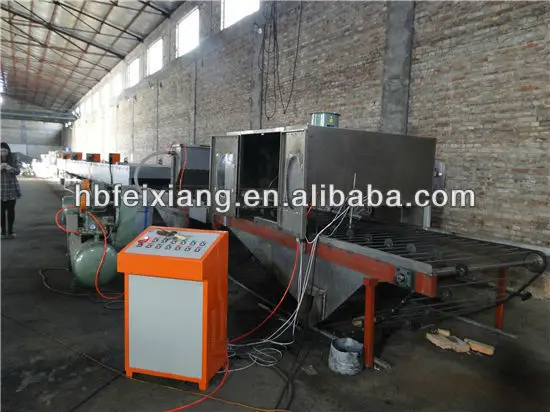

(1)Automatic bottom glue spraying equipment,
| Outside Dimension | 4000 × 1350 × 850mm(L*W*H) |
| Transmission | 2.2kw,variable-frequency,adjustable-speed,motor0-32R/Min |
| Conveying device | Beciprocating chain conveys |
| Automatic glue spraying assembly | with motor 0.06kw |
| Adsorption of dust removal equipment | 1 set |
| Air compressor | 1 set 0.9m |
| Automatic pressure glue canister | 1 set range of adjustable pressure 0.1-0.6MPa |
| Automatic glue spraying gun | 4 sets |
| Fill glue gun | 5 sets |
| Glue gun stand | 1 set |

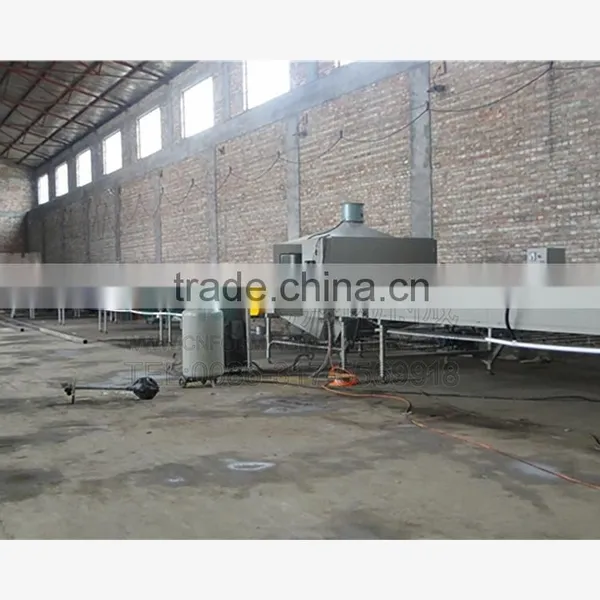

(2)Automatic sandblasting room ,
| Outside Dimension | 3000 ×1850 ×700mm(L*W*H) |
| Transmission | With glue spraying equipment compound chain transmit |
| Conveying device | Compound chain transmit |
| Automatic sand hopper | 1 set dimension 550*600*500mm |
| Automatic rising machine | 1 set with rising height 1.9m power 300kg/h |
| Sun-blasting gun | 4 sets |
(3)First drying room,
| Outside Dimension | 25000 ×800 ×1200mm(L*W*H) |
| Frame type heat preservation wall | Fill up with heat preservation material which is bended with 1mm carbon steel |

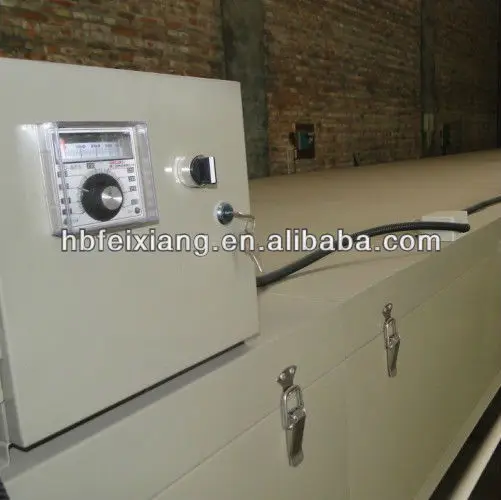

| Automatic temperature controller | 2 sets,range of adjustable temperature 0-160°C |
| Infrared fluorescent tube | 50 pcs |
| Conveying device | Reciprocating chain conveys |
| Cooling device | 1 set |
(4)Automatic surface glue spraying equipment,
| Outside Dimension | 3000 ×850 ×700mm(L*W*H) |
| Automatic glue spraying gun | 2 sets |
| Automatic spraying assembly | 1 set range of pressure 0.1-0.6MPa |
| Adsorption of dust removal equipment | 1 set |
| Manual spraying gun | 5 sets |
(5)Second drying room equipment,
| Outside dimension | 30000 ×850 ×700mm(L*W*H) |
| Frame type heat preservation wall | Fill up with heat preservation material which is bended with 1mm carbon steel |
| Conveying device | Reciprocating chain conveys |
| Infrared heat tube | 50 pcs |
| Automatic temperature controller | 2 sets,range of adjustable temperature 0-160°C |
| Conveying device | Reciprocating connection conveys 30m |
| Cooling device | 1 set |
| Automatic printing code and marking | 1 set of automatic printer |
Notes:
We can also design and manufacture the machine as your differdent requirements !
____________________________________
3.View of our company Hebei Feixiang:
a. Two decades professional cold steel forming equipments manufacturer
b. One comapny with two factory,about 30000 square meter,more than 100 employees
c. National GB/T,CE,ISO9001:2008 Certificates
d. Built business relationship with customers from more than 65 countries and areas
e. Main product : Color steel roll forming machine,C&Zpurlin machine,Glazed tile forming machine,steel structural floor panel roll forming machine,sandwich panel roll forming machine,highway guardrail forming machine , and other cold bending forming equipments.

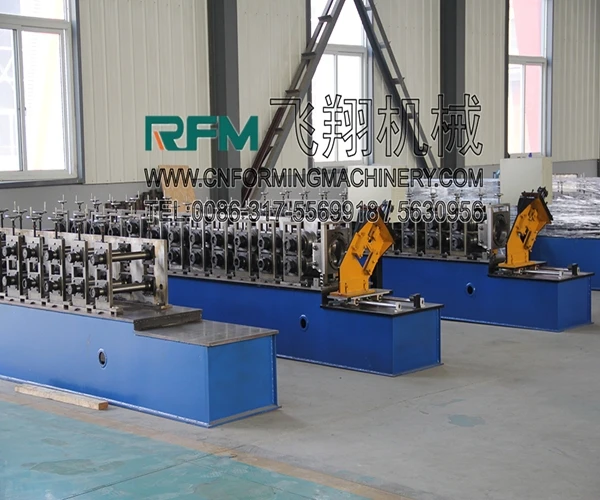

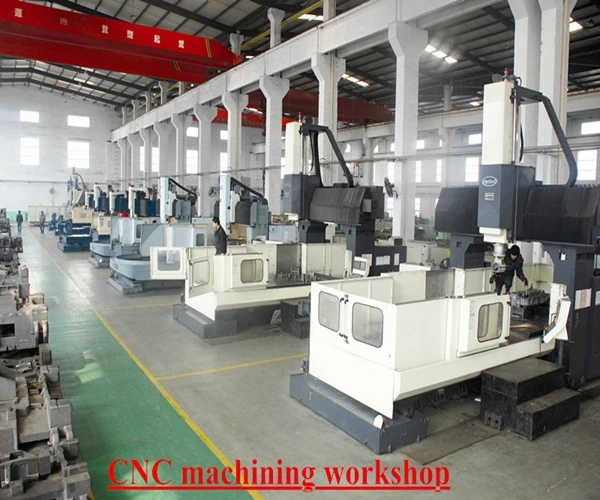

CNC workshop
Assembly workshop
Finishing room
Certificates
_______________________________________________

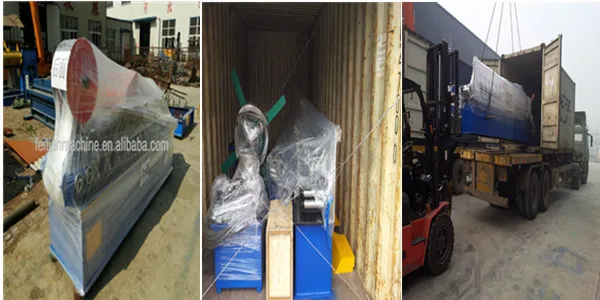

4.Payment terms and delivery:
2) Payment:50% T/T prepaid, and pay the balance before shipping.
3) Delivery time: 30 working days.
4) Guarantee period: 12 months limited warranty starting from date of delivery. Shipping cost for parts to be replaced during warranty period have to be borne by the customer.
5) Spare parts: bearings, buttons, chains, magnetic valve, protective tube etc.
6) Installation and training:
a. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b. Without visiting, we will send you user manual and CD to teach you to install and operate.
——————————————————————————
5.How to get to our factory
6.Contact information:
If you have any question ,please contact me.
Besides,welcome to visit our company.Seeing is believing.
