FX parts of door roll shutter
Features:
1.Light weight,environmenttal protection and economical
2.Durability and life-long service
3.Easy installed
4.Nice appearance and fashion windproof
1.Components and Details of FX parts of door roll shutter
(1)Automatic bottom glue spraying equipment,
| Outside Dimension | 4000 × 1350 × 850mm(L*W*H) |
| Transmission | 2.2kw,variable-frequency,adjustable-speed,motor0-32R/Min |
| Conveying device | Beciprocating chain conveys |
| Automatic glue spraying assembly | with motor 0.06kw |
| Adsorption of dust removal equipment | 1 set |
| Air compressor | 1 set 0.9m |
| Automatic pressure glue canister | 1 set range of adjustable pressure 0.1-0.6MPa |
| Automatic glue spraying gun | 4 sets |
| Fill glue gun | 5 sets |
| Glue gun stand | 1 set |
(2)Automatic sandblasting room ,
| Outside Dimension | 3000 ×1850 ×700mm(L*W*H) |
| Transmission | With glue spraying equipment compound chain transmit |
| Conveying device | Compound chain transmit |
| Automatic sand hopper | 1 set dimension 550*600*500mm |
| Automatic rising machine | 1 set with rising height 1.9m power 300kg/h |
| Sun-blasting gun | 4 sets |
(3)First drying room,
| Outside Dimension | 25000 ×800 ×1200mm(L*W*H) |
| Frame type heat preservation wall | Fill up with heat preservation material which is bended with 1mm carbon steel |
| Automatic temperature controller | 2 sets,range of adjustable temperature 0-160°C |
| Infrared fluorescent tube | 50 pcs |
| Conveying device | Reciprocating chain conveys |
| Cooling device | 1 set |
(4)Automatic surface glue spraying equipment,
| Outside Dimension | 3000 ×850 ×700mm(L*W*H) |
| Automatic glue spraying gun | 2 sets |
| Automatic spraying assembly | 1 set range of pressure 0.1-0.6MPa |
| Adsorption of dust removal equipment | 1 set |
| Manual spraying gun | 5 sets |
(5)Second drying room equipment,
| Outside dimension | 30000 ×850 ×700mm(L*W*H) |
| Frame type heat preservation wall | Fill up with heat preservation material which is bended with 1mm carbon steel |
| Conveying device | Reciprocating chain conveys |
| Infrared heat tube | 50 pcs |
| Automatic temperature controller | 2 sets,range of adjustable temperature 0-160°C |
| Conveying device | Reciprocating connection conveys 30m |
| Cooling device | 1 set |
| Automatic printing code and marking | 1 set of automatic printer |

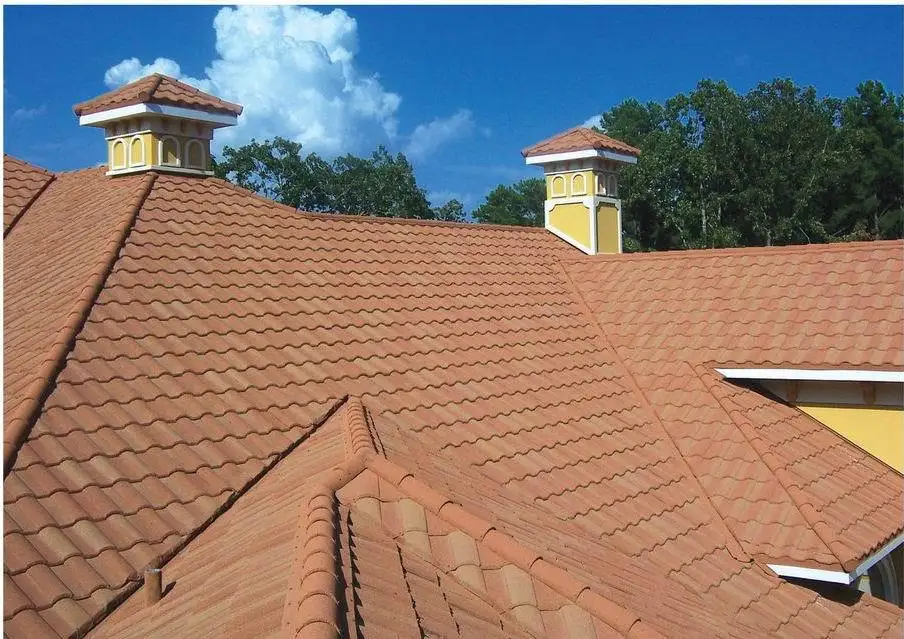

Real use of house roof:
1.we will arrange the shipment within 45 working days upon confirmation of purchasing order or recepit of deposit.
2.Package :Adopt the wood pallet package,the waterproof film outside,every pallet has 400 pcs tile,about 1000kgs,1'20GP can load about 7200-9000pcs according to the different destinations.
_________________________________________________________________________________________
Other machine you may interested in:
Sandwich panel roll forming machine
Light steel keel track roll forming machine
Corrugated roof tile roll forming machine
Glazed tile roll forming machine
Contact information:
If you have any question ,please contact me.
Besides,welcome to visit our company.Seeing is believing.
