Colors stone-coated metal roofing tile forming machine
Advantages:
♥ As a manufacturer we are specialized in all kinds of roll forming machine.
♥ Good experience of 20 years to make roll forming machine.
♥ Good experience for export more then 40 countries.
♥ Provide best price,good quality and fast delivery.

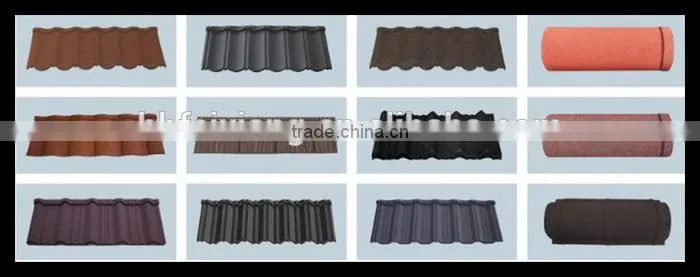

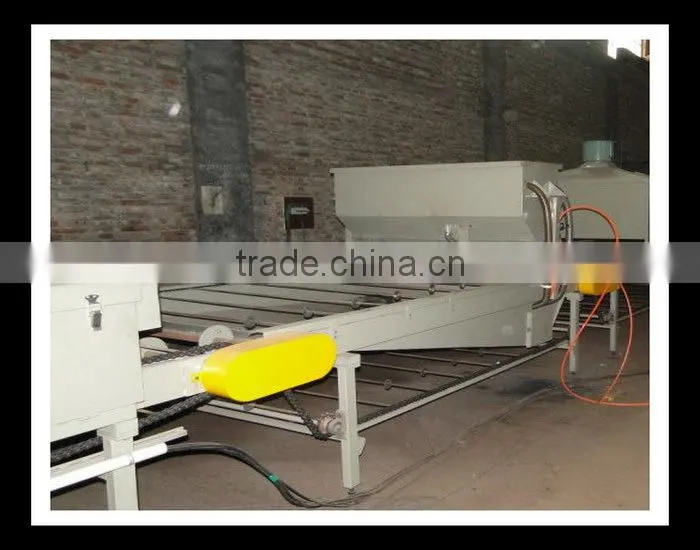

1.Profile of stone-coated metal roofing tile forming machine :

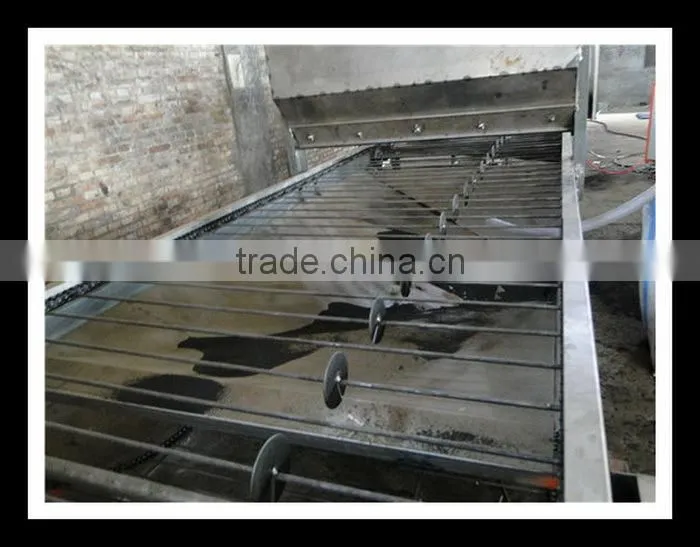

2.Component and Details

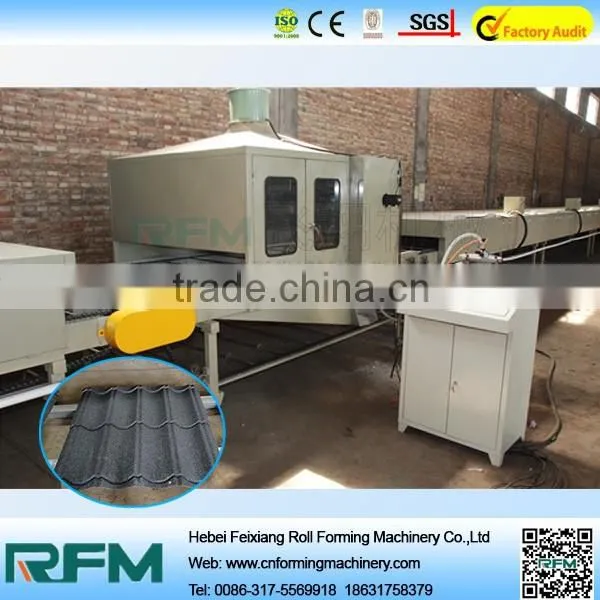

(1)Automatic bottom glue spraying equipment,
| Outside Dimension | 4000 × 1350 × 850mm(L*W*H) |
| Transmission | 2.2kw,variable-frequency,adjustable-speed,motor0-32R/Min |
| Conveying device | Beciprocating chain conveys |
| Automatic glue spraying assembly | with motor 0.06kw |
| Adsorption of dust removal equipment | 1 set |
| Air compressor | 1 set 0.9m |
| Automatic pressure glue canister | 1 set range of adjustable pressure 0.1-0.6MPa |
| Automatic glue spraying gun | 4 sets |
| Fill glue gun | 5 sets |
| Glue gun stand | 1 set |
(2)Automatic sandblasting room ,
| Outside Dimension | 3000 ×1850 ×700mm(L*W*H) |
| Transmission | With glue spraying equipment compound chain transmit |
| Conveying device | Compound chain transmit |
| Automatic sand hopper | 1 set dimension 550*600*500mm |
| Automatic rising machine | 1 set with rising height 1.9m power 300kg/h |
| Sun-blasting gun | 4 sets |
(3)First drying room,
| Outside Dimension | 25000 ×800 ×1200mm(L*W*H) |
| Frame type heat preservation wall | Fill up with heat preservation material which is bended with 1mm carbon steel |
| Automatic temperature controller | 2 sets,range of adjustable temperature 0-160°C |
| Infrared fluorescent tube | 50 pcs |
| Conveying device | Reciprocating chain conveys |
| Cooling device | 1 set |
(4)Automatic surface glue spraying equipment,
| Outside Dimension | 3000 ×850 ×700mm(L*W*H) |
| Automatic glue spraying gun | 2 sets |
| Automatic spraying assembly | 1 set range of pressure 0.1-0.6MPa |
| Adsorption of dust removal equipment | 1 set |
| Manual spraying gun | 5 sets |
(5)Second drying room equipment,
| Outside dimension | 30000 ×850 ×700mm(L*W*H) |
| Frame type heat preservation wall | Fill up with heat preservation material which is bended with 1mm carbon steel |
| Conveying device | Reciprocating chain conveys |
| Infrared heat tube | 50 pcs |
| Automatic temperature controller | 2 sets,range of adjustable temperature 0-160°C |
| Conveying device | Reciprocating connection conveys 30m |
| Cooling device | 1 set |
| Automatic printing code and marking | 1 set of automatic printer |
3.Technical characteristic:
1).Resist to artificial climate aging: 100h film no crack,no powder,no obvious discoloration.
2).Heat resistant: 90±2°C no obvious change.
3).Low temperature resistant: -40±2°C*24h no obvious change.
4).Waterproof: 240h no bubbles,no obvious change.
Note for use and maintenance
1),before use,you must check whether all connections are steady,whether bolts and nuts are tightinstallation.when start the machine,you must make sure there are enough lubrication oil in the case.
2),when start the machine commissioning,the machine should run idle,then check it carefully such as noise,vibration and whether the oil window works smoothly,whether every parts movement coordination.
3),You must cut off power when install the mould,move the motor belt and big gear by hand,turn the workbench and make sure the slide up to the highest point.
4),It's better to arrange a support between workbench and slide bottom,just in case dropping and accident happens.
1.Packaging Standard of stone-coated metal roofing tile forming machine :
1),This commodity shall be packed in new wooden cases suitable for ocean transportation.
2),Control box and easy damage parts shall be wrapped up in seaworthy waterproof pape.
3),Packing must be seaworthy as well as strong enough to stand shock and rough handing.
2.Shipping:
We will arrange the shipment within 30 working days upon confirmation of purchasing order or recepit of deposit.
1.Simple introduction of our company :
a. Two decades professional cold steel forming equipments manufacturer
b. One comapny with two factory,about 30000 square meter,more than 100 employees
c. National GB/T,CE,ISO9001:2008 Certificates
d. Built business relationship with customers from more than 65 countries and areas
e. Main product : Color steel roll forming formmachine and other cold bending forming equipments.
2.Certificates and Customer :
Pre-Sale Service
1). Sample could be offered express charge pay by buyer for stone-coated metal roof tile making
machine .
2). Common model machine we have stock and delivery in short time.
3). OEM and ODM order are accepted.
4). Company logo punching or design are available.
After-You Order
1). We would provide manufacturing progress information per week
2). Help you check competitive shipping compamy and freigh
3). Would help you purchase raw material for testing machine
After-Sale Service
1). Our engineer are available service oversea in warranty period
2). Out of warranty period we also keep providing technical support online
