Aluminium Door Frame Cold Rolling Machinery Metal Frame Making Machine
Basic informaion of steel door framing machinery :
1. uncoiler , feeding part, main roll forming system ,cutting system and receive table.
2.The machine is stable,no noise,no shake.
3.Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable, maintenance free.
4.cutting machine is characterized by stable driving, easy operation.5.hydraulic system use the
hydraulic pump, long operating life,no noise.
Function:
Play a role in supporting the door
In order to prevent the collapse of the wall next to the door
steel door framing machinery feature:
1.Take continuous production,there is no need to change the rollers in rough-forming section.
2.Shutter door machine production of pressure plate,stately elegance,beautiful novel,appearance smooth,
corrugated uniform, high utilization, high strength, high degree of automation, low cost and durable.
Main specifications of steel door framing machinery :
Take one type of machine for example:
Processing material |
colored steel plate, galvanized plate, or aluminium plate |
| Material thickness | 0.8---1.2 mm |
| Material hardness | 550 mpa---350 mpa |
| Material width | 1000mm |
| Formed width | 747mm |
| Forming speed | 12m/min |
Working Process of this machine:
Decoiling--active feeding--roll forming--measuring length--pressing--cutting to length--product to stand
Main elements:
Decoiler, main forming machine, hydraulic pressing, hydraulic cutting, product stand, hydraulic system, electric system.

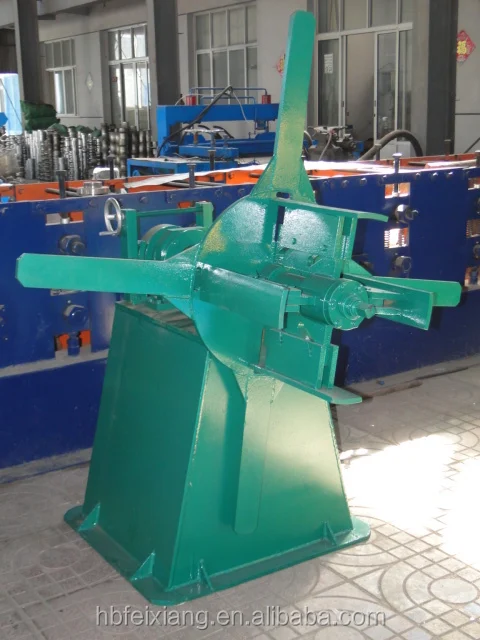

1. Decoiler
il inner diameter: 450-550mm
il max width: 1250mm
3.max carrying capacity:1500kg

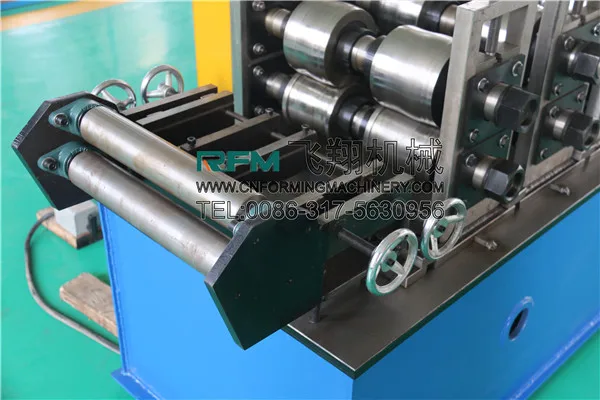

2. Active feeding
Usage:Put the raw material(steel plate) through the beach to manufacture and process,
it can guarantee that the products are neat, parallel and everything is uniformity.
Please refer to the equipment regulation to know the function of locate angle iron.

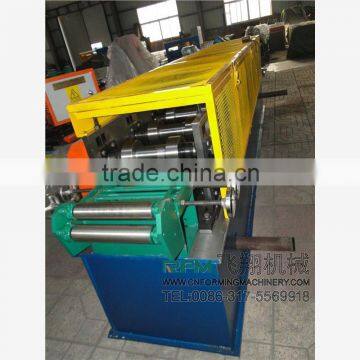

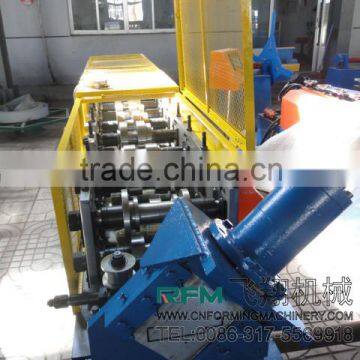

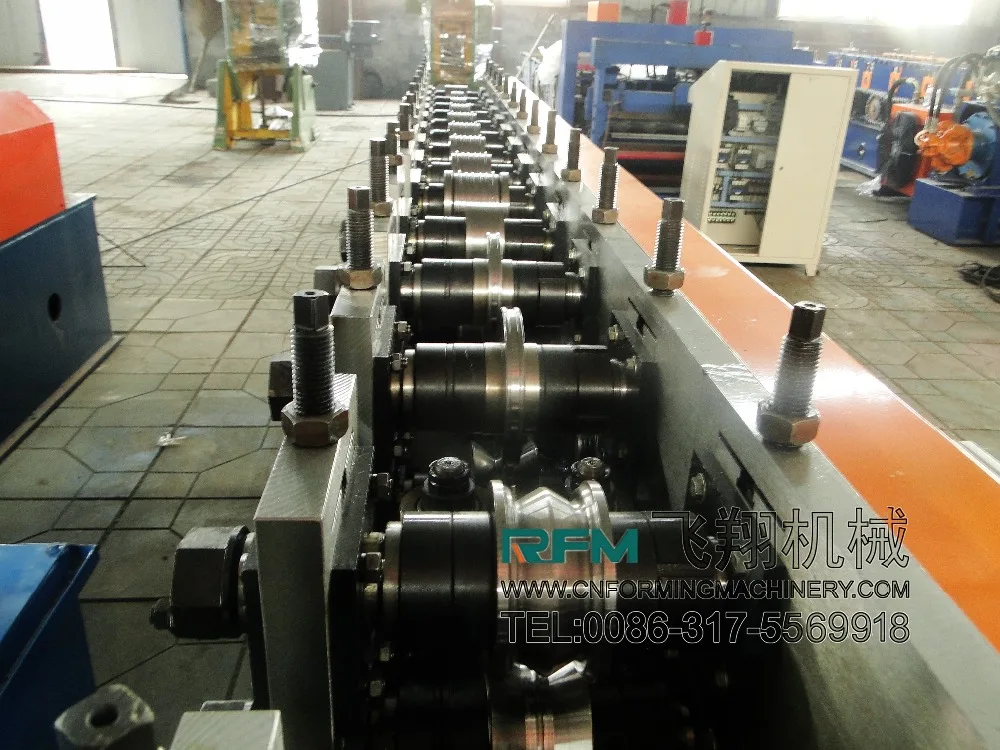

3. Main forming machine
1. Shaft material & rollers material & shaft diameter
45# steel adjustable treatment; 45# steel, polished, plate of chrome 0.05mm; 60mm
2. power: 5.5kw
3. Transport; Motor; chain drive
4. Forming speed; 8-12m/min
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor
reducer drive, chain transmission,roller was chromed which can keep the molding plate surface
smooth and not easy to be marked when it is being stamped.

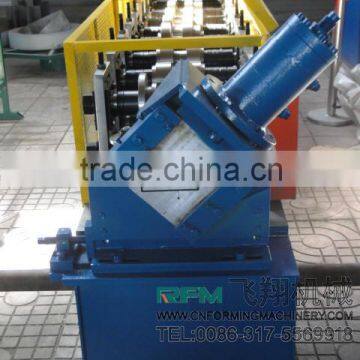

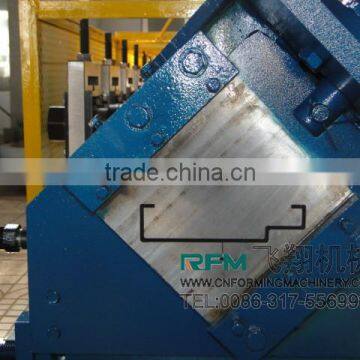

4. Hydraulic cutting

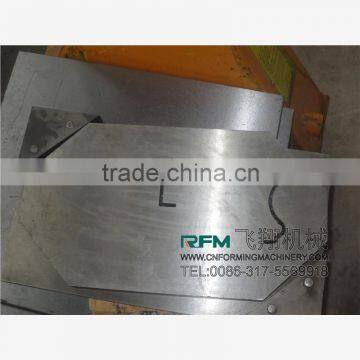

1). Material: blade, puncher and mold material: Cr12 steel with quenched treated 60-62
2).Cutting system: advanced hydraulic drive, automatic cutting after forming, no distorting or
wasting, high level safety factor.
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target
products.
Material of blades: Cr12 quenched
Power supply : hydraulic power
Components:It contains one set of blade, one hydraulic tank and one cutter machine
Because of the long trip and your super trust, we will make sure the machine can be appeared in front of you in fully good condition, you will fall in love with it with first glimpse.
Company Information
After finishing the machine ,will inform customer come for inspection.If customer didn't have time for inspection,will take photo or video for confirm.After the machine arrival the customer's company,if need,Engineer can installing to factory
Thanks very much for your time, welcome to contact Feixiang , we are with you within 24 hours.
We want to know following information.
1), What is the exact profile you want to produce?
2), What kind of material you will use, such as steel or aluminium, max coil weight, thickness?
3), What kind of decoiler and stacker you need?
Pls contact us as below informaiton,hope can cooperate,thanks advance.
