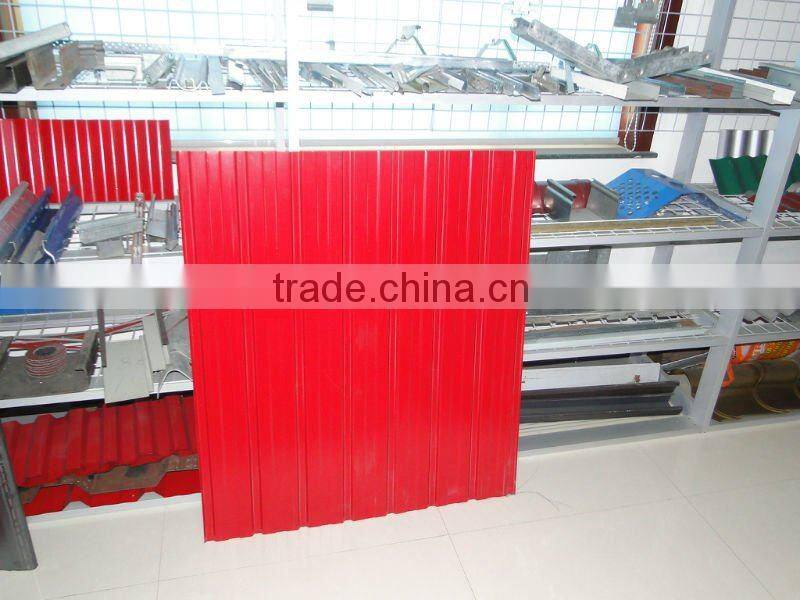

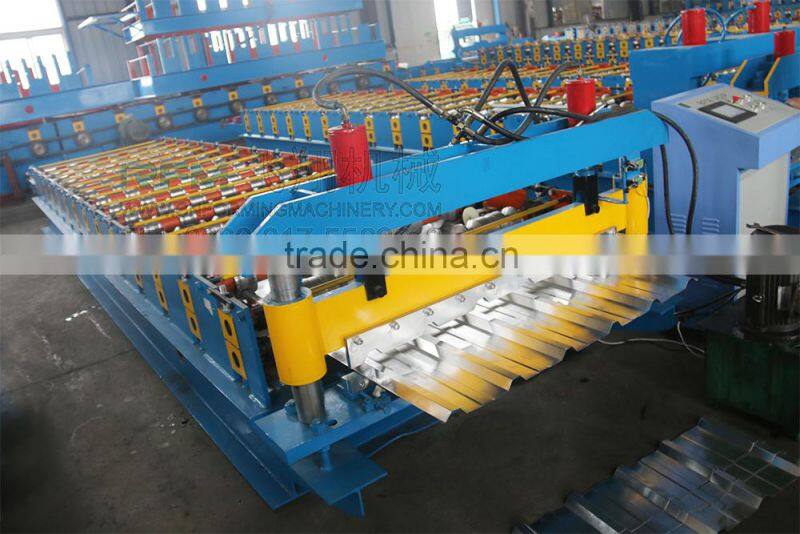

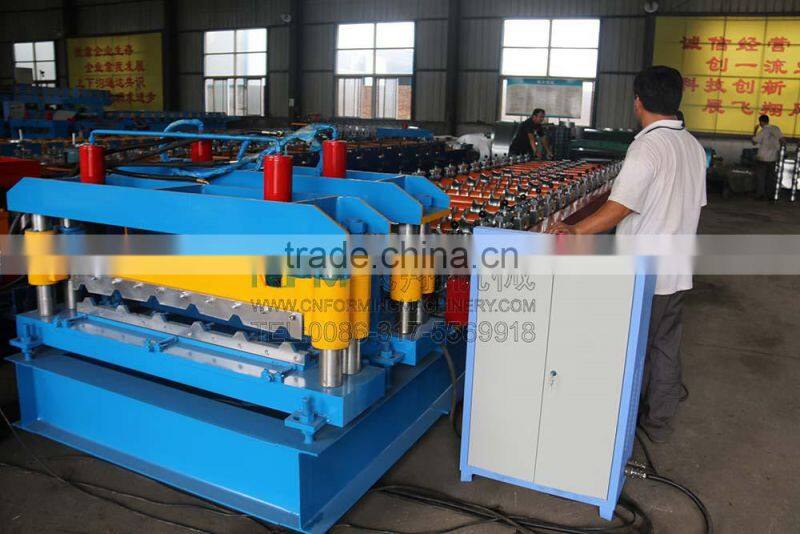

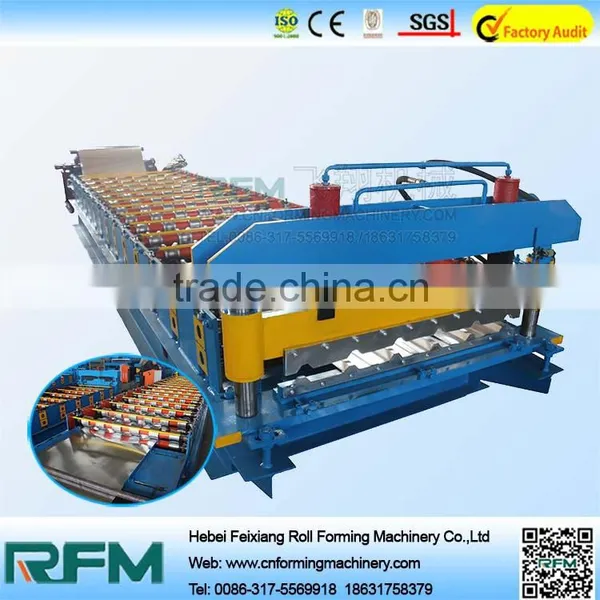

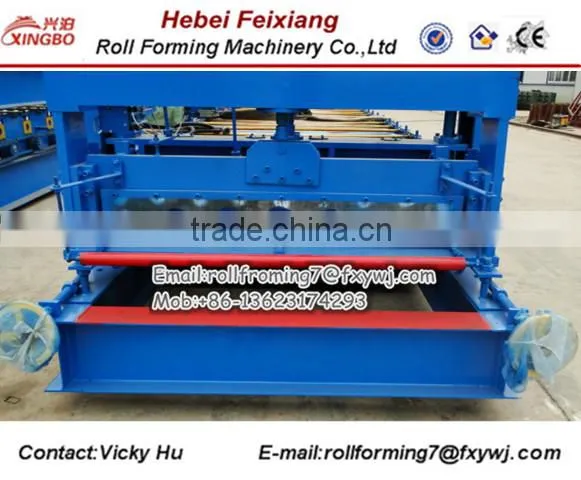

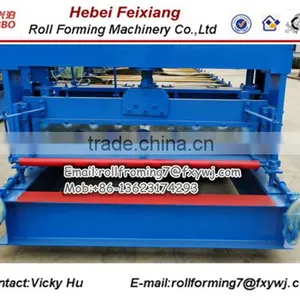

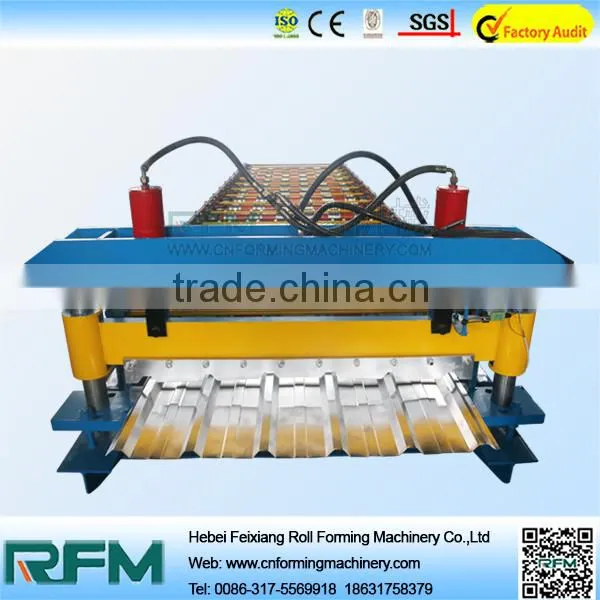

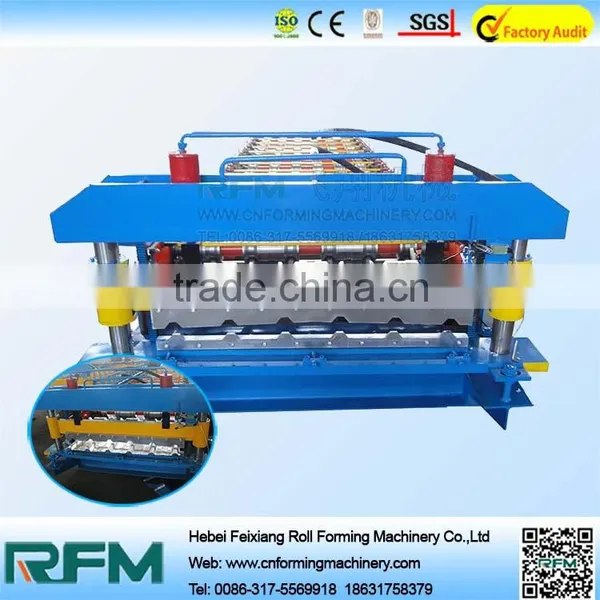

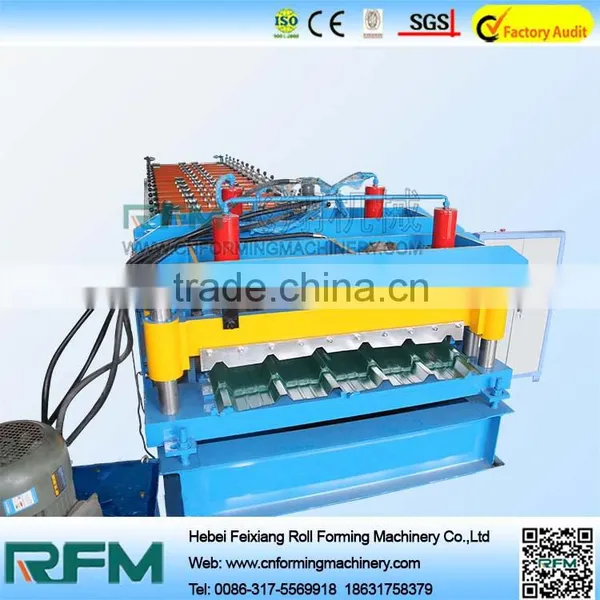

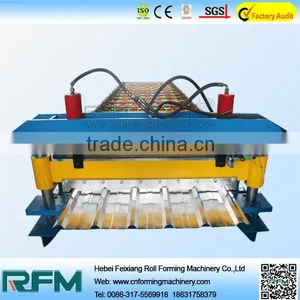

Roof panel forming machine
The chart of process flow
Decoiling- active feeding- roll forming- measuring length- cutting to length- product to stand
Main equipment
Decoiler, main forming machine, hydraulic cutting, product stand, hydraulic system, electric system.
Technical parameters
1) manual inner tight decoiler
A. Coil inner diameter: 450mm to 550mm
B. Max width of coiling: 1200mm
C. Max weight of loading: 6000kgs

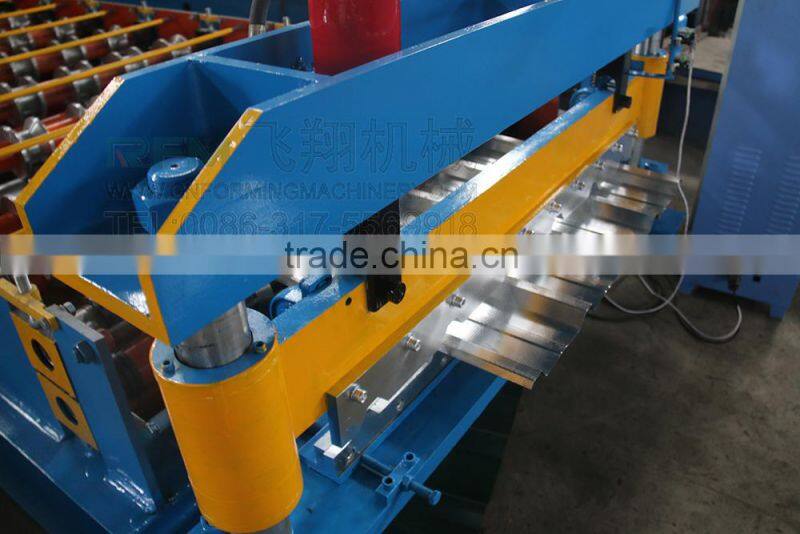

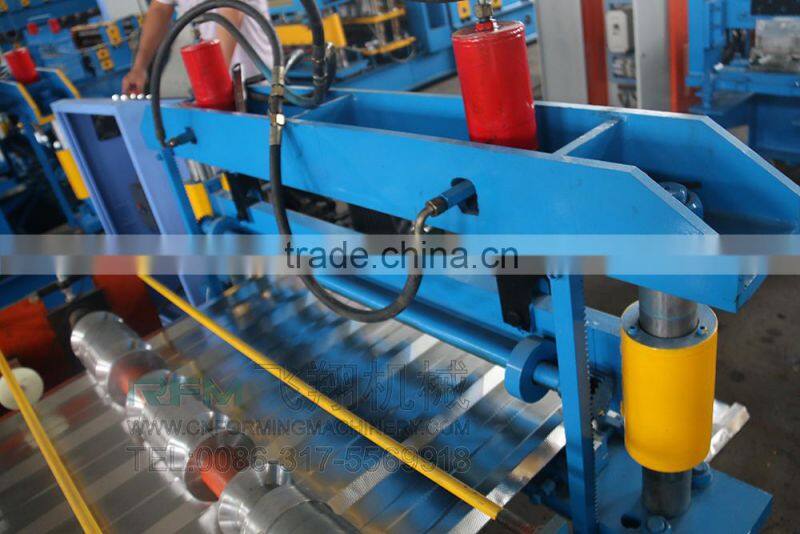

2) main forming machine
A. Number of forming steps: 13
B. Material of shaft: 45# steel adjustable treatment. Outer diameter: 70mm

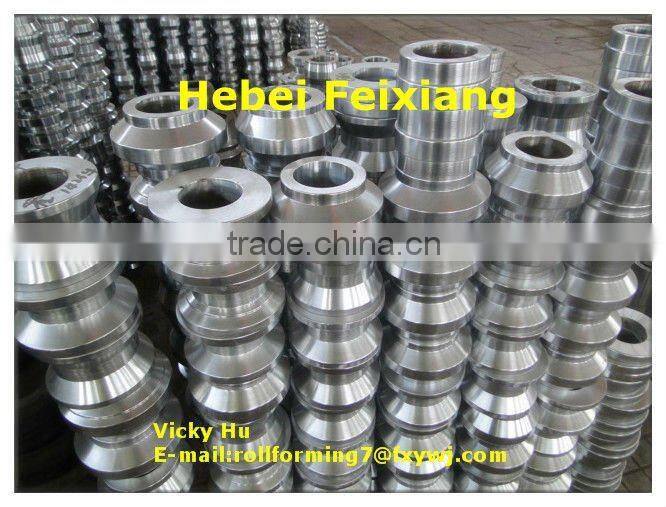

C. Material of roller: high grade 45# steel (plated chrome on surface)
D. Main motor power: 3kw
E. Forming speed: 6-12m/min
F. Stand: 350# steel welding
G. The plating chromium of roller surface: 0.05mm
Products warranty: 12 months, and we will provide the technical support for the whole life of the equipment.
