Ceiling Tee Grid Forming Machine

Specifications

Order process:confirm the profile--got the order-pay advance payment--start design and make machine(send process photo)--nearly finishing machine--send invitation letter -- try the machine for inspection--pay balance payment--delivery machine--send documents to clear the custom--worker help install if the customer need

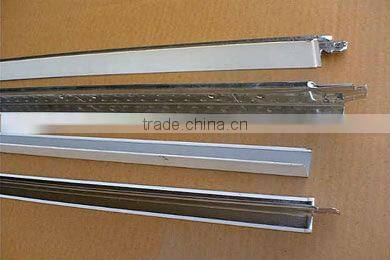

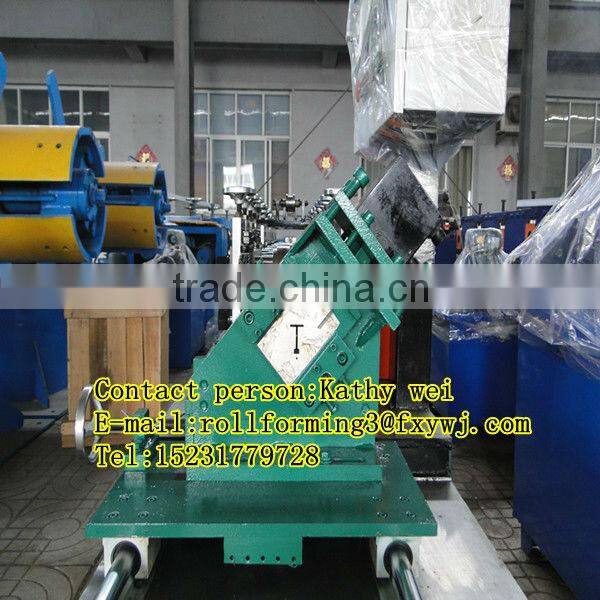

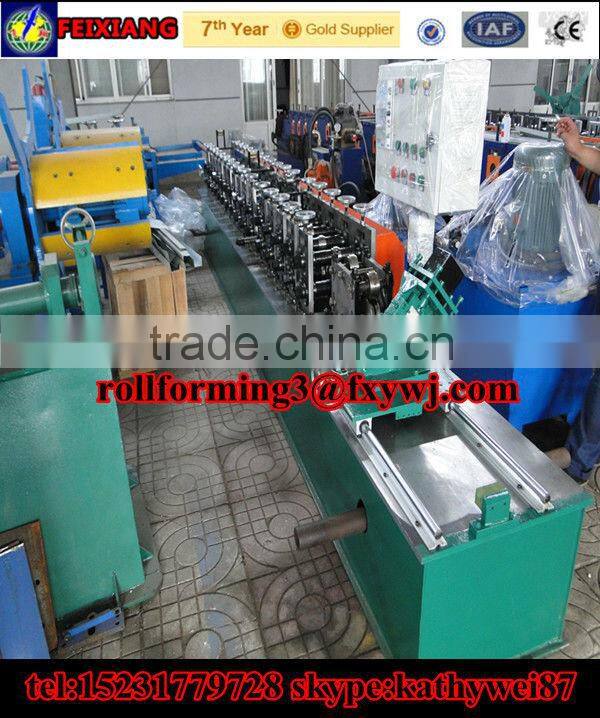

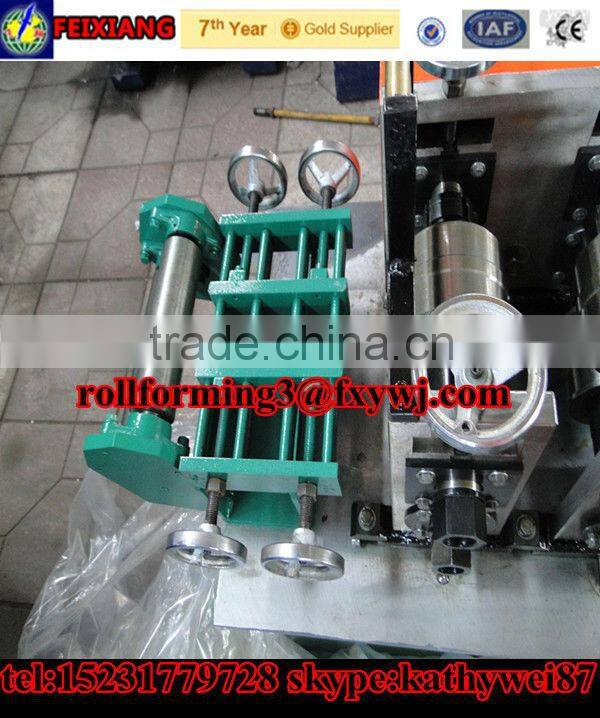

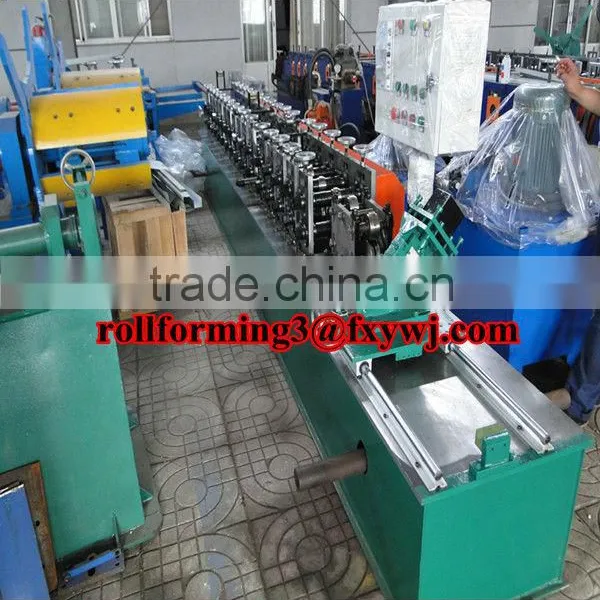

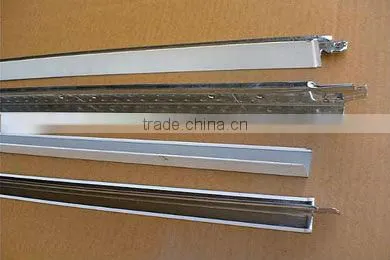

Product photo:

1. The ChartofProcessFlow
decoiling--active feeding--roll forming--measuring length--cutting to length--product to stand

2. Main Equipment
decoiler, main forming machine, hydraulic cutting, product stand, hydraulic system, electric system.

3. Technical Parameters

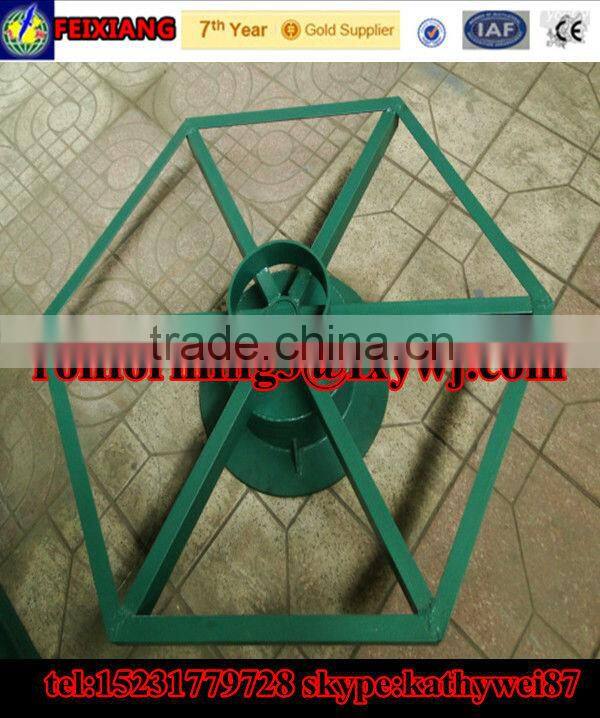

1) inner tight decoiler
a. coil inner diameter: 450mm-550mm
b. max width of coiling: 450mm
c. max weight of loading: 1500kg

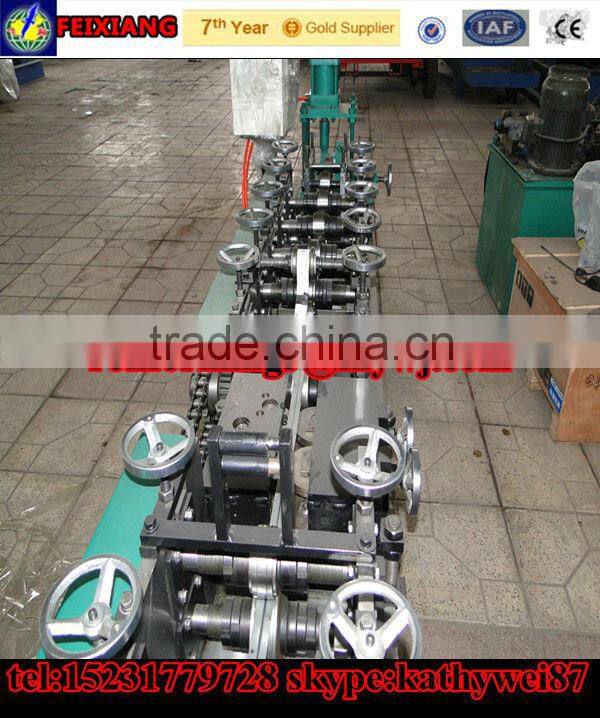

2) Main forming machine

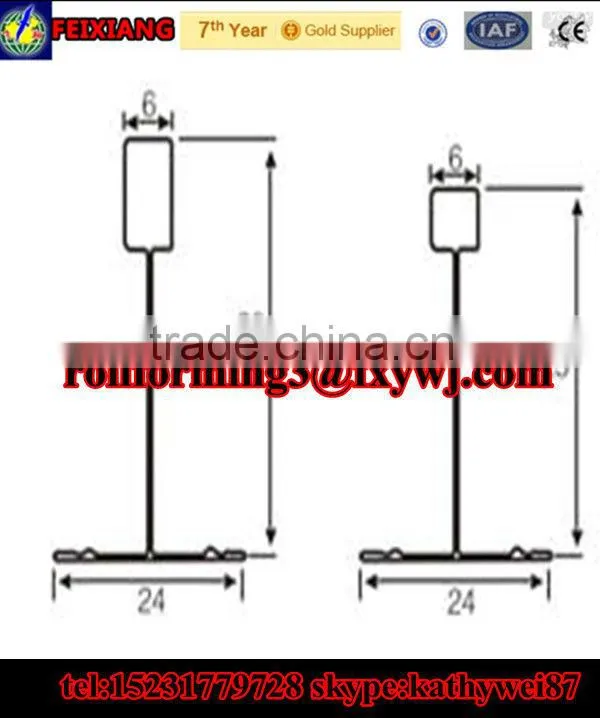

detail information depend on the drawing.

1. Shaft material & rollers material&shaft diameter

  45# steel bearing steel: 50mm

2.Rollers:           16steps

3. Transport:         by gears

4. Forming speed:    12-15m/min

5. Motor:              3kw

6. Size:               4.8x0.6x1.0m

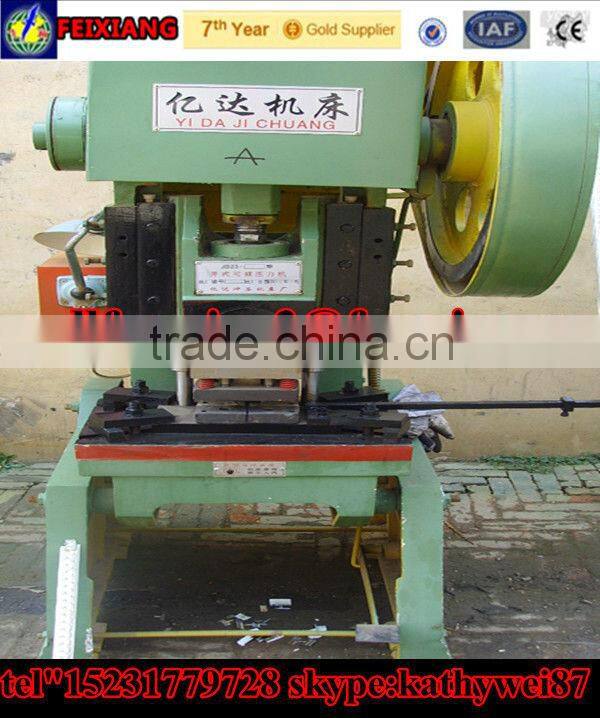

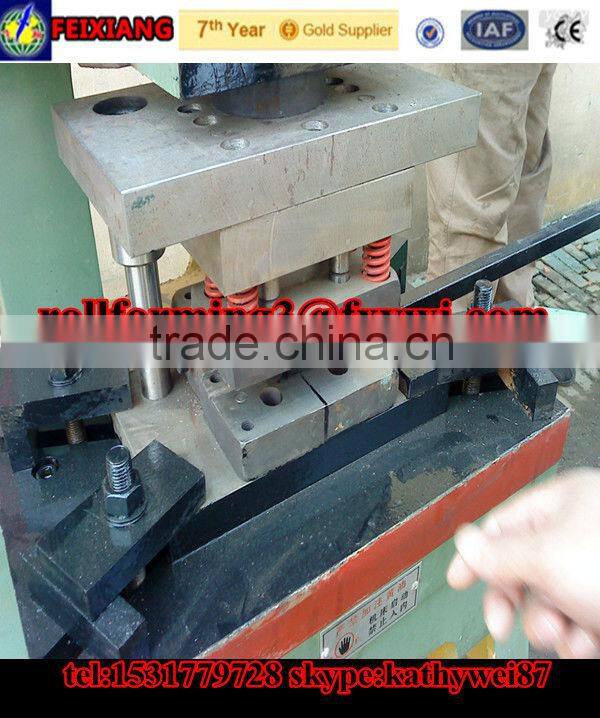

Punching machine photo:

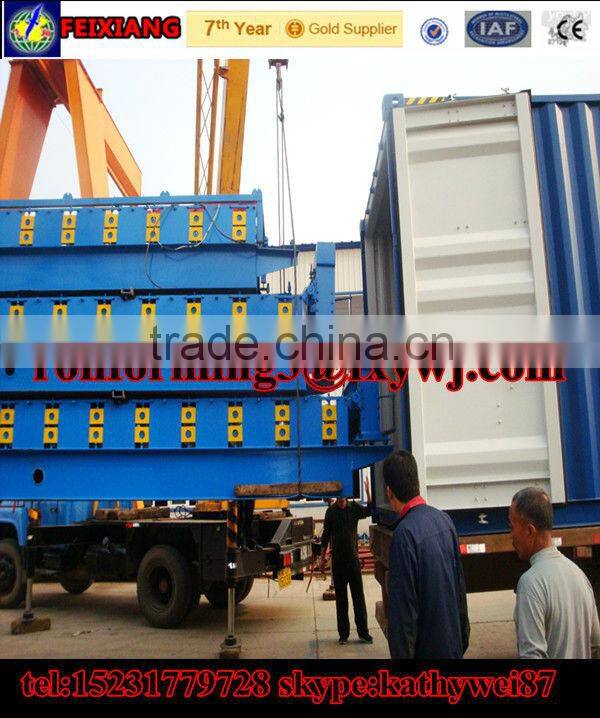

Delivery photo

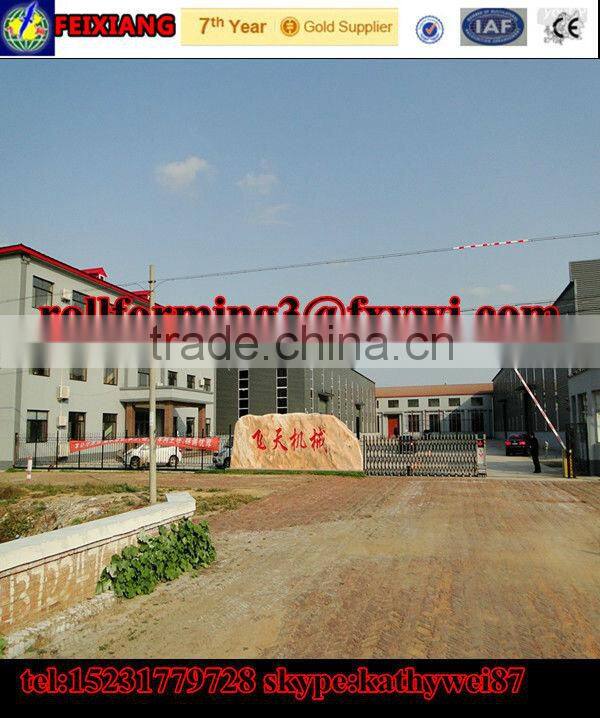

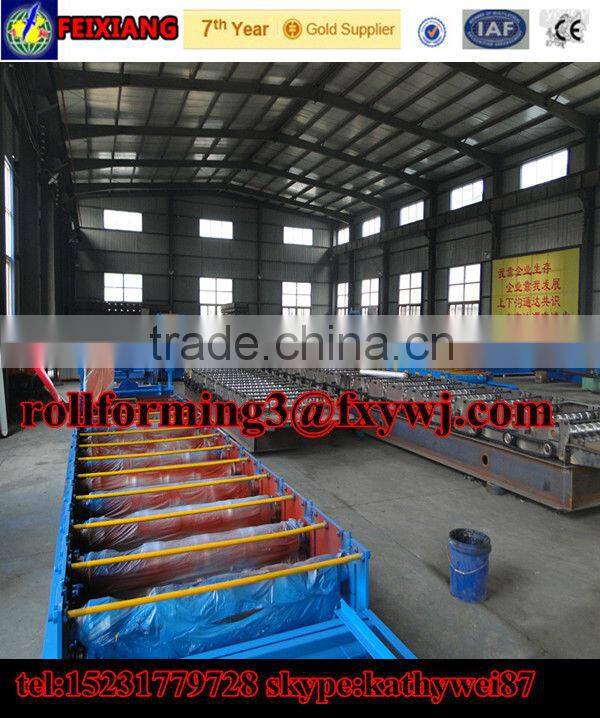

Company profile:directly manufacturer ,have two company( main company and branch company)
