Arch Plate Roll Forming Machine

Arch Plate Roll Forming Machine thumbnail-1
Arch Plate Roll Forming Machine photo-1
US$ 20,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
xingbo
Model Number:
c10
Contact Supplier Request Quote Chat Now
Hebei Feixiang Roll Forming Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
iso9001:2000
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name xingbo
Model Number c10

Specifications

1.Min order; 1set
2.Engineer can installing
3.Payment:T/T.LC



contact person kathy wei



file

1.1 Coil material  color steel,  galvanized steel





cess

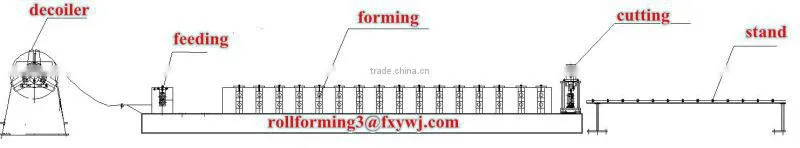

manual decoiler--feeding--forming---cutting--product stand

arch plate roll forming machine

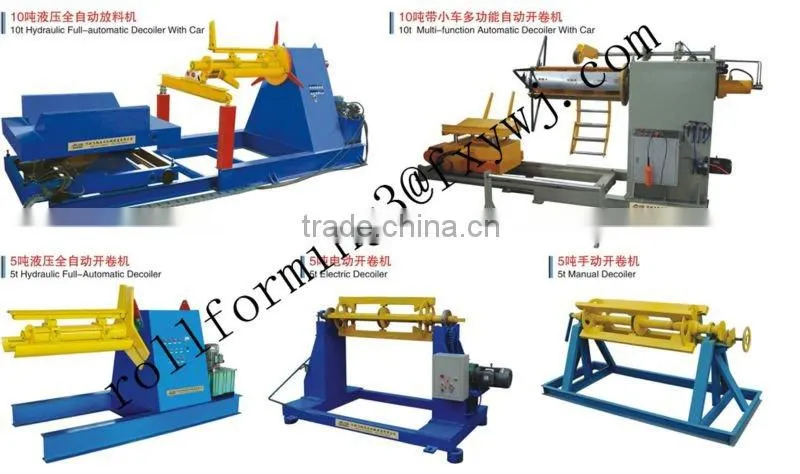

1) inner tight decoiler
A. Coil inner diameter  450mm-600
B. Max width of coiling 1200mm
C. Max weight of loading 5000kg

 arch plate roll forming machine


4.forming machine

1).Number of forming steps:9 sets

2).Material of shaft:45# steel. Outer diameter50mm

3).material of roller:45#steel

4).Main motor power:3kw

5).speed 6-10m/min

  arch plate roll forming machinearch plate roll forming machinearch plate roll forming machinearch plate roll forming machinearch plate roll forming machinearch plate roll forming machine



5.cutting system

1).Hydraulic cutter

2).Blade and mold material: Cr12 steel with quenched treated 60-62°C

3).Cutting system: advanced hydraulic drive, automatic cutting after forming,no distorting or wasting,high level safety factor.(main motor stop cutting)


6.PLC control

1).PLC:TaidaDVP14ESfrom Taiwan

2).Coder:ENC-1-1-1T-24 from South Korea

 arch plate roll forming machine

7.Hydraulic system

1).Advanced hydraulic system from Taiwan

2).Power: 3kw





arch plate roll forming machine
