Specifications
1,roofing sheet making machine2.precise
3.reliable
fessional
5,ISO.CE

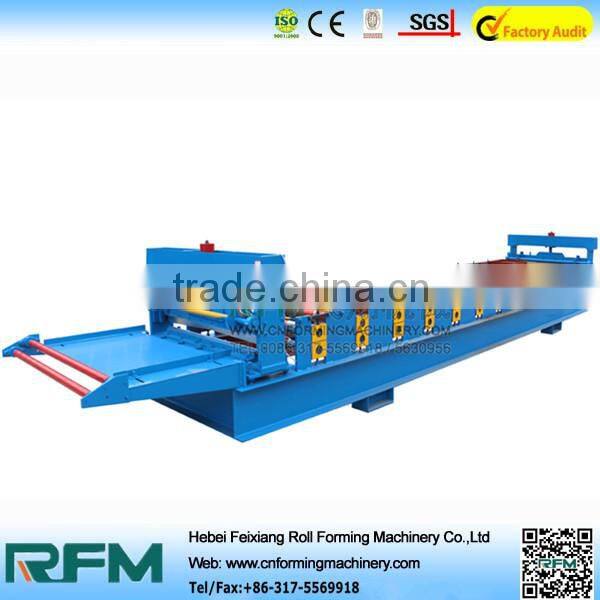

roofing sheet making machine

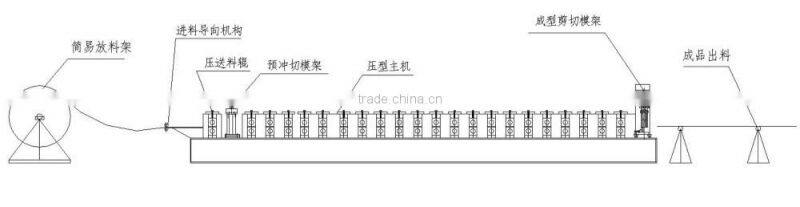

1.Processing flow diagram of roofing sheet making machine
Manual decoiler→Feeding material into machine→Roll forming machine→Measure length→Hydraulic cutting→Finished Products
2.Technical parameters of roofing sheet making machine
Model number |
FX-850 roofing sheet making machine |
Rolled material |
0.3-0.8mm thickness, aluminum sheet, galvanized sheet, colored steel sheet and various steel plates |
Effective width |
850mm |
Feeding width |
1000mm |
Forming steps |
13tations |
Roller |
45# forged steel, hard chrome plating within 0.05mm |
Diameter of shaft |
70mm |
Main motor power |
4 kw |
Pump power |
3 kw |
Sprocket chain |
1 inch |
Drive type |
by chain |
Cutting Blade |
Cr12, heat treatment 60-62°C |
Frequency Converter |
It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm). |
component |
1 set of manual decoiler,1 set of main roll forming machine,1 set of computer control cabinet,1 set of hydraulic System,1 set of cutting mechanism,1 set of counter,1 set of output table |
Payment terms |
cash,T/T,L/C. |
Delivery time |
30 working days |
Remark: Above parameters are standard, we can design and make some change exactly according to your requirements. If you need much details,pls contact us for the detail quotations.

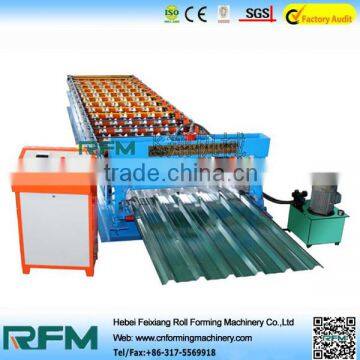

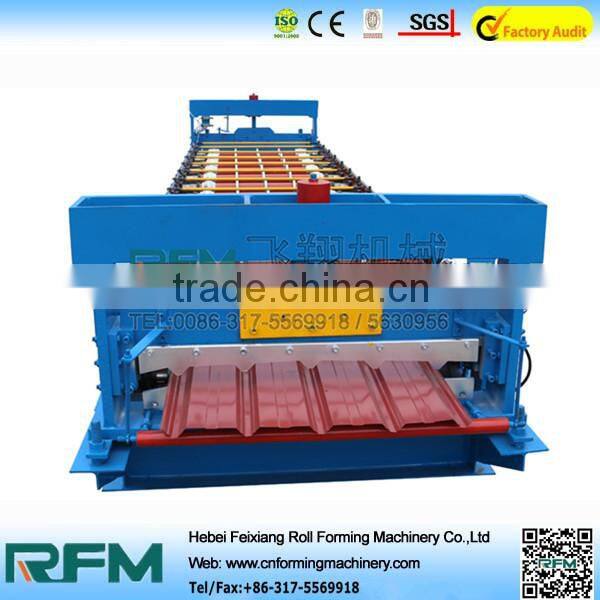

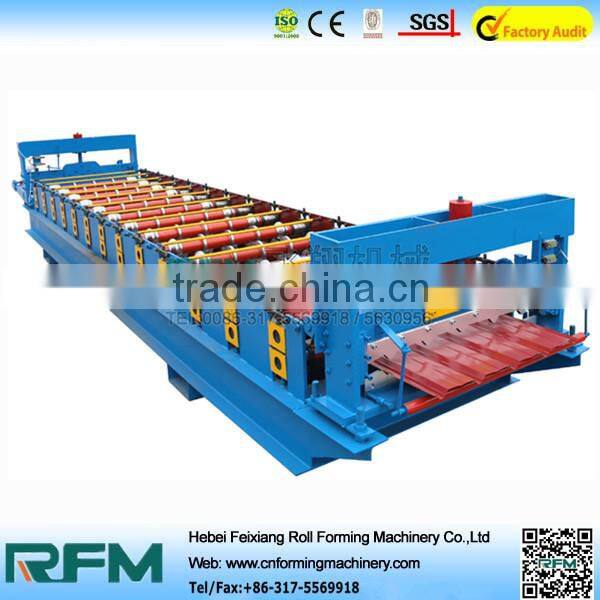

3.Profile and Real photos of roofing sheet making machine

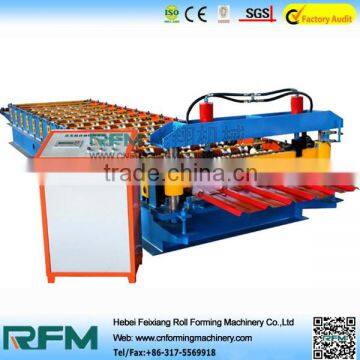

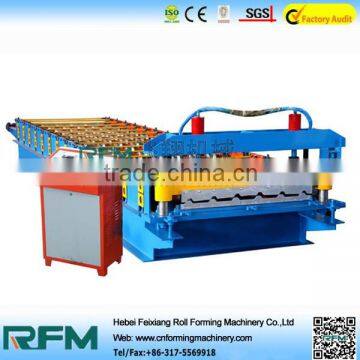

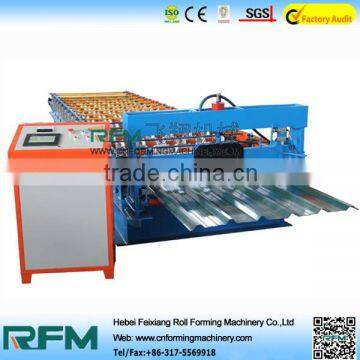

4.Details of the machine:
5.After-sales service
A: Warranty: One year ,and we will provide the technical support for the whole life. B: Training: the buyer should charge of visa, round-trip ticket, food and accommodation overseas and USD100/person/day for salary.
C: Need one technician. D: Training time: one week (contains the time of installation and adjustment)
6.Real Photos of Our Factory. Warmly Welcome to Come and Visit Our Company
7.Certifications for Our Company and Our Machines
8.if any needs or questions on roll forming machines, please feel free to contact me.
HOW TO ORDER:
-----------------------------------------------------------------------------------------------
1: How to place order
Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK
2: How to visit our company
Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
If any questions, you can call me mobile phone at any time:0086-18230070596
3: If you want to get more pictures or videos of the machines, I can send them to you by Email or Skype.
------------------------------------------------------------------------------------------------------------------
1. we can produce the special machine,send your drawing to us,we can design for you.
2. if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.
3. we provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.
The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of US100.
4. engineers available to service machinery overseas.
5. if you come to visit our factory,we can book the room for you, car pick up to send.
Thanks for visiting our products, if you have interest, pls leave your message, or you can contact us, special design is available!
The real data, the most professional foreign trade team, your best trustable partner.
------------------------------------------------------------------------------------------------------------------
A:- What service can you provide before order?
- About the pre-sale service. We provide you answers of all your questions on our machines, such as technical parameter, price, payment terms, ect. If you wanna visit our factory and check the machines, we also can send you invitation letter and give you our warmest welcome.
B:- Can you finish the machine during the delivery time?
- We will finish the machine in time according to determined lead time.
C:- Can you provide some spare parts?
- Yes, of course. The quick-wear parts are sent to you together with the machine.
D:- What is the after- sale service?
- About the after-sales service. We can send technician to your country to fix the machine. The buyer should bear all the cost including: visa, Roundtrip ticket and suitable accommodation, also buyer should pay the salary 100USD/day.
The warranty is one year. and we will provide the technical support for the whole life. It is free to maintain the machine the first year after buying, including changing the main components. The first year hence, you will pay for our technician $100 per day to maintain the machine. And the components are not free, if you need to get it from us.
E:- Any other service?
- We can manufacture, design, installation and debug various roll forming machines including standard and customized machines.
It is free to assemble machine and train your works, but the buyer should pay for the round-trip airplane ticket, and arrange accommodation during that time.
F:- Can you accept OEM?
- We can accept OEM.
G:- Any certification:
- Yes, we have CE TUV BV certification.
