Hebei Feixiang Roof Panel Cold Roll Forming Machine

Name: Hebei Feixiang Roof Panel Cold Roll Forming Machine
Brand: xingbo cold roll forming machine
SKU: 123480913

US$ 8,500 - 15,600 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Tile Forming Machine

Tile Type:

Colored Steel

Hebei Feixiang Roll Forming Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

tianjin newport

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Tile Forming Machine

Tile Type Colored Steel

Use Roof

Production Capacity 10m/min

Place of Origin Hebei, China

Brand Name xingbo cold roll forming machine

Model Number 1000 cold roll forming machine

Power(W) 4kw

Voltage 380v/50hz/3p

Weight 5t

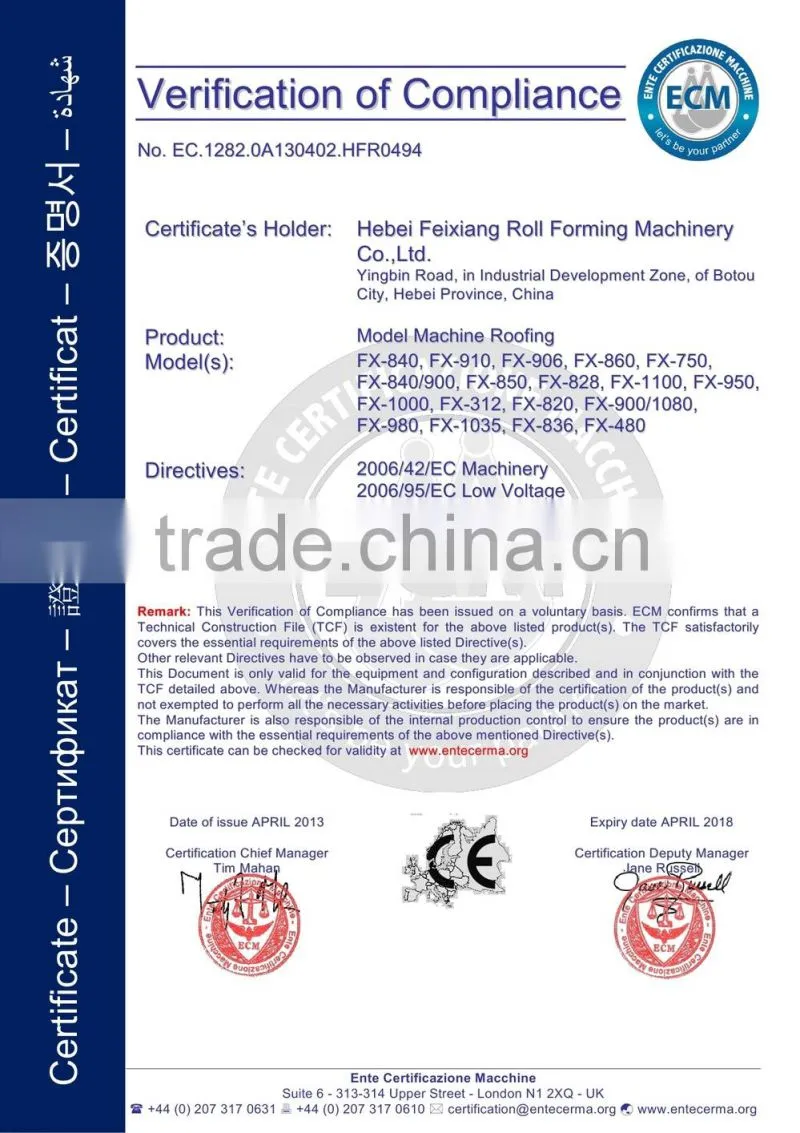

Certification ISO9001:2000

Warranty 12months

After-sales Service Provided Engineers available to service machinery overseas

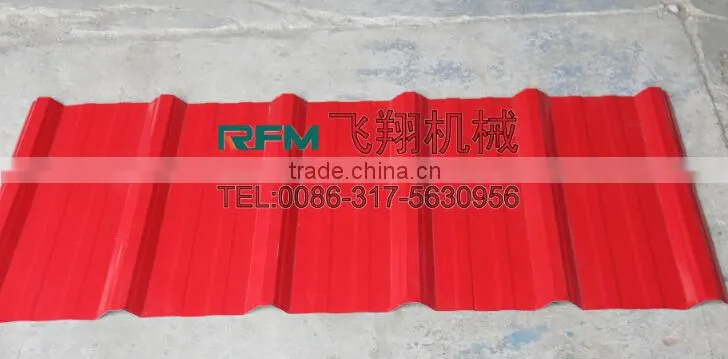

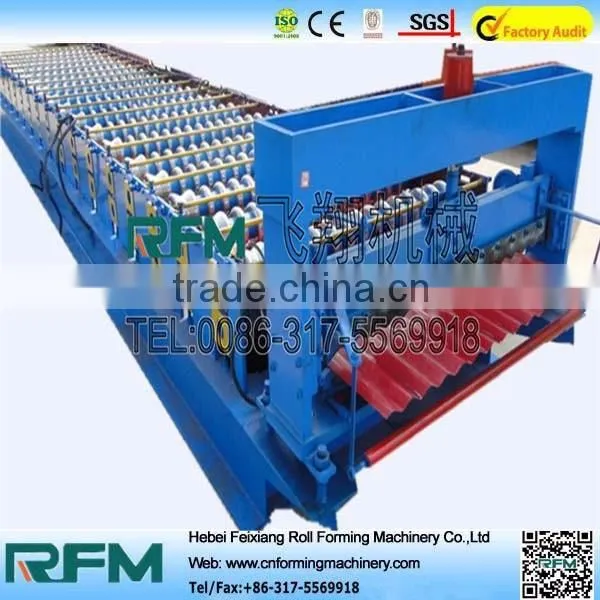

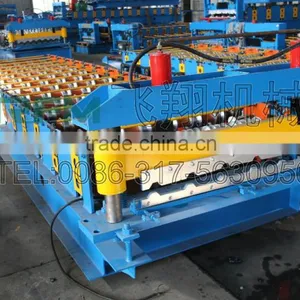

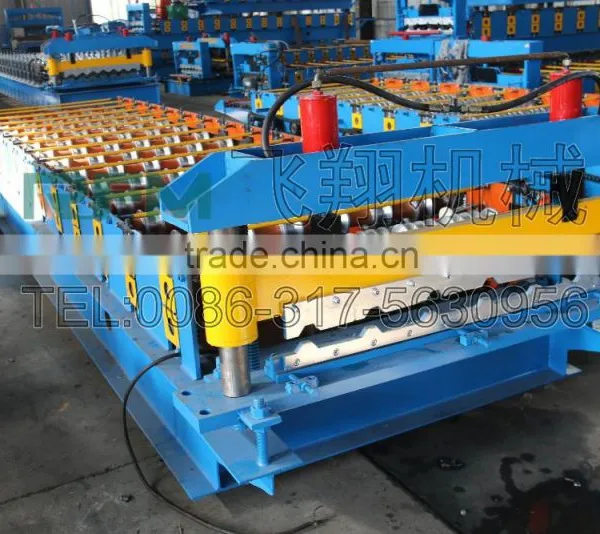

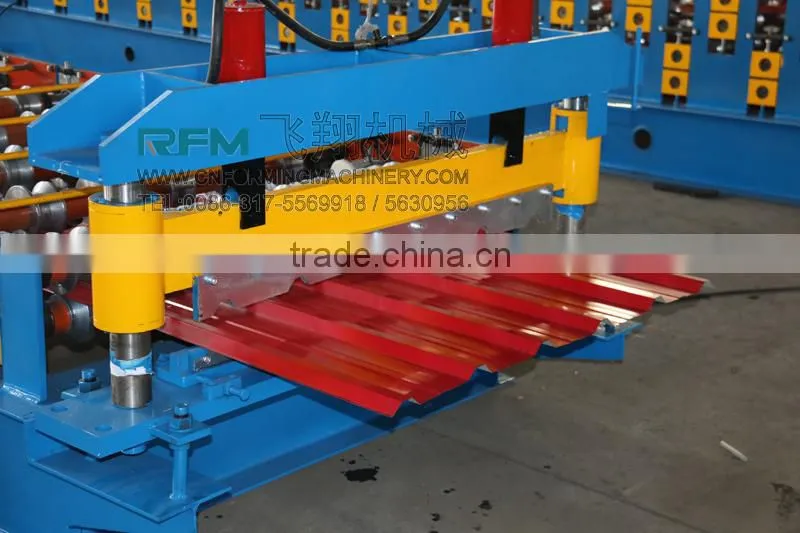

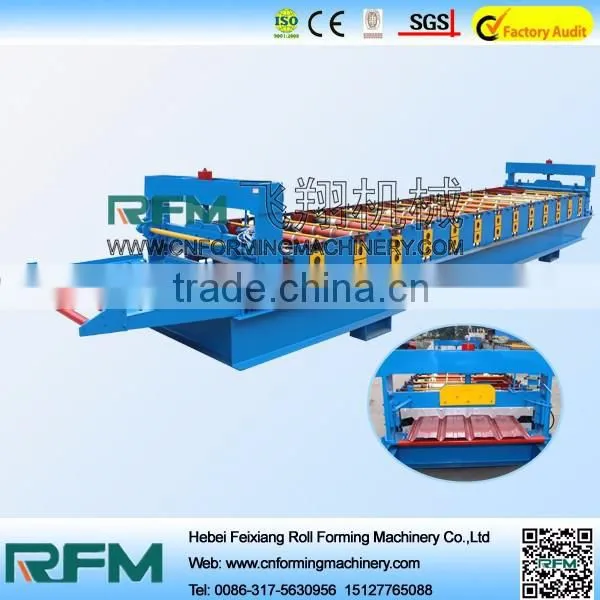

1000 roof panel cold roll forming machine

Product Description

1.The chart of process flow:

Decoiling--active feeding---forming---measuring lengh---punching---cutting---product to stand

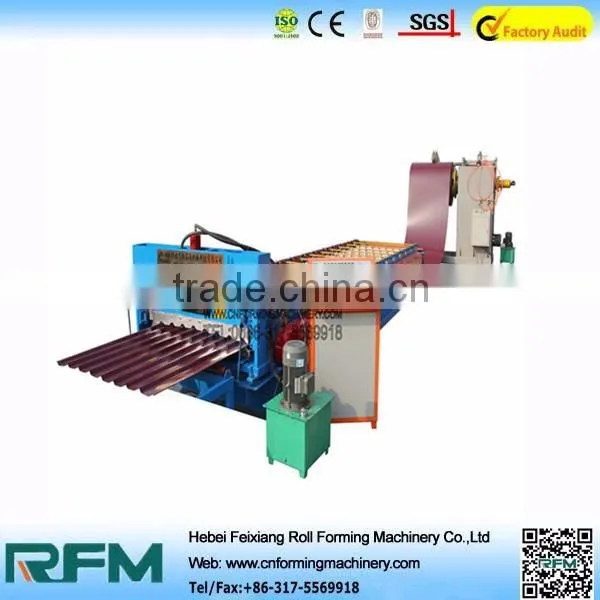

2.Main equipment:

Decoiler,main forming machine,hydraulic cutting,electric system(plc),hydraulic system,product stand.

automatic metal house roof machinery Description	Introduction
Working efficiency	8-12m/min
Thickness of Material	0.3--0.8mm (can be changed according to customers need)
Width of material	914mm;940mm;1000mm;1200mm;1220mm;1250mm According to customers need

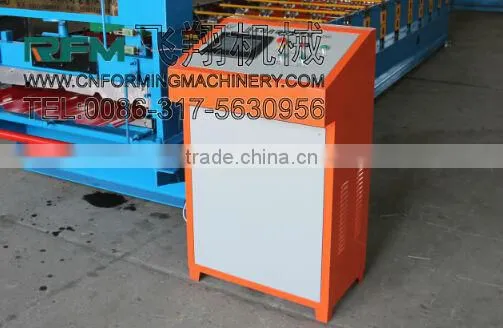

Control system	PLC(The brand can be choose)
Uncoiler system	5Ton Manual Operation(1250mm width)

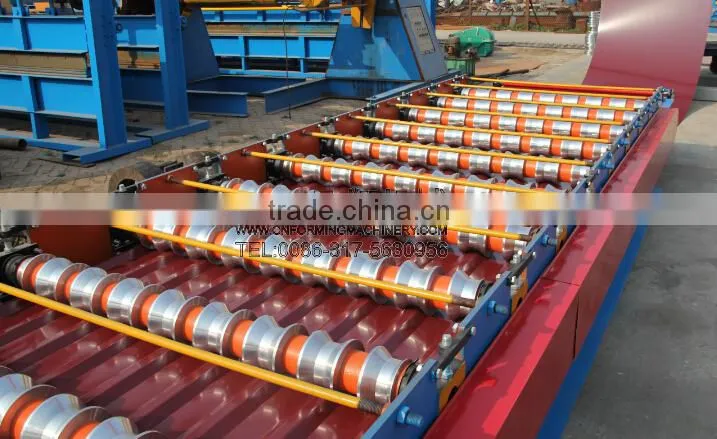

Forming by rolling	13 rows (According to the machine design)
Roller material	GCR15 Aluminium processing after quenchin HRC58-62°C,Chrome plated
Shaft and the diameter of axle	45#Aluminium-processing ,diameter of axle=80mm
Main part power	5.5kw

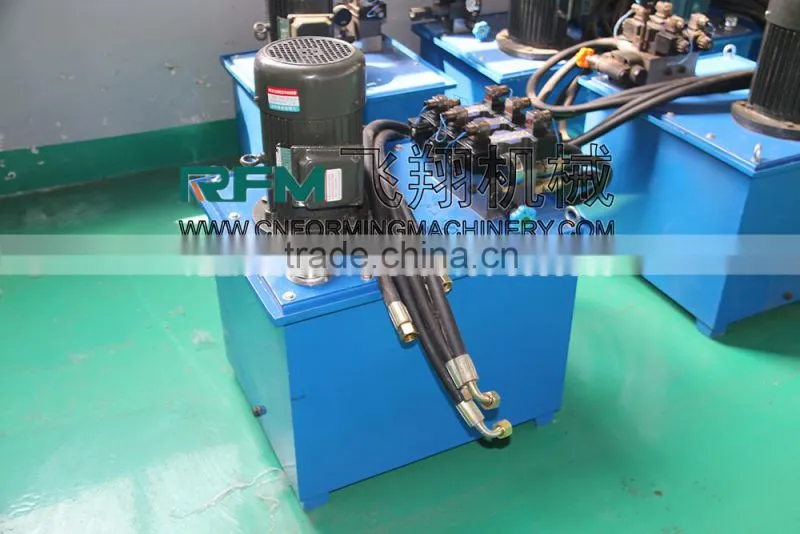

Hydraulic motor power	4kw
Hydraulic pressure	12Mpa
Scissor material	Cr12Mov, herd steel HRC 58-62°C
length tolerance	±1.5mm
voltage	380V, 50HZ,3 phase (adjustable by customer needs)
Frame form	Middle plate
Driving Method	Chain
Color	Yellow and blue(adjustable)
Size	lengthWidthHeight - 8.21.651.5m
weight	about 5.0T

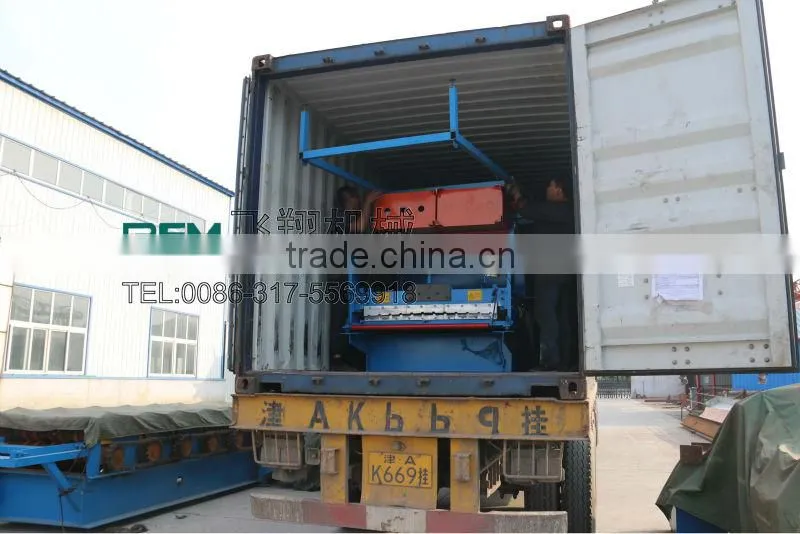

Package	Nude package in 1*20GP container
Delivery date	30 working days
Payment Method	30% T/T in advance and balance 70% after inspection confirmation before shipment.
If you have your own drawing, please send it to us, we can design the machine, depend on your drawing.
