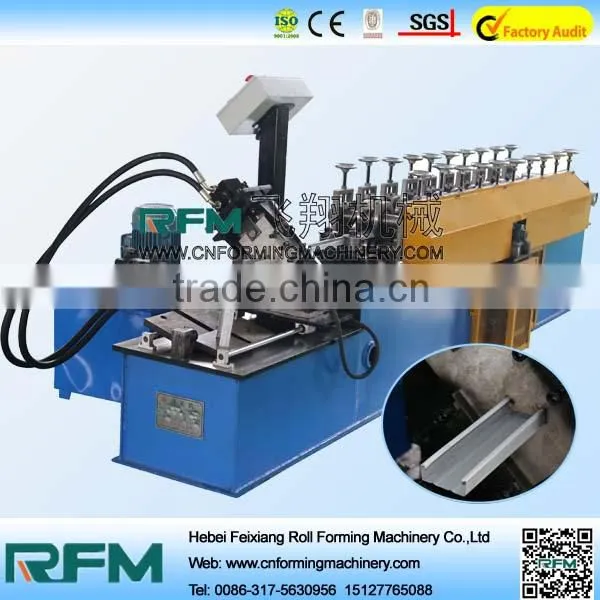

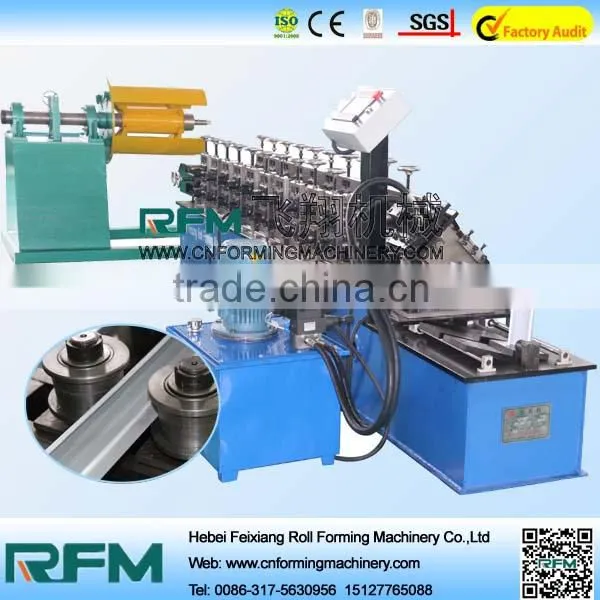

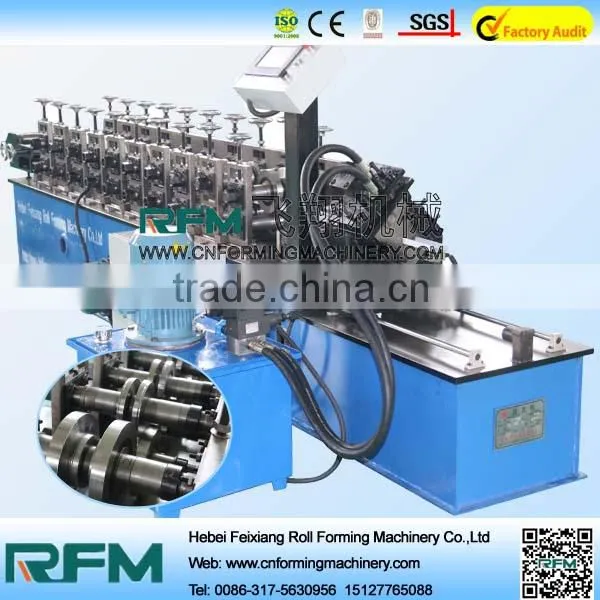

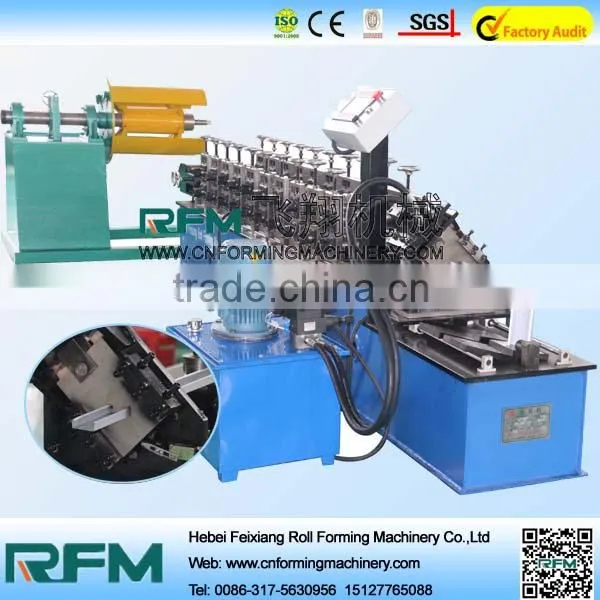

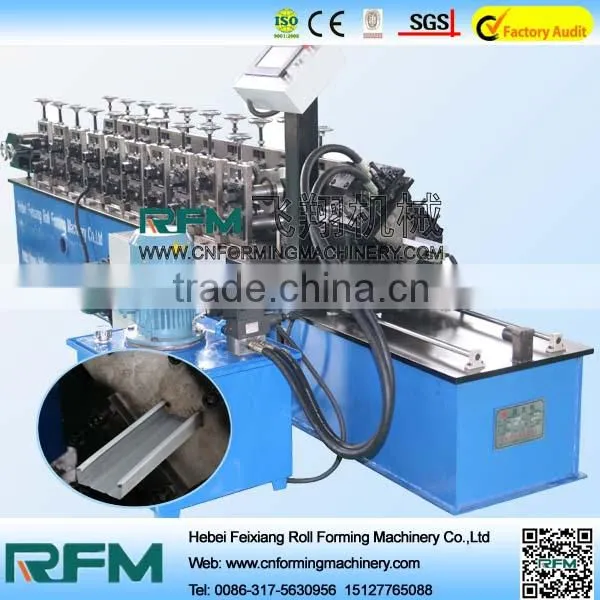

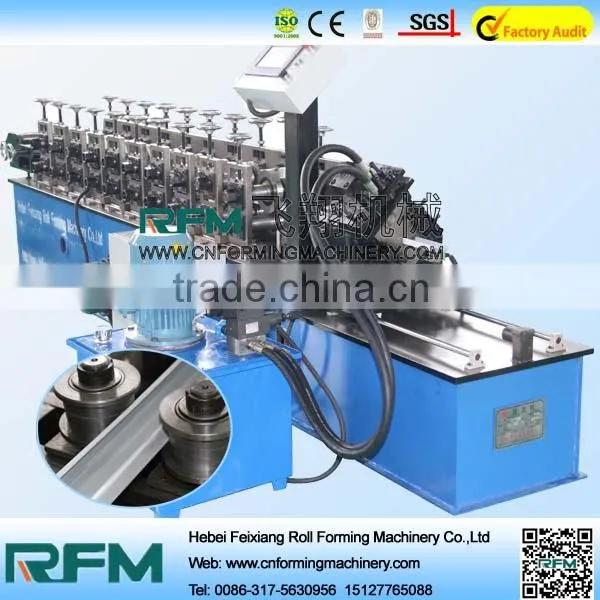

China manufacturer light keel forming machinery
Features
light keel forming machinery
• Easy operate with high production capacity
• Carriage with hardened gear or chain
• Magnetic linear encoder for direct measuring
• Precision length and width control
• Motor brake for secure positioning
light keel forming machinery
Products made by this machine can be fixed on the device which is specially used for keels, they can tear
down individually.And they are suitable to used as building decorations, especially suitable
to used in bedroom, kitchen, washroom, corridor and so on.
Working flow chart:
Manual Material Uncoiler---Feeding Platform---Main Roll Forming Machine---Computer Control Box---Hydraulic Station---Automatic Cutting System---Finished Products Receving Table
light keel forming machinery | |
Equipment operation |
Automatically |
Voltage |
380V,50/60Hz |
Thickness of material sheet |
0.3--1.5mm(normally) |
Width of material sheet |
As drawing |
Control system |
By PLC(imported brand) |
Cutting method |
Hydraulic cutting |
Material of roller station |
Gcr12 with heat treatment |
Formed width |
As drawing |
Working speed |
25m/min |
Length of finished product |
set in computer, machine will cut automatically |
Transmission type |
gears |
You request,My responsibility
Quality Control:
a. strict quality checking system
b. Professional test skill
c. full check no matter raw material or the entire machine
Packaging standards :
For light keel forming machinery
1. rollers are put on anti-rust oil and packed by bubble wraps; some other electric parts are packed by bubble wraps as well;
2. the oil hose and electric wires ae marked, and easy to be connected when used;
3.in container loading, sea-worthy, well fixed by wire rope, wooden block and nails.
HE BEI FEIXIANG ROLL FORMING MACHINERYCO,LTD;
a. Two decades professional cold steel forming equipments manufacturer
b. One comapny with two factory,about 30000 square meter,more than 100 employees
c. National GB/T,CE,ISO9001:2008 Certificates
d. Built business relationship with customers from more than 65 countries and areas
