Automatic floor deck Making Machine/full automatic making machine for floor tile
Advantages:
automatic floor deck Making Machine/full automatic making machine for floor tile
♥ As a manufacturer we are specialized in all kinds of roll forming machine.
♥ Good experience of 20 years to make roll forming machine.
♥ High ruputation for export more then 45 countries.
♥ Provide best price,good quality and fast delivery.

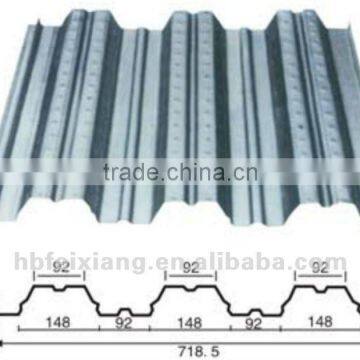

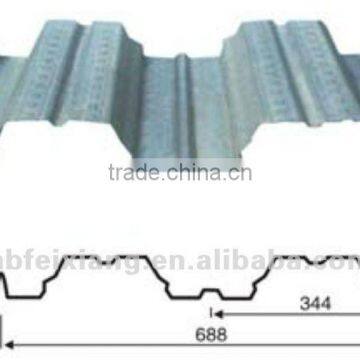

1.Material and Profile :
| Type | GI,PPGI | THICKNESS O.6-1.5MM |
| Covered Width | 600mm | margin of error ±2mm |
| Wave Height | 50mm | margin of error ±1mm |
| Pitch Width | 200mm | margin of error ±1mm |
2.Components and working process :
| Decoiler | 1set | Manual or Full-Automatic,5-15T |
| Main Forming Device | 1set | With motor power 16kw,column or middle plate style |
| Control System | 1set | 5.7inch touch screen ,delta plc |
| Cutting Device | 1set | SKD11 Cutting blade with 7.5kw hydraulic pump |
| Output Table | 1pcs | as request |

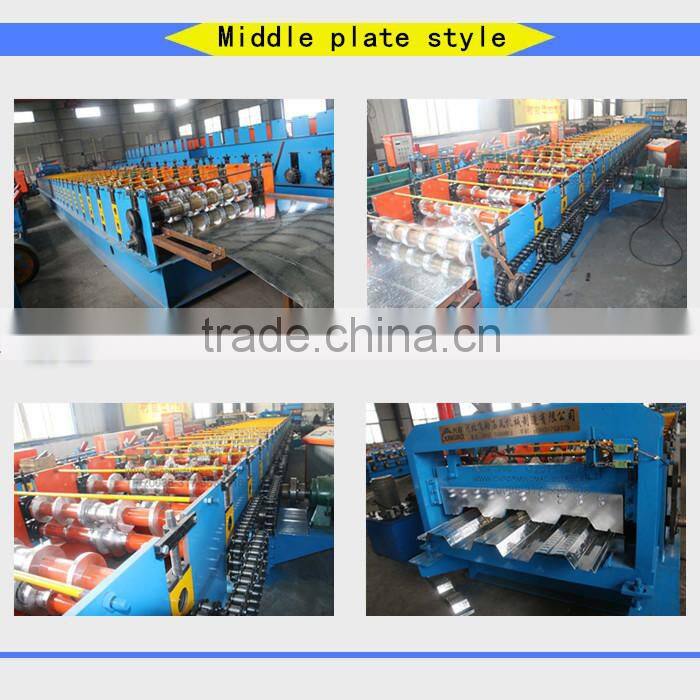

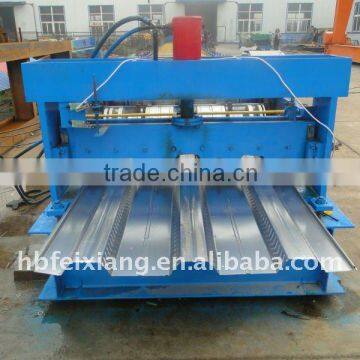

3.Detail picture :

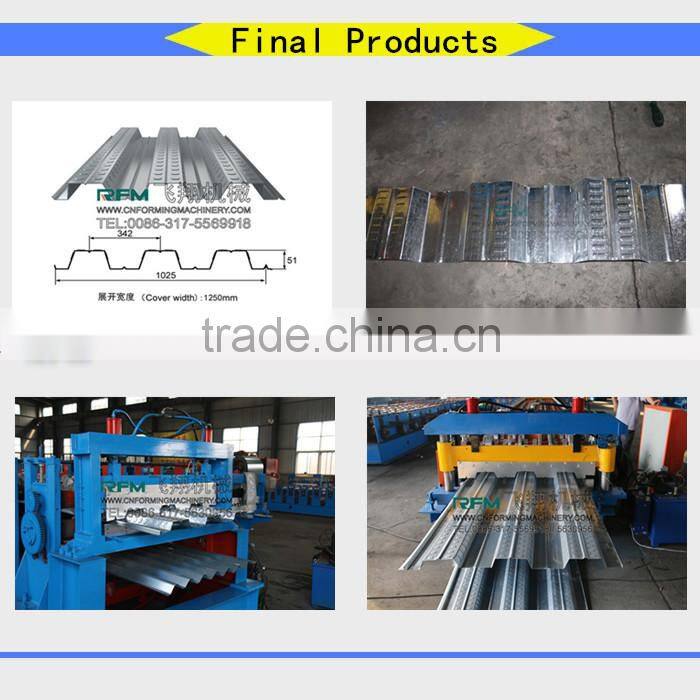

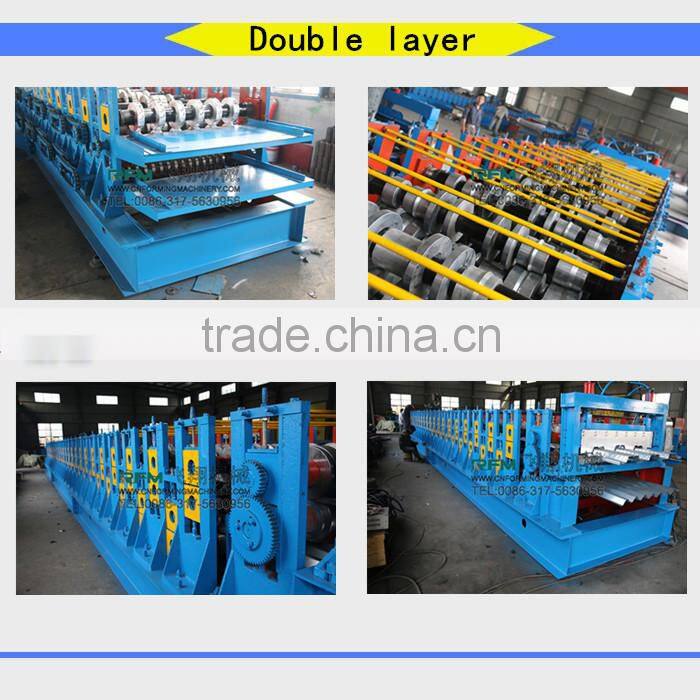

You can choose various type of floor decking seet machine as below
4.Note for use and maintenance
FX steel floor decking tile production line
1),before use,you must check whether all connections are steady,whether bolts and nuts are tightinstallation.when start the machine,you must make sure there are enough lubrication oil in the case.
2),when start the machine commissioning,the machine should run idle,then check it carefully such as noise,vibration and whether the oil window works smoothly,whether every parts movement coordination.
3),You must cut off power when install the mould,move the motor belt and big gear by hand,turn the workbench and make sure the slide up to the highest point.
4),It's better to arrange a support between workbench and slide bottom,just in case dropping and accident happens.
View of HEBEI FEIXIANG::
HEBEI FEIXIANG ROLL FORMING MACHINERY CO.,LTD :
a. Two decades professional cold steel forming equipments manufacturer
b. One comapny with two factory,about 30000 square meter,more than 100 employees
c. National GB/T,CE,ISO9001:2008 Certificates
d. Built business relationship with customers from more than 65 countries and areas
We will arrangethe shipment within 45 working days
Warranty:
One year, and we will provide the technical support for the whole life.
Welcome to our factory,pls contact me
For C purlin roll forming machine,pls click here;
For keel roll forming machine,pls click here;
