GPON EPON PON System 1x8 LGX PLC Splitter Box With SC/APC Connector
- Shenzhen
- T/T Credit Card PayPal
You May Like
-
Manufacturer 1x8 Mini Module Fiber Optical Splitter/1x8 PLC Splitter
-
1x2 1XN, SM MM OM3 Fiber Coupler/FBT Coupler
-
1x2 Singlemode Fiber Optical Coupler
-
3x3 Coupler Module/4x4 Coupler Module/ Optical Couplers
-
FTTH 12F 24F OM3 MPO Cassette MTP Cassette
-
1KM 2KM 5KM 10KM 20KM 40KM Corning Bare Fiber Cable Reel for Test With SC Connector on Both Ends
Product Details
| Place of Origin | Guangdong, China | Brand Name | OEM | |
| Model Number | 1x8 LGX PLC Splitter Box |
Product Description
GPON EPON PON System 1x8 LGX PLC Splitter Box with SC/APC Connector
GPON EPON PON System 1x8 LGX PLC Splitter Box with SC/APC Connector manufactured by ANC International Co., Limited is available in a wide array of coupling and connector options. Offering multiple front panel connector options allow for easy connectivity to a wide array of equipment. Low insertion loss, high directivity, and good uniformity are all features of these high quality products. This PLC Splitter is widely used in PON networks to realize optical signal power splitting. ANC provides whole series of 1xN and 2xN PLC splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.
Specification
Variety of coupling ratios (1x2, 1x4, 1x8, 1x16, 1x32, 1x64, 2x16, 2x32 etc.)
High reliability and stability
Built to customer specification
SC, LC, FC, ST connector options
Compatible with LGX rack mount chassis
Features
Low Insertion Loss
Excellent Uniformity
Bi-Directional
Variety of Split Ratios Available
Usage
Telecommunications networks
CATV networks
Local Area Networks (LAN)
Passive Optical Networks (PON)
WDM and CWDM
Technical Data
Parameters | 1x2 | 2x2 | 1x4 | 2x4 | 1x8 | 2x8 | 1x16 | 2x16 | 1x32 | 2x32 | 1x64 | 2x64 | ||
Wavelength (nm) | 1260~1650nm | |||||||||||||
IL(dB) (P/S Grade) | 3.8/4.0 | 4.1/4.3 | 7.1/7.3 | 7.4/7.6 | 10.2/10.5 | 10.8/11.0 | 13.5/13.7 | 14.3/14.5 | 16.5/16.9 | 17.3/17.5 | 20.5/21.0 | 20.7/21.5 | ||
Loss Uniformity (dB) | 0.6 | 0.8 | 0.6 | 0.8 | 0.8 | 1.5 | 1.2 | 2.0 | 1.5 | 2.5 | 2.5 | 2.5 | ||
RL(dB) (P/S Grade) | 55/50 | |||||||||||||
Polarization Dependent Loss (dB) | 0.15 | 0.2 | 0.15 | 0.2 | 0.25 | 0.3 | 0.3 | 0.4 | 0.3 | 0.4 | 0.3 | 0.4 | ||
Directivity (dB) | 55 | |||||||||||||
Standard Output Color | Blue, Orange, Green, Brown, Grey, White, Red, Black (TIA/EIA 598-B) | |||||||||||||
Max. Optical Power (mw) | 300 | |||||||||||||
Operating Temperature (℃) | -40~85 | |||||||||||||
Storage Temperature (℃) | -40~85 | |||||||||||||
Mini-Module Dimension (LxWxH) mm | 50x4x4 | 60x7x4 | 60x12x4 | 80x20x6 | 100x40x6 | |||||||||
1. 2000 square meters production line for PLC Splitters and FWDM CWDM DWDM OADM products;
2. 100% factory test before shipping
3. 10 years experience at OEM & ODM production;
4. Professional sales
5. Fast response and delivery
6. Quality Guarantee: Lifetime;
7. Customized laser printing on steel tube and 19" rack is optional;

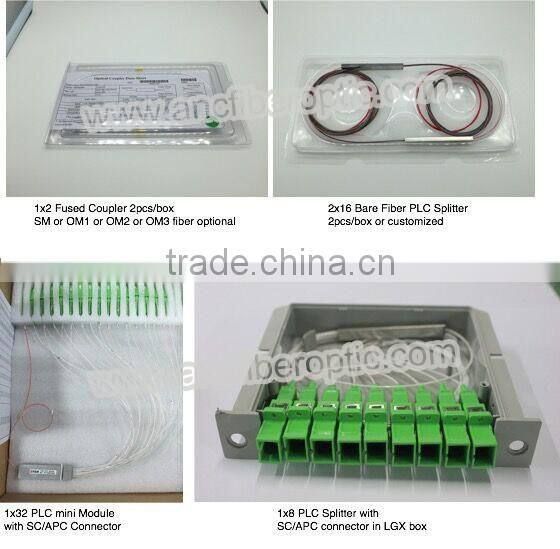

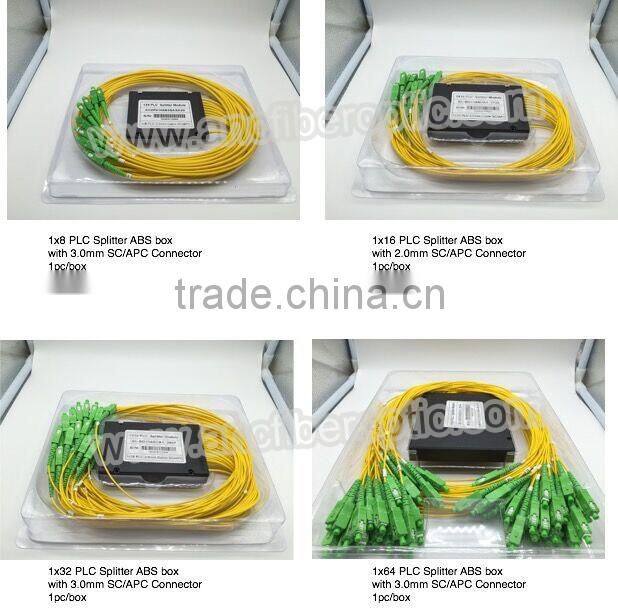

ANC produces and sells high quality GPON EPON PON System 1x8 LGX PLC Splitter Box with SC/APC Connector and other 1x2, 2x2, 1x4, 2x4, 1x8, 2x8, 1x16, 2x16, 1x24, 1x32, 2x32, 1x48, 1x64, 2x64 PLC splitters in bare fiber, mini module, ABS box, LGX box and 19" 1U rack packing.
ANC PLC & WDM Product Production Area

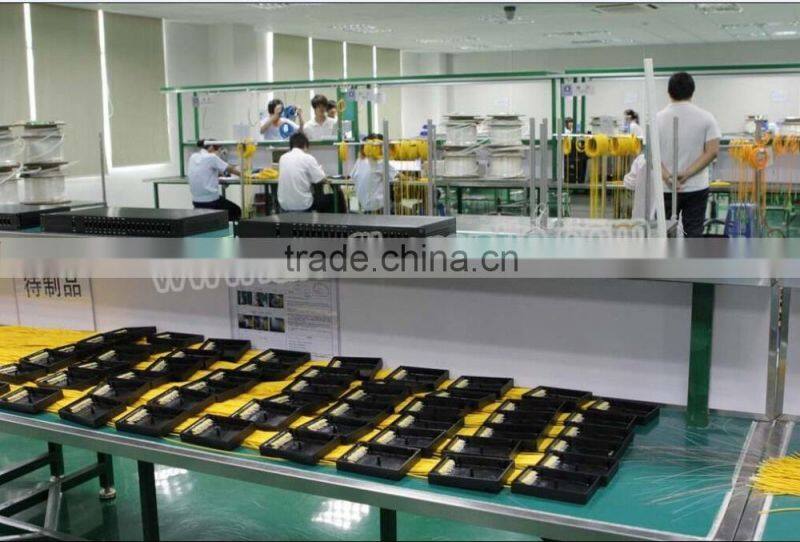

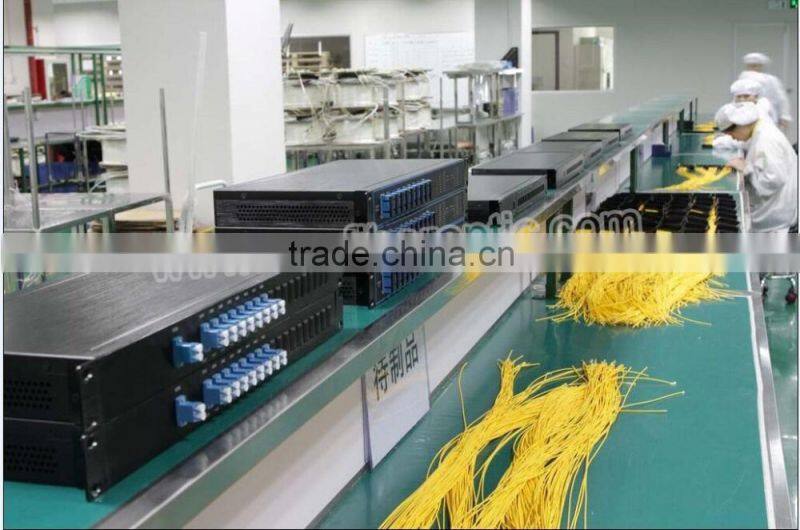

ANC Assembly Line

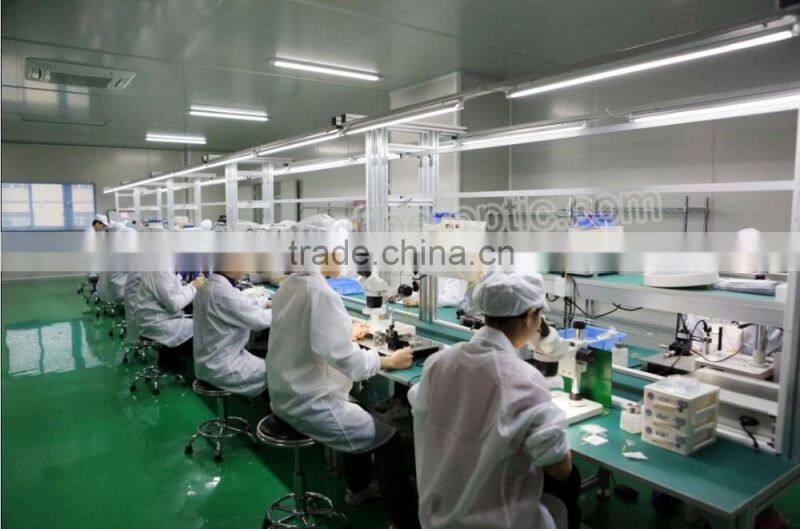

Alignment

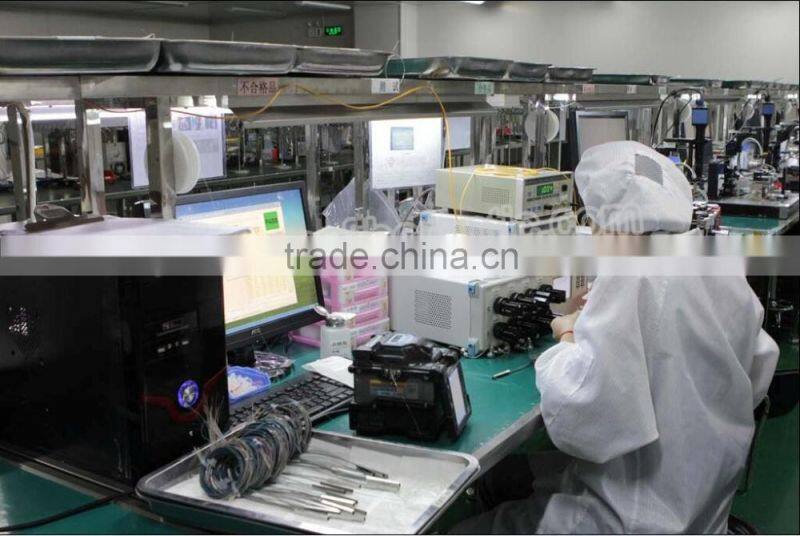

ANC Testing

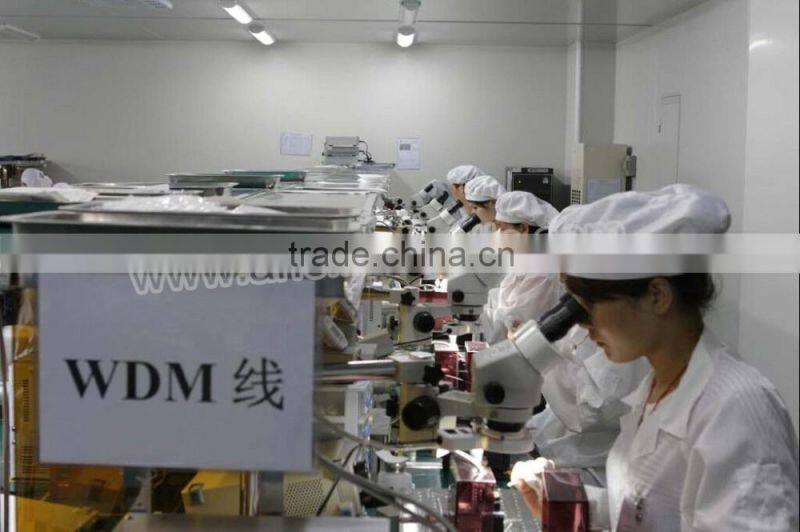

ANC WDM Line
