Product Details
Place of Origin: | Guangdong, China | Brand Name: | OEM | Model Number: | 1x8 Bare Fiber Optical Splitter |
Product Description

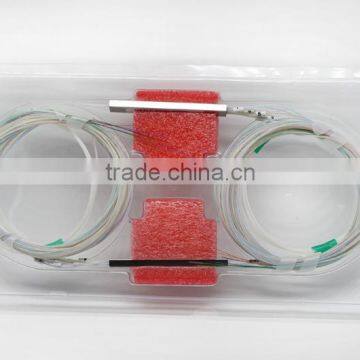

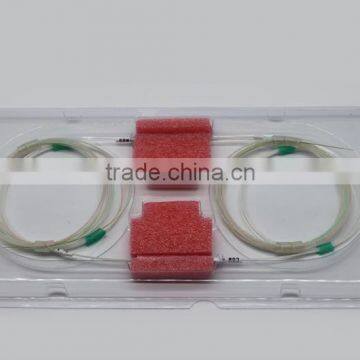

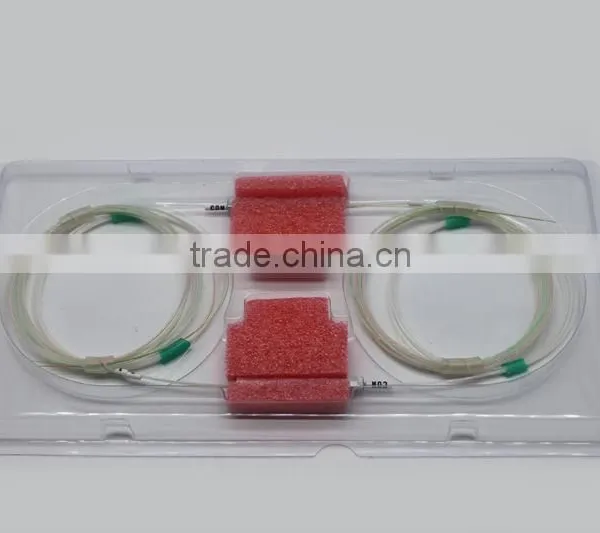

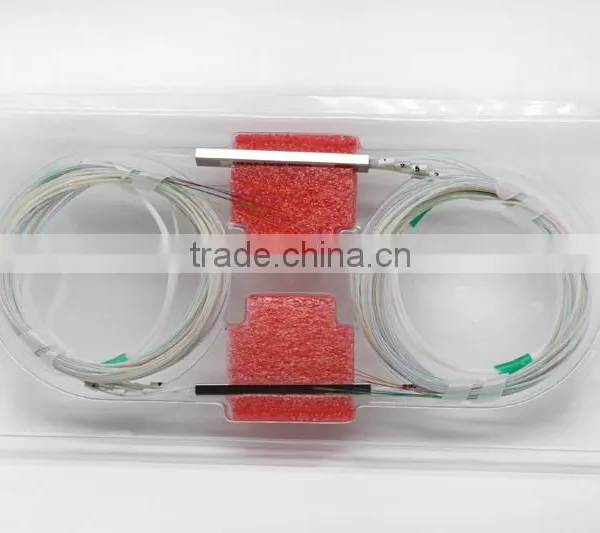

Manufacturer 1x8 Mini Module Fiber Optical Splitter/1x8 PLC Splitter
1x8 Mini Module Fiber Optical Splitter/1x8 PLC Splitter manufactured by ANC International Co., Limited has high quality performance, such as low insertion loss, low PDL, high return loss and excellent uniformity over a wide wavelength range from 1260 nm to 1650 nm, and work in temperature from -40ºC to +85ºC. The PLC Splitters have 1x2, 1x4, 1x8, 1x16, 1x32 and 1x64 standard configurations, as well as customized structures of 2x2, 2x4, to 2x64. These products meet or exceed Telcordia GR-1209-CORE and GR-1221-CORE reliability qualification requirement.
Specification
Low Insertion Loss and low PDL
High channel number
High reliability
Wide operation temperature range and wavelength range
Full Telcordia GR1209/1221 qualifications
Features
Compact size
RoHS compliant
Usage
FTTx Systems
Optical LAN, Metro, WAN networks
Passive optical networks
CATV networks
Technical Data
Parameters | 1x2 | 2x2 | 1x4 | 2x4 | 1x8 | 2x8 | 1x16 | 2x16 | 1x32 | 2x32 | 1x64 | 2x64 | ||
Wavelength (nm) | 1260~1650nm | |||||||||||||
IL(dB) (P/S Grade) | 3.8/4.0 | 4.1/4.3 | 7.1/7.3 | 7.4/7.6 | 10.2/10.5 | 10.8/11.0 | 13.5/13.7 | 14.3/14.5 | 16.5/16.9 | 17.3/17.5 | 20.5/21.0 | 20.7/21.5 | ||
Loss Uniformity (dB) | 0.6 | 0.8 | 0.6 | 0.8 | 0.8 | 1.5 | 1.2 | 2.0 | 1.5 | 2.5 | 2.5 | 2.5 | ||
RL(dB) (P/S Grade) | 55/50 | |||||||||||||
Polarization Dependent Loss (dB) | 0.15 | 0.2 | 0.15 | 0.2 | 0.25 | 0.3 | 0.3 | 0.4 | 0.3 | 0.4 | 0.3 | 0.4 | ||
Directivity (dB) | 55 | |||||||||||||
Standard Output Color | Blue, Orange, Green, Brown, Grey, White, Red, Black (TIA/EIA 598-B) | |||||||||||||
Max. Optical Power (mw) | 300 | |||||||||||||
Operating Temperature (℃) | -40~85 | |||||||||||||
Storage Temperature (℃) | -40~85 | |||||||||||||
Mini-Module Dimension (LxWxH) mm | 50x4x4 | 60x7x4 | 60x12x4 | 80x20x6 | 100x40x6 |
1. 2000 square meters production line for PLC Splitters and FWDM CWDM DWDM OADM products;
2. 100% factory test before shipping
3. 10 years experience at OEM & ODM production;
4. Professional sales
5. Fast response and delivery
6. Quality Guarantee: Lifetime;
7. Customized laser printing on steel tube and 19" rack is optional;

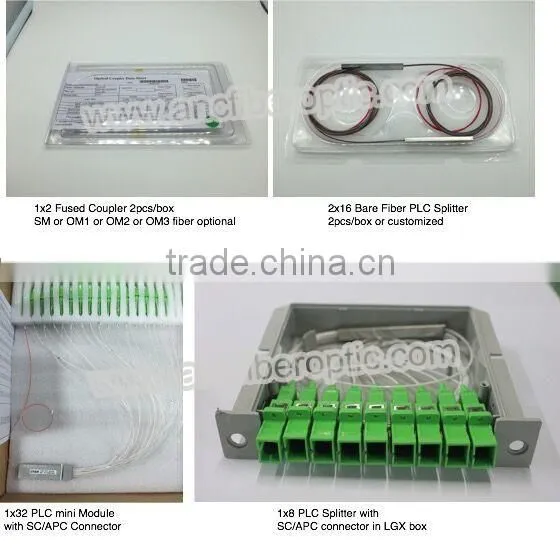

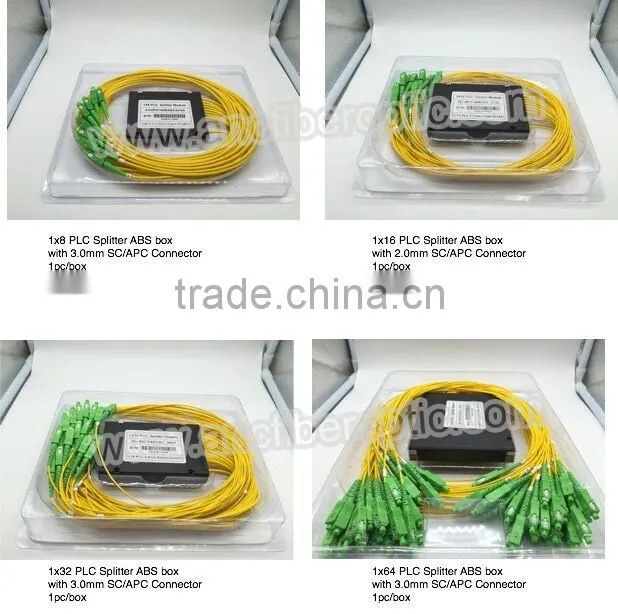

ANC produces and sells high quality 1x8 Mini Module Fiber Optical Splitter/1x8 PLC Splitter and other 1x2, 2x2, 1x4, 2x4, 1x8, 2x8, 1x16, 2x16, 1x24, 1x32, 2x32, 1x48, 1x64, 2x64 PLC splitters in bare fiber, mini module, ABS box, LGX box and 19" 1U rack packing. These PLC Splitters can be with or without connectors at customized label and packing.
PLC Monthly Capacity: 25,000pcs. Welcome your inquiry

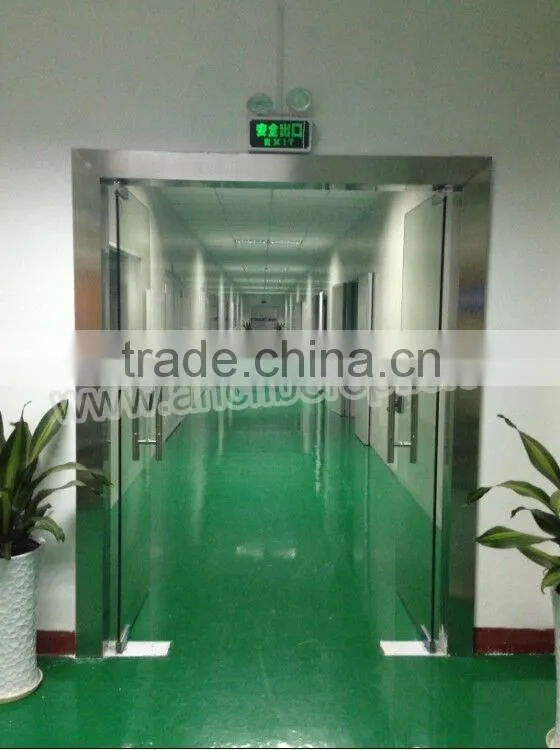

ANC PLC & WDM Product Production Area

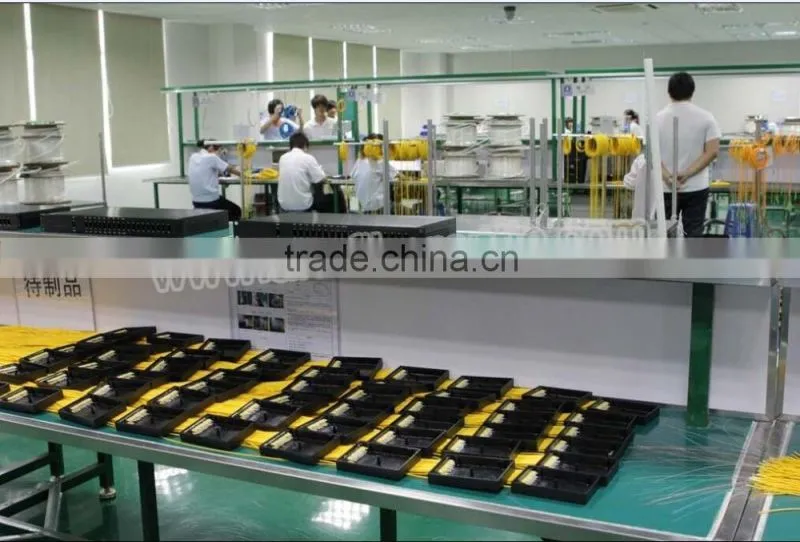

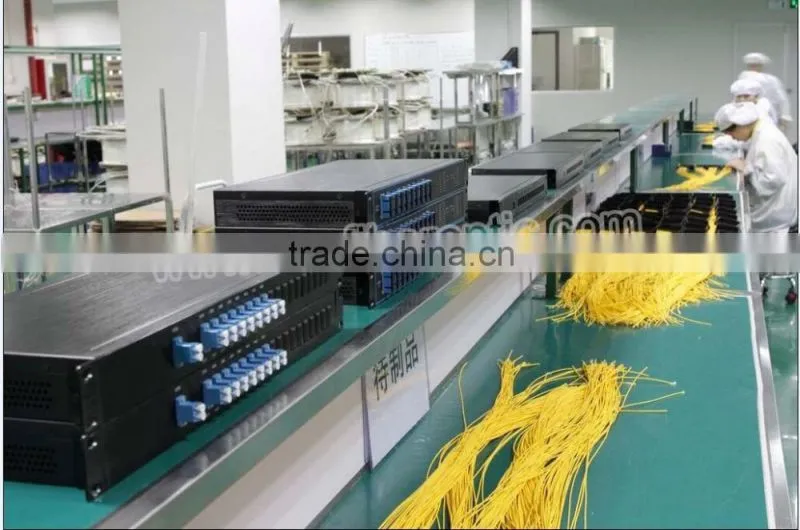

ANC Assembly Line

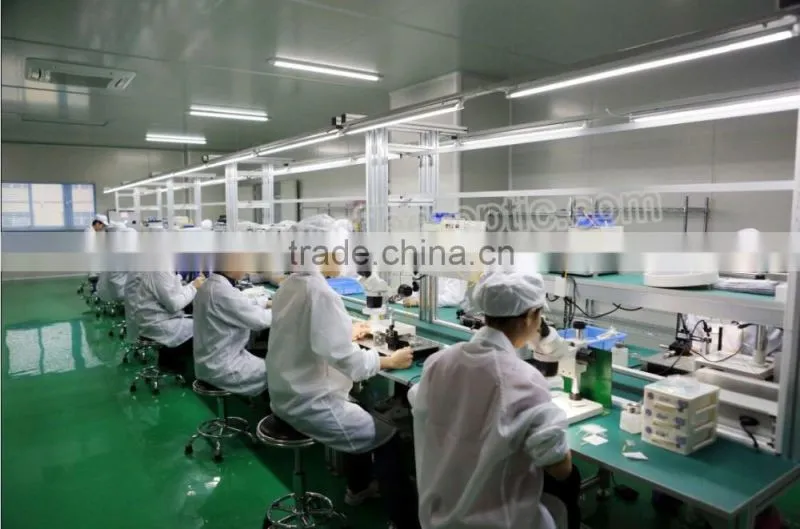

Alignment

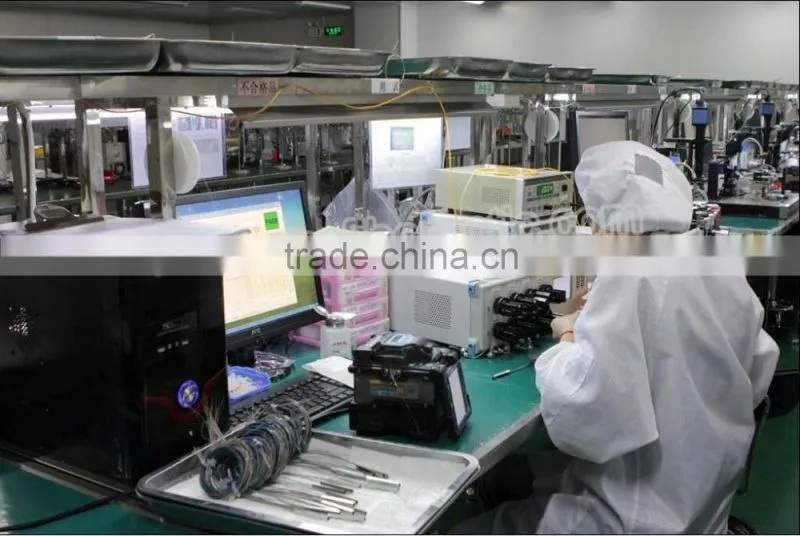

ANC Testing

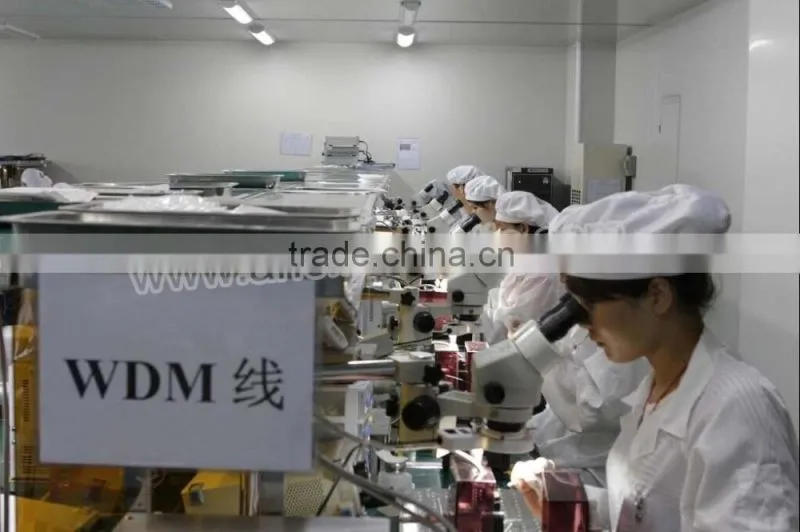

ANC WDM Line
