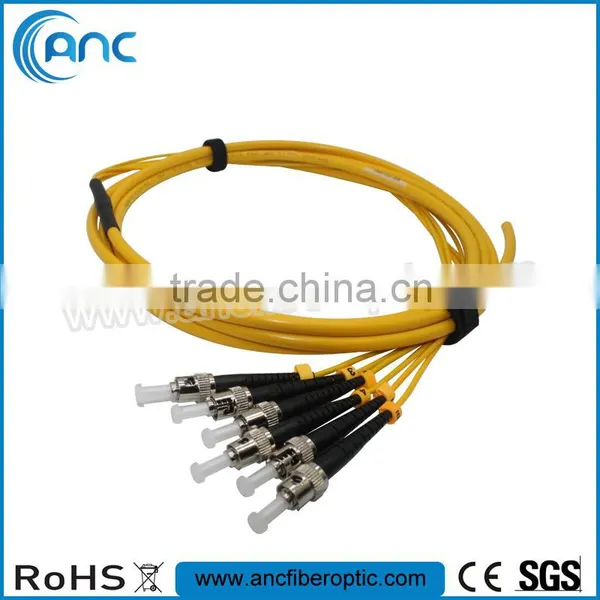

6 Core MM/SM mini breakout optical fiber pigtail with 2.0mm ST
6 Core MM/SM mini breakout optical fiber pigtail with 2.0mm ST pigtail manufactured by ANC International Co., Limited meets RoHS compliant, and 100% optically tested for insertion loss before shipment, this is very cost-effective for your network cabling, and can be used for longer runs than multimode because they have more resistance to attenuation.
The multifiber cables, provided by ANC, refer to the 4, 6, 8, 12, 24 and 48 cores. We also provide a full set of OEM service, such as fiber, connector, length, color, fiber grade, specification, material, package etc.
Specification
4, 6, 8 and 12-fiber count available
Save duct space and installation time
900um, or 2mm fan-out tube
Jacketed ribbon cables, bare ribbons, or distribution cables
Features
Easy to use
RoHS compliant for all Fan-out fiber optic patch cord material
Usage
Telecommunication
Long haul networks
CATV networks
Building interconnections
Technical Data
Item |
Unit |
Value/ Performance |
|
Fiber Count |
- |
4, 6, 8 or 12 |
|
Cable Type |
- |
Bare ribbon, jacket ribbon or distribution cable |
|
Optical Performance |
- |
See corresponding patch cord data sheets |
|
Fan-out Diameter |
|
900um |
2mm |
Operating Temperature |
°C |
0 ~ +70°C |
-20 ~ +70°C |
Storage Temperature |
°C |
-5 ~ +70°C |
-40 ~ +70°C |
Tensile strength |
Kg |
>2.5kg |
>6.8kg |
1PC per bag
Customized packing
Shipping is within one week
ANC can produce customized fiber optic patch cords at high quality, fast delivery and good price. The patch cords include:
1. SC, LC, FC, ST, MU, MTRJ, D4, DIN Fiber Optic Patch Cord
2. E2000 Patch Cord
3. SMA Patch Cord
4. MPO/MTP Cable Assembly
5. ESCON, FDDI, LX.5 patch cord
6. Waterproof fiber optic patch cord
7. Armored Patch Cord
8. Multi fiber Breakout/Distribution/Mini Fan-out Patch Cord
9. Mode-conditioning Patch Cord
10. TOSA, ROSA receptable & Module Pigtail
